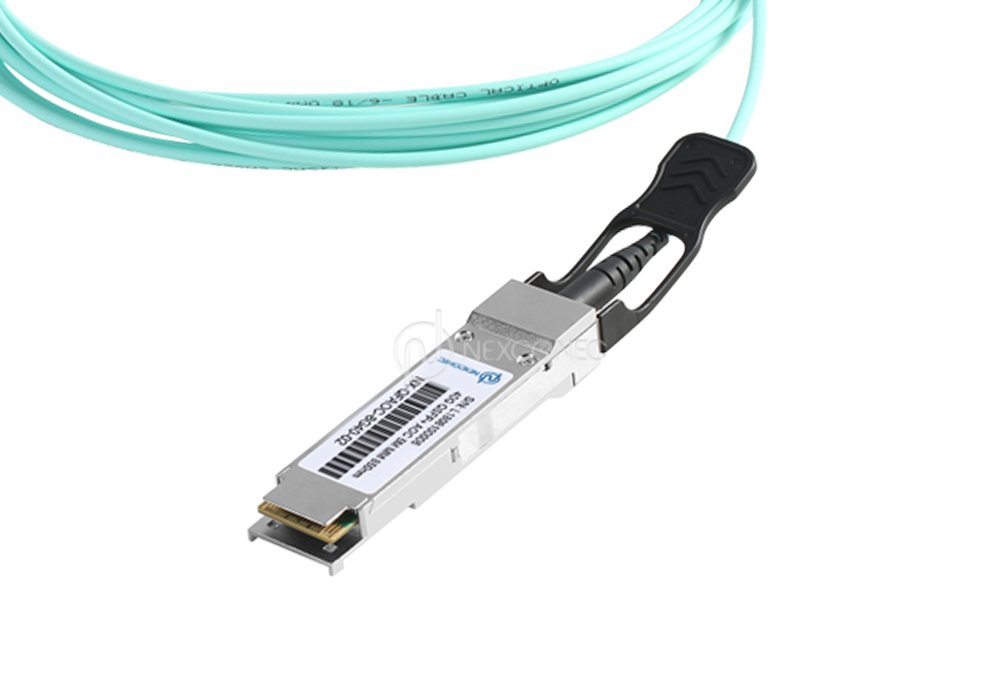

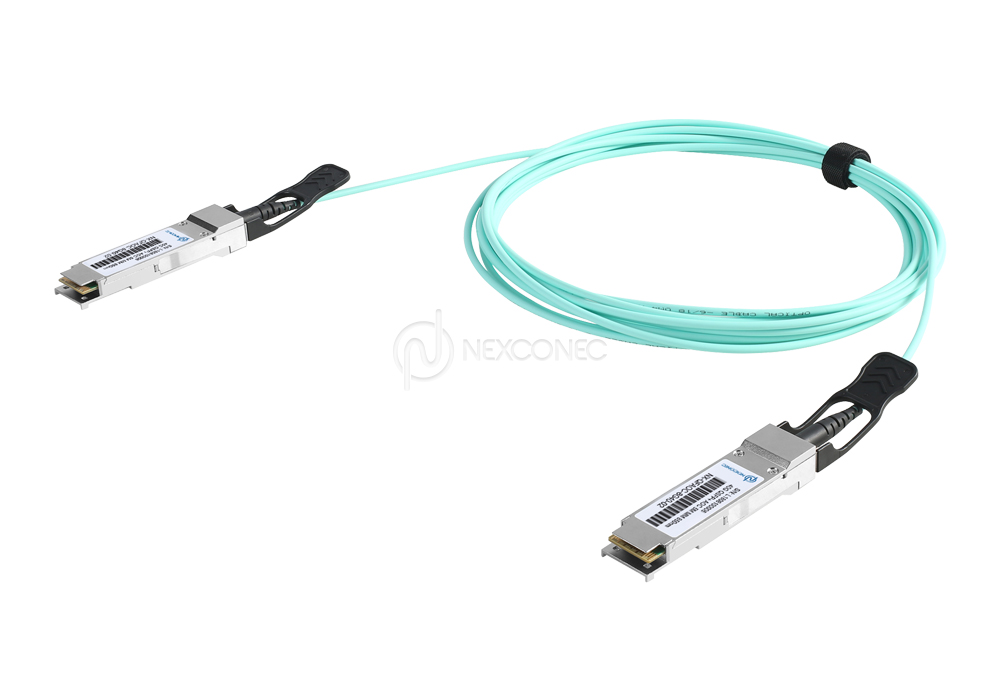

40Gbps QSFP+ ACTIVE OPTICAL CABLE
Four-channel full-duplex active optical cable / Reliable VCSEL technology using multimode fiber.
FEATURES AND APPLICATIONS
- Four-channel full-duplex active optical cable
- Reliable VCSEL technology using multimode fiber
- Available in standard lengths of 3, 5, 7, 10, 15, 20, 30, 50,100m
- Low power consumption <1.5W ?
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- 40G Ethernet, Datacenter
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX |
|---|---|---|---|---|---|---|
| NX-QFAOC-8G40-01-xx | QSFP+ | 40G | 850nm | 1m | VCSEL | PIN |
| NX-QFAOC-8G40-02-xx | QSFP+ | 40G | 850nm | 2m | VCSEL | PIN |
| NX-QFAOC-8G40-03-xx | QSFP+ | 40G | 850nm | 3m | VCSEL | PIN |
| NX-QFAOC-8G40-05-xx | QSFP+ | 40G | 850nm | 5m | VCSEL | PIN |
| NX-QFAOC-8G40-07-xx | QSFP+ | 40G | 850nm | 7m | VCSEL | PIN |
| NX-QFAOC-8G40-10-xx | QSFP+ | 40G | 850nm | 10m | VCSEL | PIN |
| NX-QFAOC-8G40-15-xx | QSFP+ | 40G | 850nm | 15m | VCSEL | PIN |
| NX-QFAOC-8G40-20-xx | QSFP+ | 40G | 850nm | 20m | VCSEL | PIN |
| NX-QFAOC-8G40-30-xx | QSFP+ | 40G | 850nm | 30m | VCSEL | PIN |
| NX-QFAOC-8G40-50-xx | QSFP+ | 40G | 850nm | 50m | VCSEL | PIN |
| NX-QFAOC-8G40-100-xx | QSFP+ | 40G | 850nm | 100m | VCSEL | PIN |
| Part Number | Product Description |
|---|---|
| NX-QFAOC-8G40-01-xx | 40Gbps QSFP+ Active Optical Cable 850nm 1m |
| NX-QFAOC-8G40-02-xx | 40Gbps QSFP+ Active Optical Cable 850nm 2m |
| NX-QFAOC-8G40-03-xx | 40Gbps QSFP+ Active Optical Cable 850nm 3m |
| NX-QFAOC-8G40-05-xx | 40Gbps QSFP+ Active Optical Cable 850nm 5m |
| NX-QFAOC-8G40-07-xx | 40Gbps QSFP+ Active Optical Cable 850nm 7m |
| NX-QFAOC-8G40-10-xx | 40Gbps QSFP+ Active Optical Cable 850nm 10m |
| NX-QFAOC-8G40-15-xx | 40Gbps QSFP+ Active Optical Cable 850nm 15m |
| NX-QFAOC-8G40-20-xx | 40Gbps QSFP+ Active Optical Cable 850nm 20m |
| NX-QFAOC-8G40-30-xx | 40Gbps QSFP+ Active Optical Cable 850nm 30m |
| NX-QFAOC-8G40-50-xx | 40Gbps QSFP+ Active Optical Cable 850nm 50m |
| NX-QFAOC-8G40-100-xx | 40Gbps QSFP+ Active Optical Cable 850nm 100m |
1. Where (01 = 1m, 02 = 2m, 10 = 10m etc.) denotes cable length in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
