42U 19" ODF RACK - ODF-TCxx
NEXCONEC® 42U 19” ODF Rack, optical distribution terminal is an evolving and modular container. Its main advantages are the reduced footprint compared to other solutions on the market, the multiple configurations to meet the needs of operators, and ability to align several line-up style mutualization points. Which makes it real value for money.

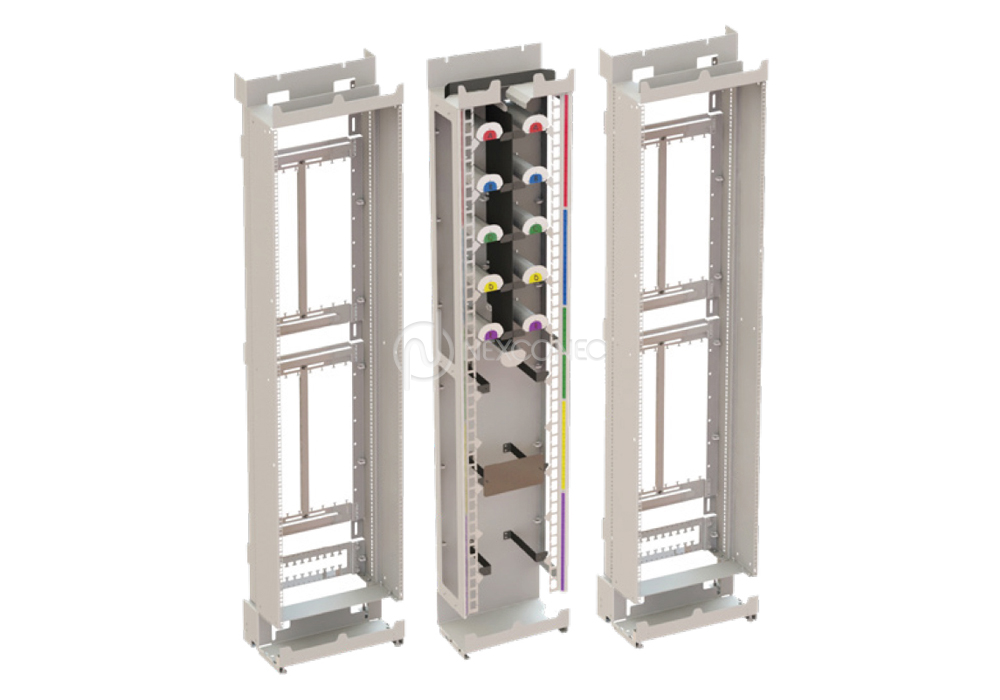

Quick, Easy and Time saving installation, the rack is delivered in 3 pre-assembled modules.
PRODUCT HIGHLIGHTS
- Time saving installation with 3 pre-assembled modules
- Intelligent Patch Cord Management Module
- 11 drums for an ‘‘M’’ brewing according to ARCEP recommendations
- Intuitive color-coded and numbered U connectors
- Multiple configurations to meet the needs of operators and ability to align several LINE UP style mutualization points
- Made in FRANCE
FEATURES
- Time saving installation with 3 pre-assembled modules
- Intelligent Patch Cord Management Module
- 11 drums for an ‘‘M’’ brewing according to ARCEP recommendations
- Intuitive color-coded and numbered U connectors
- Multiple configurations to meet the needs of operators and ability to align several LINE UP style mutualization points
- Possibility to add an additional splitter/cable support plate (optional)
- Possibility to add high protection caps for the high flow jumpers (optional)
- Made in FRANCE
APPLICATIONS
- FTTx Networks, Datacenter, Enterprise
- Data communication Networks
- Optical Sub-division/Mutualization Point
- Indoor Application
| Parameters | Value |
|---|---|
| Dimensions (HxWxD) | Full: 2200 x 1400 x 300 mm (~108 Kg) Lateral: 2200 x 490 x 300 mm (~35 Kg) Central: 2200 x 420 x 300 mm (~38 Kg) |
| Material | Cold Rolled Steel |
| Housing Color | Grey - RAL 7035 (other optional RAL) |
| Height Unit | 42U |
| Mounting Type | Standard 19” Rack |
| Capacity | Up to 800 subscribers Up to 2 x 42U 19’’ units Up to 12 cables or 8 splitters (per 19’’ cell) |
| Application | Perfect for SRO applications |
| Part Number | Product Description |
|---|---|

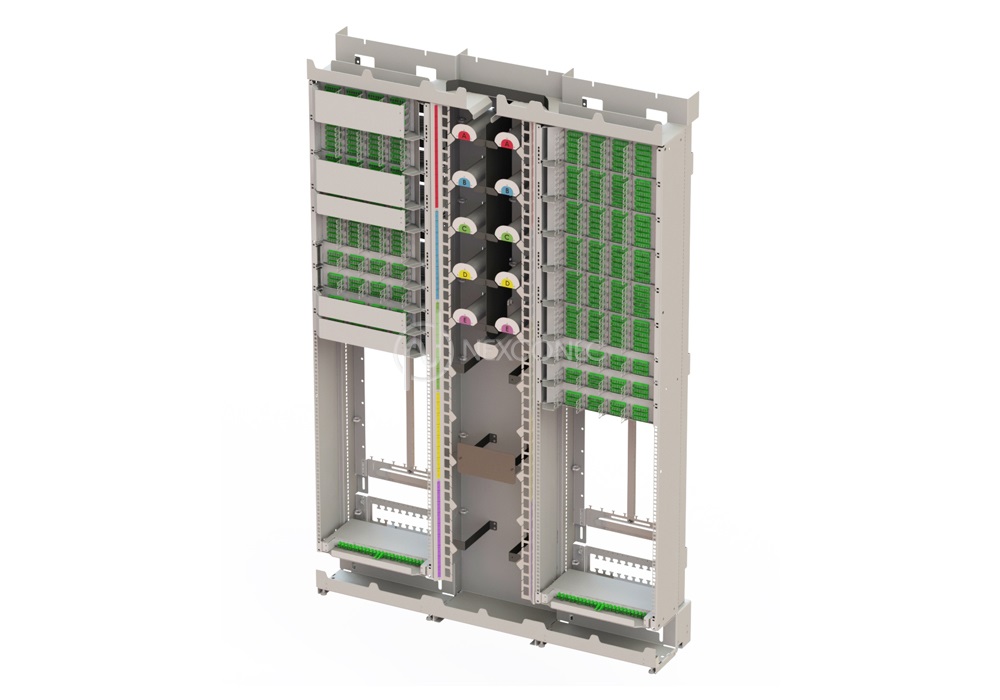

| ODF-TC01 | Complete 3 Modules 42U 19” ODF Rack |

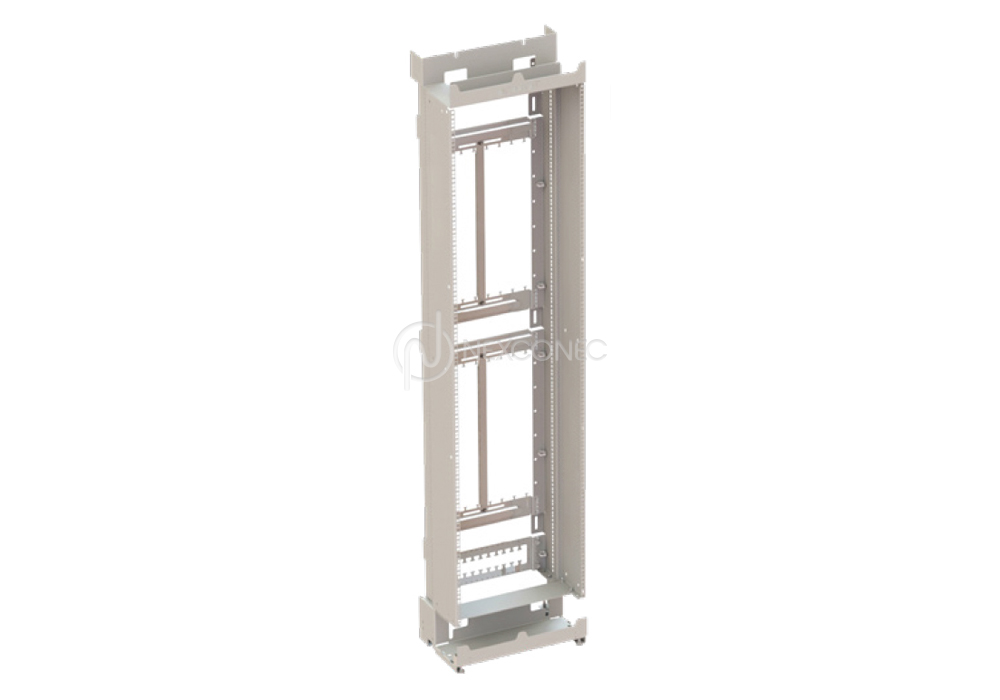

| ODF-TC02 | 1 Module 42U 19” ODF Rack |

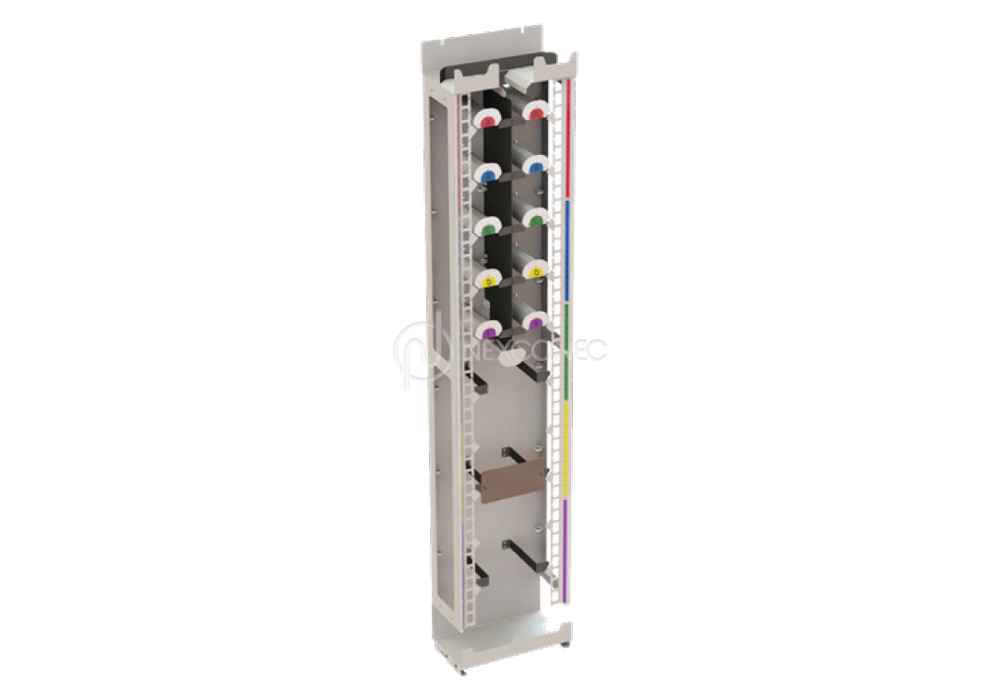

| ODF-TC03 | 1 Module 42U Cable Management |
