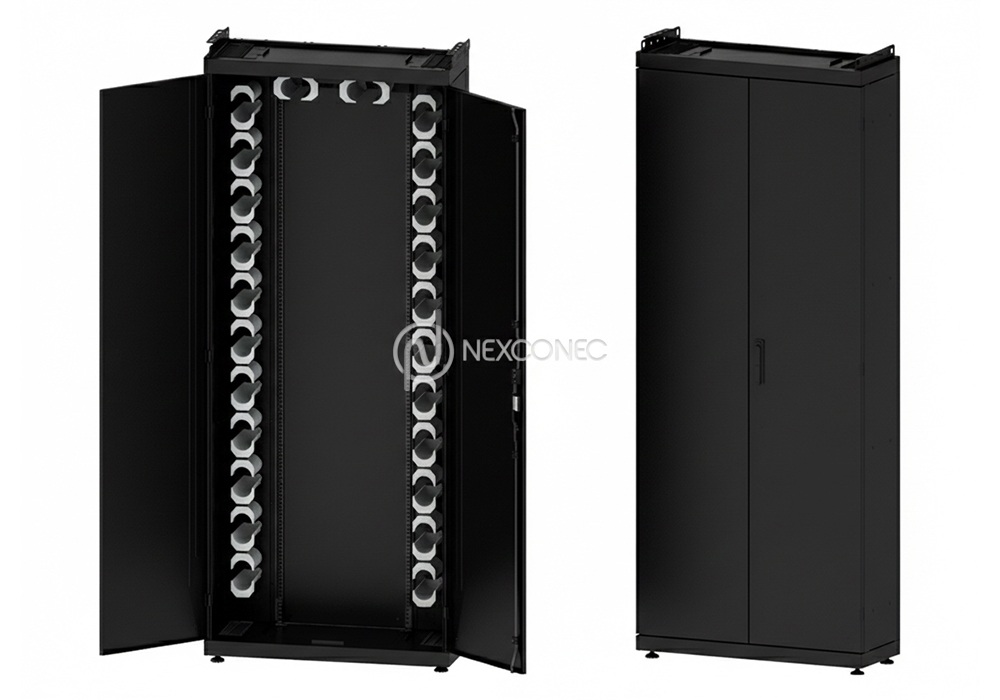

(42U/45U/47U) 19" ODF RACK - ODFxxx
The NEXCONEC® 19” ODF Rack is a strong, durable cabinet built for a wide range of fiber optic applications. Designed for cost efficiency and easy installation, it is highly configurable to meet the needs of system designers, installers, and network managers.

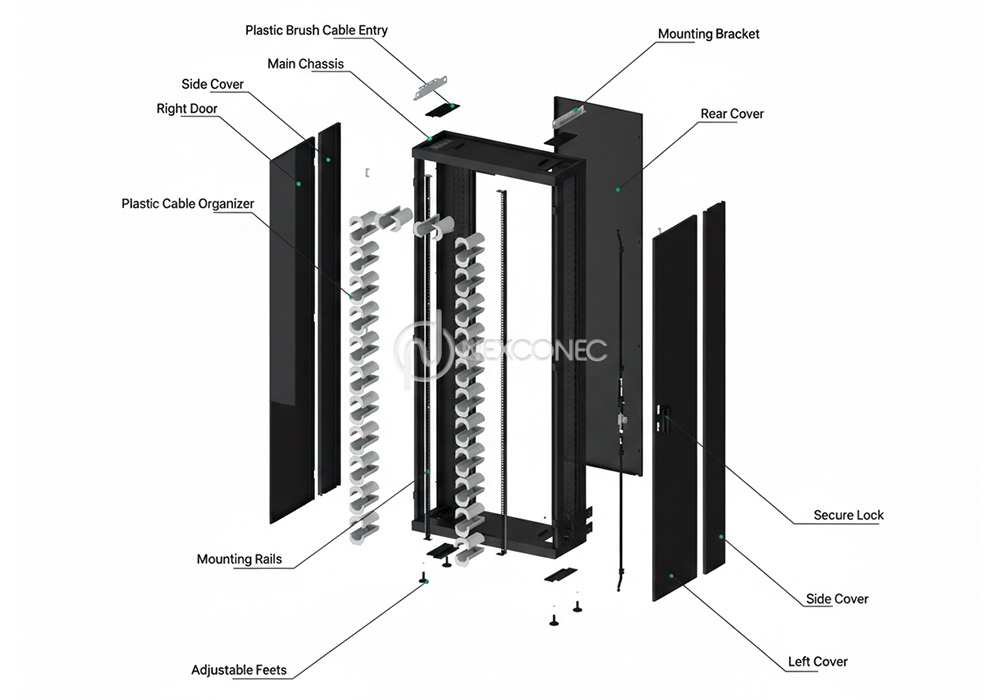

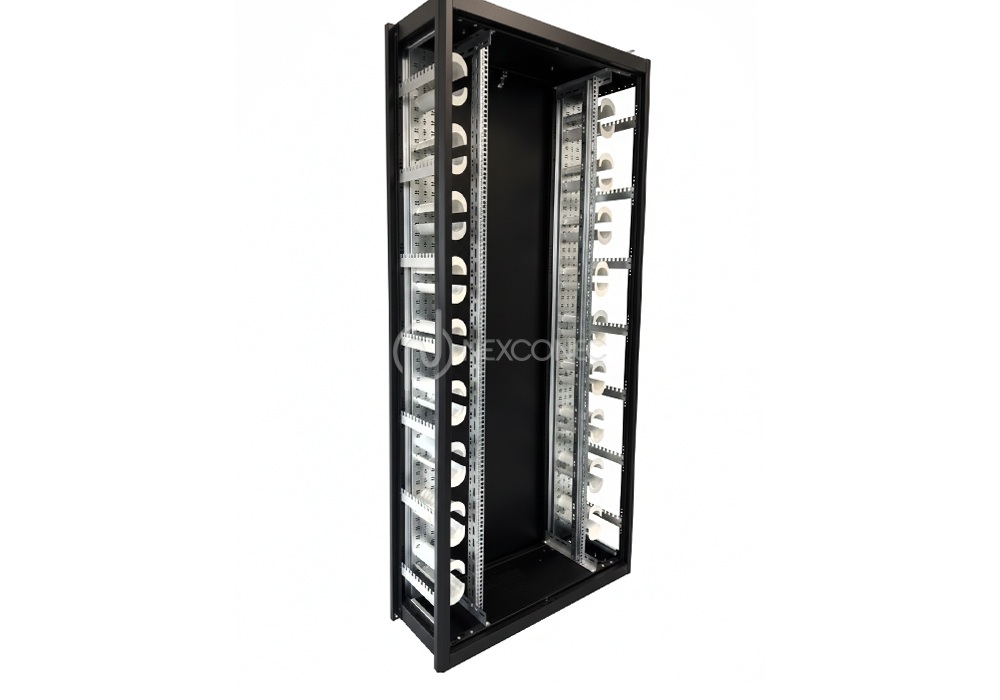

Available in 42U, 45U and 47U as a fully assembled cabinet with side panels or in side-by-side configuration, its rigid welded frame ensures stability while allowing quick dismantling and reassembly without special tools.
PRODUCT HIGHLIGHTS
- Available in 42U, 45U and 47U heights
- Side panels and front doors secured with locks, hinges, or screws
- Compatible with standard 19” equipment installations
- Full access from the front for easy maintenance
- Side panels and front doors can be opened, locked, or removed as needed

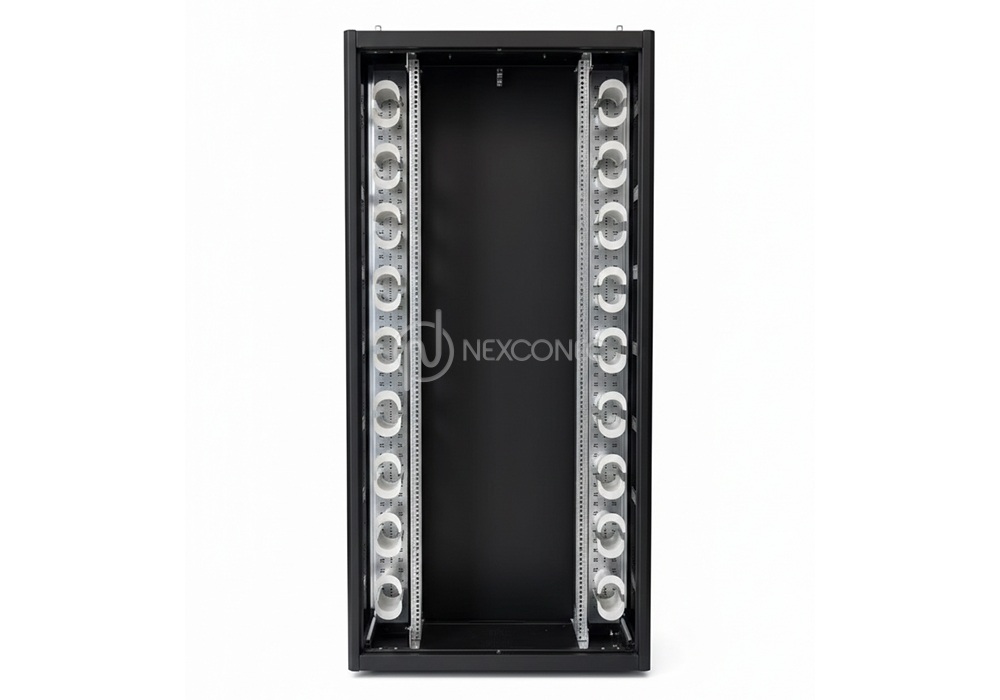

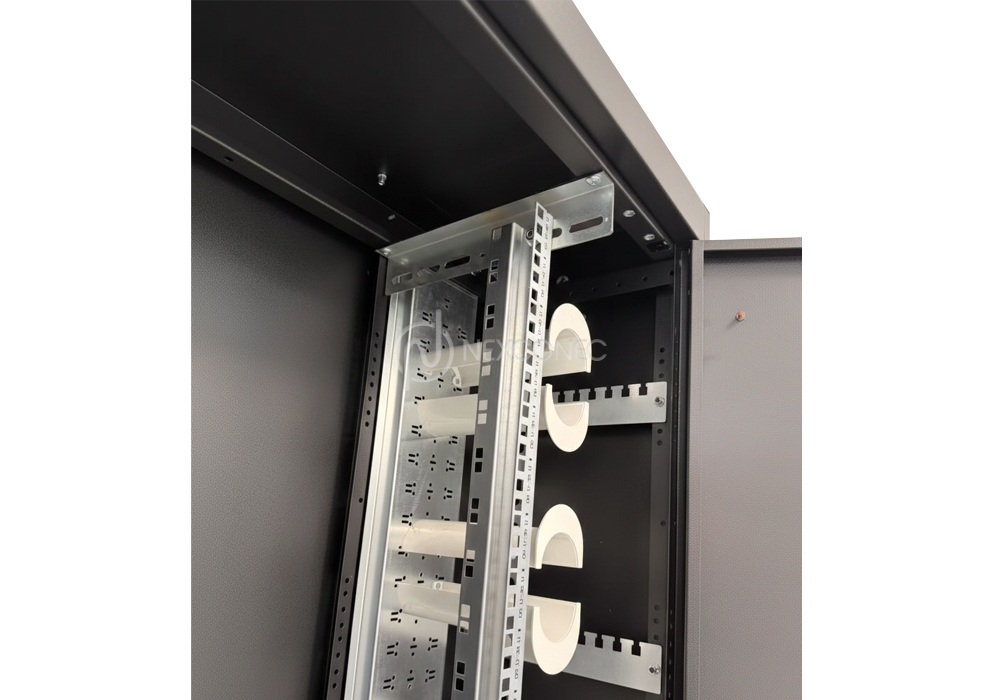

- Equipped with horizontal and vertical cable management systems
- Ensures proper bend radius protection across the frame
- Flexible mounting options for wall or ceiling installation
FEATURES
- Available in 42U, 45U and 47U heights
- Side panels and front doors secured with locks, hinges, or screws
- Compatible with standard 19” equipment installations
- Full access from the front for easy maintenance
- Side panels and front doors can be opened, locked, or removed as needed
- Supports both 19” and ETSI standard installations

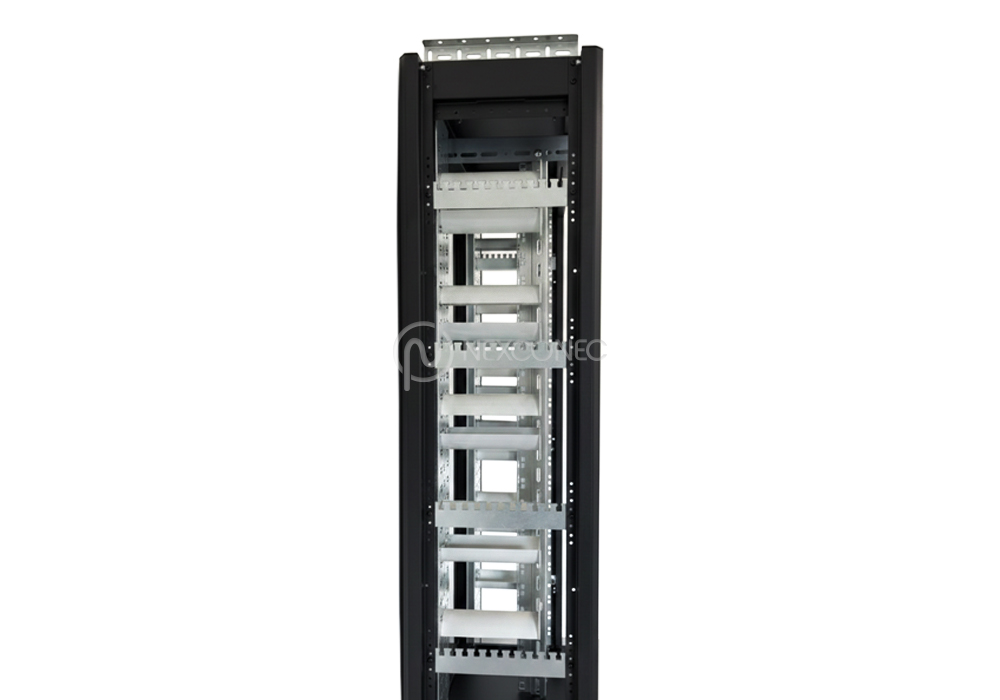

- Equipped with horizontal and vertical cable management systems
- Ensures proper bend radius protection across the frame
- Flexible mounting options for wall or ceiling installation
- Can be assembled on raised floors

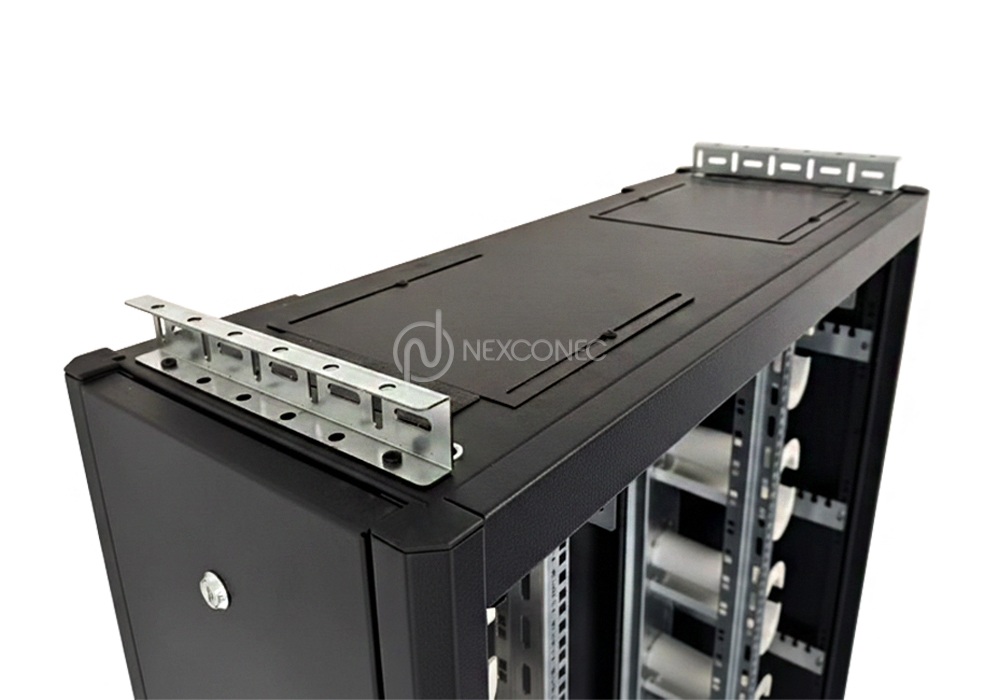

- Large cable entry area to accommodate various cable sizes
APPLICATIONS
- FTTH, FTTB, FTTx Networks, Datacenter, Enterprise
- Data communication Networks
- Optical Sub-division/Mutualization Point
- Indoor Applications
| Parameters | Value |
|---|---|

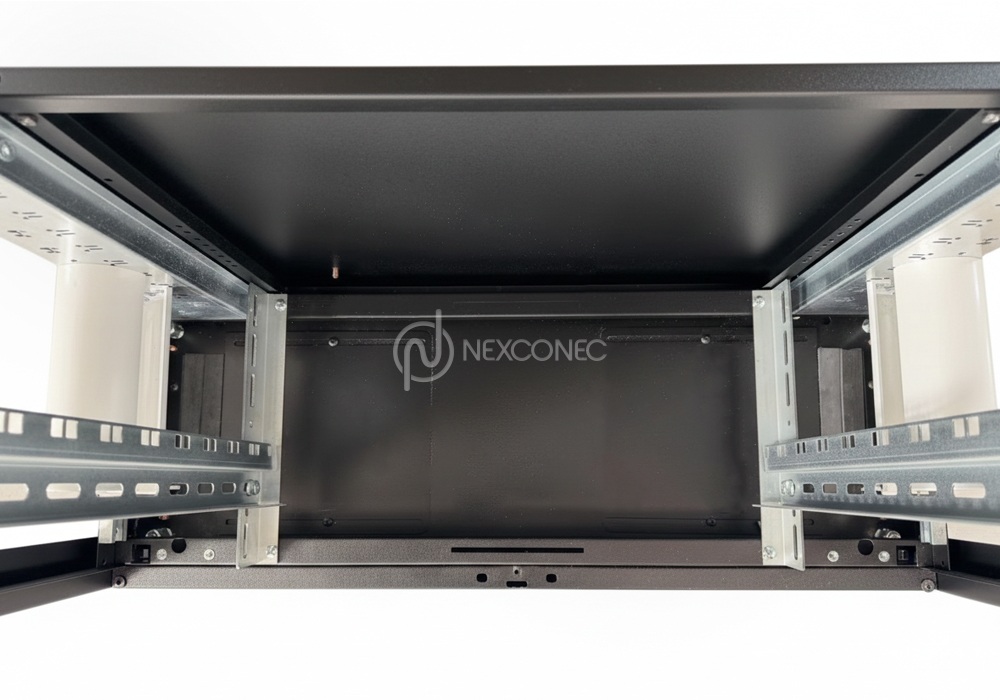

| Mounting Type | Standard 19” Rack with Adjustable mounting rails |
| Height Units | 42U, 45U and 47U (Usable Capacity without horizontal cable managers) |

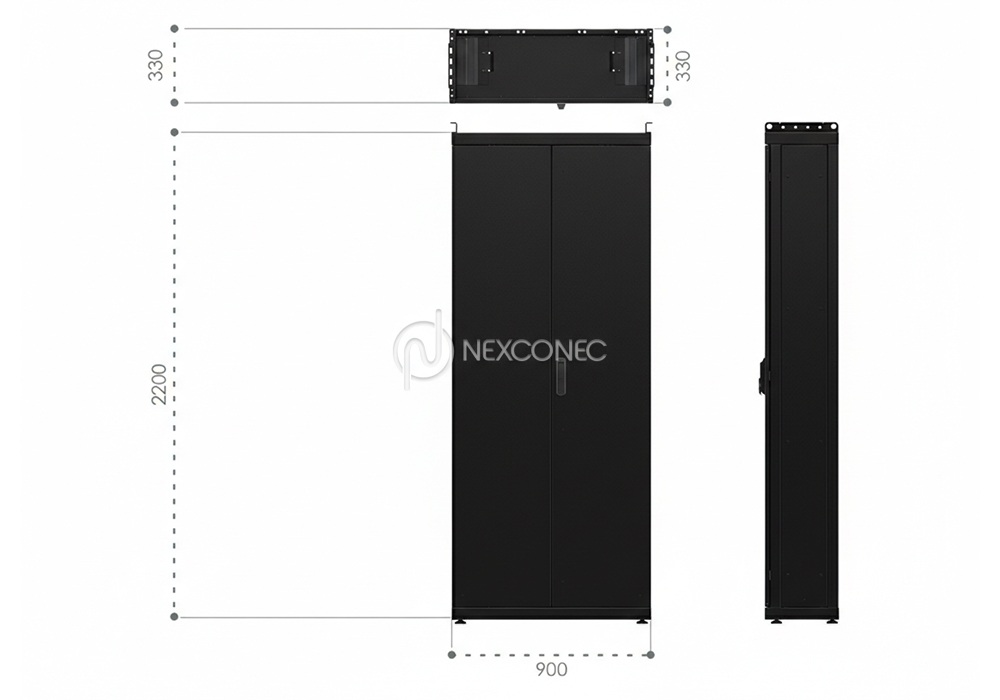

| Dimensions (H x W x D) | 42U: 2030 x 900 x 330 mm 45U: 2110 x 900 x 330 mm 47U: 2200 x 900 x 330 mm |
| Package Dimensions (H x W x D) | 42U: 2130 x 950 x 350 mm (~100 Kg) 45U: 2210 x 950 x 350 mm (~110 Kg) 47U: 2300 x 950 x 350 mm (~120 Kg) |
| Material | Cold Rolled Steel |
| Housing Color | Black (RAL 9005) |
| Accessories | Special parts for cable strength members and main cable fixing, Side cable management spools |
| IP Rate | IP41 Protection level |
| Compliance | Compliant to RoHS |
| Part Number | Product Description |
|---|---|
| ODF42K | 42U 19” ODF Rack Lockable Doors, Black (Including Side Cable Management Spools) |
| ODF45K | 45U 19” ODF Rack Lockable Doors, Black (Including Side Cable Management Spools) |
| ODF47K | 47U 19” ODF Rack Lockable Doors, Black (Including Side Cable Management Spools) |
