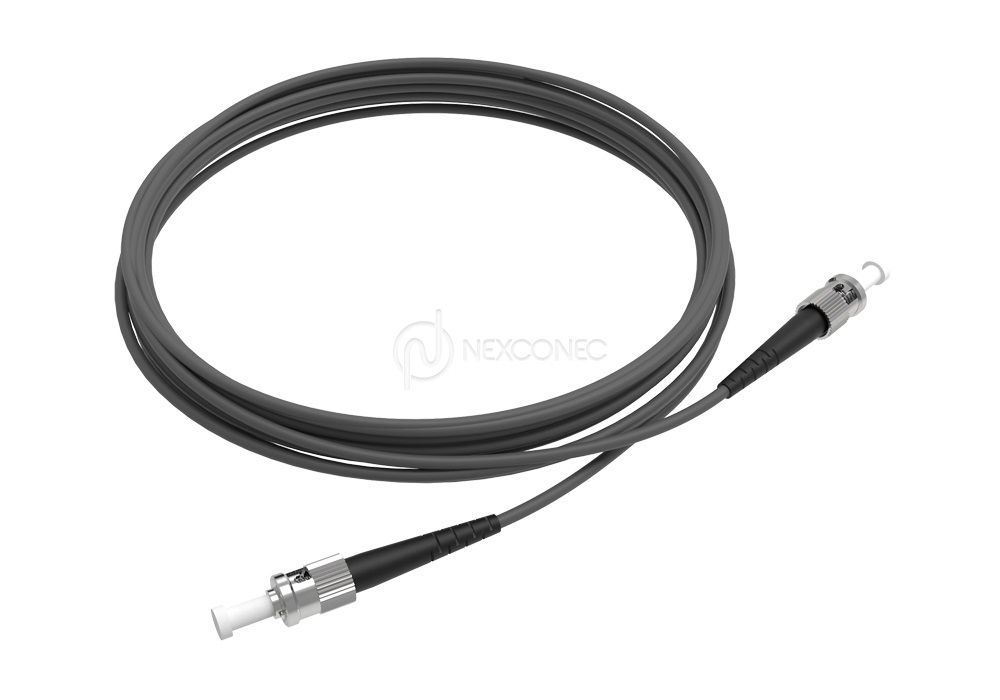

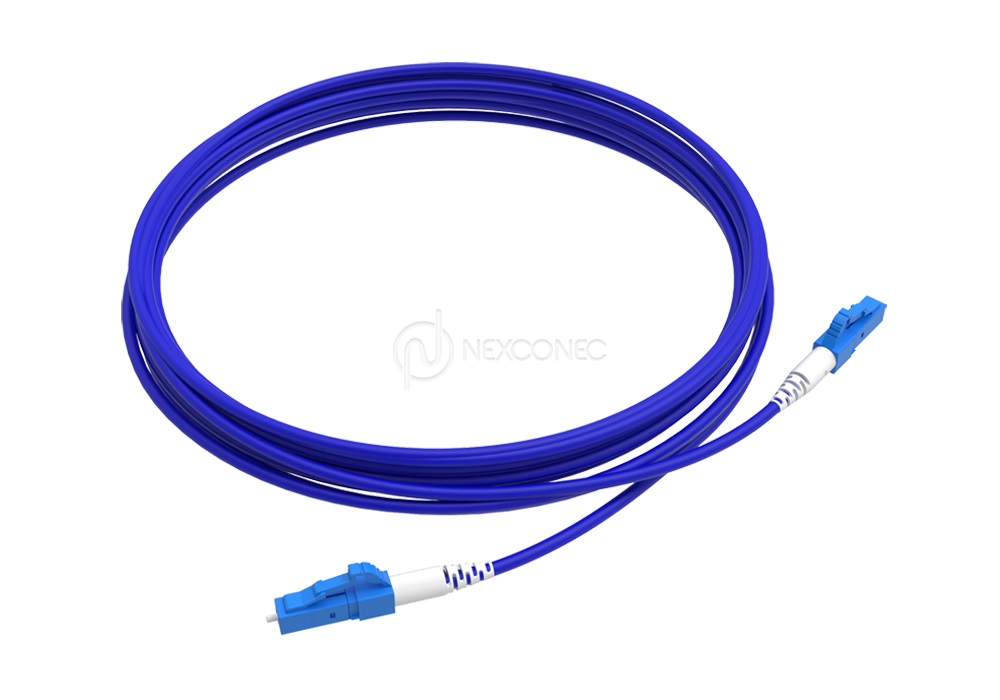

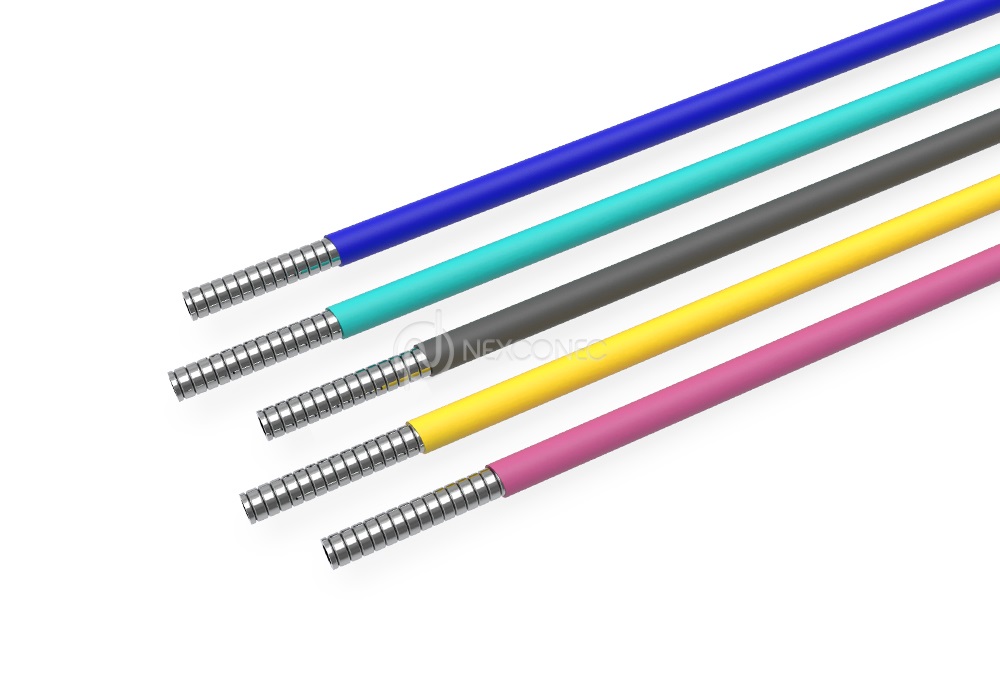

NEXCONEC® Armored Patch Cords are suitable for harsh environmental conditions without the need for additional protection. They are typically used in industrial environments, outdoor to indoor telecommunication networks, FTTx, FTTH and some critical applications. The patch cords provide sturdy interconnectivity to active equipment, passive optical devices and cross-connects. Armoured patch cords come double armoured with steel tape for better crush resistance and steel mesh for better tensile strength. Through this they have a high durability and a good crush resistance to ensure a longer life.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Double armour with high durability and good crush resistance
  • Available in standard Singlemode and Multimode fibre

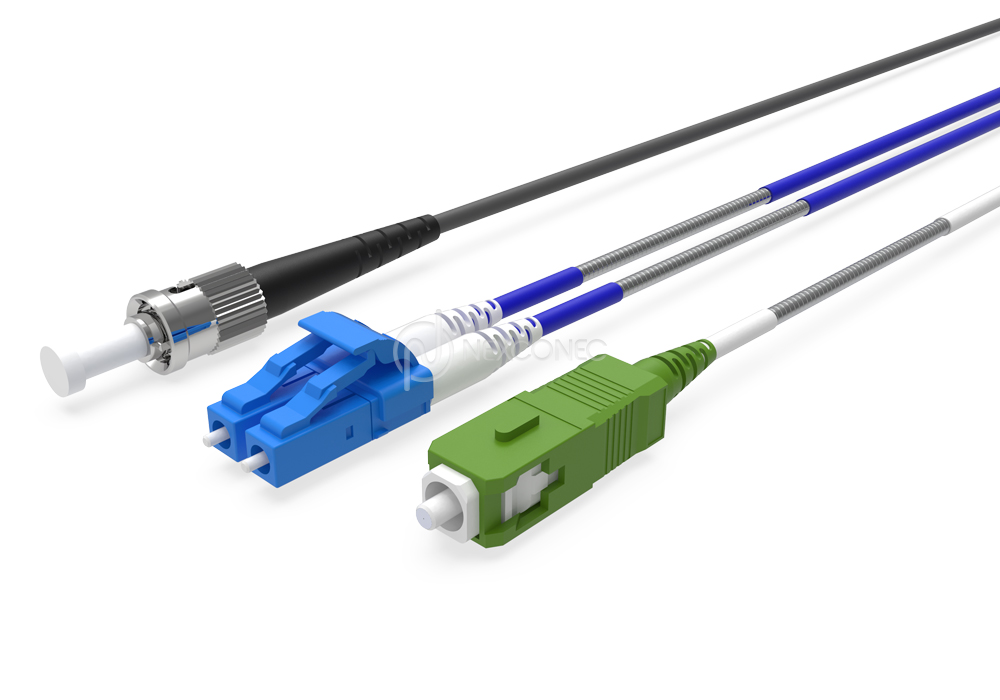

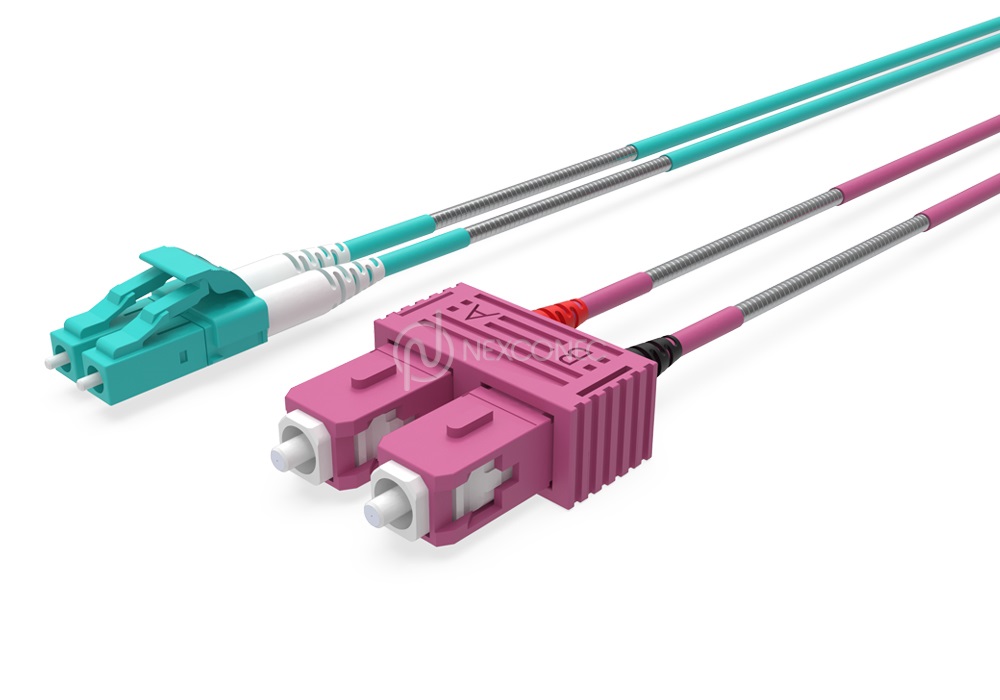

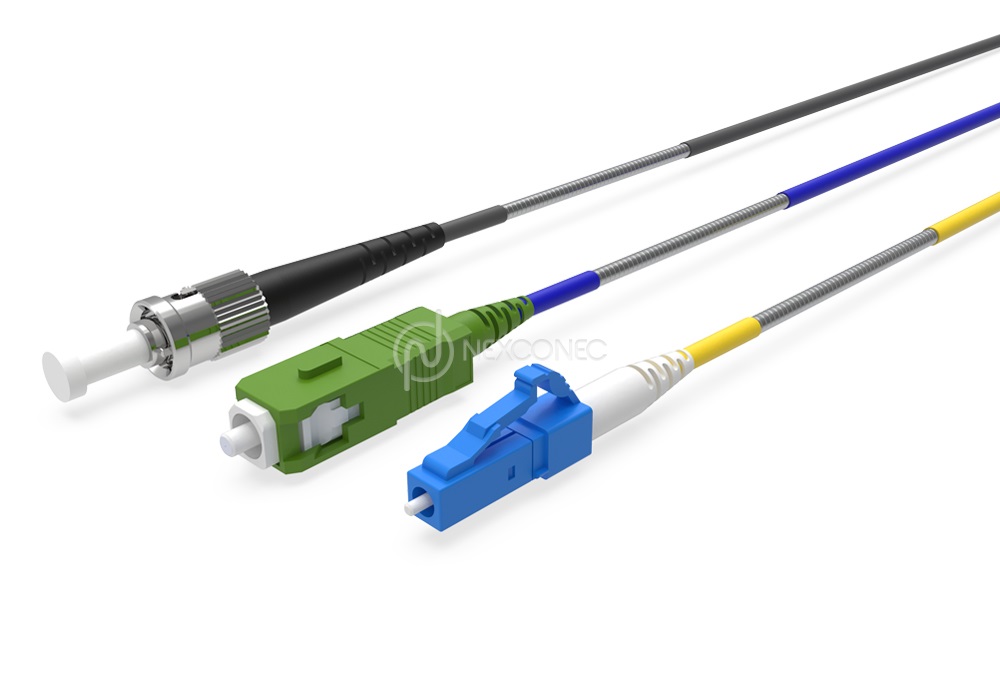

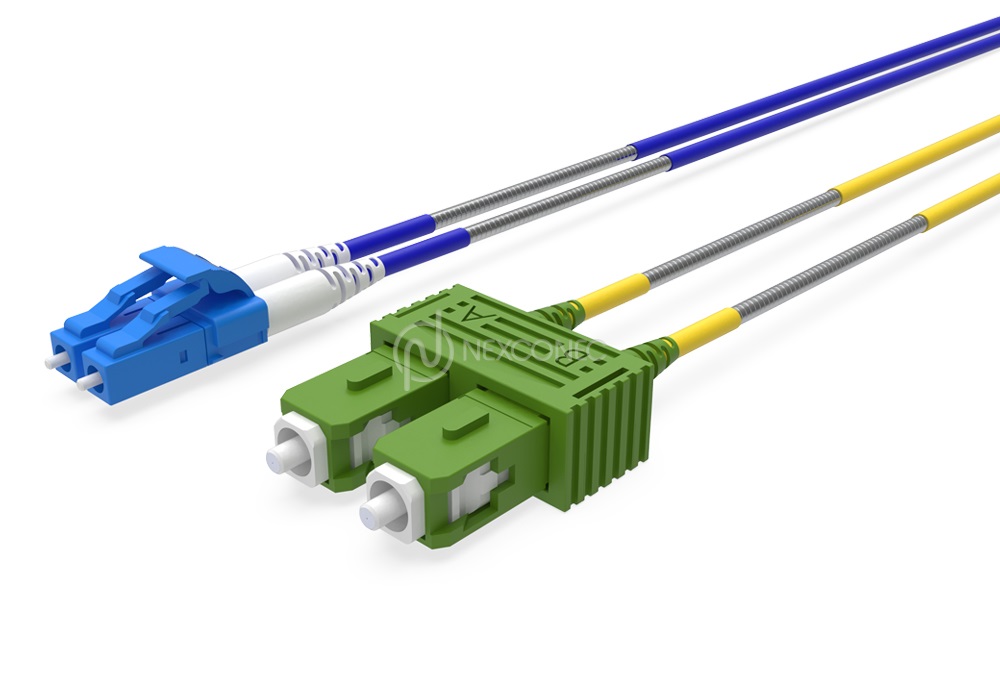

  • LC, SC, FC AND ST connector types
  • RoHS, REACH & SvHC compliant
  • Cable jacket available in PVC, LSZH material options
  • Telecommunication networks Intelligent fibre optic networks
  • CCTV security networks
  • FTTx
  • Fibre-to-the-home (FTTH)
  • CATV networks

Product Information

pdfDATASHEET.pdf View Download

SINGLE FERRULE CONNECTOR

Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB

CABLE CHARACTERISTICS

Cable Characteristics Units Value
Cable Material LSZH/PVC
Cable Diameter mm 1F – 3.0 / 2F – 3.3
Strength Member Aramid + Steel Mesh
Max. Crush Resistance N/100mm 3000
Max. Tensile Load N 300
Operating Temperature ˚C -25 ~ +70
