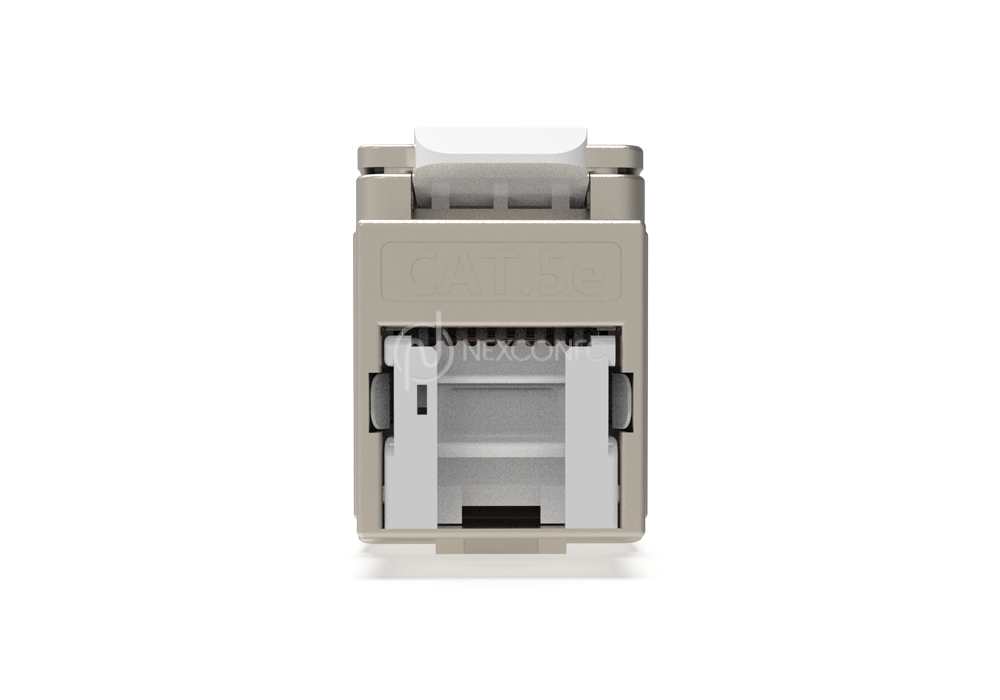

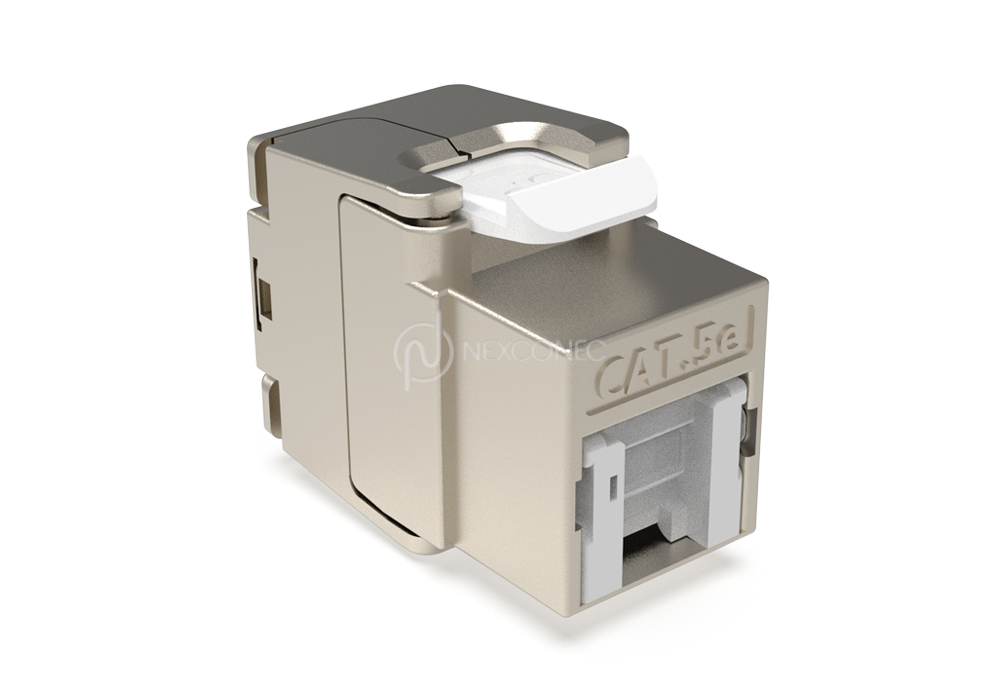

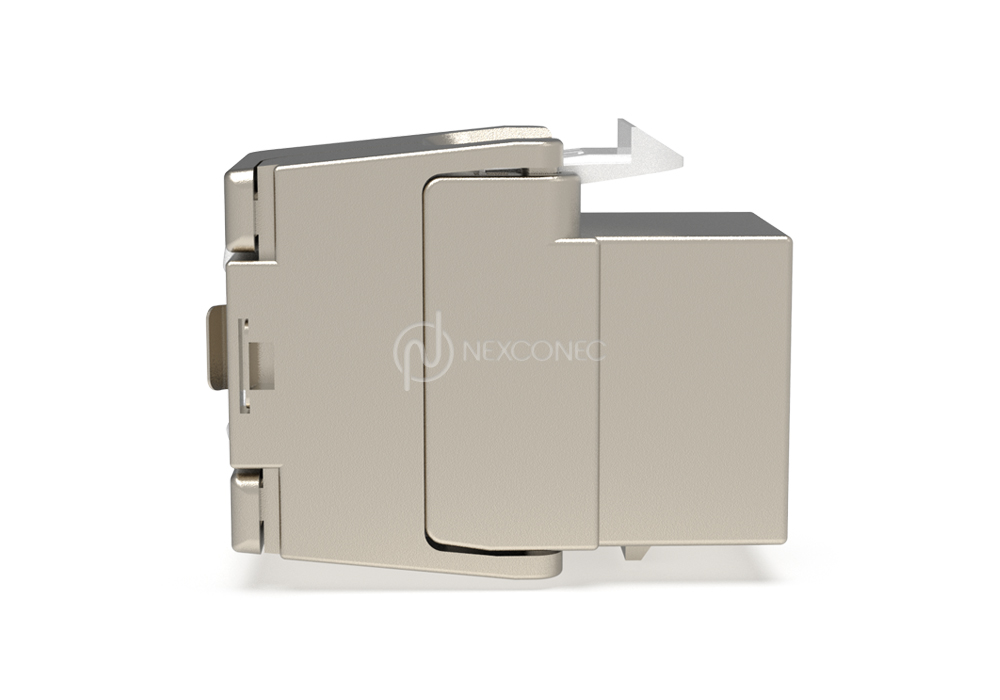

CAT.5E STP Mini Shuttered Keystone Jacks - CN5ESTME/MS
NEXCONEC® Category 5E shielded tool free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS-D/Category 5E systems. Their compact design has been engineered to optimize density in high performance applications such as Data Centers. Each Cat 5E shielded RJ-45 keystone jacks comply with IEC 60603-7-3 (Shielded) and support all applications designed for CLASS-D networks, as defined within ISO/IEC 11801 (2nd Edition): 2010 including ATM-155, 100BASE-Tx, Token Ring 100Mbs-1, and 1G FCBASE-T.

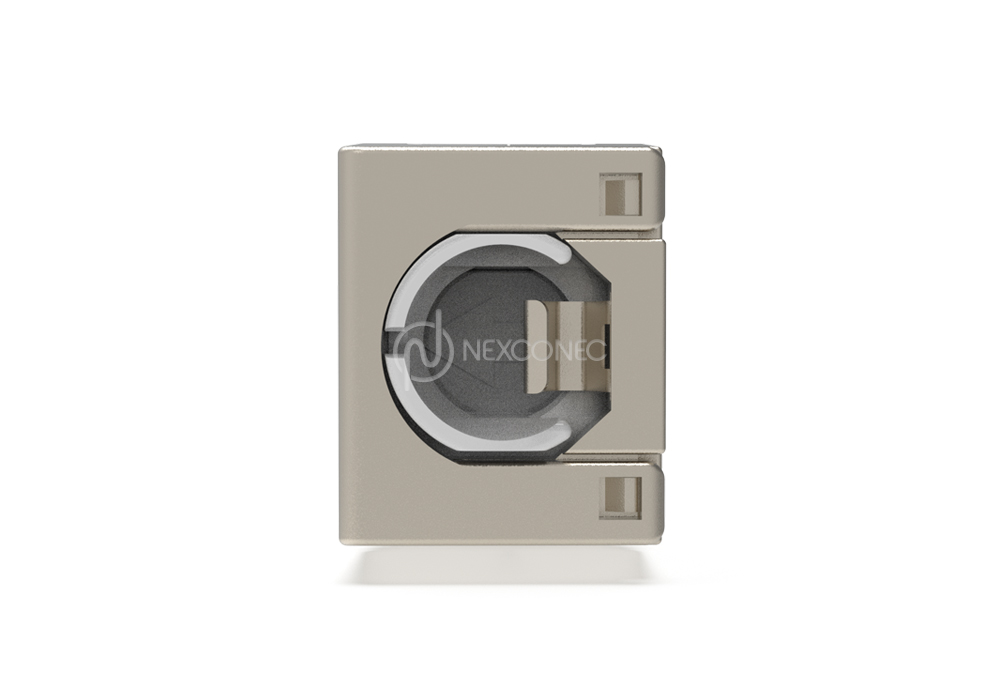

NEXCONEC® With its shuttered design which offers the dust free and well protection to the contact pins inside Keystone jack.
PRODUCT HIGHLIGHTS

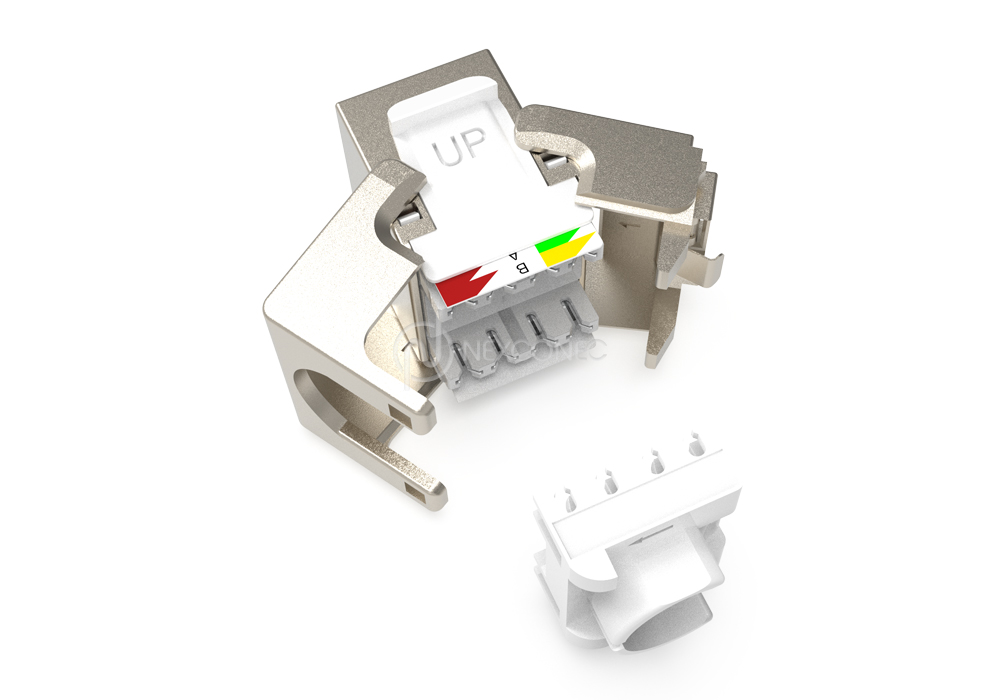

- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular screened patch panel installation
- Support Class-D/category 5E standards networks
- Terminates 23AWG to 26AWG cables
FEATURES
- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular screened patch panel installation
APPLICATIONS
- Support Class-D/category 5E standards networks
- Independent third party verified performance
- Terminates 23AWG to 26AWG cables
| Parameters | Value |
|---|---|
| Shell Material | Zinc Die-Casting and Nickel plating |
| Plastic Parts | High quality engineering plastic |
| Jack Wire | Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor | 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life | Min. 750 Insertions |
| Contact Compatibility | Accommodate 23 to 26 AWG Solid |
| Wiring Block Life | Min. 200 term. cycles |
| PCB | FR-4, 1.2mm Thickness |
| Termination | 180° Termination |
| Termination Wiring | TIA-568A or TIA-568B |
| TIA Cat.5E Perm. Link Test | Worst Pair NEXT Headroom ≥5.0dB |
| Operating Temperature | -10°C / +60°C |
| Operating Humidity | 10% ~ 90% RH |
| Storage Temperature | -40°C ~ +68°C |
| Compliance | ANSI/TIA-568.2-D-2018, ISO/IEC 11801-1-2017, YDT926.3-2009, ISO/IEC 60603-7-3 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Packing | 25pcs per carton |
| Part Number | Product Description |
|---|---|
| CN5ESTME/MS | NEXCONEC Keystone Jack Cat.5e Shielded, with Shutter |
