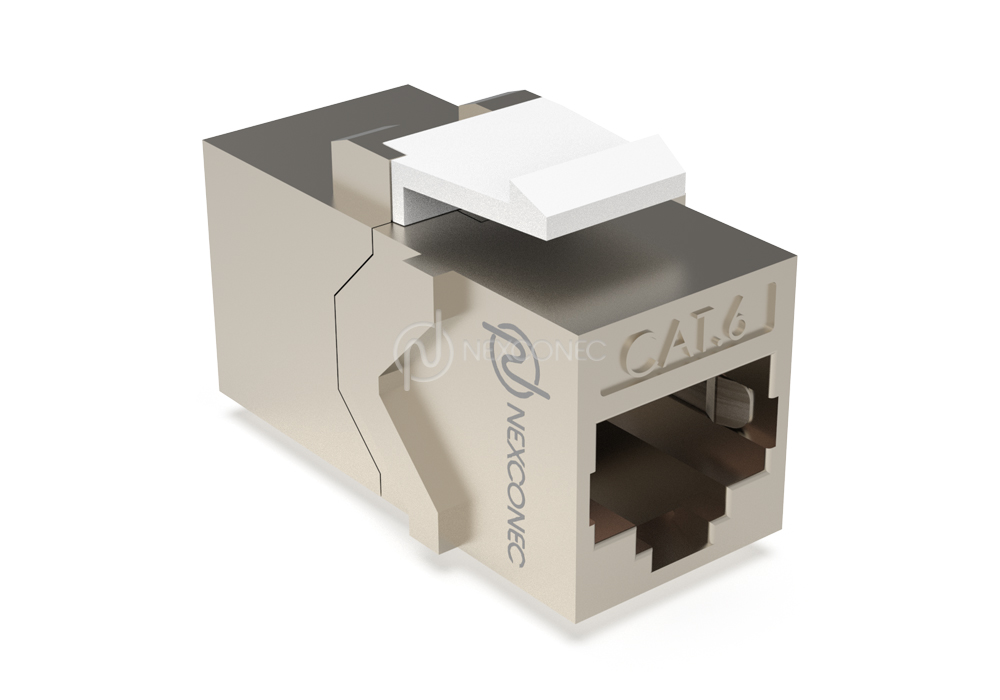

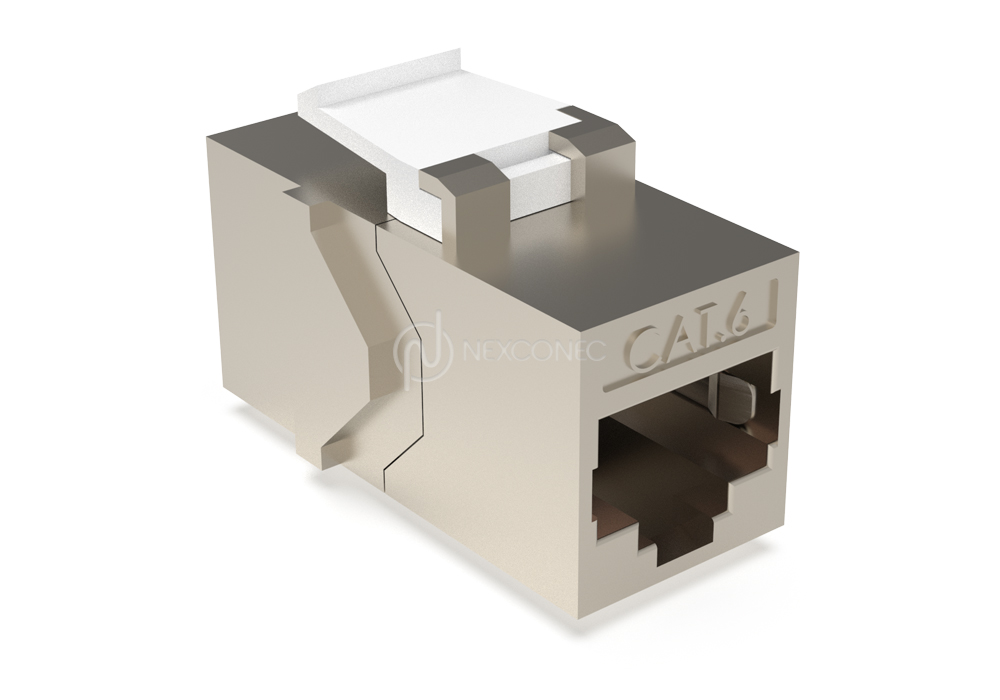

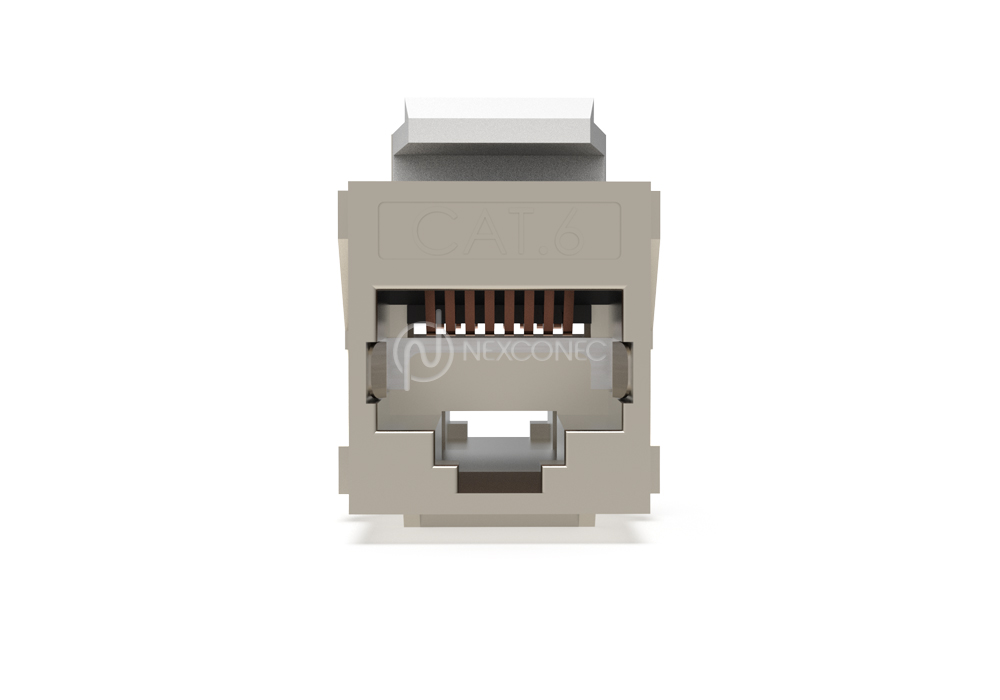

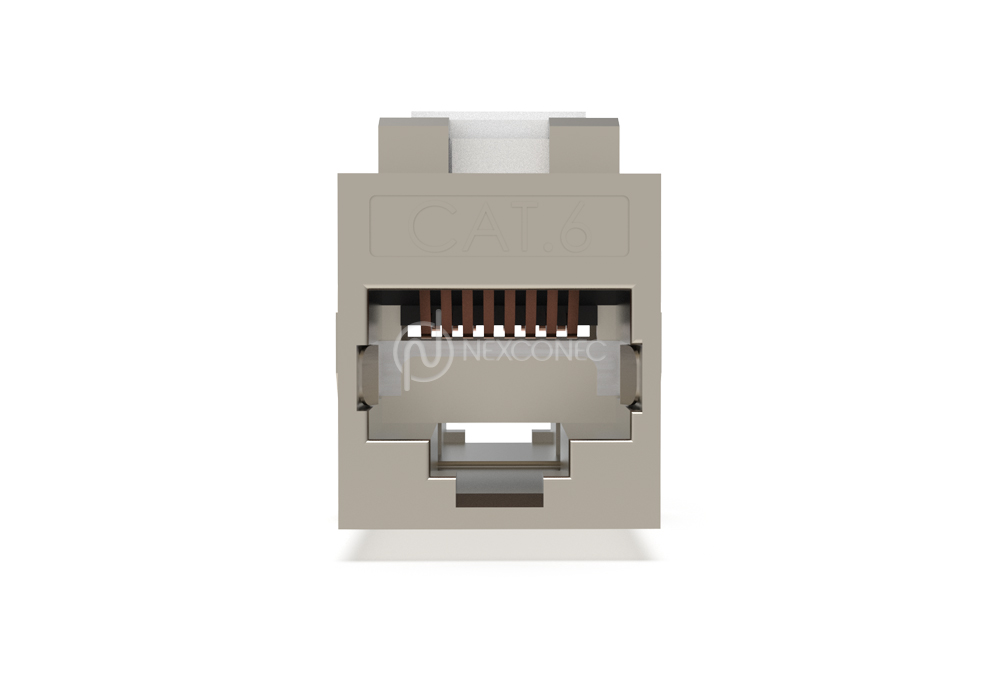

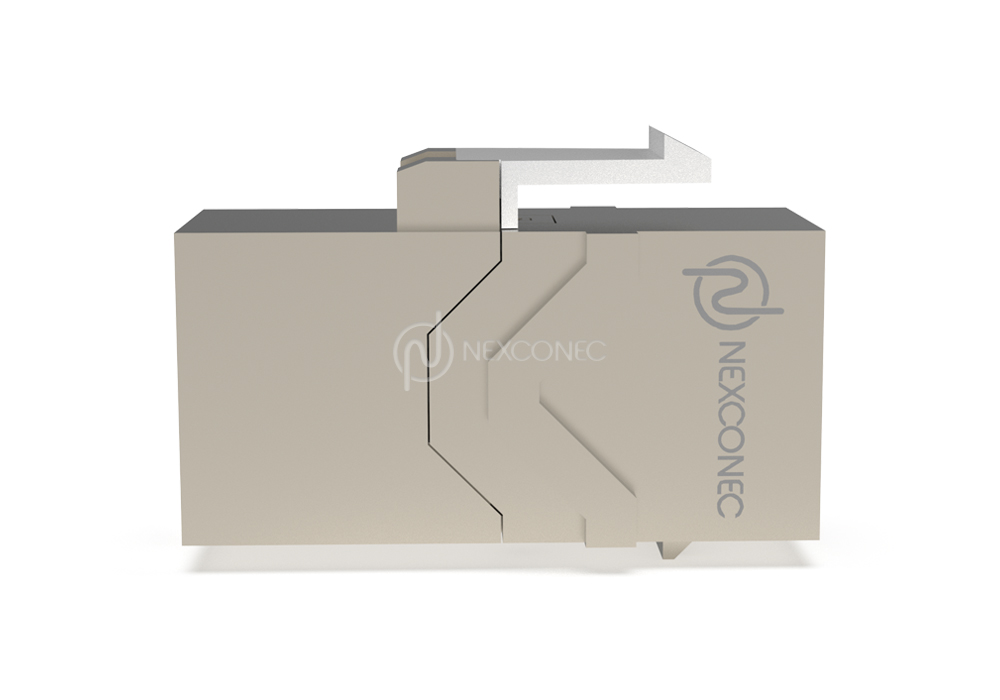

CAT.6 STP Feed Thru Adapter – CN6SF
NEXCONEC® Category 6 shielded feed-through adapters conform to line performance requirements of IEC and TIA for Class-E/Category 6 systems. They follow the industry standard RJ45 footprint and due to small form design, they are perfect for higher density applications and short plug to plug data room back-up installations. Category 6 STP feed-through adapters support all applications designed for Class-E networks as defined within ISO/IEC 11801: 2011 including 10GBASETX (10 Gigabit Ethernet).
PRODUCT HIGHLIGHTS
- Small form RJ45 footprint design
- Fits all keystone style faceplates and floor boxes
- Suitable for patch panel installation
- Easy and fast snap-in installation (plug and play)
- Support Class E/Category 6 standards networks
FEATURES
- Small form RJ45 footprint design
- Fits all keystone style faceplates and floor boxes
- Suitable for patch panel installation
- Easy and fast snap-in installation (plug and play)
APPLICATIONS
- Shielded Version
- Support Class E/Category 6 standards networks
- ANSI/TIA/EIA-568-C.2
| Parameters | Value |
|---|---|
| Shell Material | Zinc and Nickel plating |
| IDC Material | Phosphor Bronze Stamp Pin |
| Contact Material | Phosphor Bronze Gold over Nickel Plating |
| Shield Material | Bronze, Nickel Plated |
| Jack Contact Life | Min. 750 Insertions |
| Retention Strength | 7.7Kg between jack and plug |
| Insertion Force | 20N Max. (IEC 60603-7-4) |
| Operating Temperature | -10 ~ +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Packing | 25pcs per carton |
| Part Number | Product Description |
|---|---|
| CN6SF | NEXCONEC CAT.6 STP Feed Thru. Adapter |
