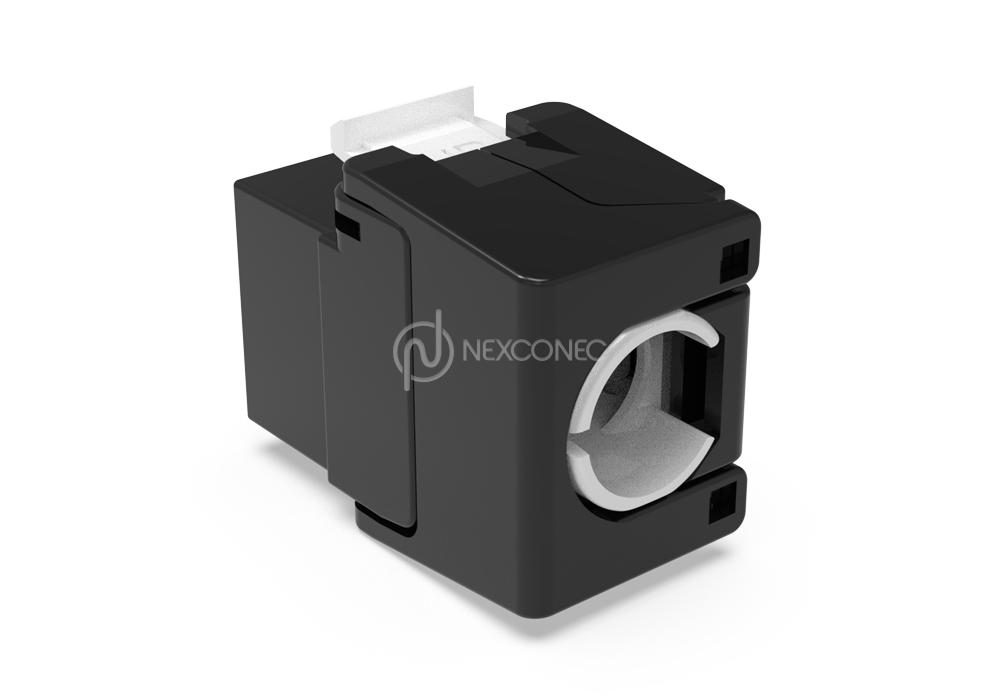

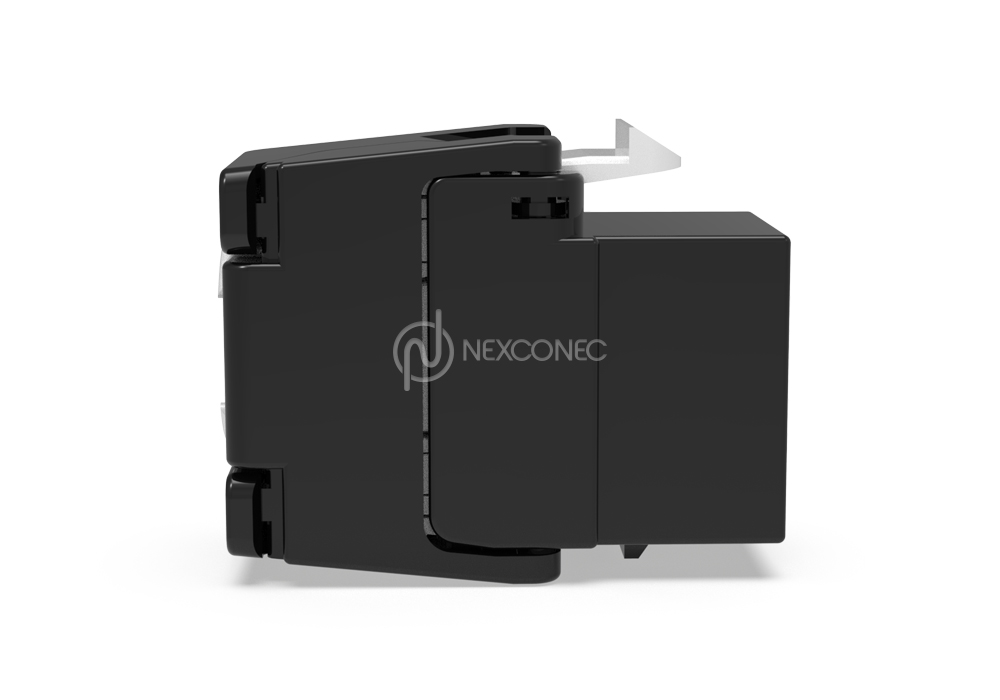

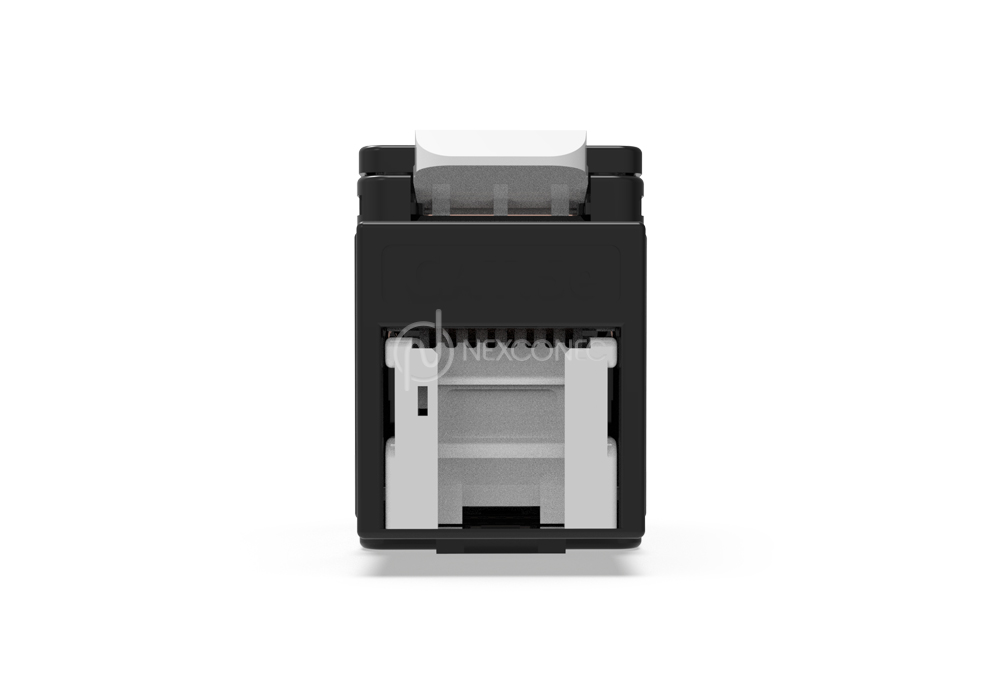

CAT.6 UTP Mini Shuttered Keystone Jacks - CN6UTBK/S
NEXCONEC® Category 6 unshielded tool free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS-E/Category 6 systems. Their compact design has been engineered to optimize density in high performance applications such as Data Centers. Each Cat 6 unshielded RJ-45 keystone jacks comply with IEC 60603-7-4 (Unshielded) and support all applications designed for CLASS-E networks, as defined within ISO/IEC 11801 (2nd Edition): 2010 including ATM 1200, 1000BASET (Gigabit Ethernet) and 1G FCBASE-T.

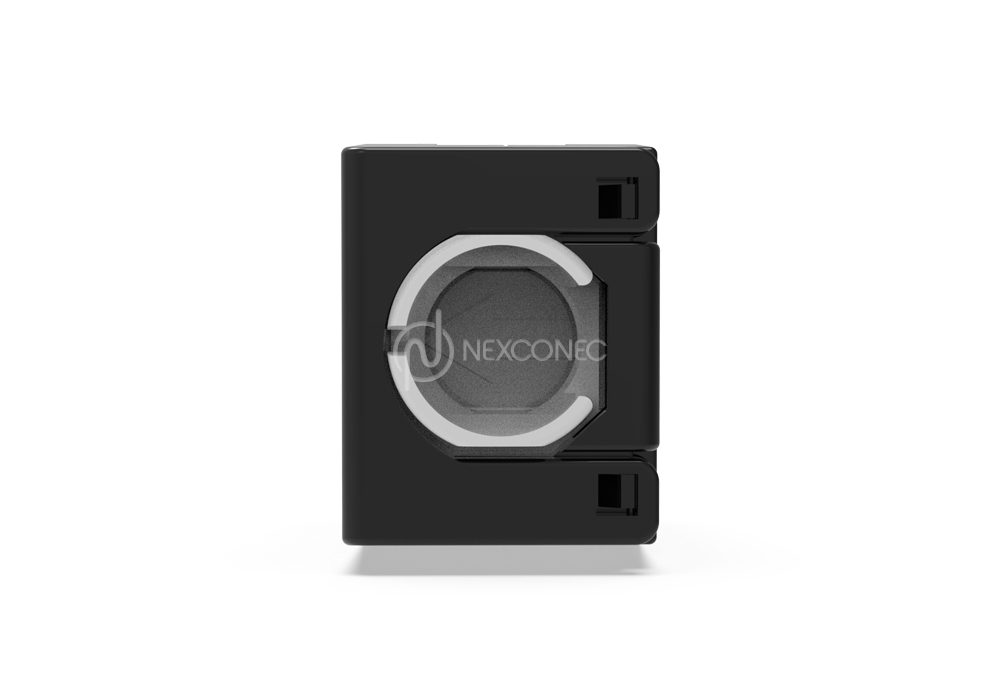

With its shuttered design which offers the dust free and well protection to the contact pins inside Keystone jack.
PRODUCT HIGHLIGHTS

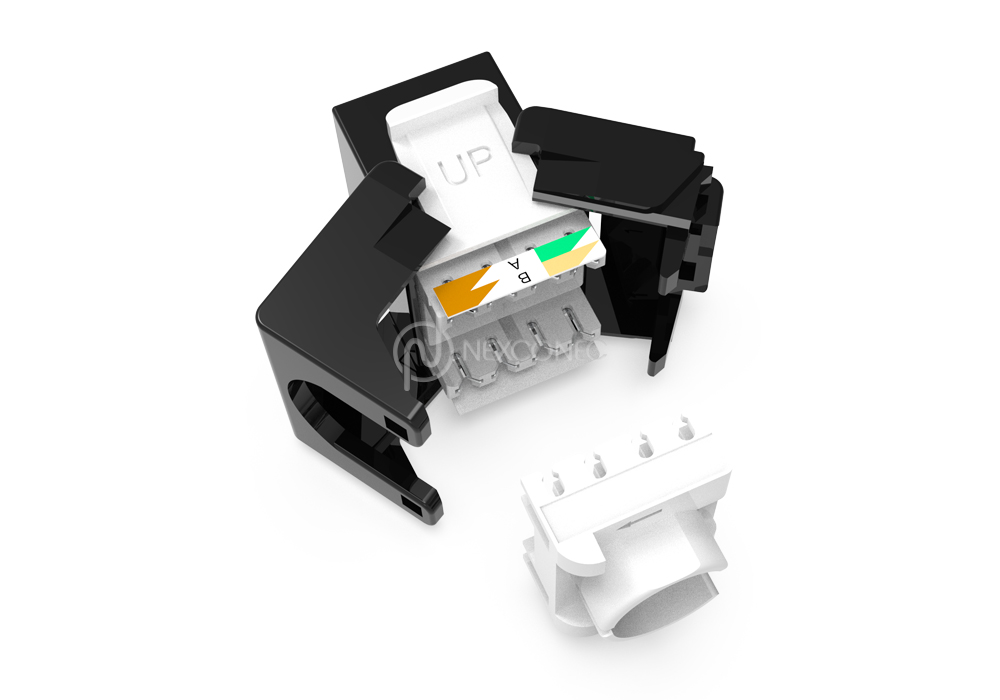

- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular unscreened patch panel installation
- Support Class E/category 6 standards networks
- Terminates 23AWG to 26AWG cables
FEATURES
- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular unscreened patch panel installation
APPLICATIONS
- Support Class E/category 6 standards networks
- Terminates 23AWG to 26AWG cables
| Parameters | Value |
|---|---|
| Plastic Material | High quality engineering plastic |
| Jack Wire | Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor | 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life | Min. 750 Insertions |
| Contact Compatibility | Accommodate 23 to 26 AWG Solid |
| Wiring Block Life | Min. 200 term. cycles |
| PCB | FR-4, 1.2mm Thickness |
| Termination | 180° Termination |
| Termination Wiring | TIA-568A or TIA-568B |
| TIA Cat.6 Perm. Link Test | Worst Pair NEXT Headroom ≥3.0dB |
| Operating Temperature | -10°C / +60°C |
| Operating Humidity | 10% ~ 90% RH |
| Storage Temperature | -40°C ~ +68°C |
| Compliance | ANSI/TIA-568.2-D-2018, ISO/IEC 11801-1-2017, YDT926.3-2009, ISO/IEC 60603-7-4 |
| RoHS | RoHS Directive 2011/65/EU |
| Warranty | 12 Months |
| Packing | 25pcs per carton |
| Part Number | Product Description |
|---|---|

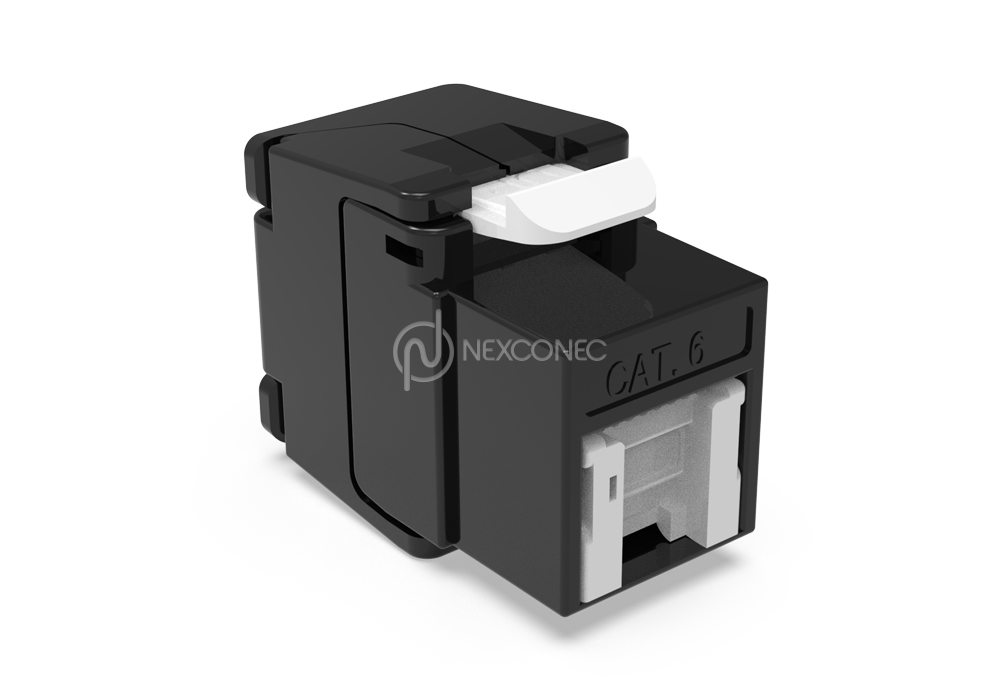

| CN6UTBK/S | NEXCONEC Keystone Jack Cat.6 Unshielded, Black, with Shutter |

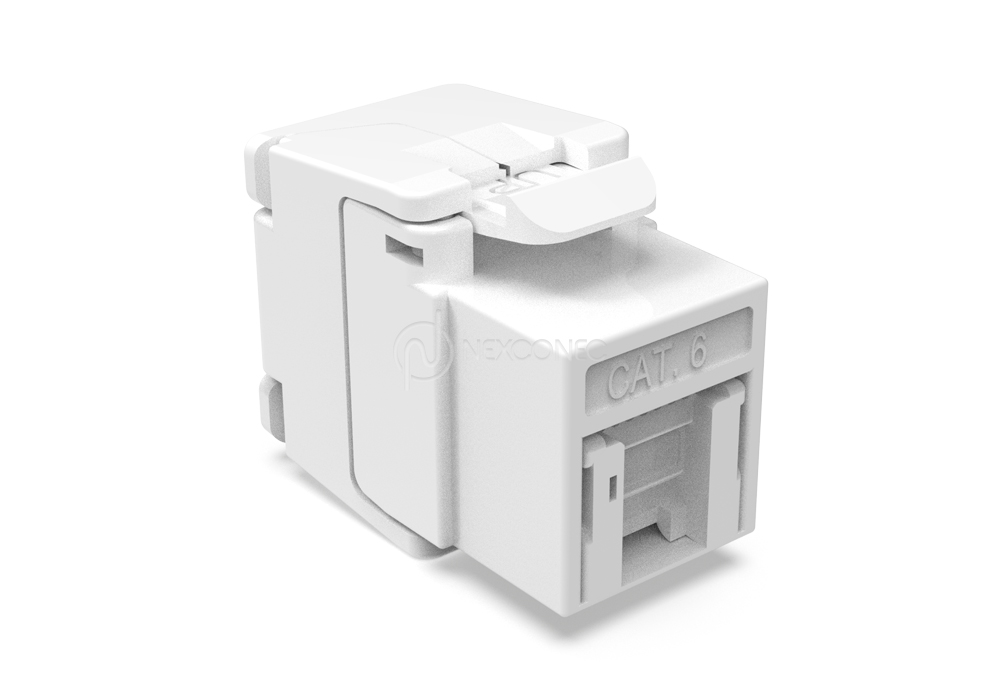

| CN6UTWH/S | NEXCONEC Keystone Jack Cat.6 Unshielded, White, with Shutter |
