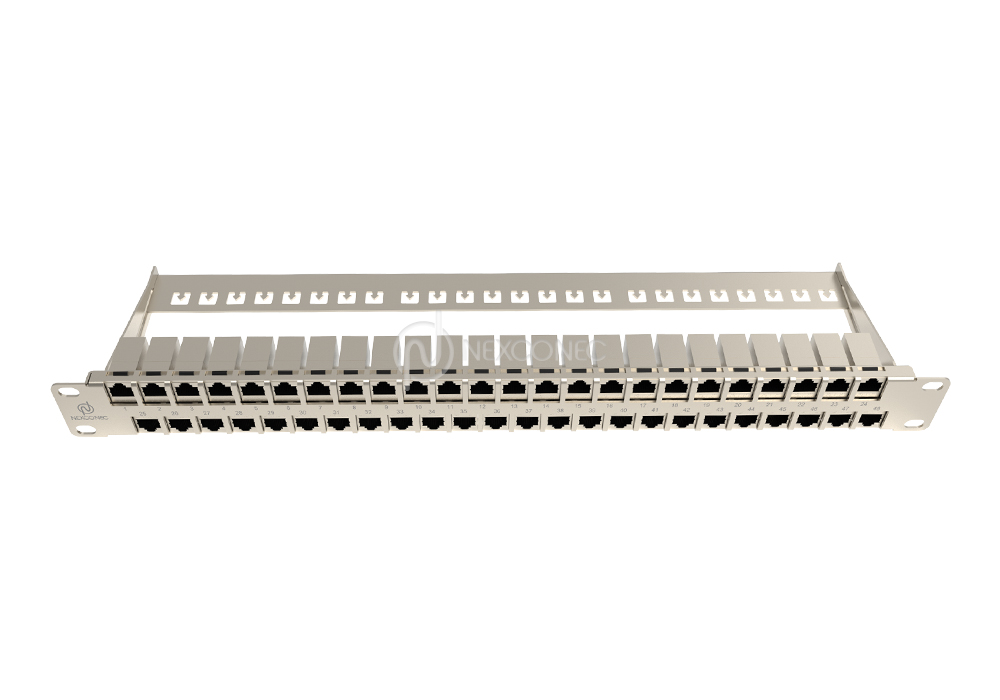

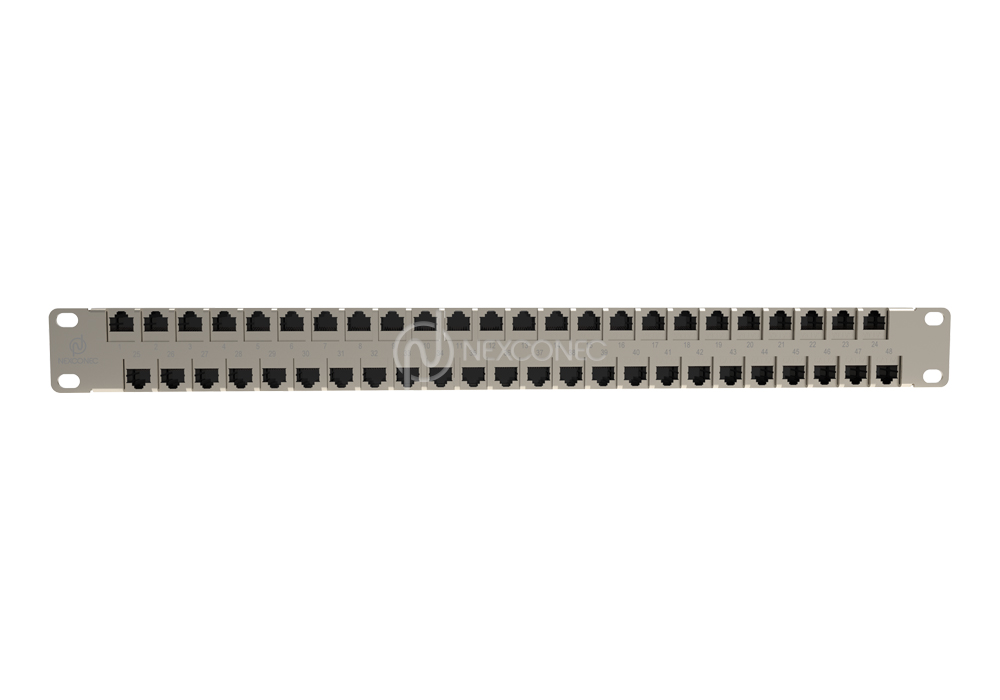

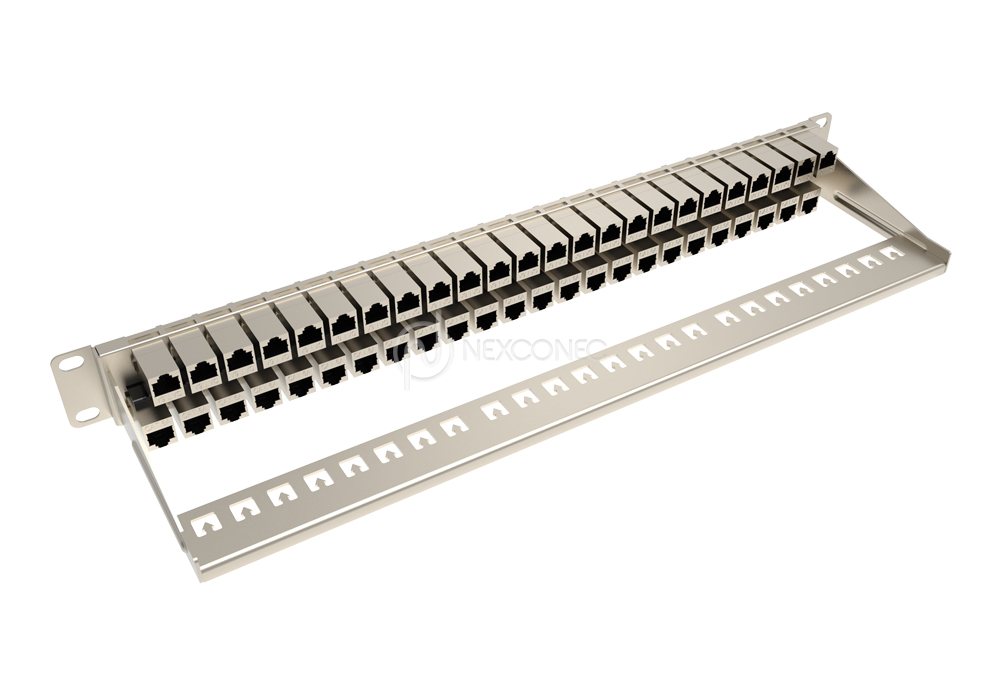

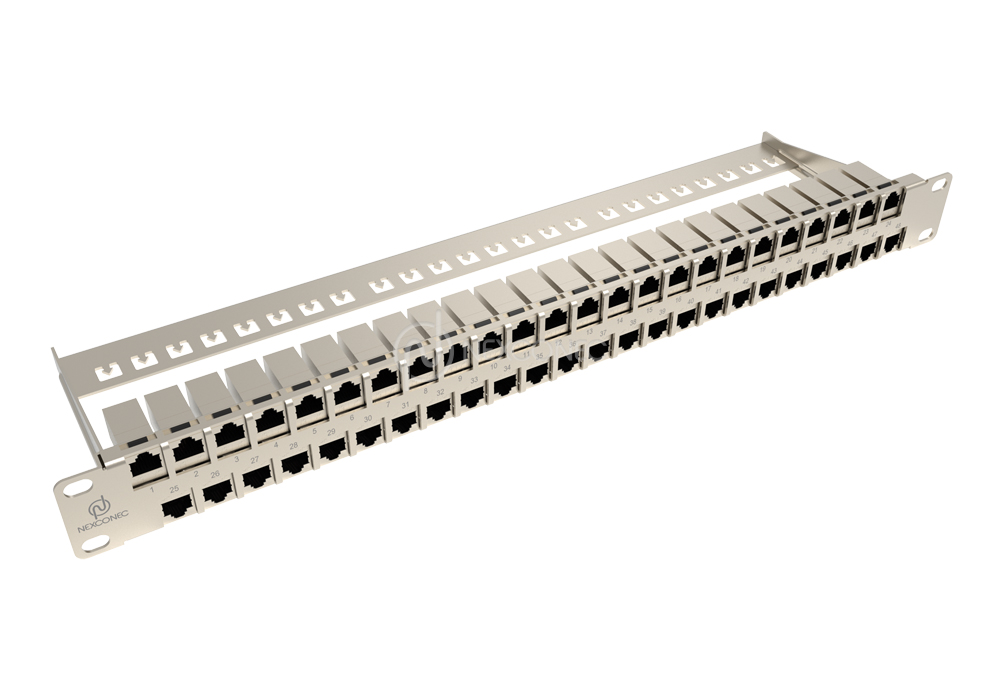

CAT.6A STP 1U 48 PORTS FEED THRU. ADAPTER PATCH PANEL - CMX6A1U48SF
The NEXCONEC® Category 6A 1U 48 Ports STP Mini Feed Through Adapter Patch Panel are expertly designed and manufactured to deliver superior, standards-based performance, ensuring optimal bandwidth for today's high-speed network applications. These Category 6A mini feed-through adapters support all applications intended for Class-EA networks as defined by ISO/IEC 11801:2011, including 10GBASE-TX (10 Gigabit Ethernet).

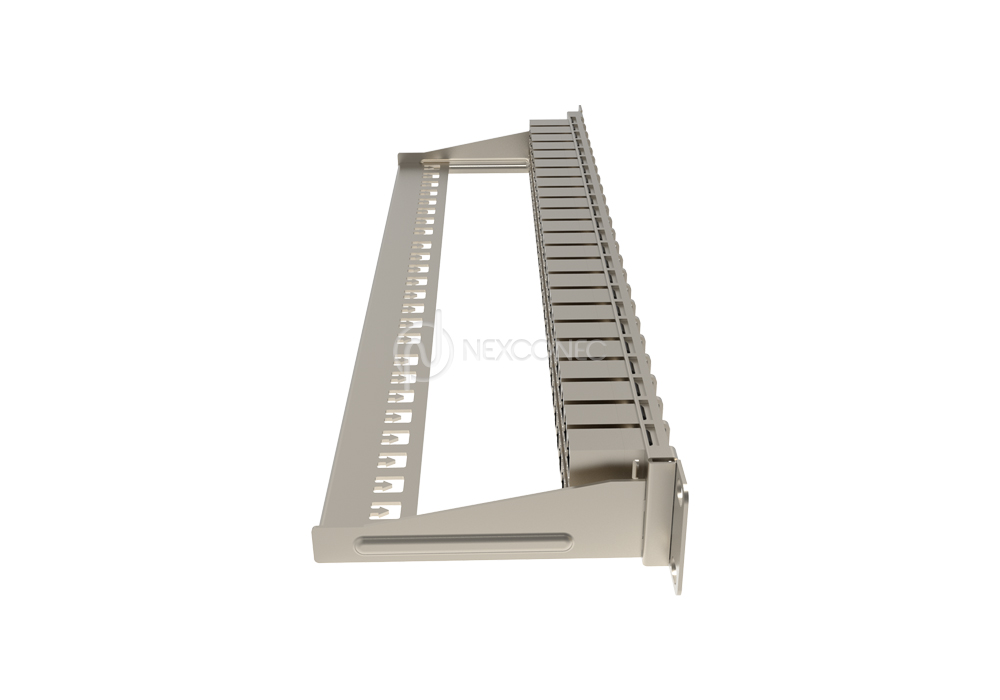

This versatile patch panel allows you to utilize only the necessary ports by installing the desired number of jacks into the frame. The patch panel includes cable ties, cage nuts, and a rear cable management bar as standard accessories.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA performance
- Support up to 48 Ports in 1U height
- Small form RJ45 mini feed-through adapters 48 Ports loaded in 1U panel
- 19’’ rack mountable
- Port numerically identified
FEATURES
- Conform to IEC, EIA-TIA performance
- Support up to 48 Ports in 1U height
- Small form RJ45 mini feed-through adapters 48 Ports fully loaded in 1U panel
- 19’’ rack mountable
- Port numerically identified
- Supplied with rear cable managers and fixings
- Durable construction for long-lasting performance
APPLICATIONS
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment
- Backwards compatible with category 6 and 5e distribution systems
| Parameters | Value |
|---|---|
| U Size | 1U (44.5mm) |
| Width | 483mm |
| Depth | 125mm |
| Frame Material | Cold-Rolled Steel |
| Material Thickness | 1.4mm |
| Color | Metallic (Nickel Plated) |
| Number of Adapters | 48x Mini Feed Thru. Adapters (Shielded) |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Part Number | Product Description |
|---|---|
| CMX6A1U48SF | NEXCONEC CAT.6A 1U 48 Ports STP Mini Feed-Thru. Adapter Patch Panel |
