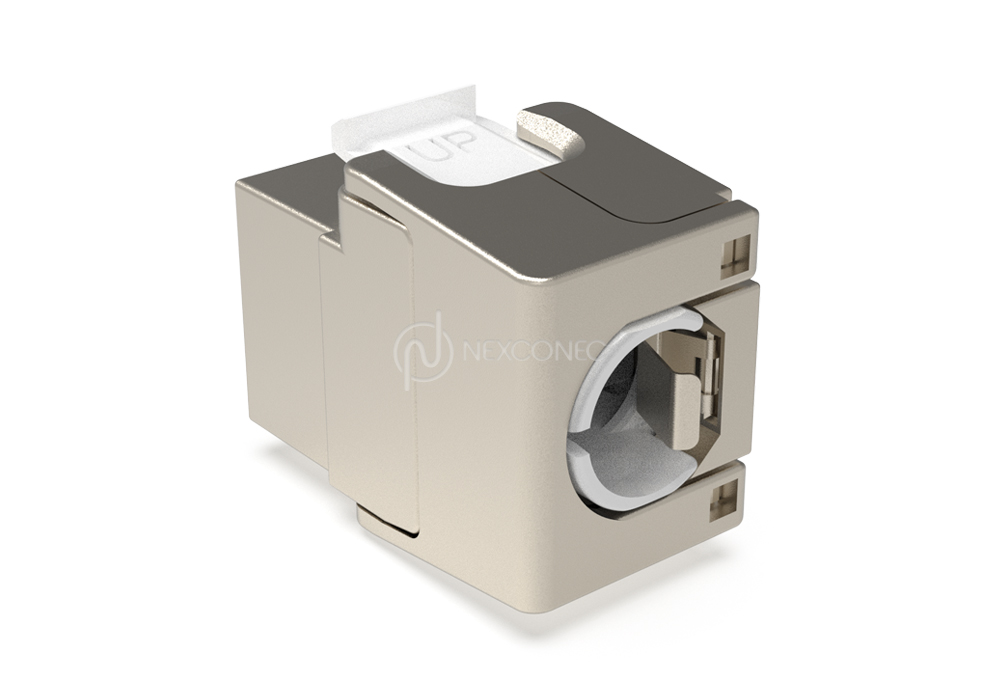

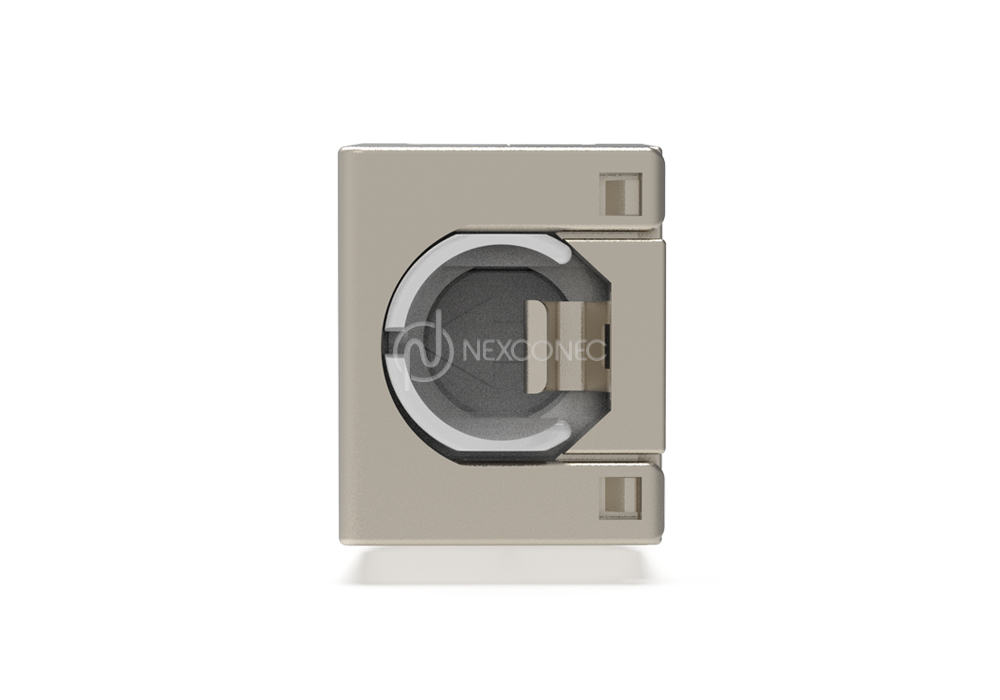

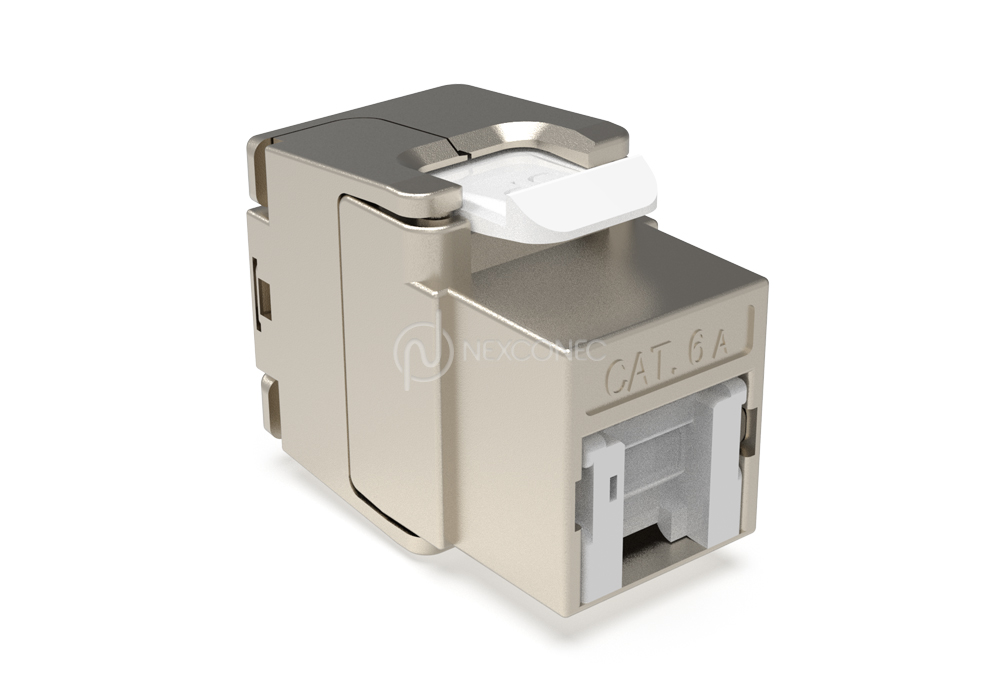

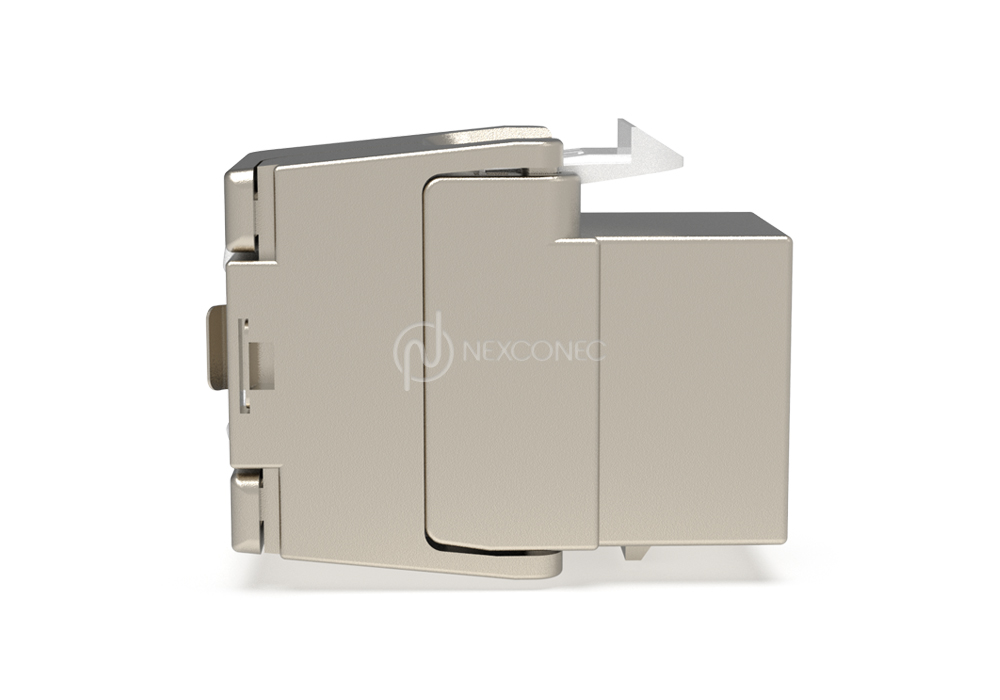

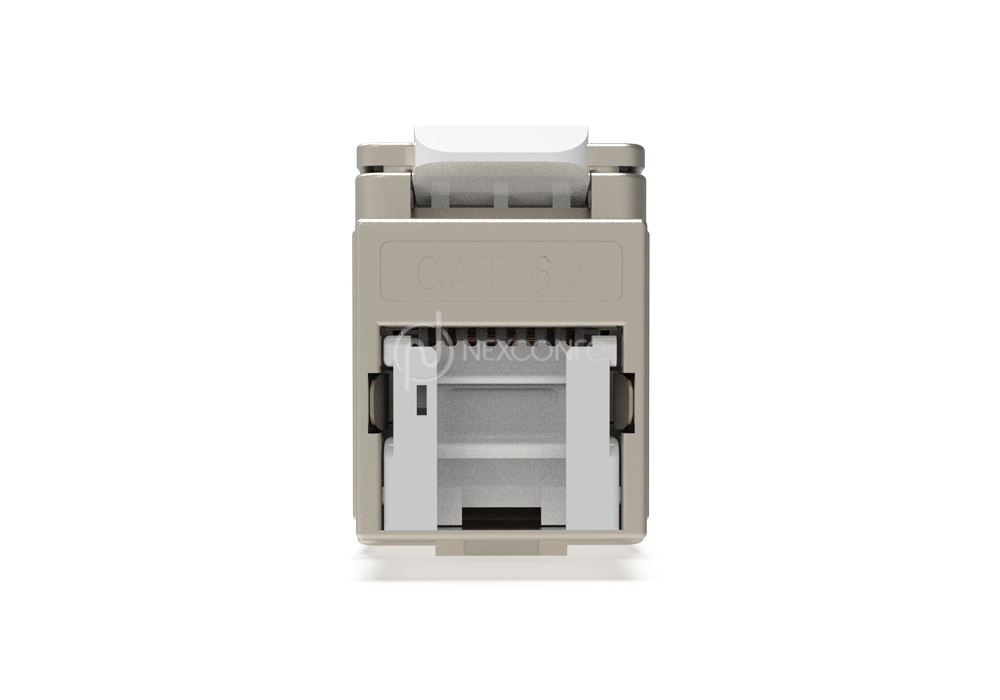

CAT.6A STP Mini Shuttered Keystone Jacks - CN6ASTME/MS
NEXCONEC® Category 6A shielded tool free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS-EA/Category 6A systems. Their compact design has been engineered to optimize density in high performance applications such as Data Centres. Each Cat 6A shielded RJ-45 keystone jacks comply with IEC 60603-7-51 (shielded) and support all applications designed for CLASS-EA networks, as defined within ISO/IEC 11801 (2nd Edition): 2010 including 10GBASE-T (10 Gigabit Ethernet), 2G FCBASE-T, 4G FCBASE-T and 1000BASE-T (Gigabit Ethernet).
With its shuttered design which offers the dust free and well protection to the contact pins inside Keystone jack.
PRODUCT HIGHLIGHTS

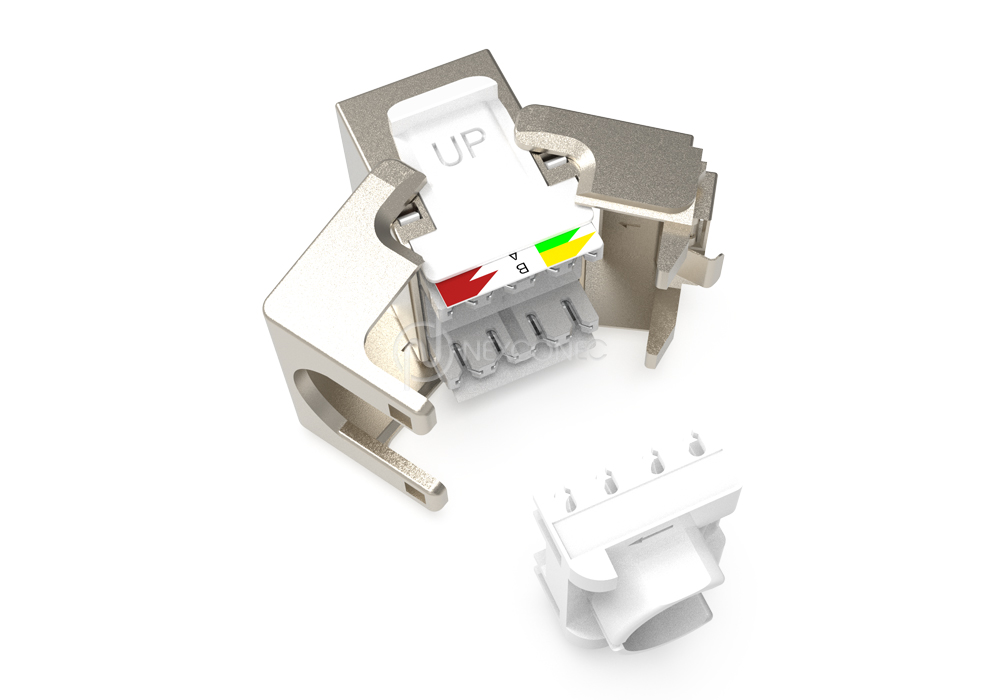

- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular screened patch panel installation
- Support Class-EA/Category 6A standards networks
- Terminates 23AWG to 26AWG cables
FEATURES
- Easy and fast tool free termination
- Fits all keystone style face plates and floor boxes
- Suitable for modular screened patch panel installation
- Support application with PoE, IEEE 802.3bt PoE++ Type 4
APPLICATIONS
- Support Class-EA/Category 6A standards networks
- Terminates 23AWG to 26AWG cables
| Parameters | Value |
|---|---|
| Shell Material | Zinc Die-Casting and Nickel plating |
| Plastic Parts | High quality engineering plastic |
| Jack Wire | Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor | 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life | Min. 750 Insertions |
| Contact Compatibility | Accommodate 23 to 26 AWG Solid |
| Wiring Block Life | Min. 200 term. cycles |
| PCB | FR-4, 1.2mm Thickness |
| Termination | 180° Termination |
| Termination Wiring | TIA-568A or TIA-568B |
| TIA Cat.6A Perm. Link Test | Worst Pair NEXT Headroom ≥3.0dB |
| Operating Temperature | -10°C / +60°C |
| Operating Humidity | 10% ~ 90% RH |
| Storage Temperature | -40°C ~ +68°C |
| Application | Support application with PoE, IEEE 802.3bt PoE++ Type 4 |
| Compliance | ANSI/TIA-568.2-D-2018, ISO/IEC 11801-1-2017, YDT926.3-2009, ISO/IEC 60603-7-51 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Packing | 25pcs per carton |
| Part Number | Product Description |
|---|---|
| CN6ASTME/MS | NEXCONEC CAT.6A STP Mini Keystone Jack Tool less, Shuttered |
