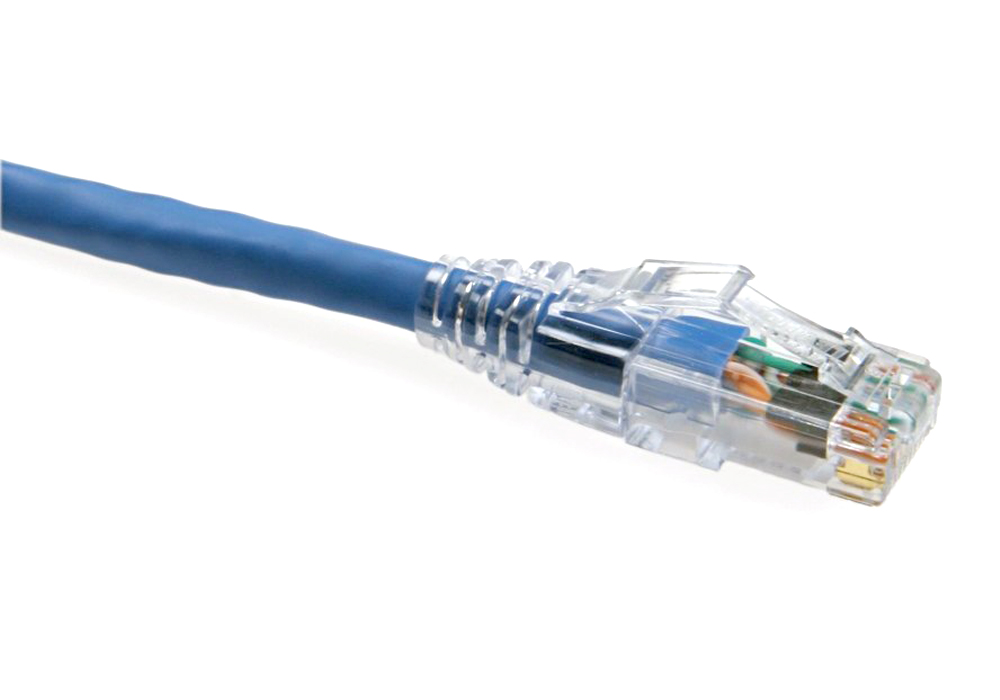

CAT.6A U/UTP PATCH CORD - CA6AUxx00L
NEXCONEC® Category 6A U/UTP patch cords are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications.
Each Category 6A U/UTP patch cord exceed the minimum specified performance for Category 6A U/UTP patch cords and support all CLASS EA applications.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance requirements
- Gold plated contact pins
- 24AWG premium grade copper conductor
- Support application with PoE, IEEE 802.3bt PoE++ Type 4
- Snag-less Connectors
- ETL certified channel test
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment
| Parameters | Unit | Value |
|---|---|---|
| Cable OD | mm | 6.0±0.15mm |
| Insulators Diameter | mm | 0.98±0.05mm |
| Termination Wiring | TIA-568B (Nexconec Standard) *See Cable Wiring Scheme on Datasheet for other wiring method request |
|
| Operating Temperature | ℃ | -20℃ ~ +75℃ |
| PoE Application | IEEE 802.3bt PoE++ Type 4 | |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified | |
| RoHS Compliance | Compliant | |
| Warranty | 12 Months | |
| Conductor | 24AWG stranded copper | |
| Insulators Material | PE - Polyethylene |
| Part Number | Product Description |
|---|---|
| CA6AUxx00L | Nexconec CAT6A U/UTP Patch Cord xx 00mtr LSZH |
| CA6AUxx00C | Nexconec CAT6A U/UTP Patch Cord xx 00mtr CM |
| CA6AUxx00P | Nexconec CAT6A U/UTP Patch Cord xx 00mtr PVC |
