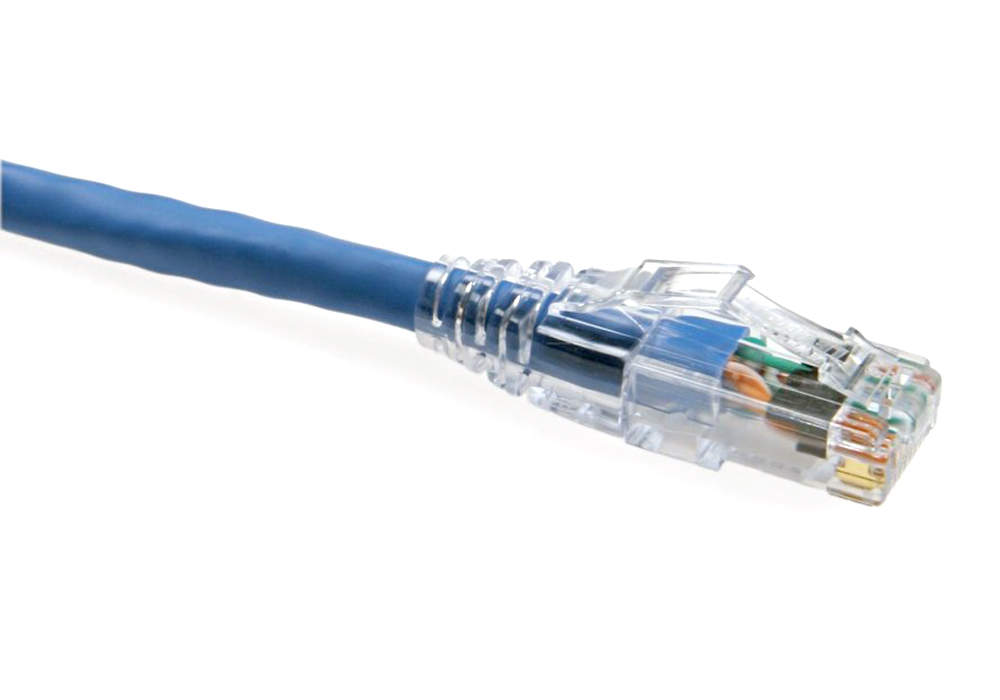

CAT.6A U/UTP PATCH CORDS - CA6AUxx00L
NEXCONEC® Category 6A U/UTP patch cords are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications.
Each Category 6A U/UTP patch cord exceed the minimum specified performance for Category 6A U/UTP patch cords and support all CLASS EA applications.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance requirements
- Gold plated contact pins
- 26AWG premium grade copper conductor
- Support application with PoE
- Snag-less Connectors
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment
| Parameters | Unit | Value |
|---|---|---|
| Cable OD | mm | 6.1±0.3mm |
| Insulators Diameter | mm | 1.00±0.05mm |
| Termination Wiring | TIA-568B (Nexconec Standard) *See Cable Wiring Scheme below for other wiring method request |
|
| Operating Temperature | ℃ | -20℃ ~ +70℃ |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 | |
| RoHS Compliance | Compliant | |
| Warranty | 12 Months | |
| Conductor | 26AWG Stranded Copper | |
| Insulators Material | PE - Polyethylene |
| Part Number | Product Description |
|---|---|
| CA6AUxx00L | Nexconec CAT6A U/UTP Patch Cord xx 00mtr LSZH |
| CA6AUxx00C | Nexconec CAT6A U/UTP Patch Cord xx 00mtr CM |
| CA6AUxx00P | Nexconec CAT6A U/UTP Patch Cord xx 00mtr PVC |
