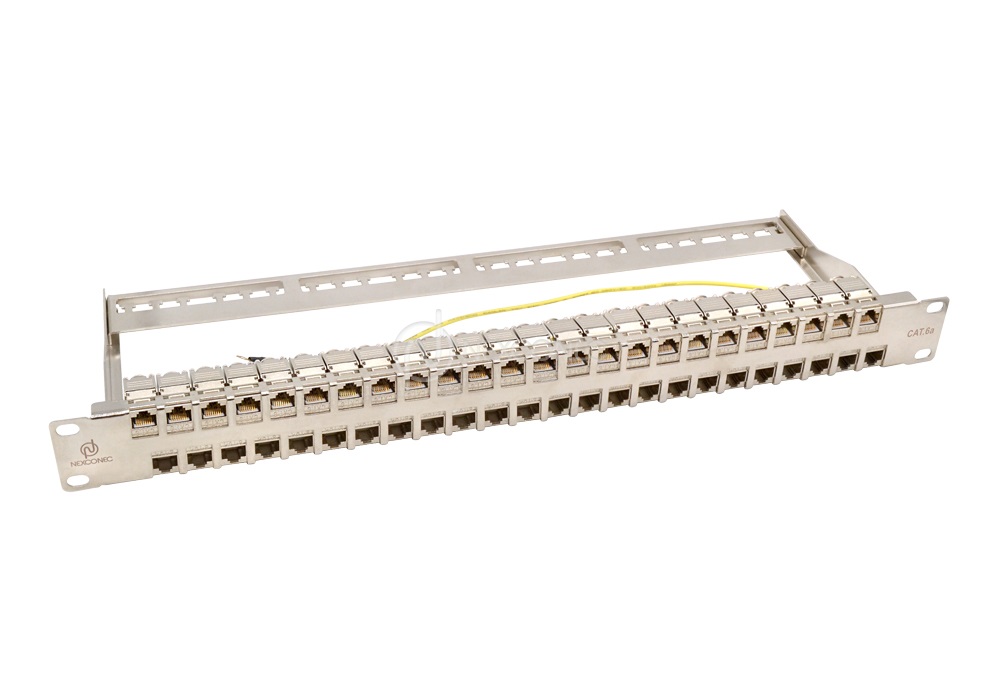

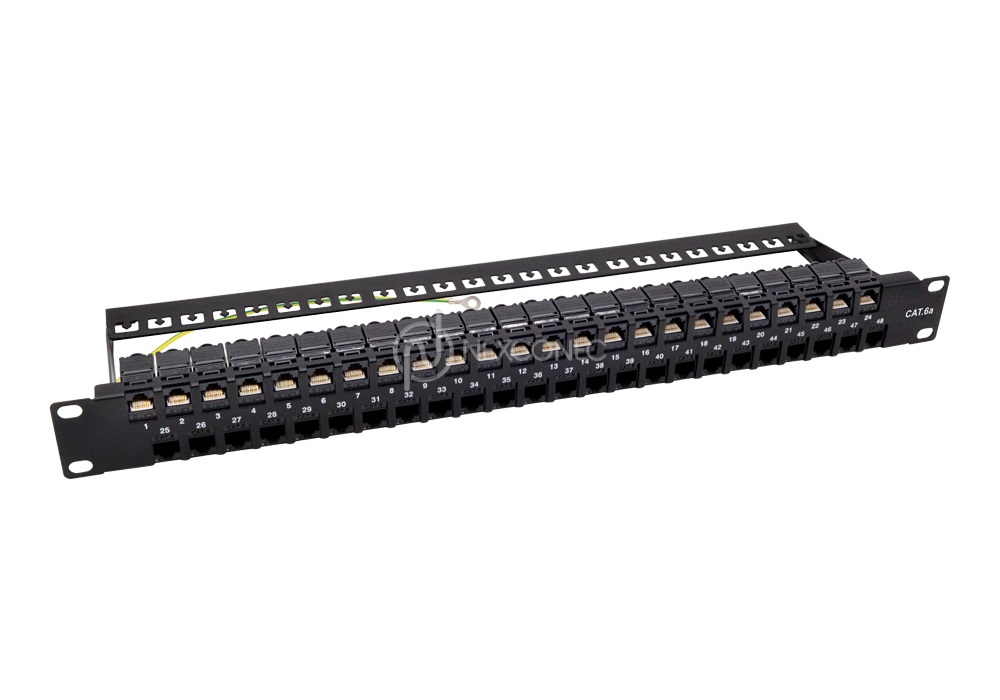

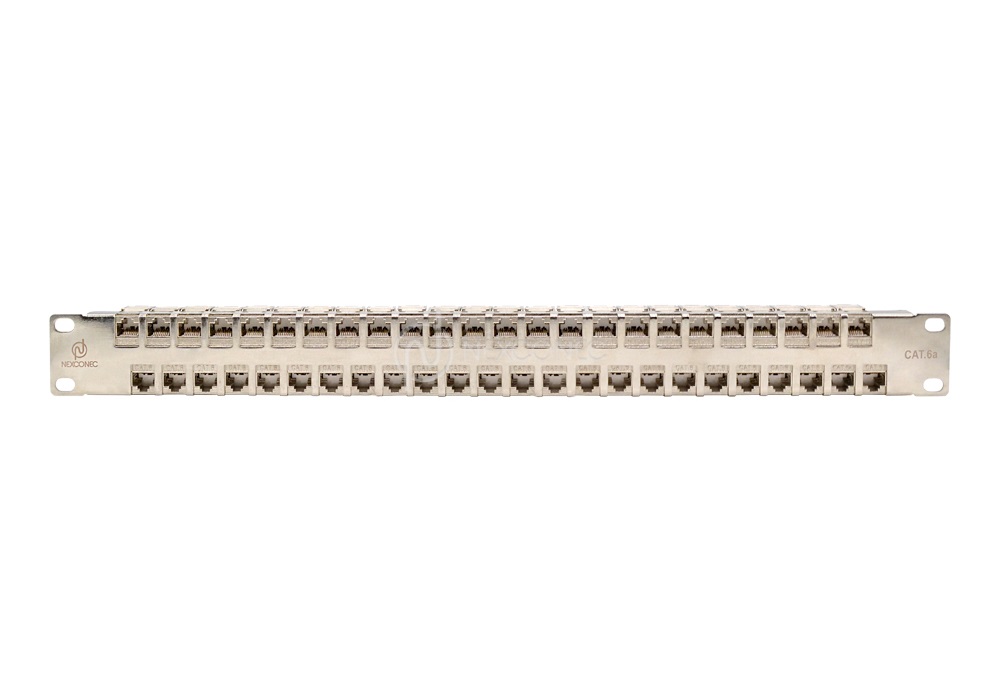

CAT6A UTP/STP 1U 48 PORTS PATCH PANEL - CM6A1U48xx
NEXCONEC Category 6A UTP/STP 1U 48 ports keystone patch panel allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame.
With the port identification number which help the end user to recognize the ports while/after installation. When mounted with NEXCONEC shielded/unshielded keystone jacks for Cat 6A, your completed panel will conform to ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.

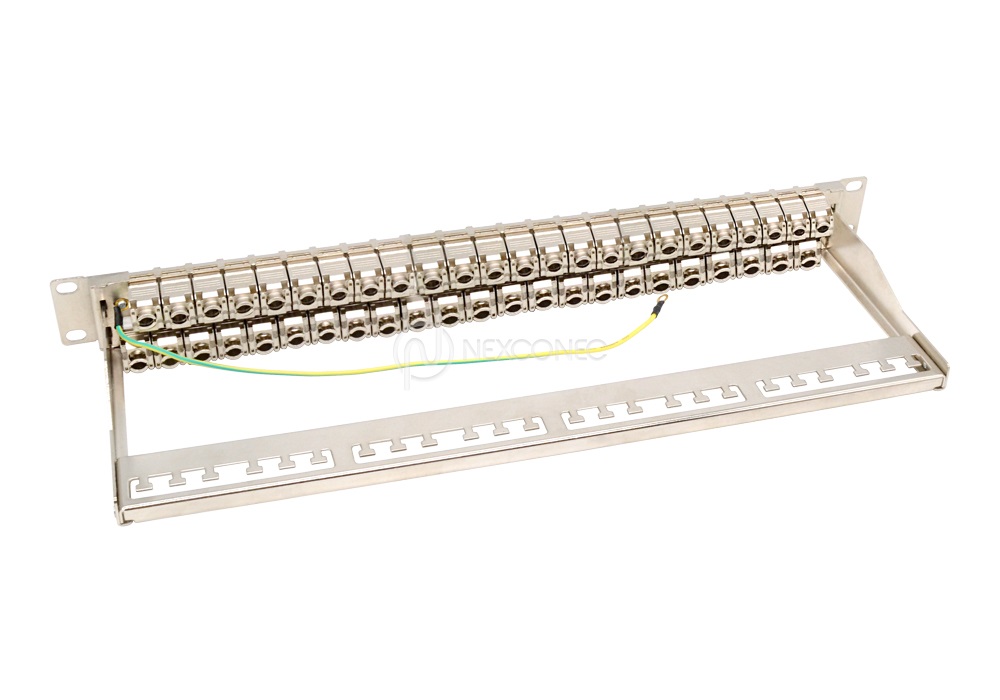

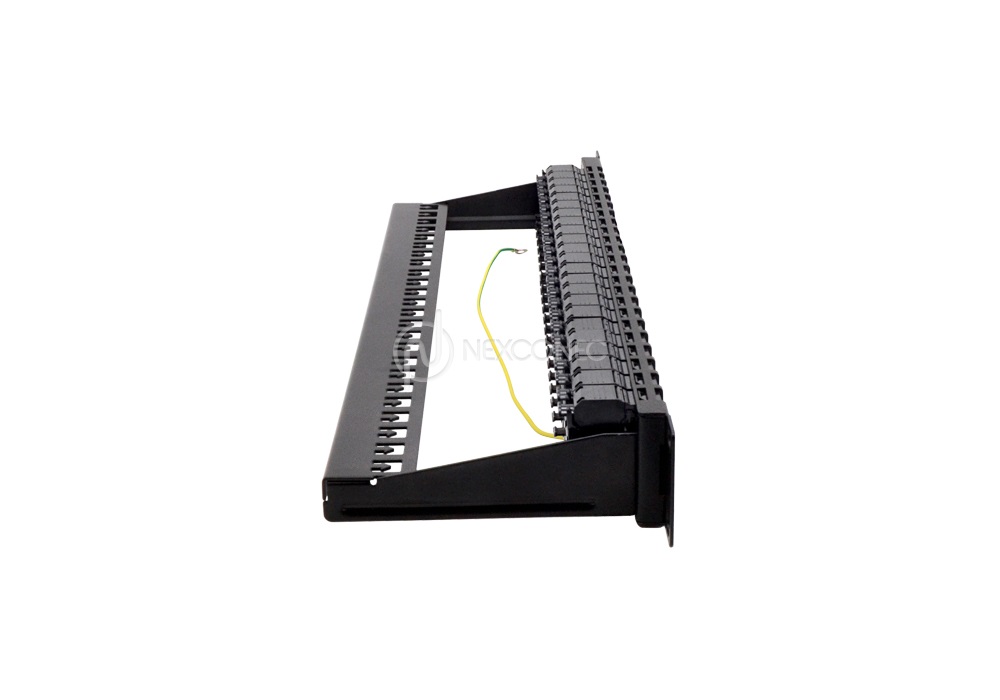

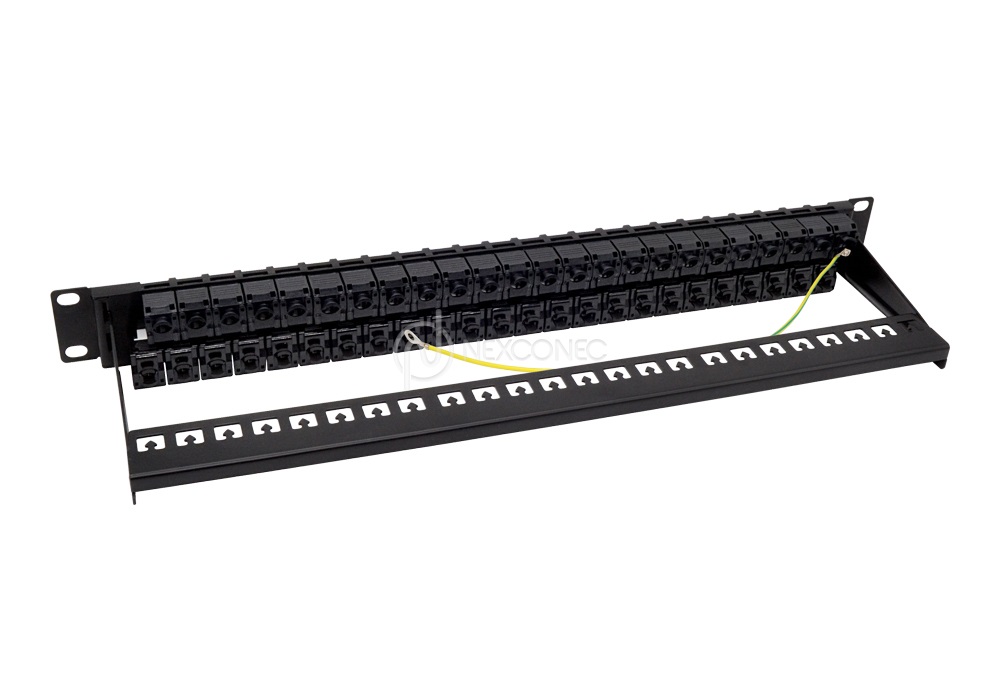

This UTP/STP keystone jack patch panel comes with cable ties, cage nuts and rear cable management bar as standard.
FEATURES AND APPLICATIONS
- Compatible with NEXCONEC UTP/STP Cat 6A keystone jacks
- Support up to 48port in 1U height
- RJ45 48 ports fully loaded in 1U panel
- Tool less Shielded/Unshielded keystone jacks
- 19’’ rack mountable

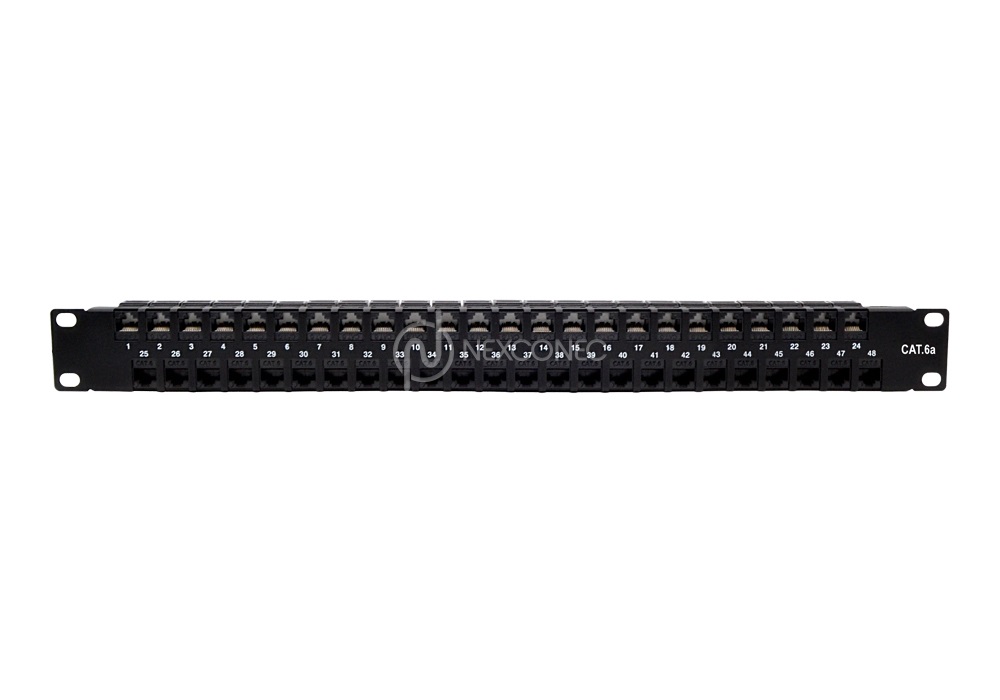

- Port numerically identified
- Supplied with rear cable managers and fixings
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment’s
- Compatible with all categories of shielded/unshielded keystone jacks
| Parameters | Value |
|---|---|
| U Size | 1U (44.5mm) |
| Width | 483mm |
| Depth | 125mm |
| Frame Material | Cold-rolled steel |
| Material Thickness | 1.4mm |
| Housing Material | PC UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Color | Black, RAL 9004 (for UTP) Metallic (Nickel Plated) color (for STP) |
| Part Number | Product Description |
|---|---|
| CM6A1U48SU | NEXCONEC 1U 48 Ports Cat6A Unshielded KJ Patch Panel |
| CM6A1U48SF | NEXCONEC 1U 48 Ports Cat6A Shielded KJ Patch Panel |
