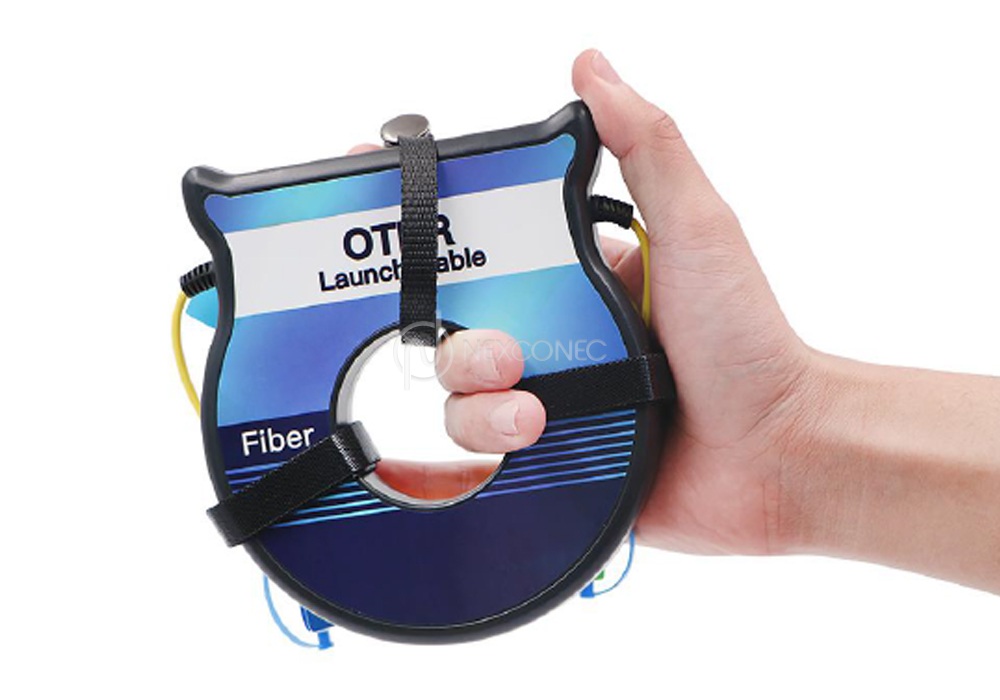

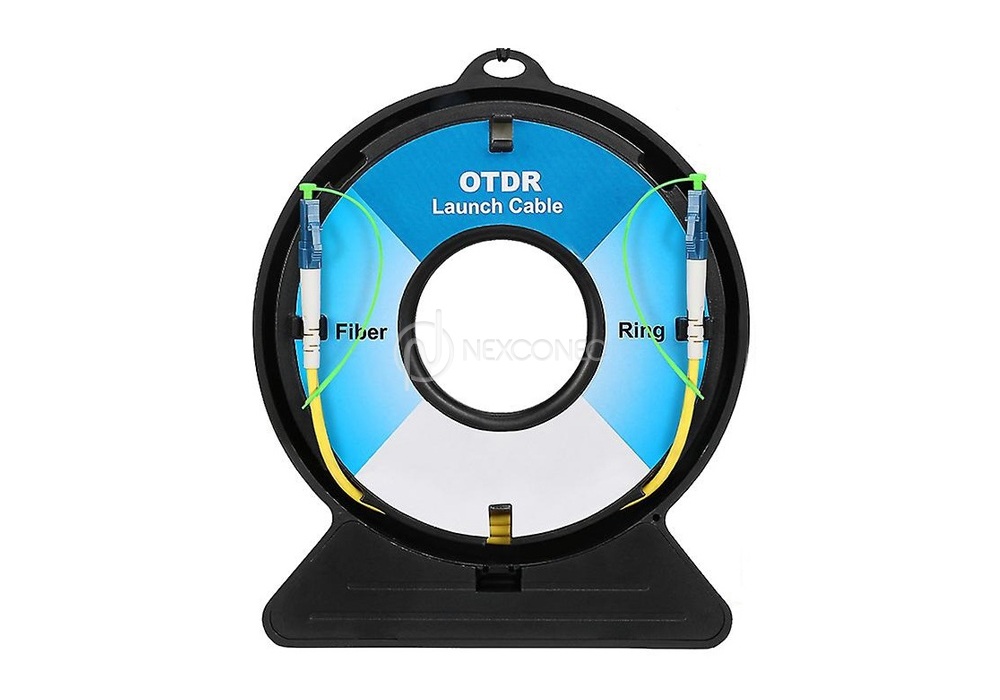

Compact Handheld OTDR Launch Box – Dead Zone Eliminator
NEXCONEC® Fiber Rings provide coiled lengths of 50µm multimode, 62.5µm multimode, or single-mode fiber in compact rings for OTDR testing. Available from 150m to 2000m, they serve as launch and receive cables to measure insertion loss and reflectance at both near-end and far-end connections. Short lengths are ideal for premises testing, while long lengths singlemode rings support broadband and long-haul applications.
FEATURES AND APPLICATIONS
- Compact, strong, and lightweight for easy carrying
- Available in 150m to 2000m standard lengths
- Supports single-mode and multimode options
- Compatible with all OTDR testers
- Eliminates OTDR dead zones for accurate testing
- Measures insertion loss and reflectivity at near-end and far-end connections
- Suitable for single-mode and multimode fiber testing
- Ideal for premises, broadband, and long-haul fiber network applications
| Parameters | Value |
|---|---|
| Fiber Type | Single mode (9/125µm), Multimode (50/125µm, 62.5/125µm) |
| Length Options | 150m to 2000m (custom lengths available) |
| Connectors | SC, LC, FC, ST (UPC/APC) |
| Case Design | Compact, lightweight, rugged protective housing with storage for couplers |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Compatibility | Universal, works with all OTDR testers |
