COPPER FACEPLATES (EU) TYPE SHUTTERED JACK - CMFPEx
NEXCONEC® EU (European) type shuttered jack faceplates are industry standard size and are compatible with Nexconec European style back box. The rounded edges and raised surface give these faceplates a nicely styled finish. Each faceplate is supplied with fixing screws and compatible with Nexconec Cat.5e/Cat.6/Cat.6A Keystone Jacks.
FEATURES AND APPLICATIONS
- Available in 1 and 2 ports
- Easy installation
- Data and Voice markers and mini cable ties supplied
- Fixing screws, labelling supplied
- Can be used with all categories of keystone jacks from Nexconec
- To be used with EU (European) style back box
| Parameters | Value |
|---|---|
| Faceplate Type | EU (European) Standard |
| Dimensions | 80 x 80mm (Outer Frame) 45 x 45mm (Inner Frame) |
| Snap-in | Cat.5e/Cat.6/Cat.6A Keystone Jack |
| Material | Plastic Parts: ABS |
| Color | White |
| RoHS | Compliant |
| Operating Temperature | -10 ~ +60 °C |
| Operating Humidity | 10% ~ 90% RH |
| Storage Temperature | -40 ~ +68 °C |
| Part Number | Product Description |
|---|---|

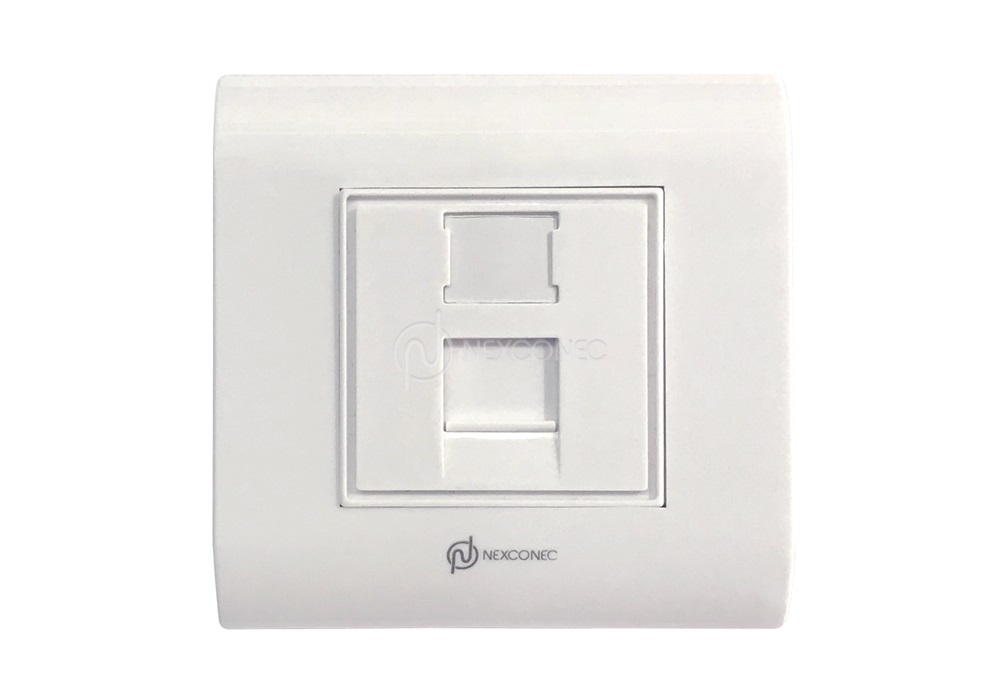

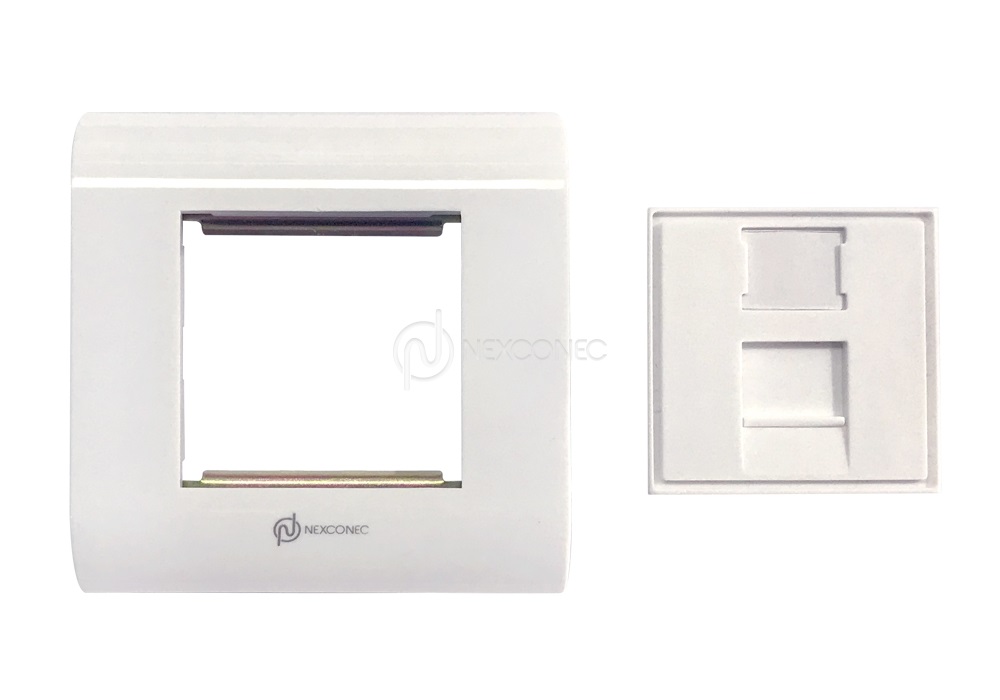

| CMFPE1 | NXC Faceplate, EU (European) Standard Single Port Shuttered, 80x80mm - Unloaded |

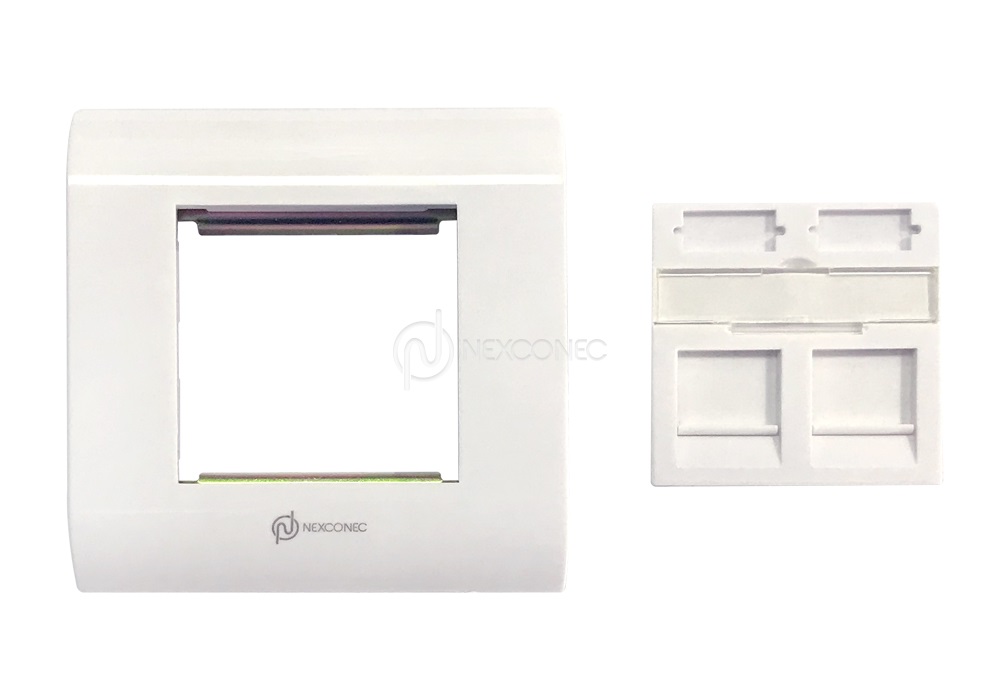

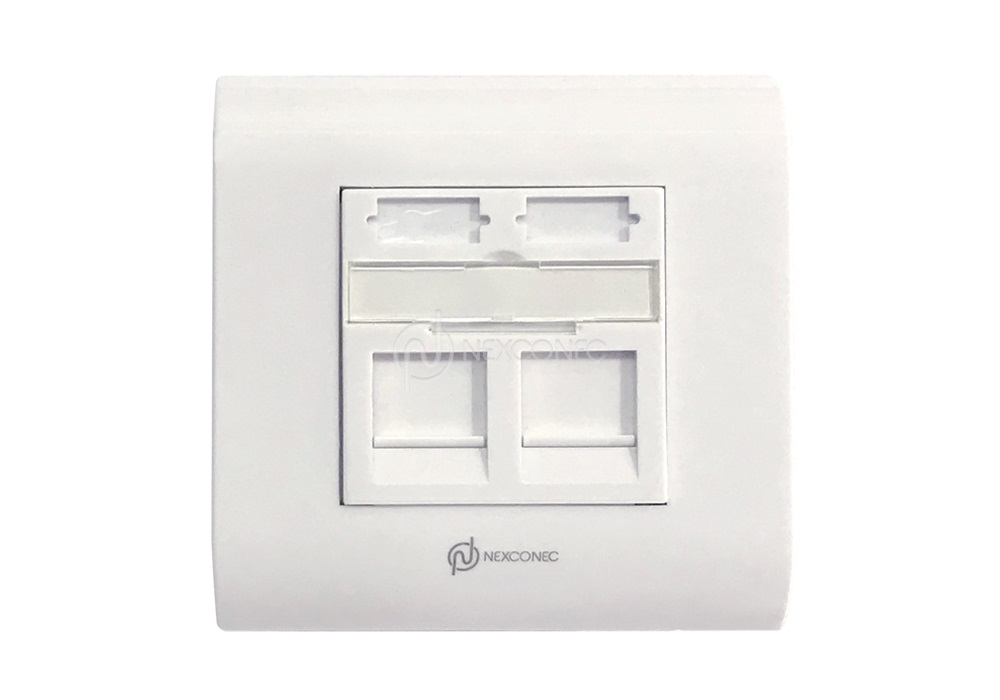

| CMFPE2 | NXC Faceplate, EU (European) Standard Dual Port Shuttered, 80x80mm - Unloaded |

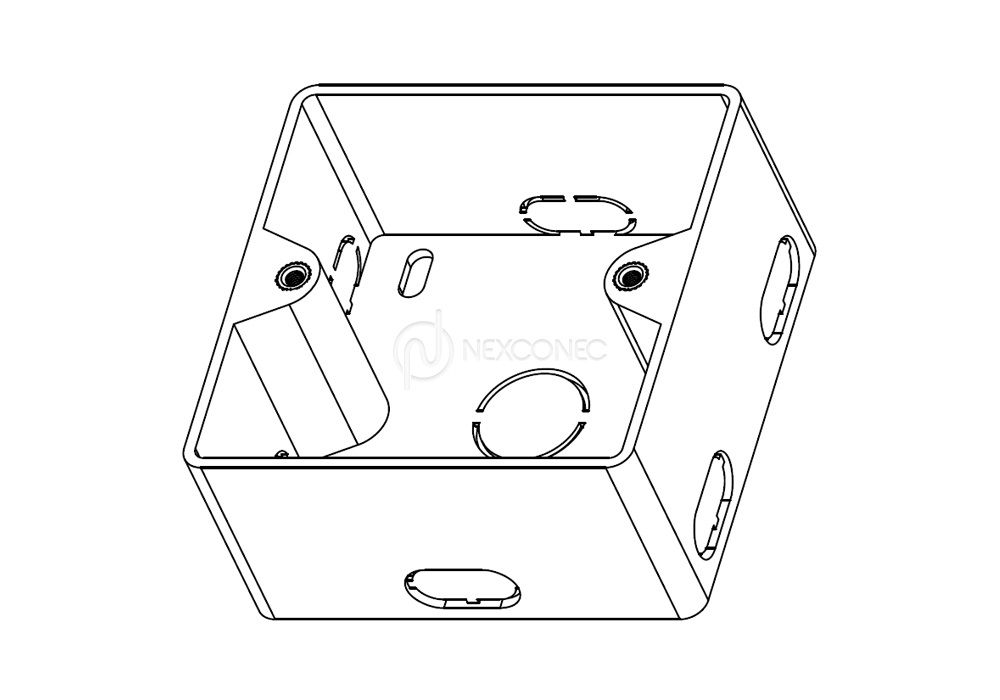

| CBBEU | NXC Faceplate Back Box, EU (European) Standard, 80x80x40mm |

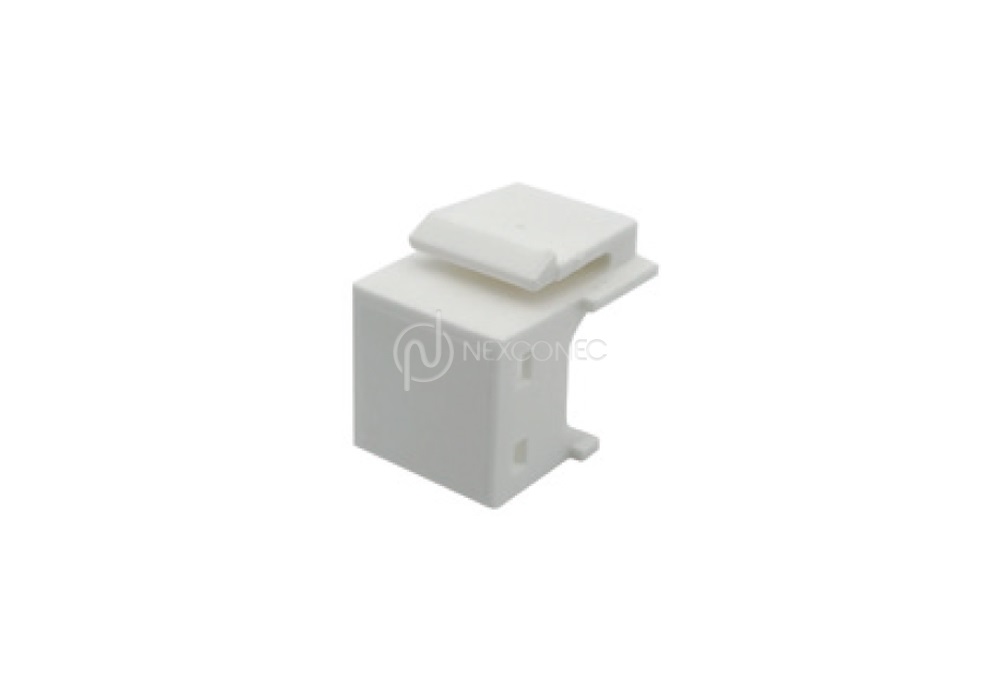

| CBJ1 | RJ45 Blanking Plug |
