COPPER FACEPLATES (UK) TYPE - CMFUKx
Nexconec UK type faceplates are industry standard size and are compatible with all UK style back box. The rounded edges and raised surface give these faceplates a nicely styled finish. Each faceplate is supplied with fixing screws and compatible with Nexconec UK style modules, Keystone Fascia, Blank Brackets, Cat.5e/Cat.6/Cat.6A Keystone Jacks.
FEATURES AND APPLICATIONS
- Available in 1 and 2 ports
- Easy installation
- Data and Voice markers and mini cable ties supplied
- Fixing screws, labelling supplied
- Can be used with all categories of keystone jacks from Nexconec
- To be used with UK style back box
| Parameters | Value |
|---|---|
| Faceplate Type | UK Standard |
| Dimension | 86 x 86 mm |
| Snap-in | Cat.5e/Cat.6/Cat.6A Keystone Jack |
| Material | PC+ABS |
| Color | White |
| Standards Compliance | ISO/IEC 11801 : 2002 ANSI/EIA/TIA 568B.2 : 2002 |
| RoHS | Compliant |
| Part Number | Product Description |
|---|---|

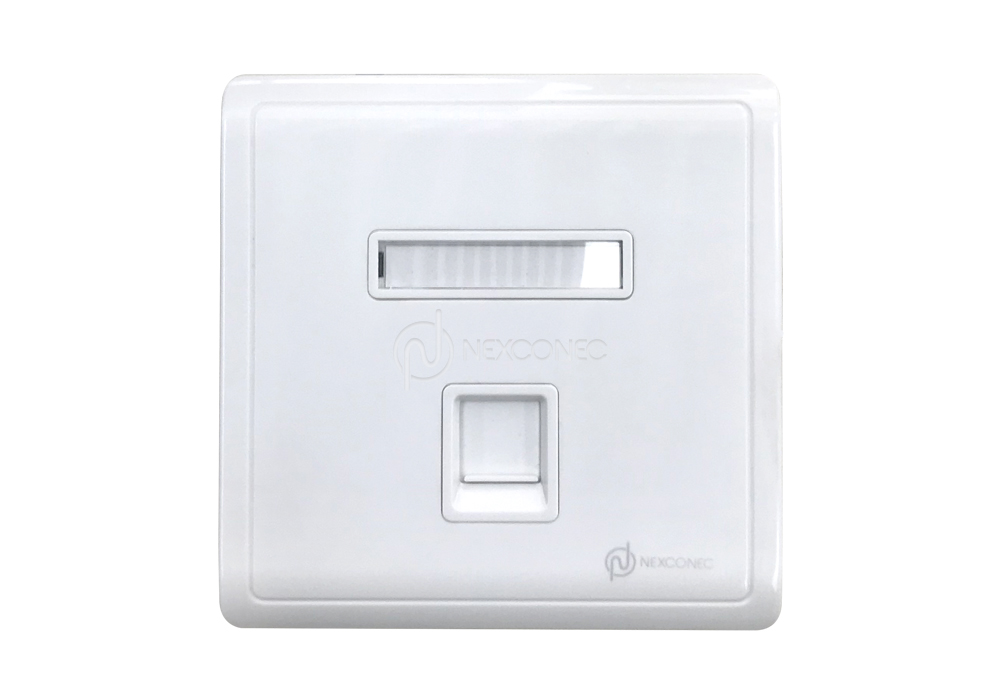

| CMFUK1 | Single Face Plate - UK Standard, NXC Faceplate, 86x86mm, 1port, UK Style Unloaded |

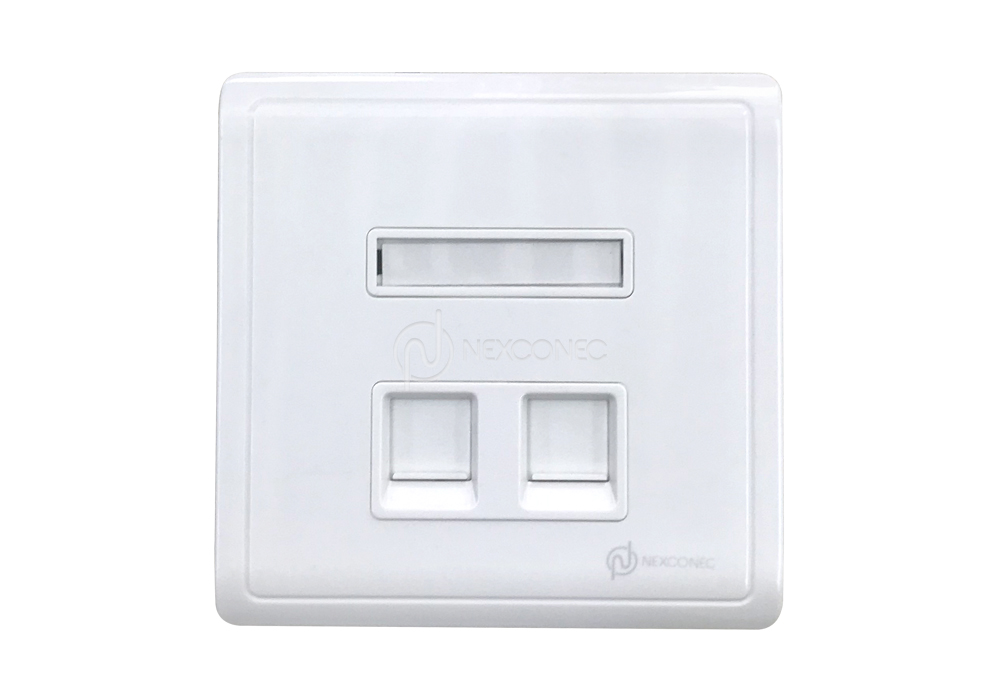

| CMFUK2 | Dual Face Plate - UK Standard, NXC Faceplate, 86x86mm, 2port, UK Style Unloaded |
