COPPER FACEPLATES (US) TYPE - CMFPSx
Nexconec US type faceplates are industry standard size and are compatible with all US style back box. The rounded edges and raised surface give these faceplates a nicely styled finish. Each faceplate is supplied with fixing screws and compatible with Nexconec US style modules, Keystone Fascia, Blank Brackets, Cat.5e/Cat.6/Cat.6A Keystone Jacks.
FEATURES AND APPLICATIONS
- Available in 1, 2, 3, 4 and 6 port
- Easy installation
- Data and Voice markers and mini cable ties supplied
- Fixing screws, labelling supplied
- Can be used with all categories of keystone jacks from Nexconec
- To be used with US style back box
| Parameters | Value |
|---|---|
| Faceplate Type | America Type |
| Dimension | 70 x 115 mm |
| Snap-in | Cat.5e/Cat.6/Cat.6A Keystone Jack |
| Material | PC+ABS |
| Color | White |
| Standards Compliance | ISO/IEC 11801 : 2002 ANSI/EIA/TIA 568B.2 : 2002 |
| RoHS | Compliant |
| Part Number | Product Description |
|---|---|

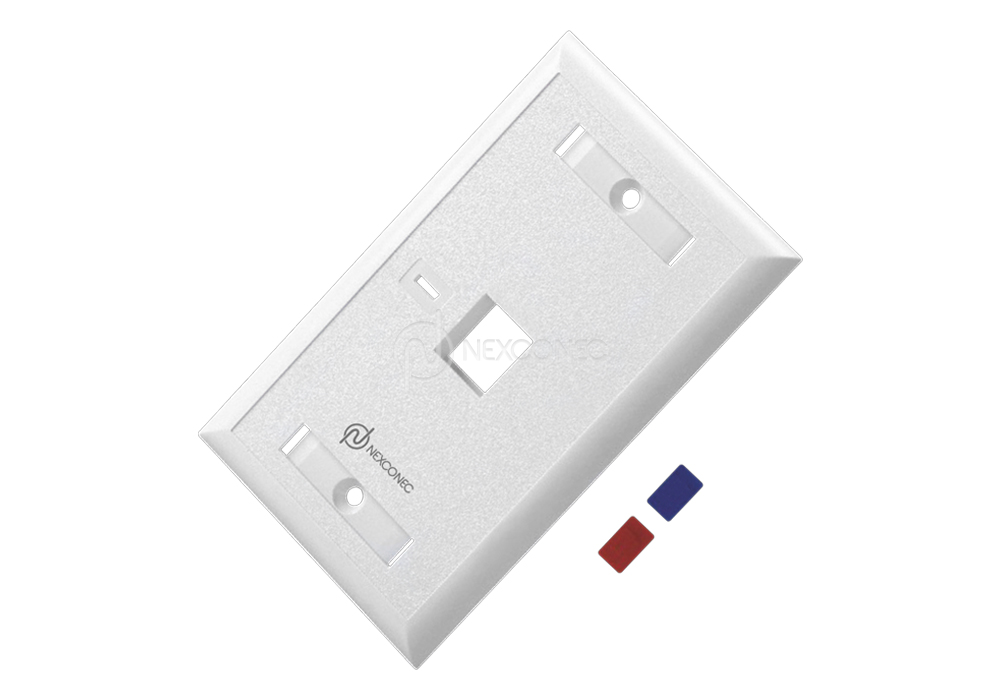

| CMFPS1 | Faceplate 1 Port KJ US Style |

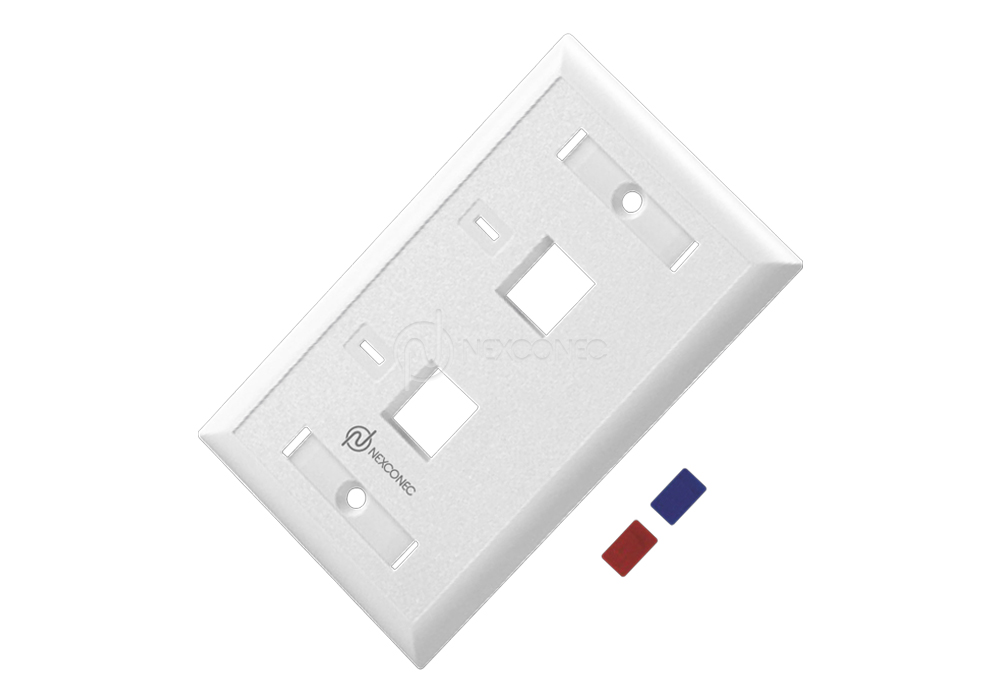

| CMFPS2 | Faceplate 2 Port KJ US Style |

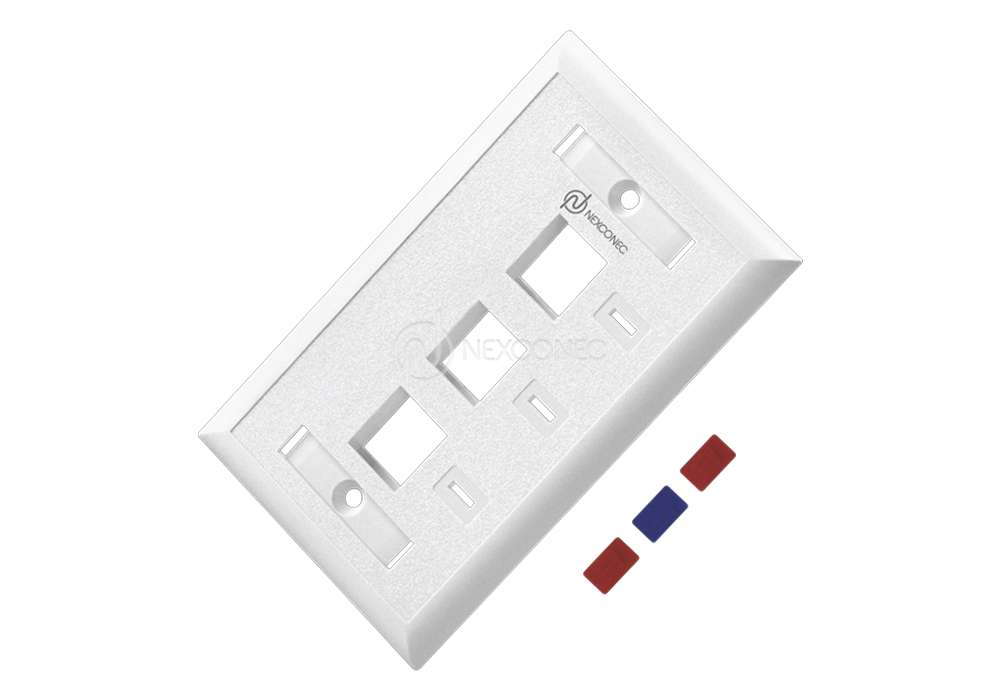

| CMFPS3 | Faceplate 3 Port KJ US Style |

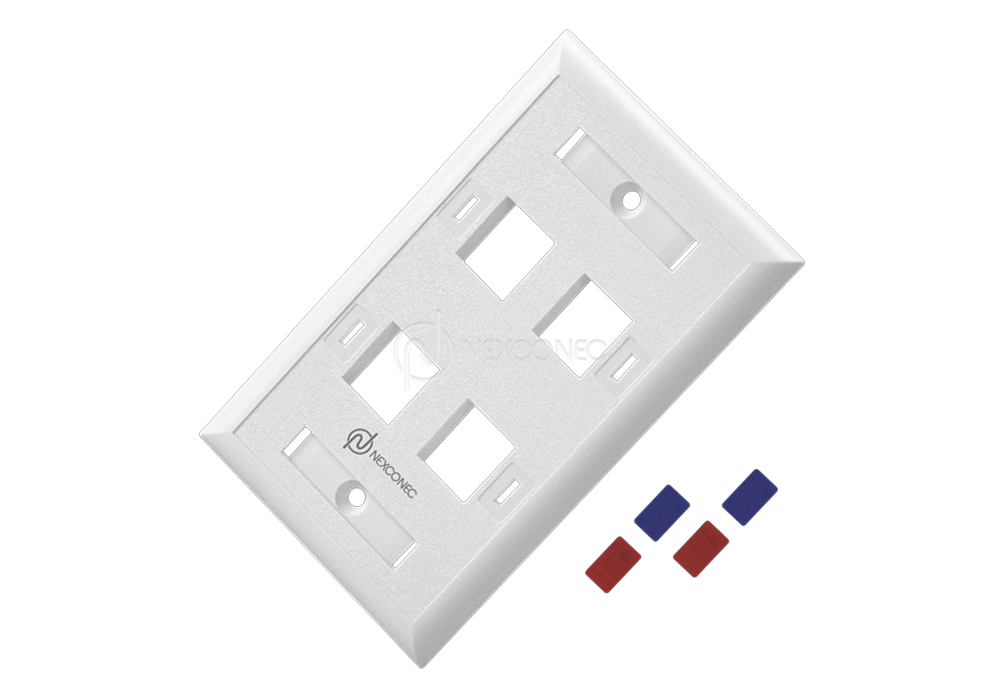

| CMFPS4 | Faceplate 4 Port KJ US Style |

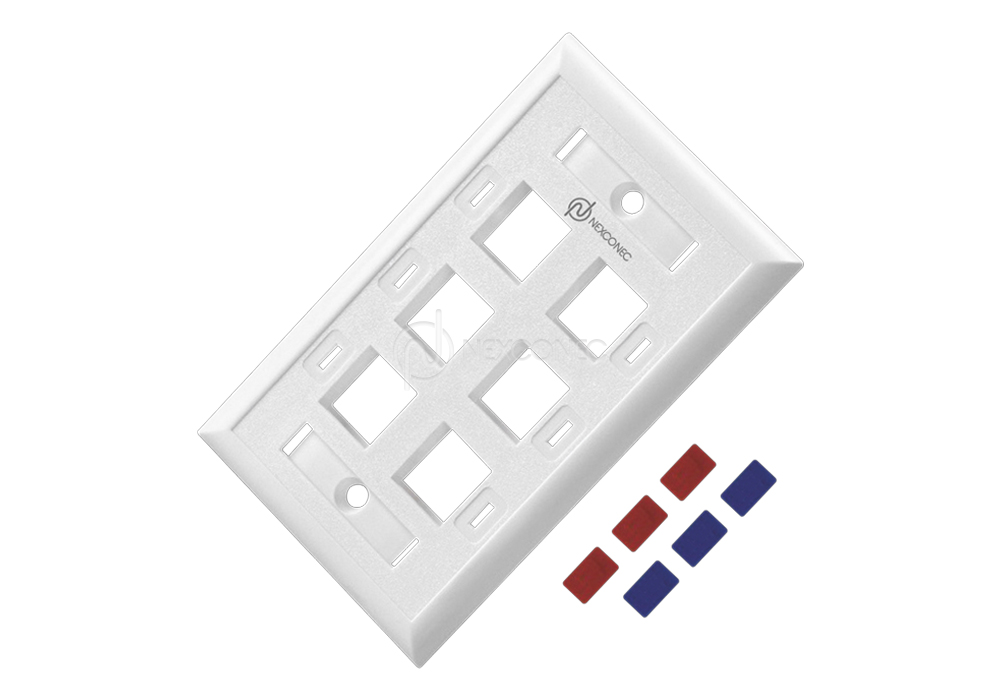

| CMFPS6 | Faceplate 6 Port KJ US Style |
