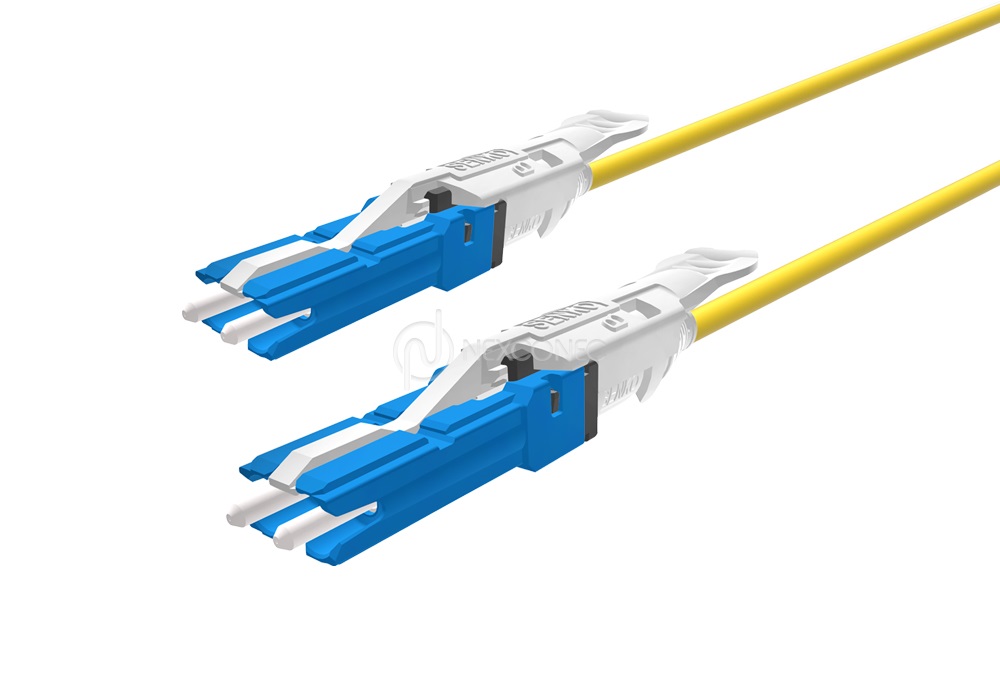

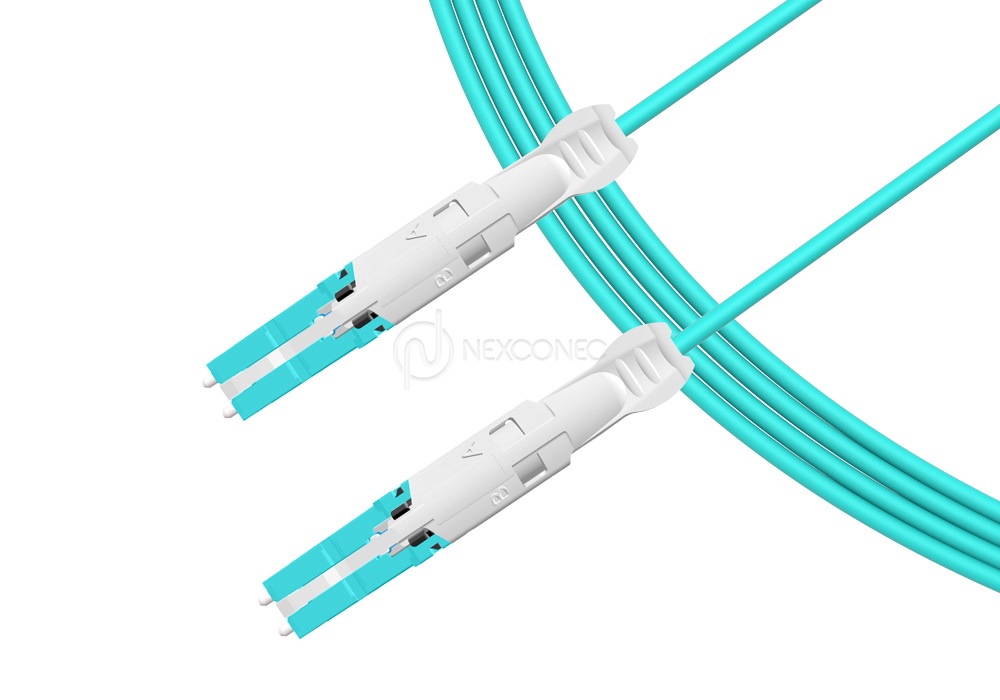

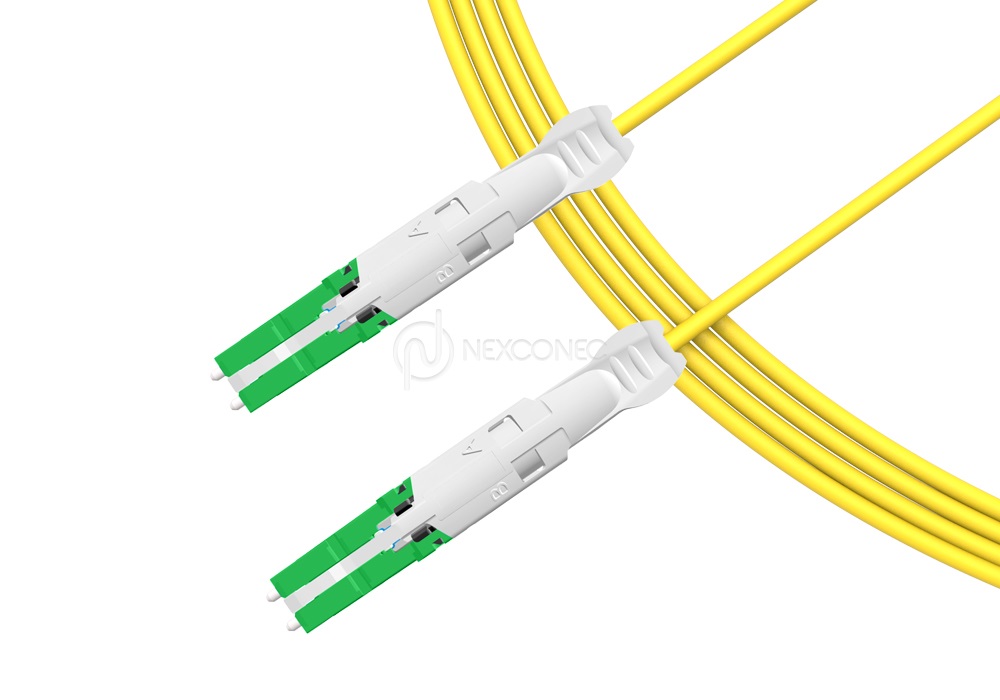

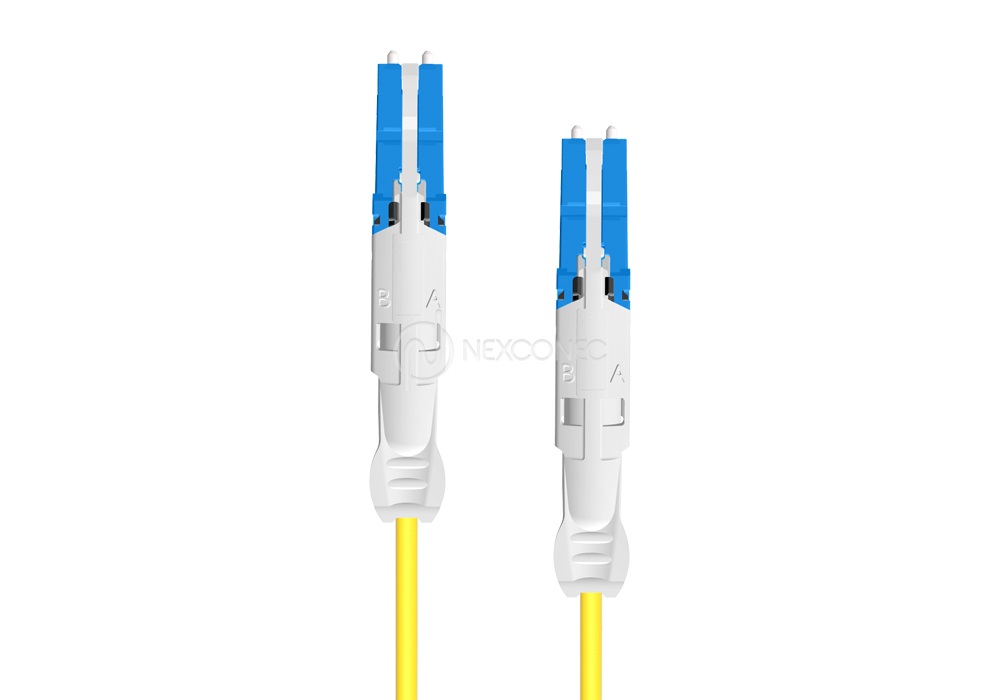

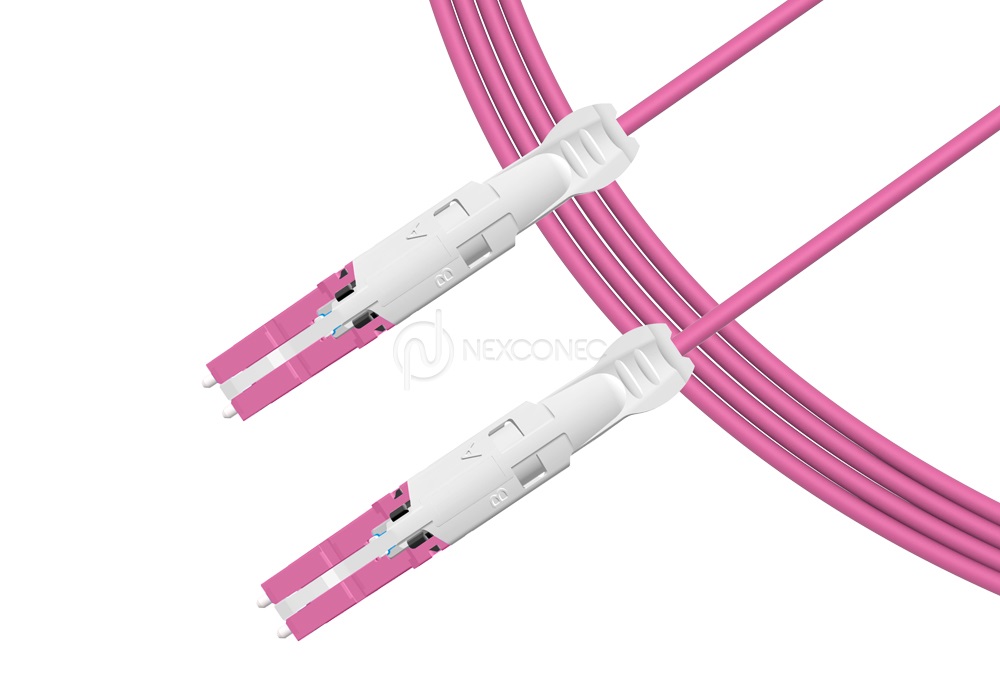

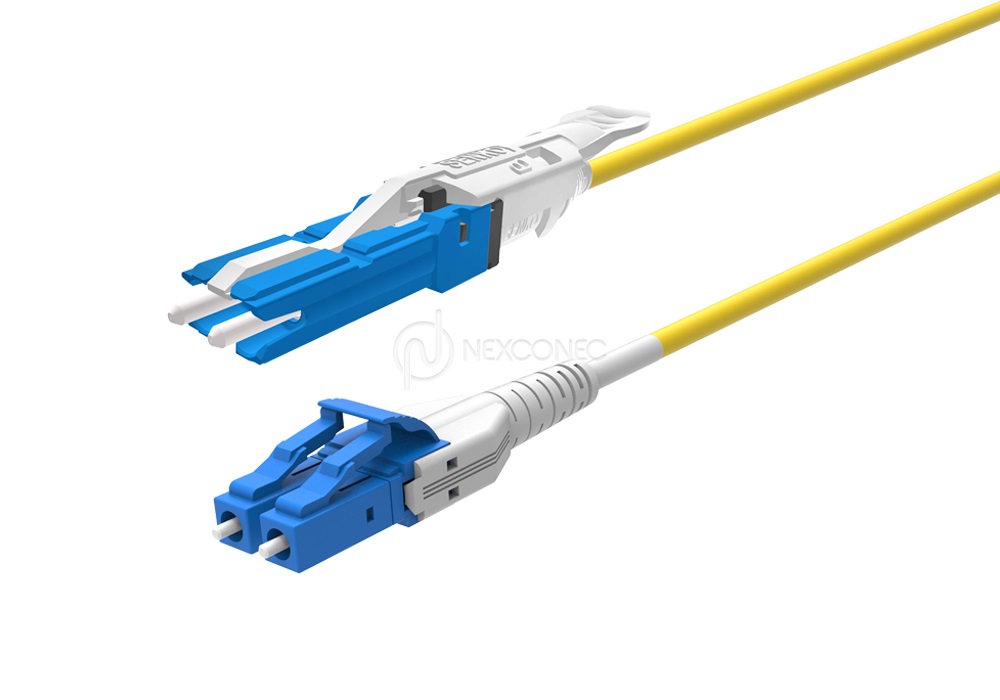

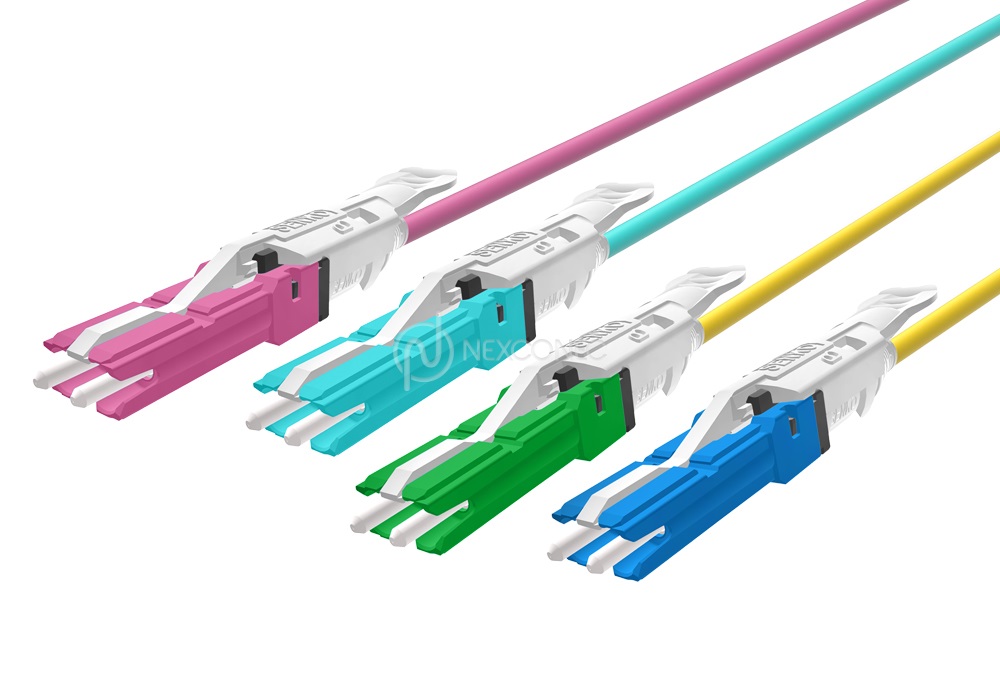

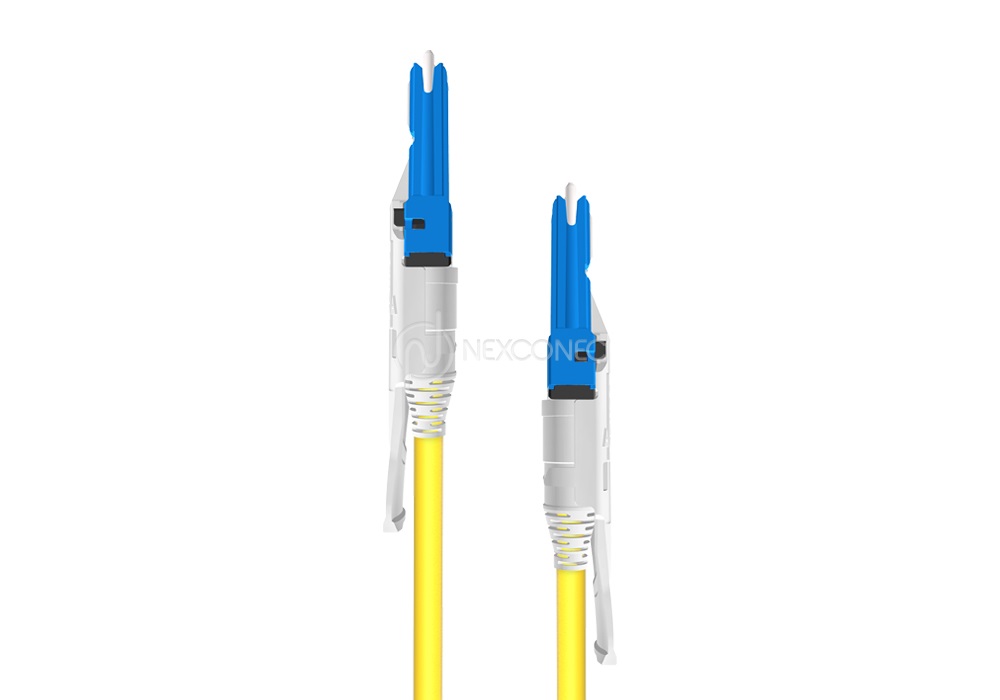

CS® Patch Cord
The CS® Fiber Optic Patch Cords uniboot design allows one cable to carry two fibers to reduce the cable bulk when routing, plug quickly without tools in high-density space and provide a clearer upgrade path to 200G and 400G operation.
The CS® Connector is an evolution in optical connectivity where CS® connectors feature a 40% size reduction when compared to LC duplex connectors at the same time delivering increased performance. Working with the QSFP-DD and OSFP, and COBO, standardized by TIA.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Support Two CS® Cables in One QSFP-DD/OSFP Transceiver
- All Assemblies are machine polished providing highest quality
- All Assemblies are factory tested and come with test certificate
- Available in custom length
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers
- FTTx
- Broadband network
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 25 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 25 dB |
| Connector Durability | < 0.2dB typical change, 500 matings | ||
| Ferrule Ø | 125μm (SM) / 127μm (MM) | ||
CABLE CHARACTERISTICS
| Parameters | Unit | Value | |
|---|---|---|---|
| Outer Diameter | mm | 2.0 | 3.0 |
| Tensile Strength (Long Term) | N | 40 | 60 |
| Tensile Strength (Short Term) | N | 80 | 120 |
| Crush Resistance (Long Term) | N/100mm | 100 | |
| Crush Resistance (Short Term) | N/100mm | 400 | |
| Min. Bending Radius (Static) | mm | 30 | 50 |
| Min. Bending Radius (Dynamic) | mm | 60 | 100 |
| Storage Temperature | °C | -20 ~ +60 | |
| Operating Temperature | °C | -20 ~ +60 | |
| Cable Weight | Kg/Km | 7.6 | 19.0 |
