Din Rail Copper Patch Box - FD01CO

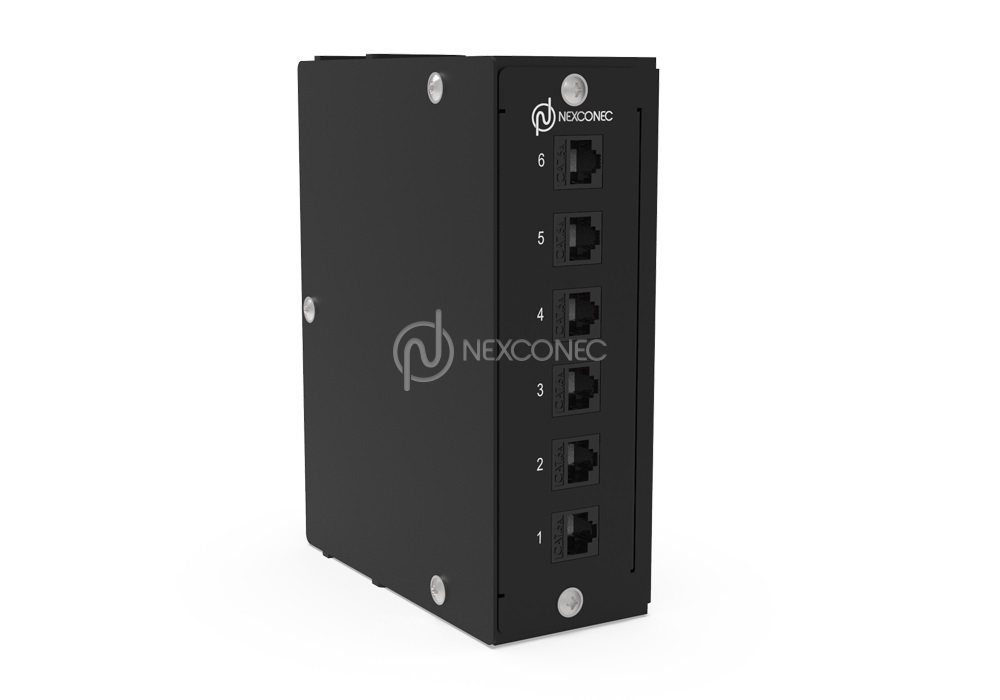

Nexconec Compact DIN-Rail patch panel box with 6EA. Ethernet RJ45 Jacks Supporting Shielded or Unshielded CAT 5e/6/6A Cabling. Compact size allows minimum space requirements within control cabinetry. Device includes openings on top and bottom of the patch panel to accommodate a large volume of field Ethernet cabling.
The patch panel can support the patching and termination work of ethernet network connections.
FEATURES AND APPLICATIONS

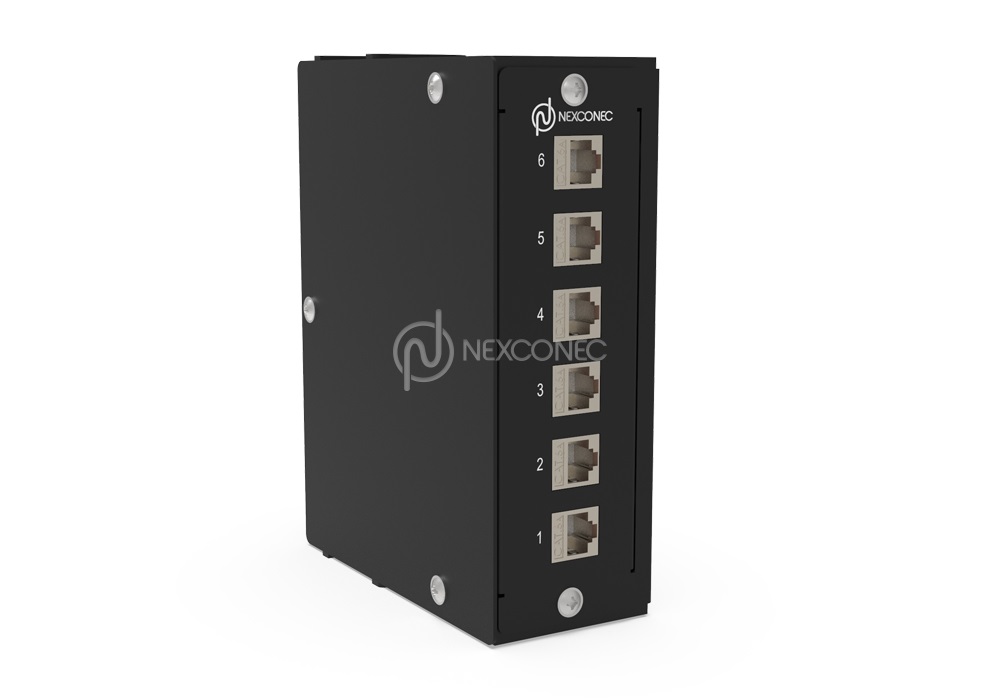

- Accommodates up to 6 copper keystone jacks
- Compact size perfect for limited space enclosures

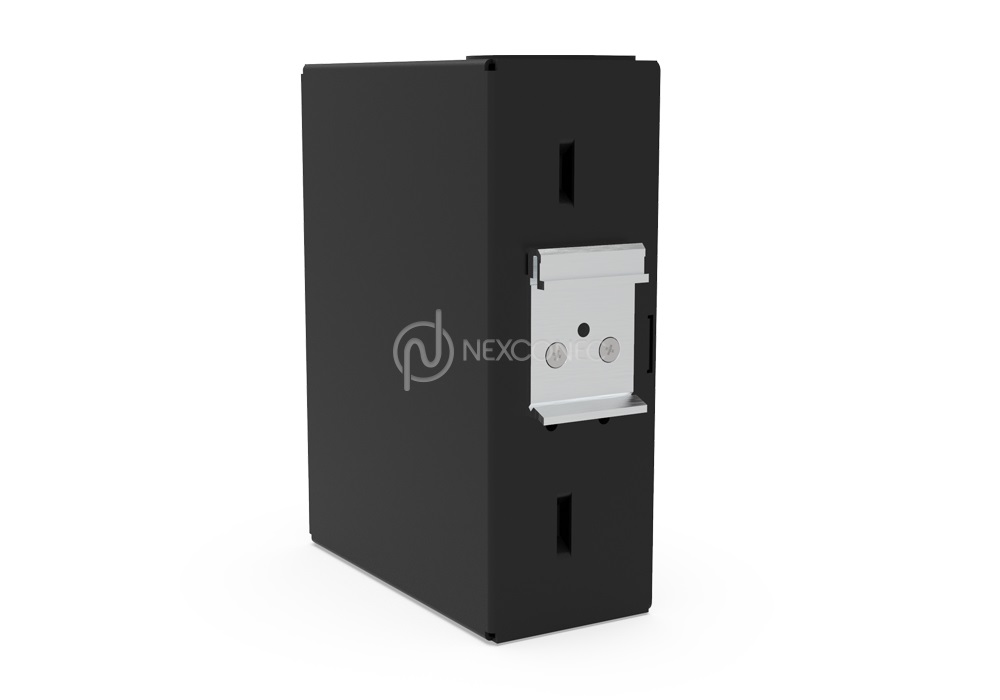

- Versatile surface or DIN-Rail mount capability
- Rugged metal construction
- RoHS Compliant Construction
- Enterprise network
- Industrial, Power system and control
- Rail signaling and control networks
| Parameters | Value |
|---|---|
| Mounting Type | Din Rail |
| Copper Capacity | 6 ports keystone jacks |
| Keystone Jacks Type | Shielded and Unshielded Cat5e , Cat5 , Cat6A |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 56.20 x 123.20 x 162 mm |
| Net Weight | 1.20 Kg |
| Standards | Normal International Standard CEI IEC 60715; DIN EN 60715; DIN EN 50022; DIN 46277-3; BS 5584:1978; |
| Compliance | RoHS Compliant |
| Temperature | -20°C ~ 60°C |
| Parameters | Value |
|---|---|

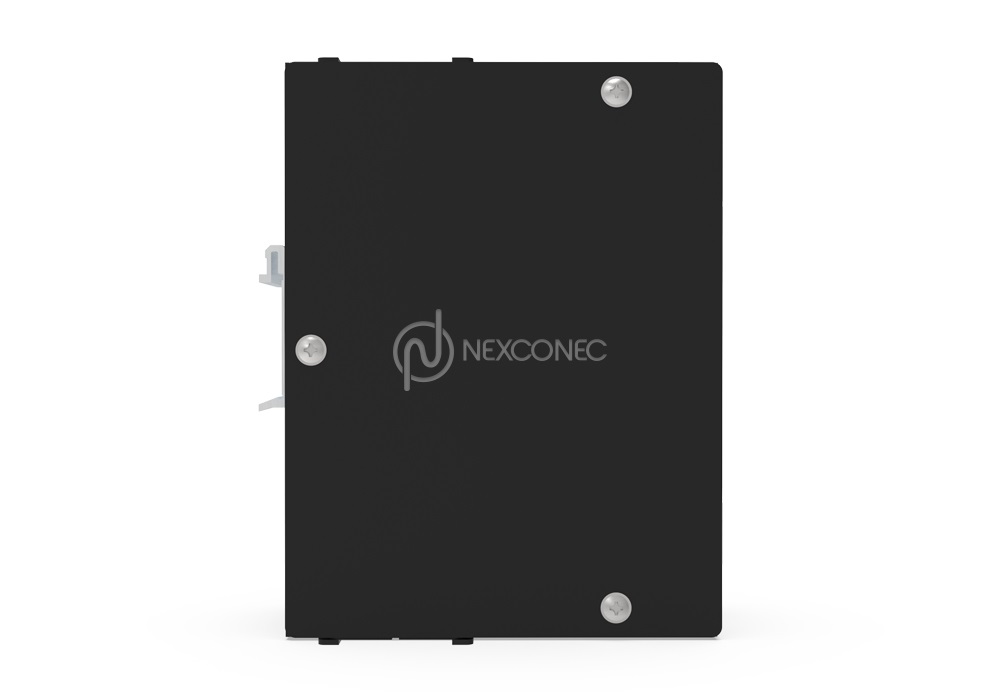

| Opening Type | Side Panel Screws |

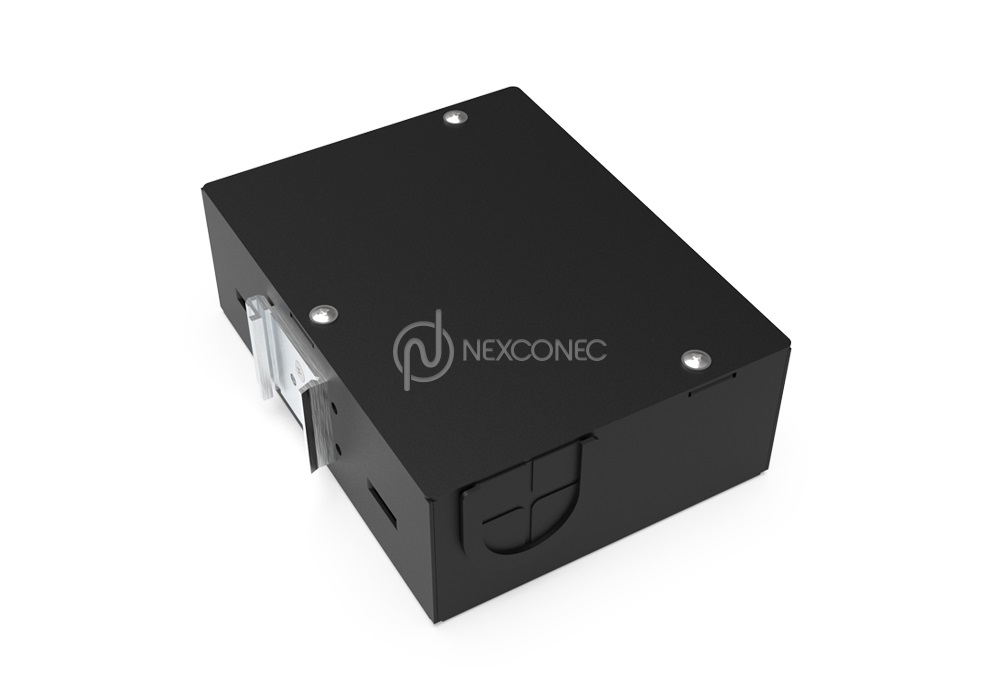

| Cable Entry Direction | Top and Bottom |
| Material | Cold rolled steel |
| Housing Color | Black |
| Part Number | Product Description |
|---|---|
| FD01CO | Din Rail Copper Patch Box, 6 ports Unloaded |
