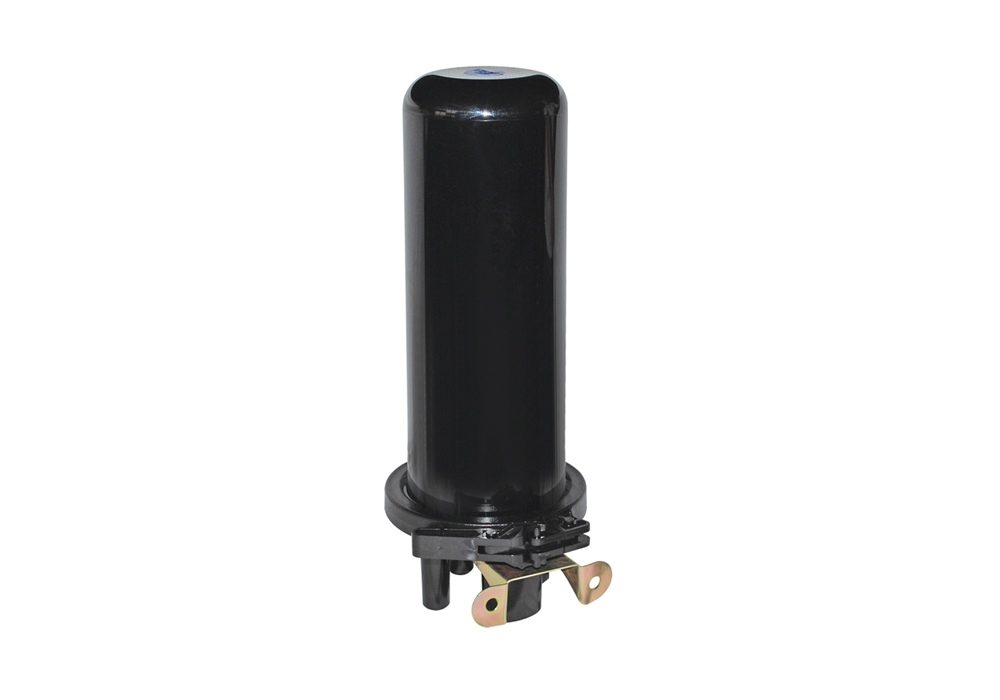

Dome Enclosure - OC-DO03
NEXCONEC Compact Dome closure is the best designed and innovative solution for fiber cabling installation. It only requires its silicone rubber sealing gasket to ensure the good sealing performance of fiber cable, up to 96fibers of fiber count. The different sizes of cable entrances provide the great flexibility for cables installation.
FEATURES AND APPLICATIONS
- Smaller size
- Single core splice or mass fusion splice
- Adequate space for fibers storage
- Easy operation
- Lightweight
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 410 x 190 mm |
| Weight (Kg) | 2.3-2.5 Kg |
| Splice Tray | 24fibers, max. 6 pieces, splice tray size: 228x120x10mm |
| Max. Capacity (Fibers) | 96 fibers |
| Number of Inlet/Out Ports | 5pcs |
| Diameter of Fiber Cables | Round port : Φ8-20 Ovale port : Φ8-25 |
| Sealing Structure | Heat Shrink Sealing |
| Sealing Rating | IP68 |
| Operating Temperature | –40℃ ~ +65℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO03-24 | FO Dome Enclosure 24FO H/S |
| OC-DO03-48 | FO Dome Enclosure 48FO H/S |
| OC-DO03-72 | FO Dome Enclosure 72FO H/S |
| OC-DO03-96 | FO Dome Enclosure 96FO H/S |
