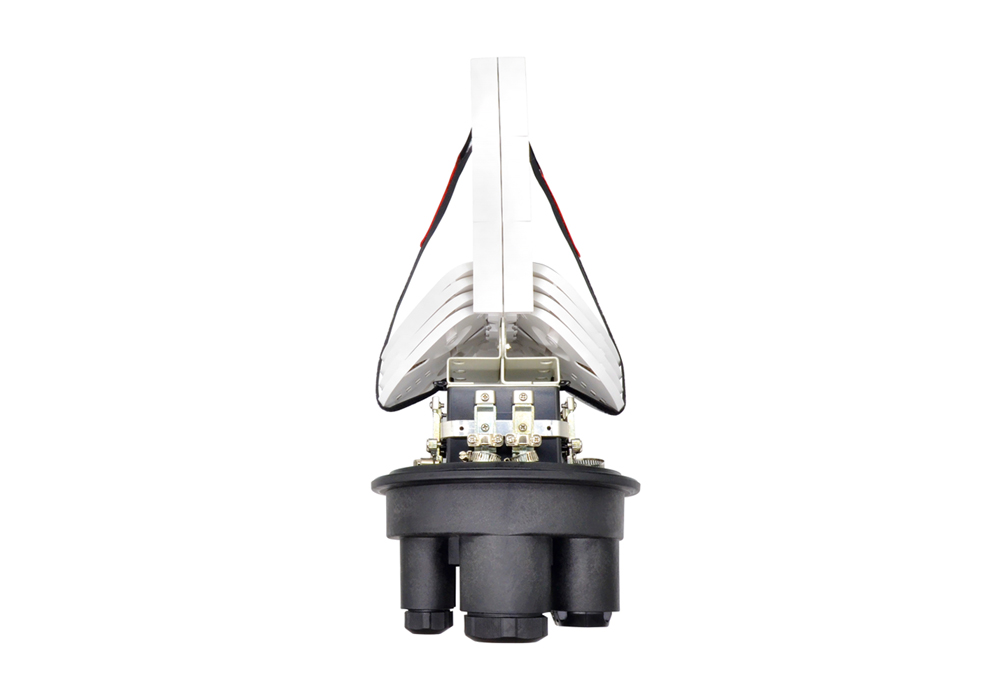

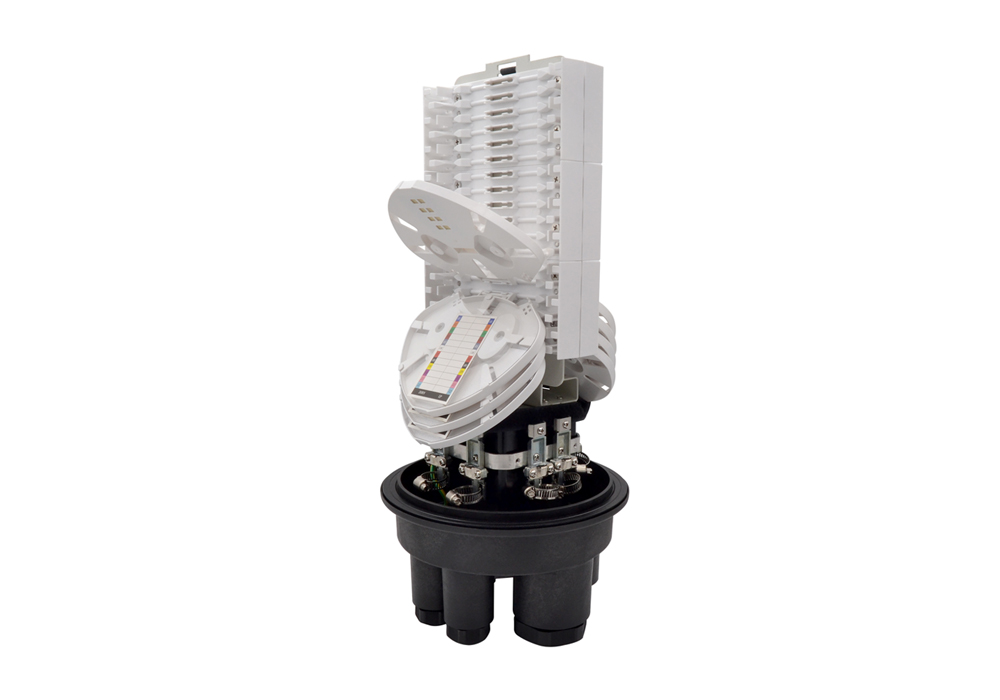

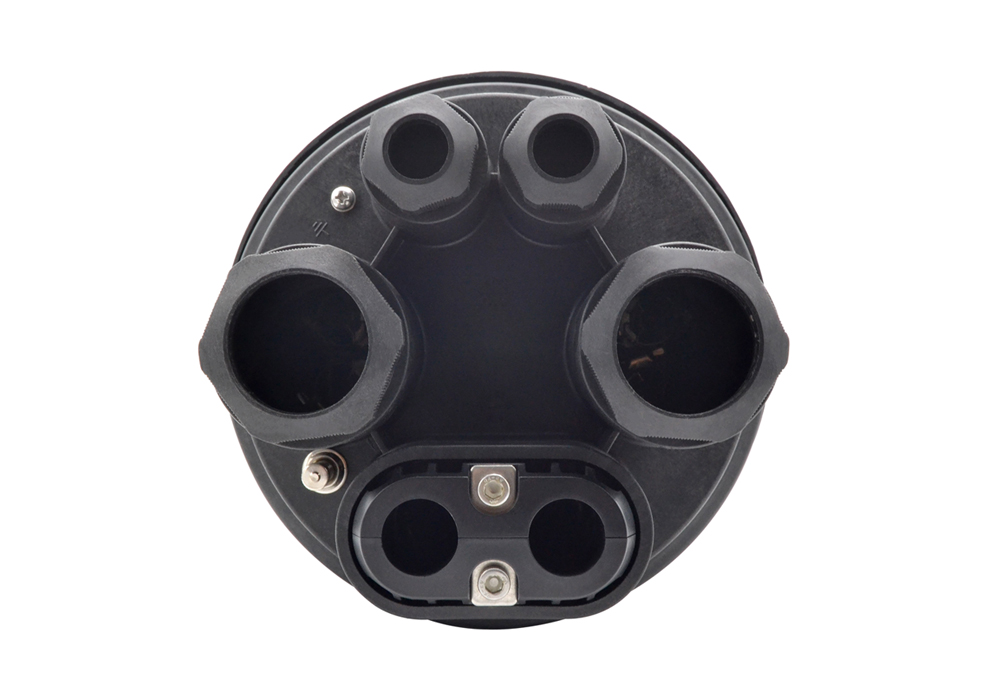

Dome Enclosure - OC-DO08
NEXCONEC high fiber count splice closure is a dome type with large capacity, with vulcanized rubber as sealing component, helical and extrusion mechanical sealing. It is suitable for different methods of branch cable connection including the branch of uncut cable. Multi-application purpose with for aerial, pole-mounted, wall-mounted and buried application. The closure has very goods sealing performance, convenient to operate and wide range of applications.
FEATURES AND APPLICATIONS
- Higher density
- Adequate space for fibers storage
- Easy operation
- High Sealing performance
- Multiple installation application
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 480 x 250 mm |
| Weight (Kg) | 5.5 - 6.5 Kg |
| Splice Tray Capacity | 12 fibers |
| Max Number of Splice Tray | 34 pcs |
| Max Capacity (Single Core) | 408 |
| Max. Capacity (Fibers) | 408 fibers |
| Suitable Fiber Cable OD | Φ8 ~ Φ20 |
| Insulation Resistance | ≥2×104MΩ |
| Voltage Resistance Strength | 15K VDC/1min. no puncture, arc-over |
| Sealing Structure | Mechanical |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~ +55℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO08-216 | FO Dome Enclosure 216FO Mechanical Sealing |
| OC-DO08-288 | FO Dome Enclosure 288FO Mechanical Sealing |
| OC-DO08-408 | FO Dome Enclosure 408FO Mechanical Sealing |
