Fiber Optic Mechanical Splice Kit - FTMS1FO

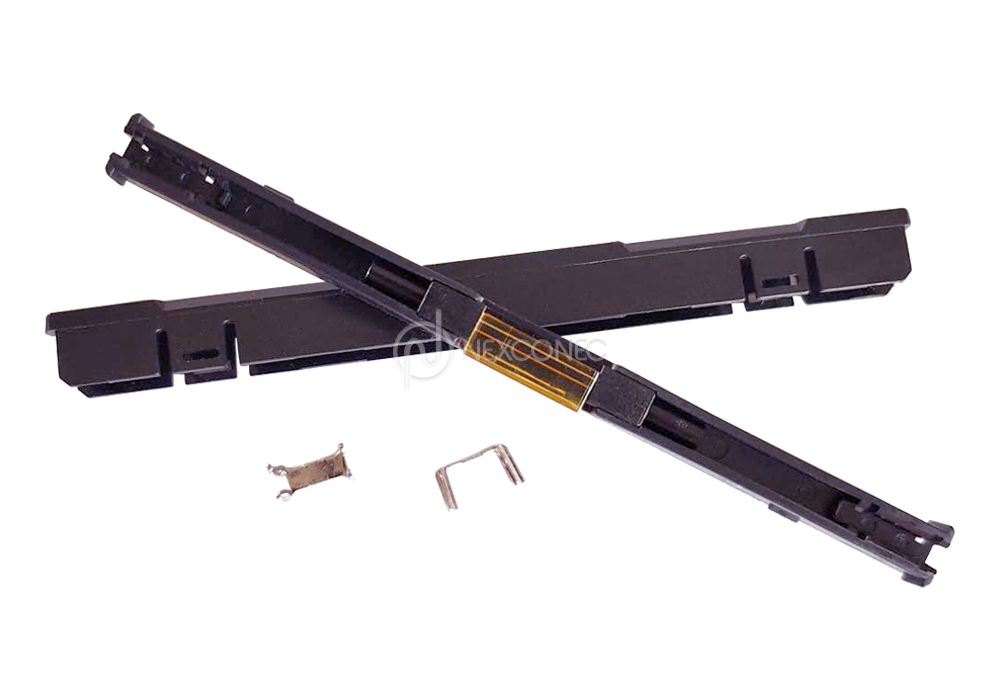

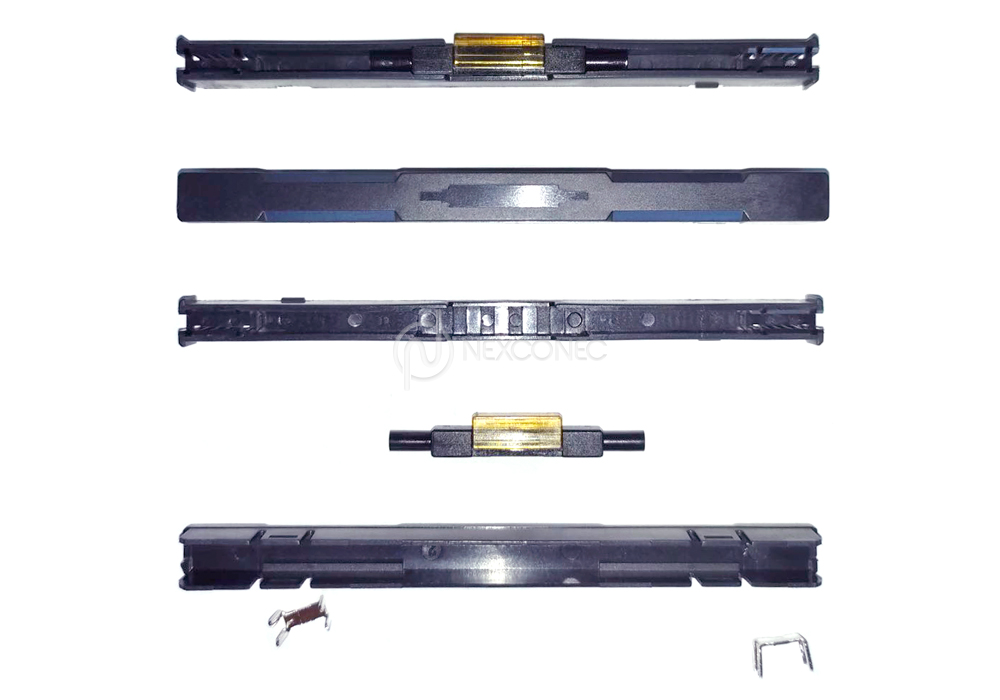

Nexconec mechanical splice kit is designed with the V-groove to hold 2x3mm drop cable in FTTH networks. With its special design, it can be operated in less than 1 minute.
The drop cable connects to ONU directly in FTTH network with tensile strength more than 50N. It reduce one socket with an adapter, not only reduce the cost, but also be easy to operate.
It can also be matched with pigtail (SC, FC, LC, ST etc.)
FEATURES AND APPLICATIONS
- FTTx network
| Parameters | Value |
|---|---|
| Applicable Cable | 3.0 x 2.0 mm FTTH drop cable |
| Size | 90 x 7 x 8 mm |
| Applicable Fiber Mode | single & multimode |
| Operation Time | about 30 seconds (without fiber cut) |
| Insert Loss | ≤ 0.25dB（1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusability Times | >10 times |
| Fastening Strength of Naked Fiber | >5 N |
| Clamping Force of Fiber with Tight Buffer | >8 N |
| Tensile Strength | >50 N |
| Using Temperature | -40 ~ +75 °C |
| On-line Tensile Strength | IL ≤ 0.2dB |
| Mechanical Durability (500 times) | IL ≤ 0.2dB |
| Drop off Test (4 meters high, cement floor, three directions) | IL ≤ 0.2dB |
| Part Number | Product Description |
|---|---|
| FTMS1FO | NXC FTTH Mechanical Splicing Kit 1FO, Black |
