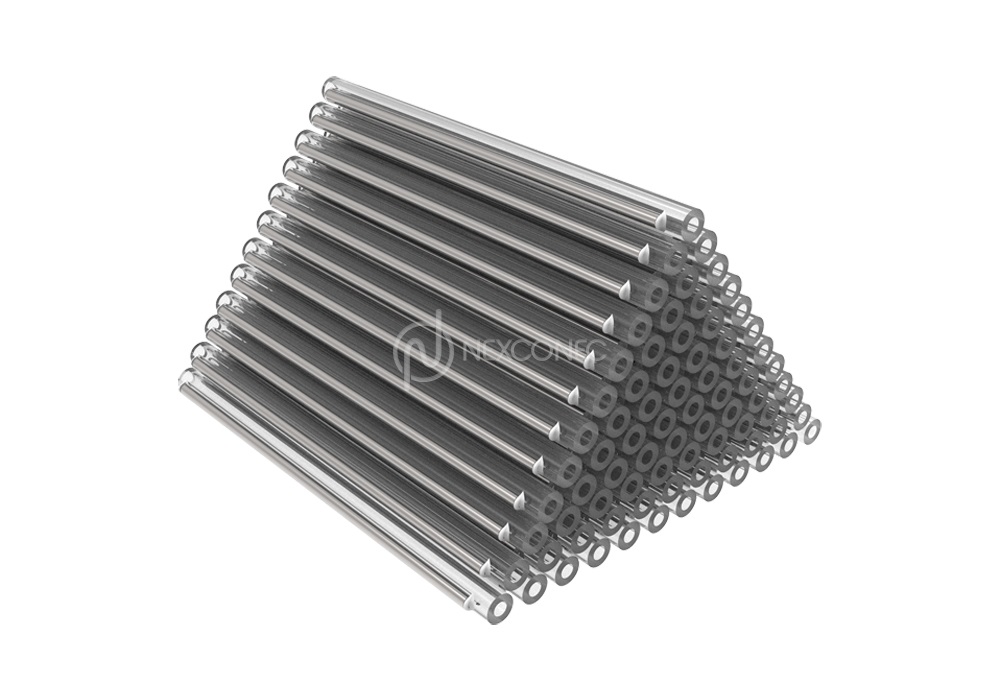

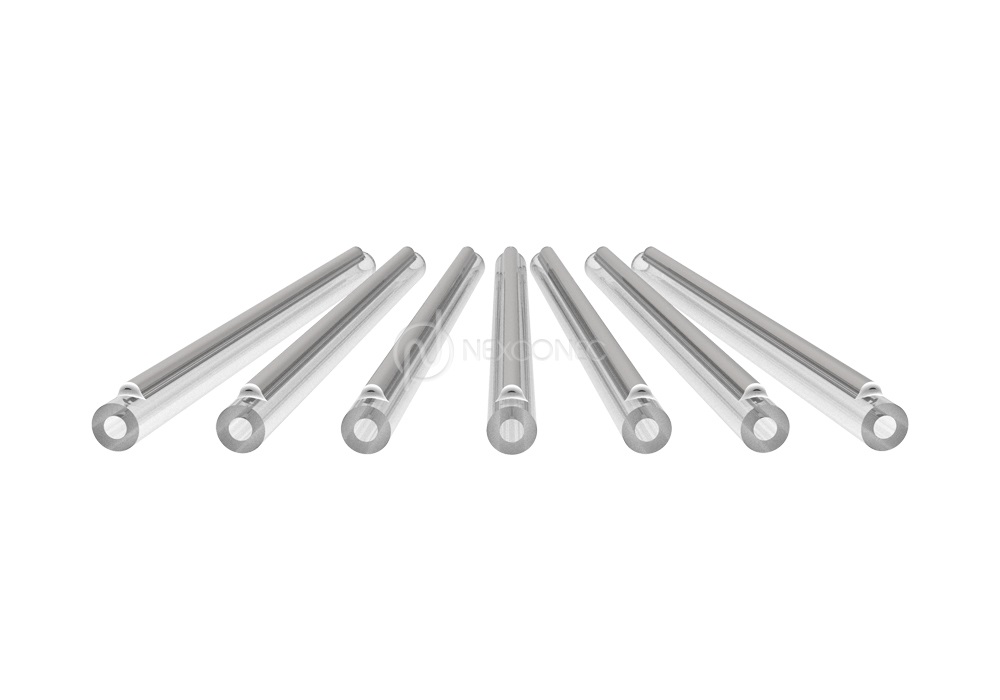

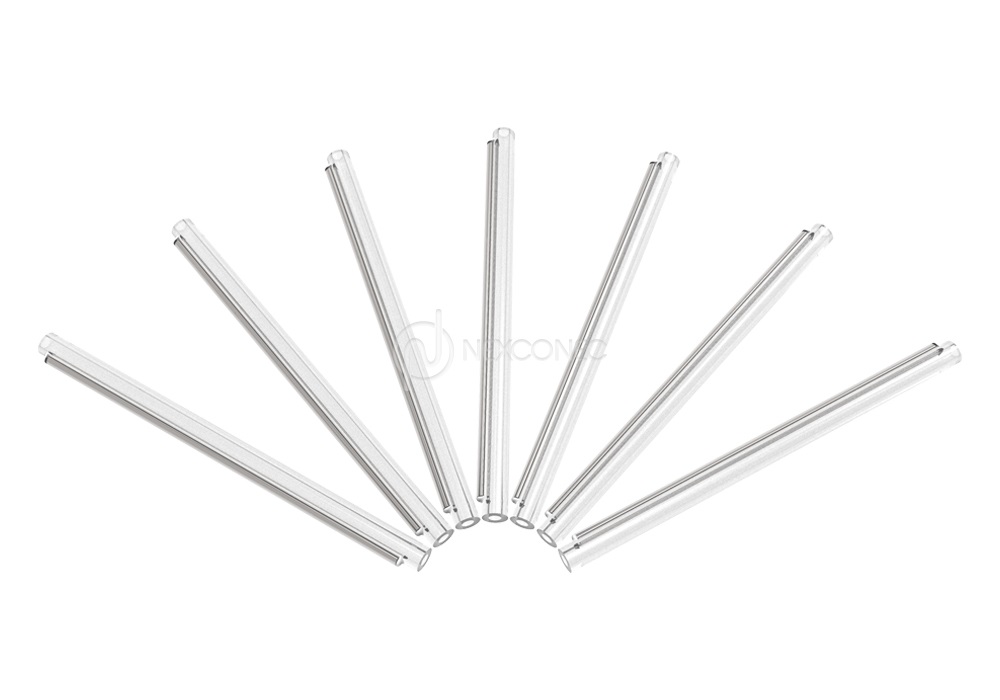

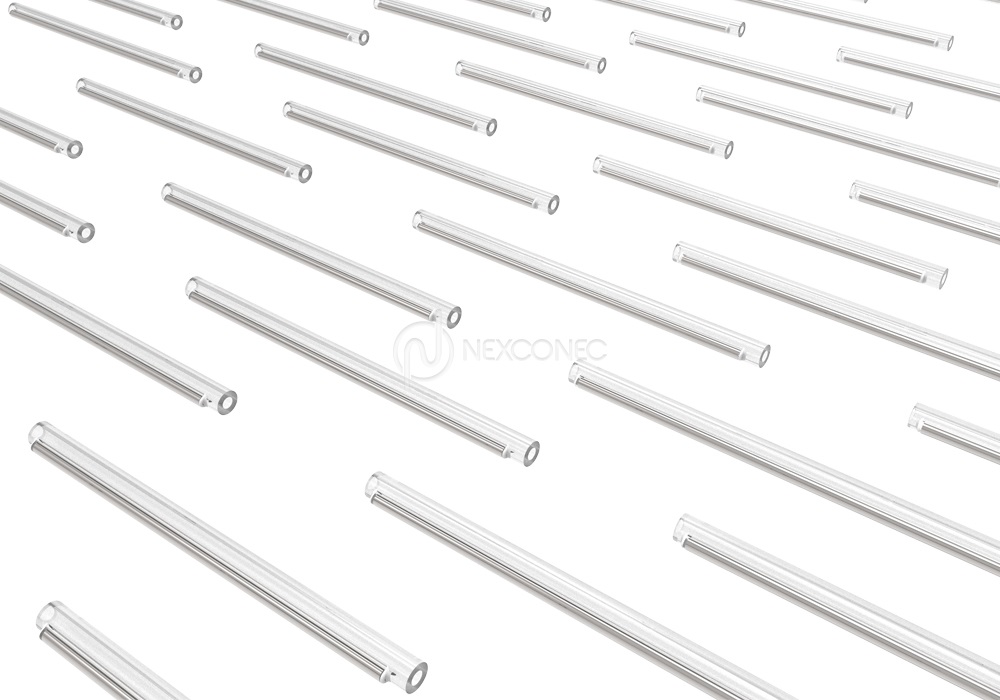

FIBER SPLICE PROTECTOR SLEEVES - FSPLxx
Nexconec splice protector sleeve is specifically made to accommodate the bare fibers when fusion splicing. The different lengths of splice protectors offer the flexibility to fiber optic network installers to adapt the variant of splice trays, splice holders and in designing optical modules.
The strength member made with 1.0mm in diameter of stainless steel provides the robust holding to the fibers. The Nexconec splice protector sleeve is the industry standard for durable and lasting protection of single fiber splices in field installations.
FEATURES AND APPLICATIONS
- 3 different length option (40mm, 45mm, 60mm)
- Easy to use
- Pack of 100pcs
- RoHS compliant
- Fiber splicing in rack mount and wall mount enclosure
- Fiber splicing in rack mount patch panels
| Parameters | Units | Value |
|---|---|---|
| Sleeve Length | mm | 40, 45, 60 |
| Strength Member Diameter | mm | 1.0 |
| Outer Tube Material | Polyethylene | |
| Heat Shrink Temp. Range | ℃ | +90 to +110 |
| Part Number | Product Description |
|---|---|
| FSPL40 | Fiber Splice Protector 40mm (Bag 100pcs) |
| FSPL45 | Fiber Splice Protector 45mm (Bag 100pcs) |
| FSPL60 | Fiber Splice Protector 60mm (Bag 100pcs) |
