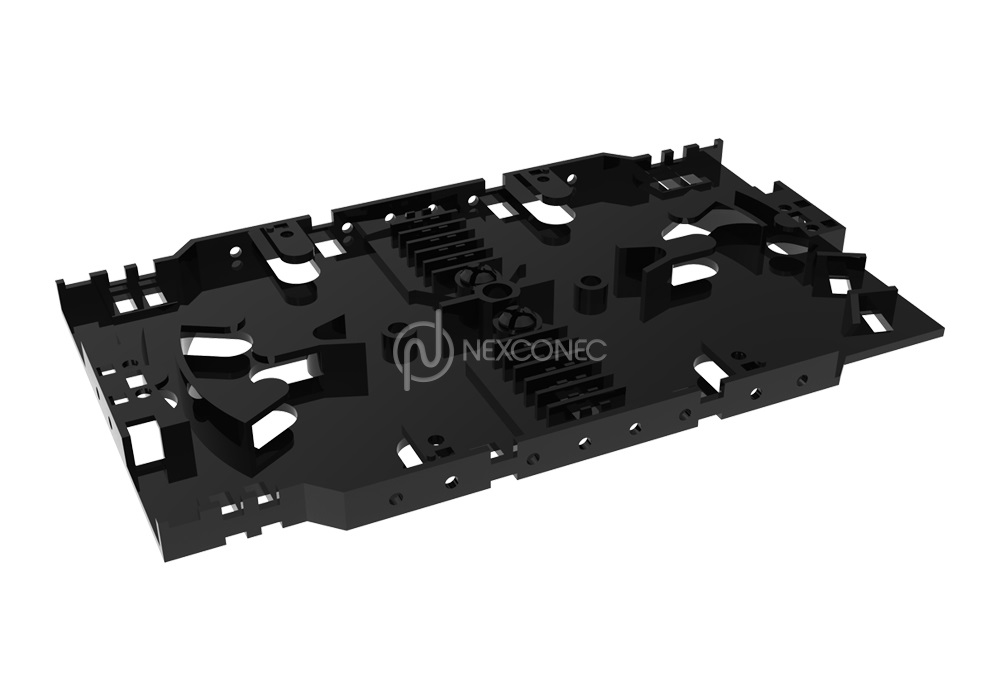

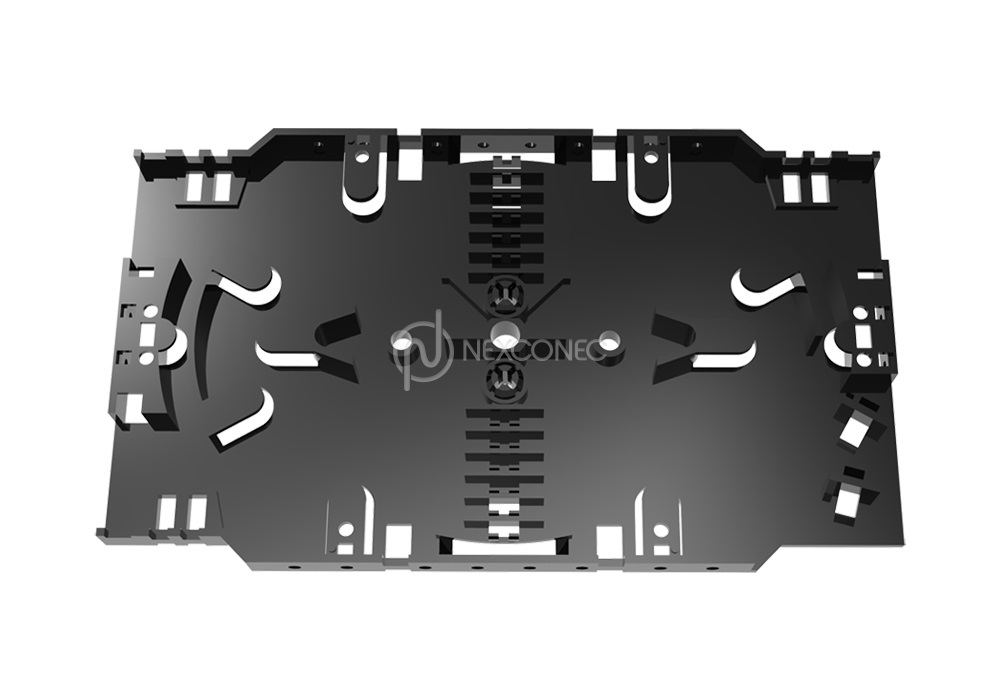

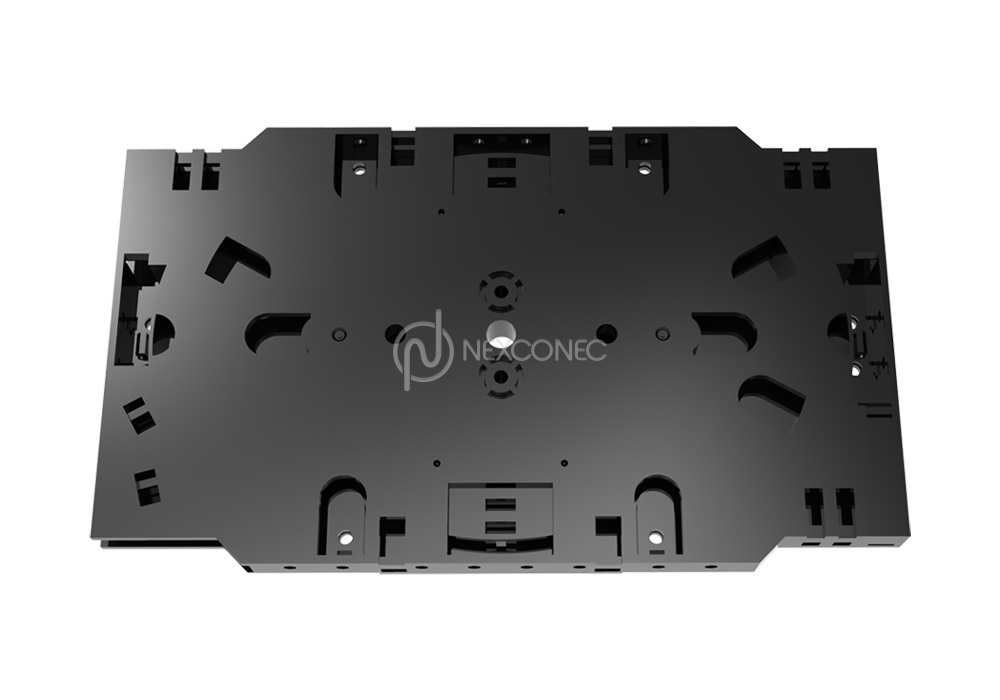

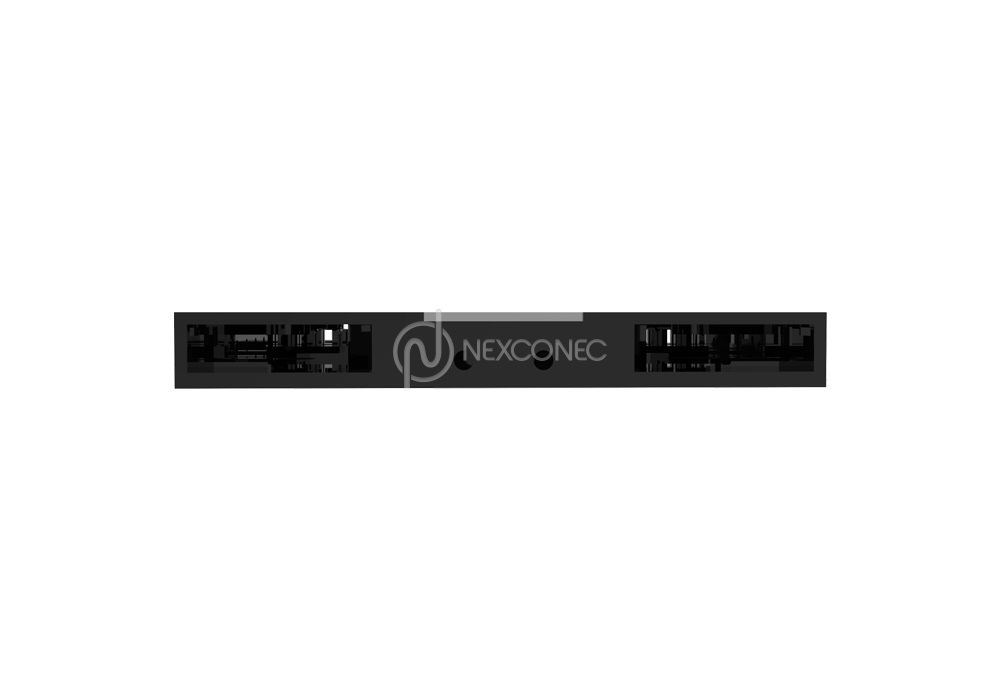

Fiber Splice Tray - FSP03

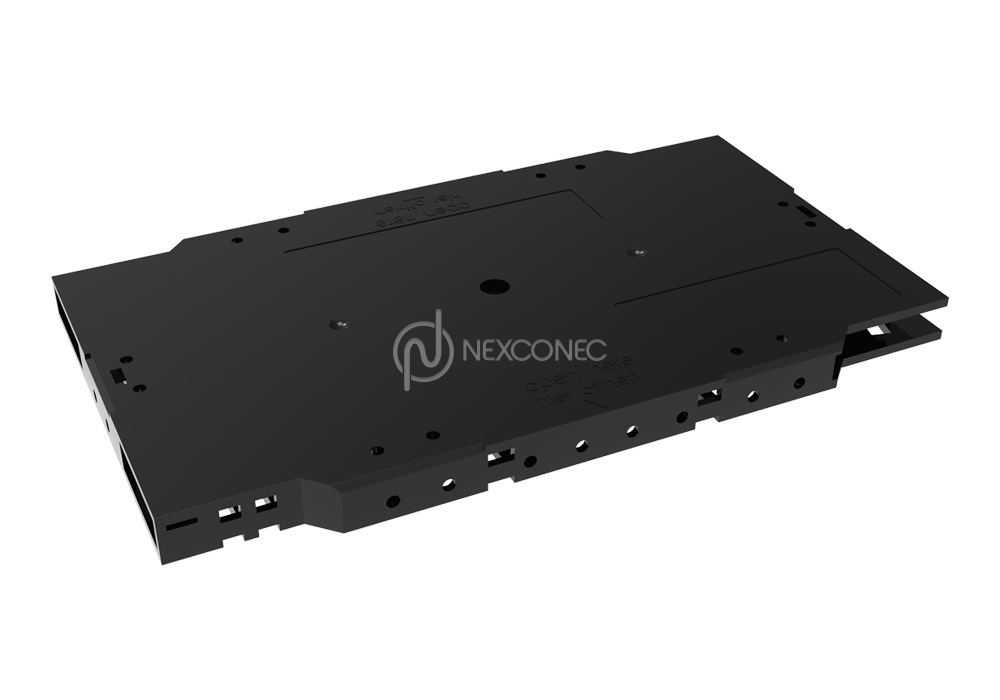

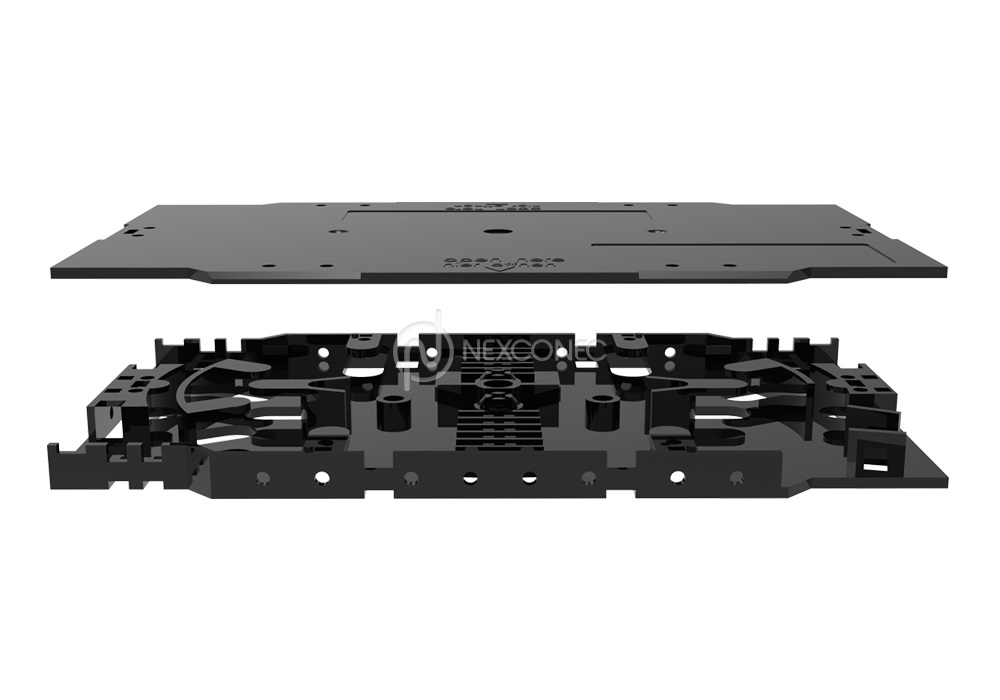

Nexconec splice tray is designed to splice 12 individual fibers which can be installed in rack mount patch panels, all mount enclosures, terminal box or distribution unit. The splice trays provide security for fusion splicing and can be used with different cable options. The splice tray is supplied with rigid plastic cover to protect the splice and fibers.
FEATURES AND APPLICATIONS
- Max 12F splicing
- Accommodates heatshrink 40-60mm
- Flame retardant
- RoHS compliant
- Rack mount and wall mount enclosure
- Rack mount patch panels
- Fiber terminal and distribution box
| Parameters | Units | Value |
|---|---|---|
| Dimension | mm | 155 x 92 x 10 |
| Material – body | ABS | |
| Material – cover | ABS |
| Part Number | Product Description |
|---|---|
| FSP03 | Fiber Optic Splice Tray 12FO Heat Shrink Splice Protectors, Black |

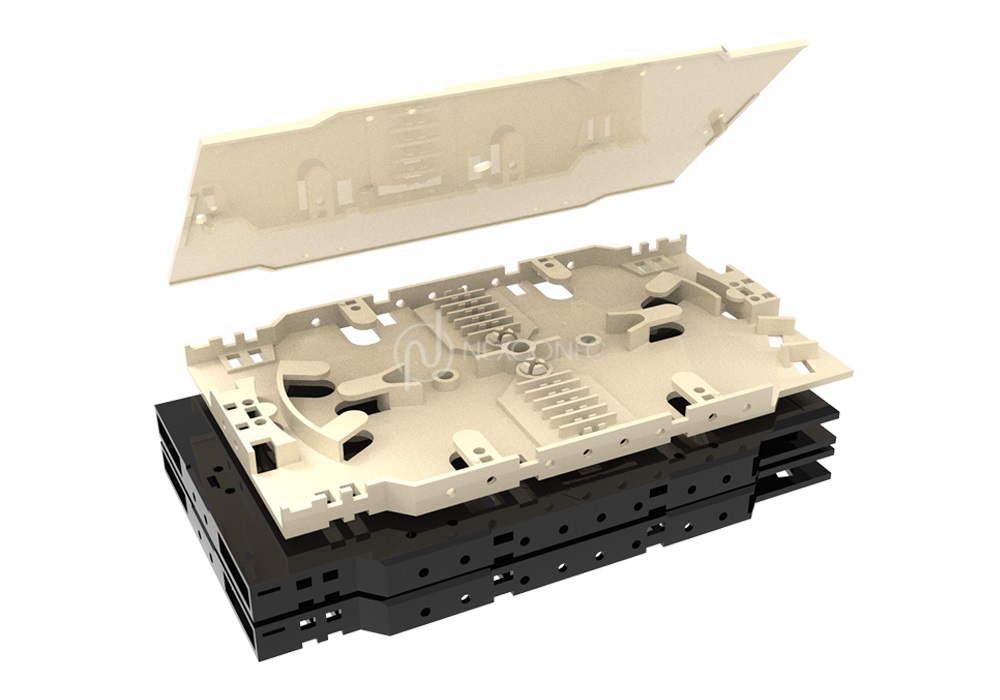

| FSP03-B | Fiber Optic Splice Tray 12FO Heat Shrink Splice Protectors, Beige |
| FSP03ANT | Fiber Optic Splice Tray 24FO Crimp Splice Holders Black |
| FSP03ANT-B | Fiber Optic Splice Tray 24FO Crimp Splice Holders Beige |
