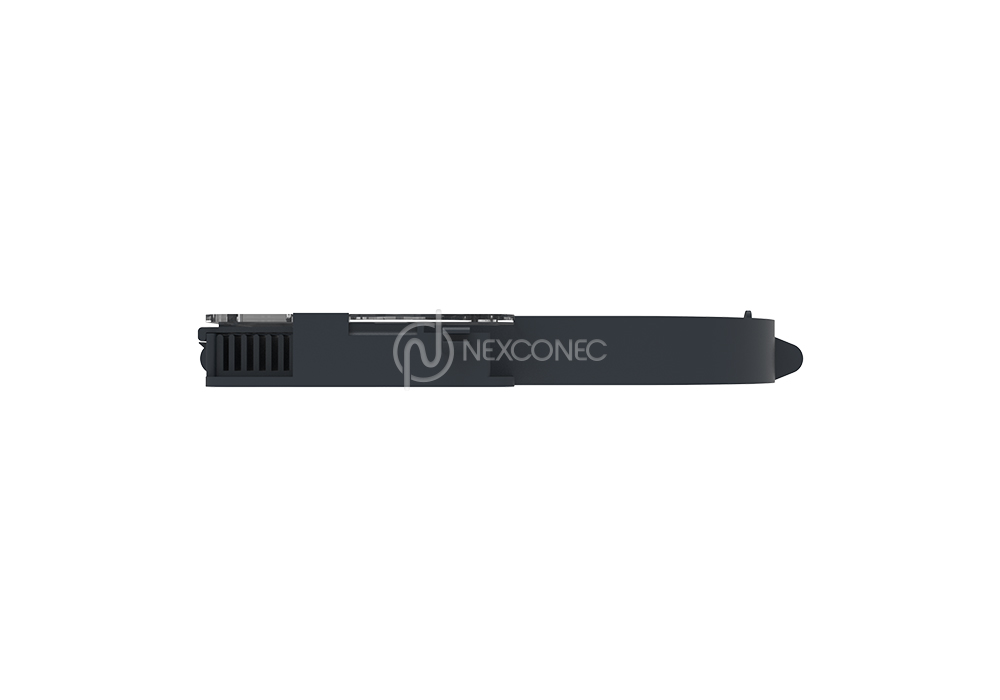

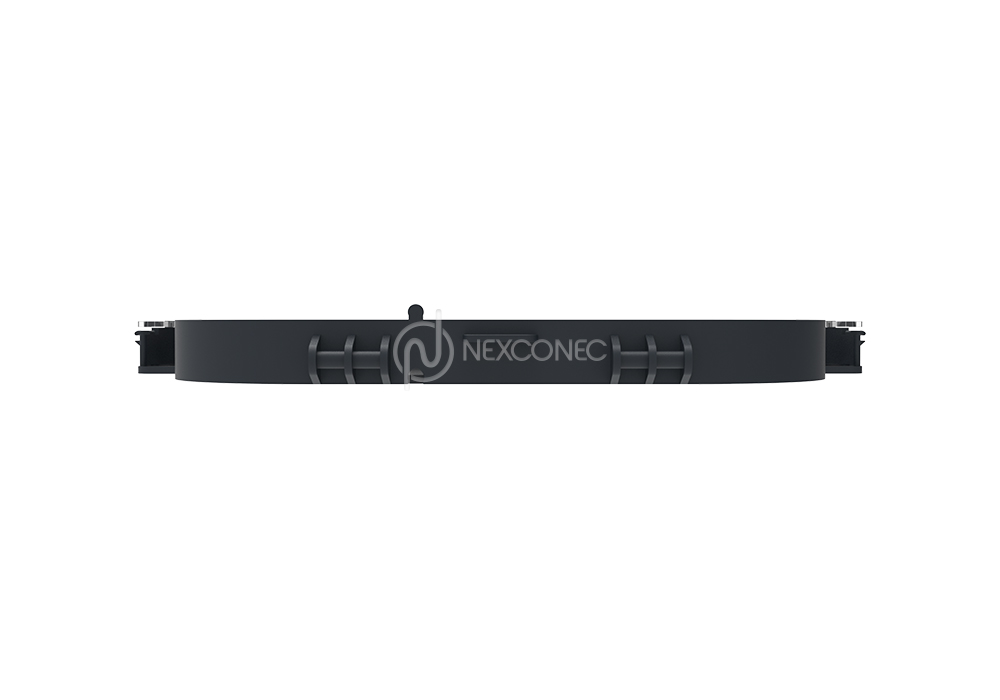

Fiber Splice Tray - FSP05

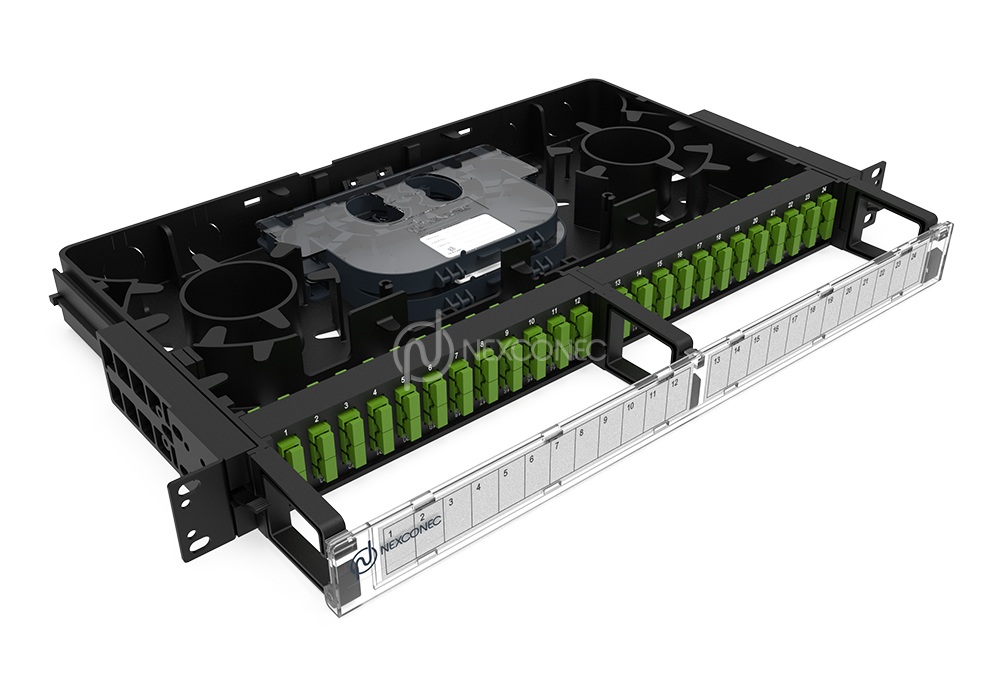

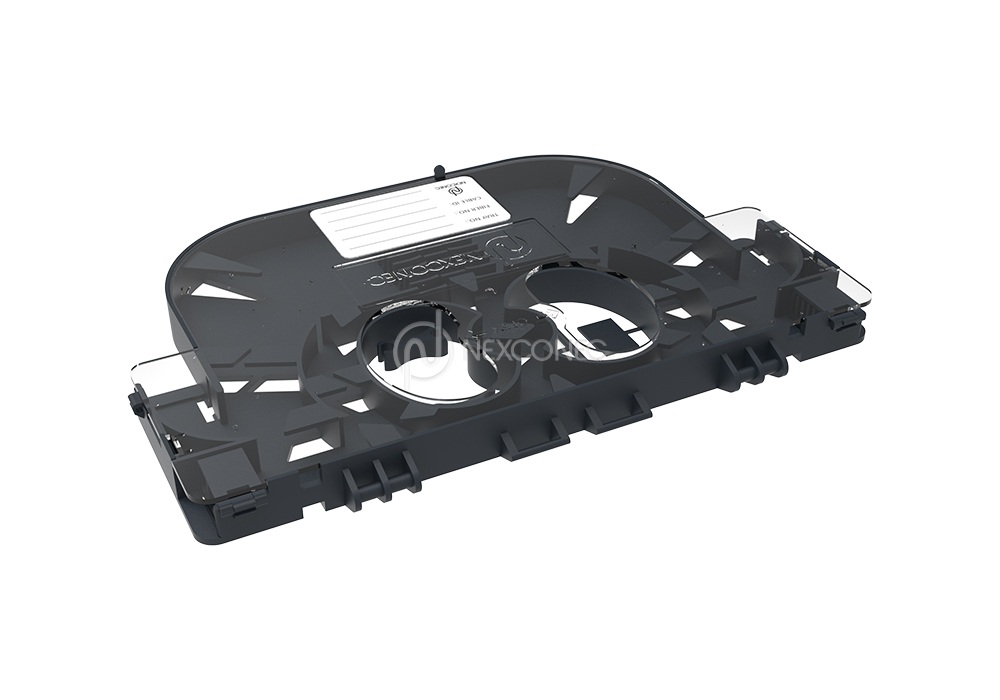

The NEXCONEC® Fiber Splice Tray is a robust fiber management solution designed to securely house and protect fusion splices for up to 24 individual fibers. Engineered for versatility, this tray is compatible with a wide range of installation environments, including rack-mount patch panels, wall-mount enclosures, terminal boxes, and distribution units. The Cassettes are stackable and can be hinged on both sides of the tray.

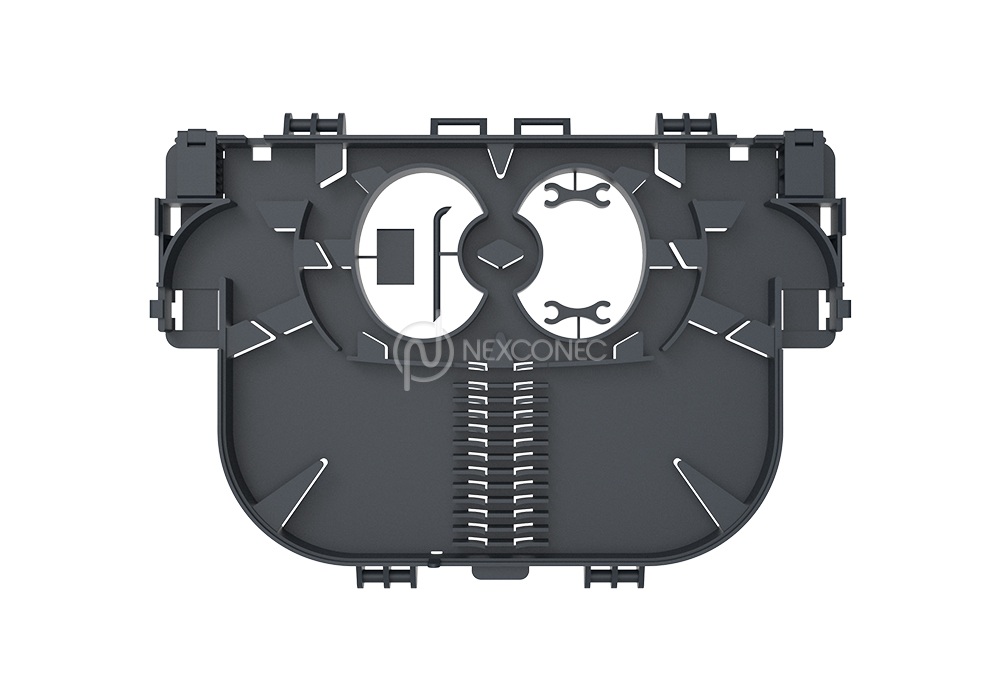

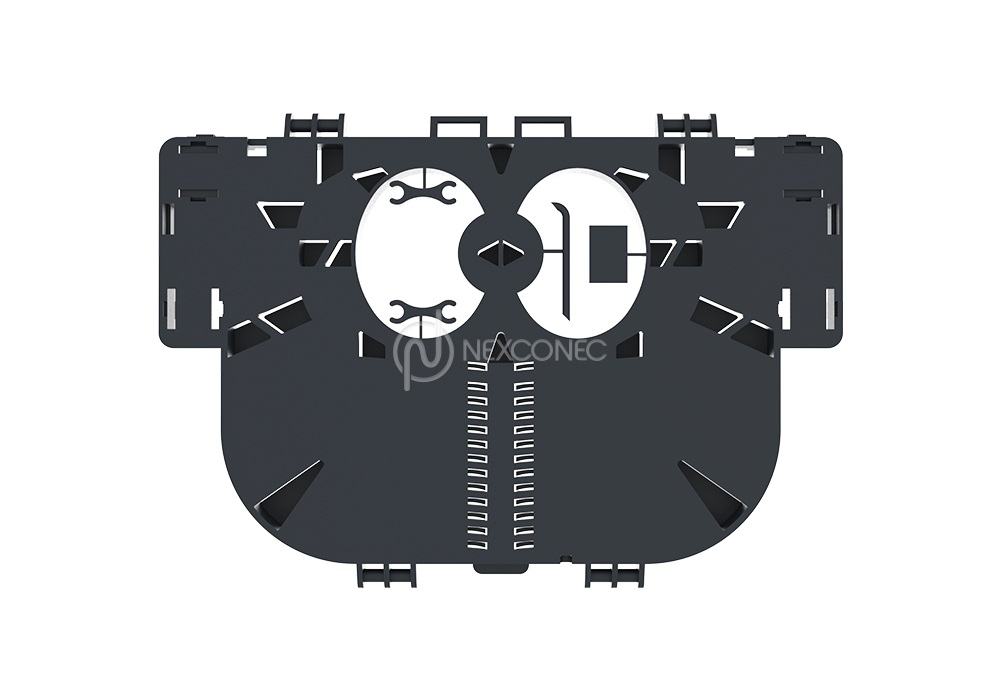

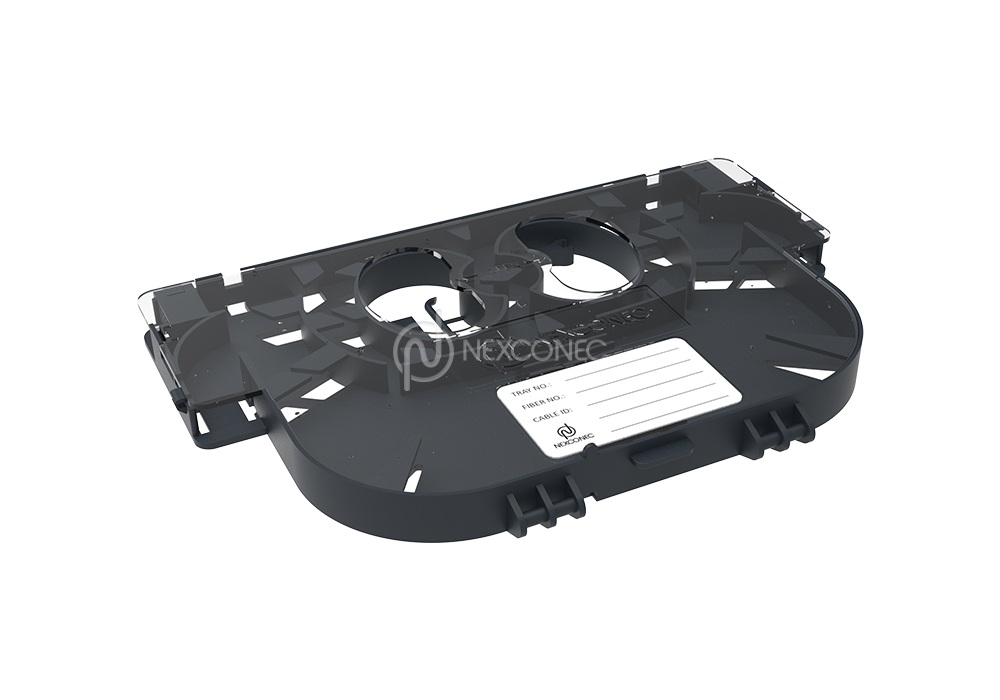

It incorporates integrated clamps to firmly secure the loose tubes and the pigtails at both entry and exit points, ensuring strain relief and organized routing. It allows for the storage of up to 1.5 m of excess bare fiber in 250μm in the integrated coiling spools. The minimum bending radius of the fiber is maintained.
PRODUCT HIGHLIGHTS
- Hold up to 24 heat-shrink splices protectors
- Supports 900μm buffered fibers and 2x corrugated tubes Ø 5mm
- Stackable design enables individual access to each tray
- Integrated clamps secure fibers at entry and exit points
- Versatile installation via adhesive pads or hinges
FEATURES
- Hold up to 24 heat-shrink splices protectors
- Supports 900μm buffered fibers and 2x corrugated tubes Ø 5mm
- Fiber entries on the front or sides
- Stackable design enables individual access to each tray
- Integrated clamps secure fibers at entry and exit points
- Versatile installation via adhesive pads or hinges

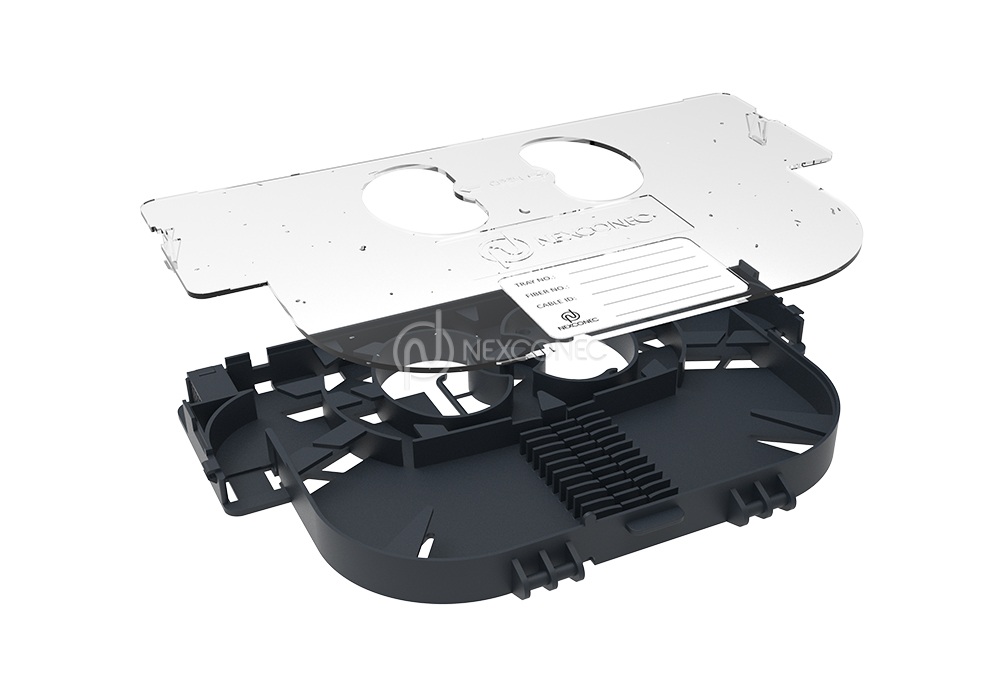

- Transparent lid allows for quick visual inspection
APPLICATIONS
- Ideal for organizing high-density fiber connections
- Internal and external network infrastructure deployments
- Wall boxes and distribution enclosures

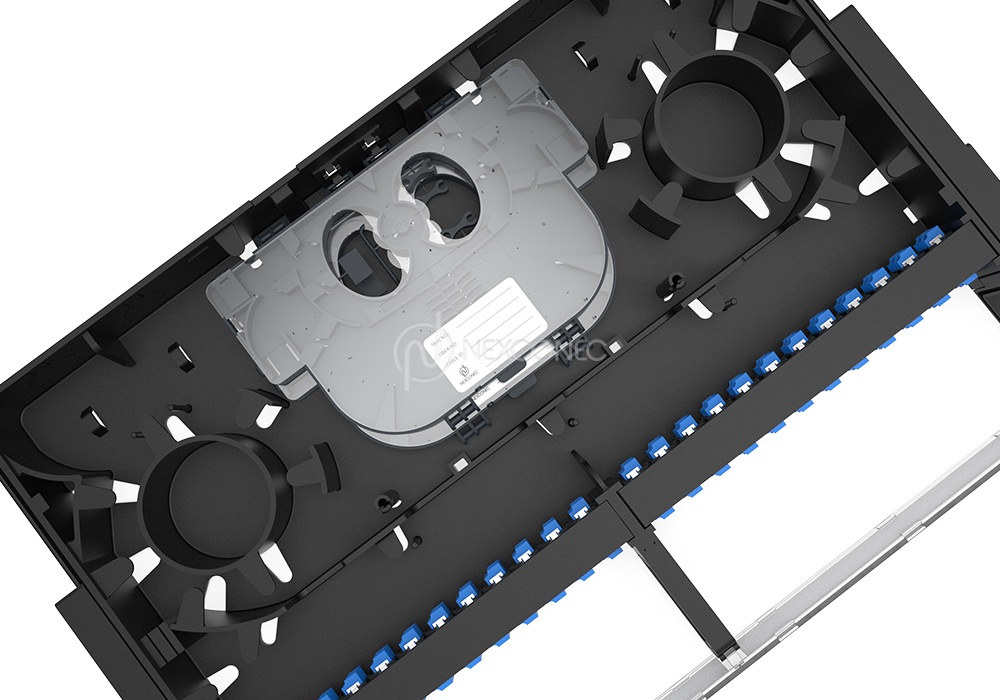

- Patch panels for efficient rack-level management
| Parameters | Value |
|---|---|
| Dimensions (W x H x D) | 178 x 125 x 16.10 mm |
| Coupler/Splitter | 1 Slot for bare fiber splitter 7x4mm |
| Material – Body | PC+ABS |
| Material – Lid | PC Transparent |
| Splice Capacity | 24x heat shrink splice protectors (40/45 or 60mm) |
| Cable Entry | Up to 2x Corrugated Conduit Ø5mm |
| Color | Grey Blue (RAL 5008) |
| Compliance | TIA/EIA, IEC, RoHS, Reach/SVHC |
| Accessories Included | Double Sided Adhesive Tape, Identification label |
| Part Number | Product Description |
|---|---|
| FSP05 | Fiber Optic Splice Tray 24FO |
