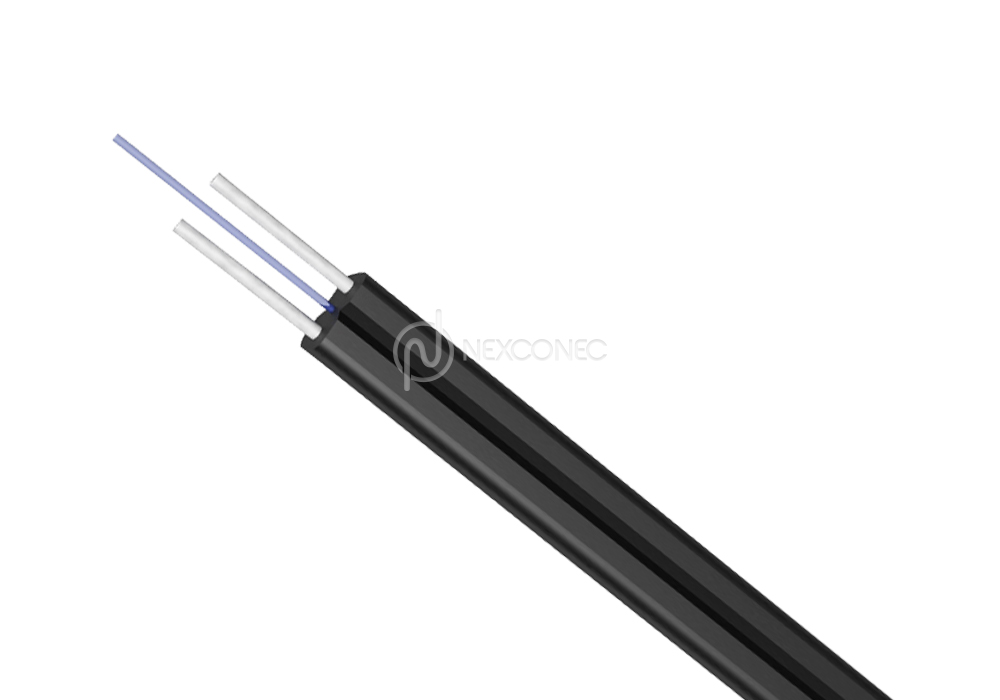

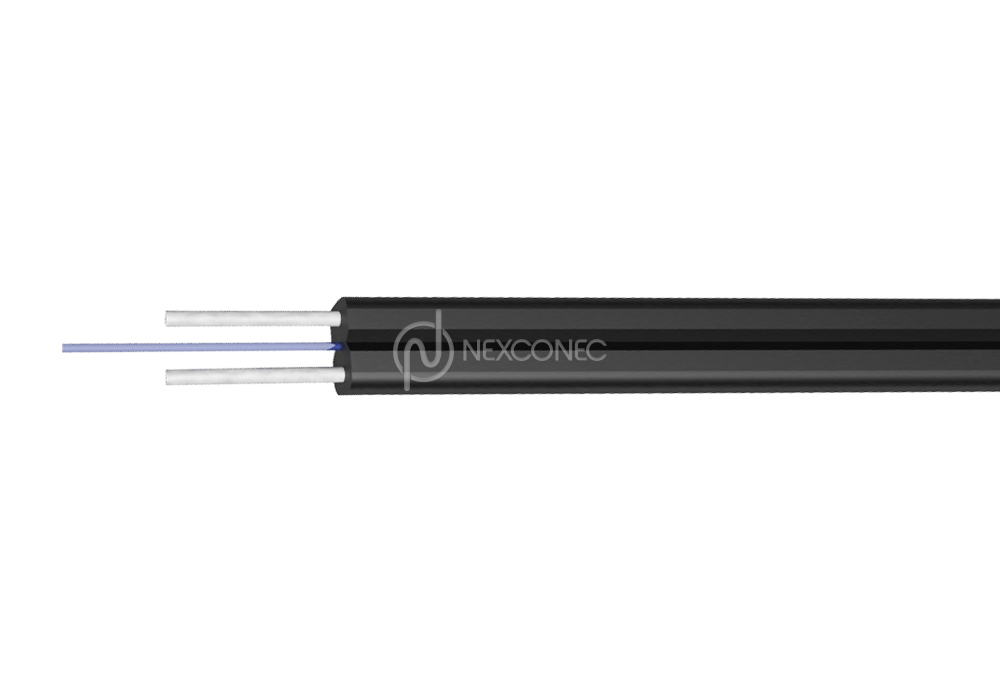

FTTH Drop Cable Indoor/Outdoor
NEXCONEC FTTH Drop Cable is all dielectric drop cable consisting of 1 to 4, 250μm individually colored optical fibers with Fiber Reinforced Plastic (FRP) strength members and UV resistant Low Smoke Zero Halogen (LSZH) or PE jacket.
FEATURES AND APPLICATIONS
- Singlemode options available
- Compact cable construction
- FRP strength member
- Individually coloured optical fibers
- Conforms to IEC standard
- Ideal use for FTTH applications
- Horizontal cabling
| Parameter | Unit | Value |
|---|---|---|
| Outer Diameter | mm | 2.0 x 3.0 |
| Long Term Tensile Strength | N | 100 |
| Short Term Tensile Strength | N | 200 |
| Long Term Crush Resistance | N/100mm | 300 |
| Short Term Crush Resistance | N/100mm | 1000 |
| Storage Temperature | °C | -20 ~ +70 |
| Operating Temperature | °C | -20 ~ +70 |
| Nominal Cable Weight | Kg/Km | 9 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
