FTTH Subscriber Wall Outlet - WO01/02

WO01.02 WO01.02 WO01.02 WO01.02 WO01.02 WO01.02 WO01.02 WO01.02 WO01.02 WO01.02

The compact termination box supplied by NEXCONEC® is designed for use in residential and business applications for the termination of up to four fibers. This wall box enables the installation of either a single Sirocco Blown Tube cable using up to a 2 fiber blown unit or two 2 fiber ruggedized cables to be spliced to 2 SC pigtails (PC or APC), which connect to adapters at the base of the unit.

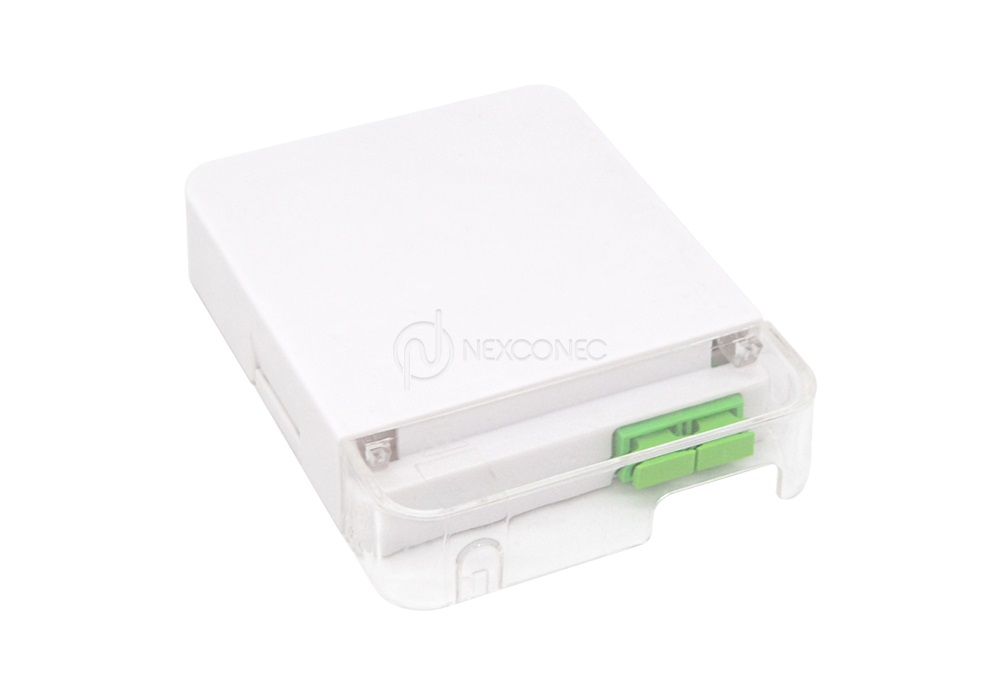

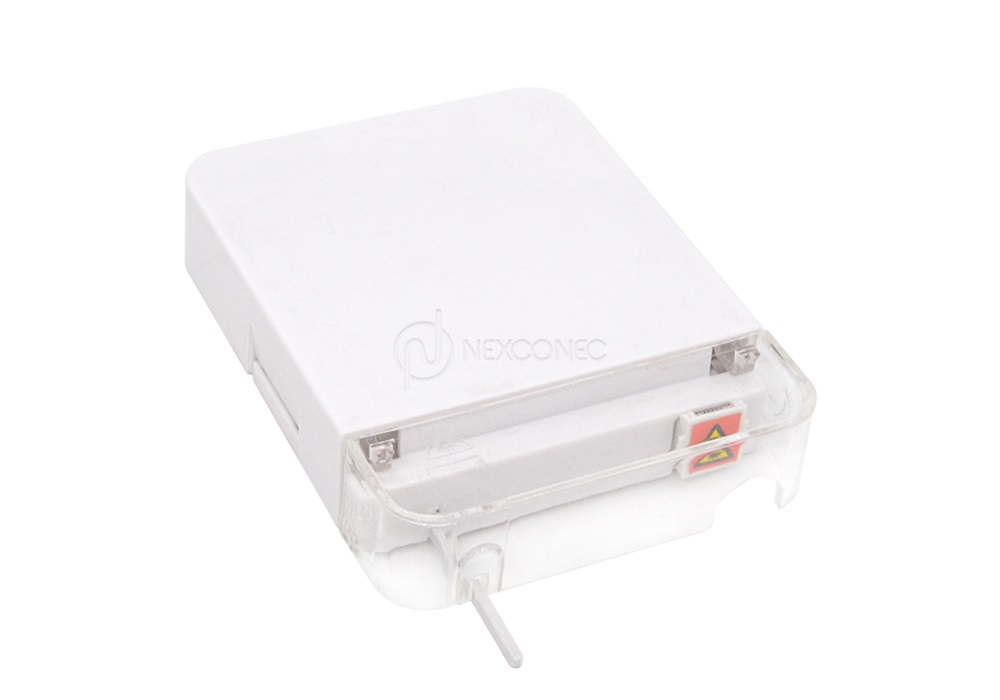

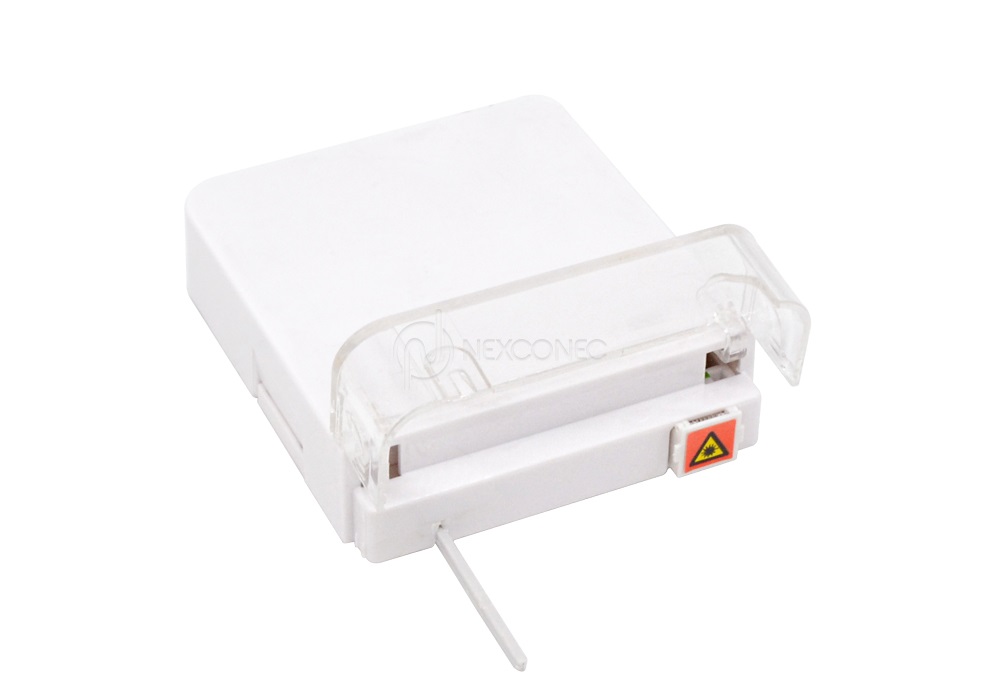

This box is supplied with a transparent plastic cover on the front adaptor side, providing major protection to the installed fibers.

FEATURES AND APPLICATIONS
  • SC Simplex / LC Duplex Adapter type
  • Ergonomic Design

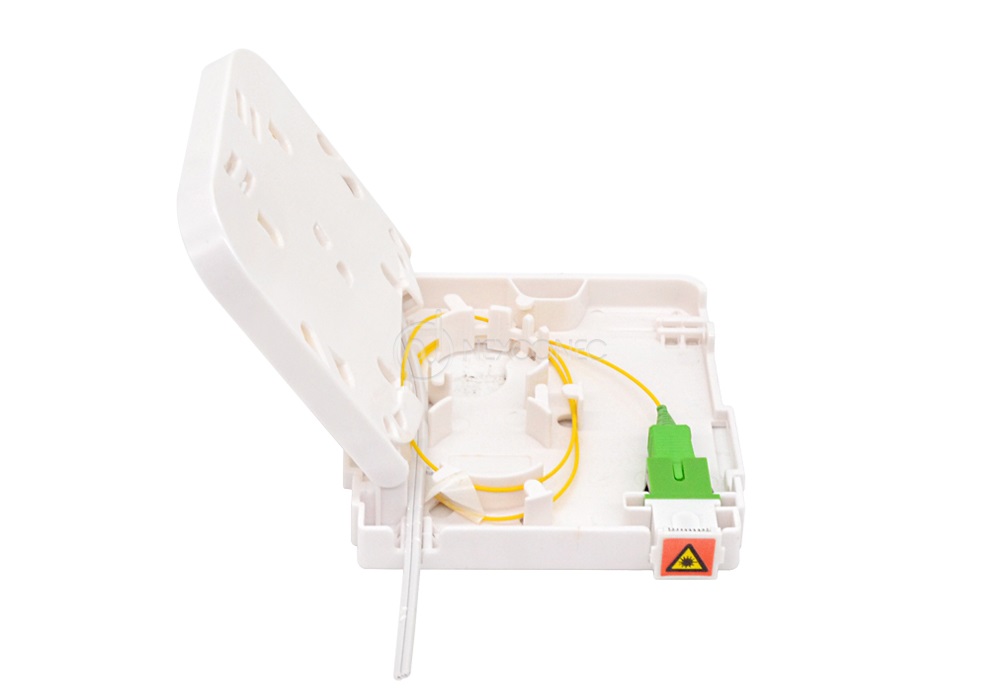

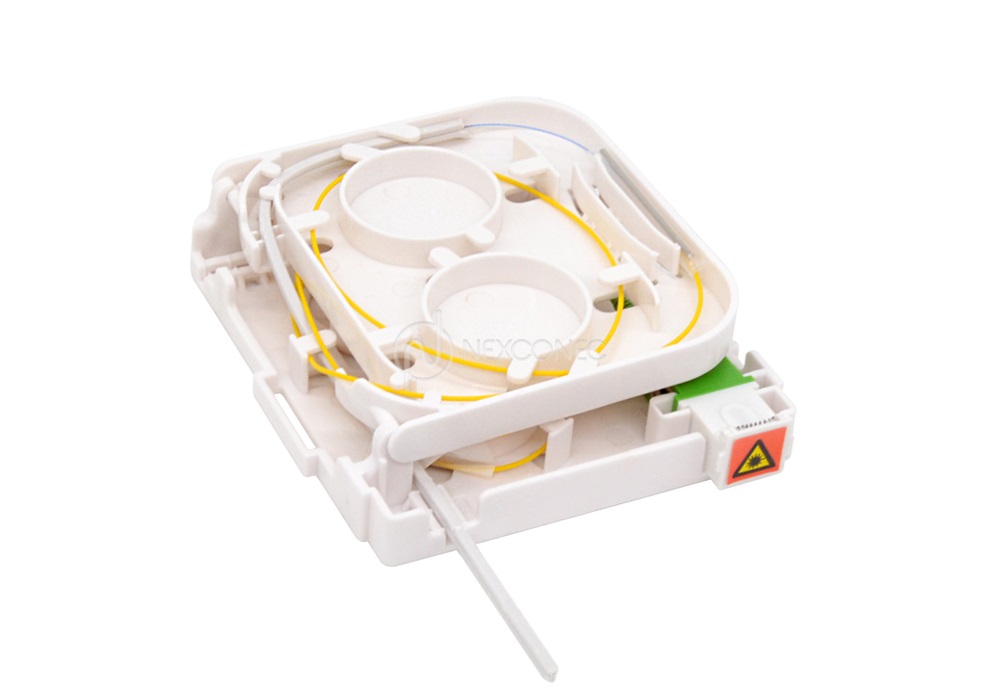

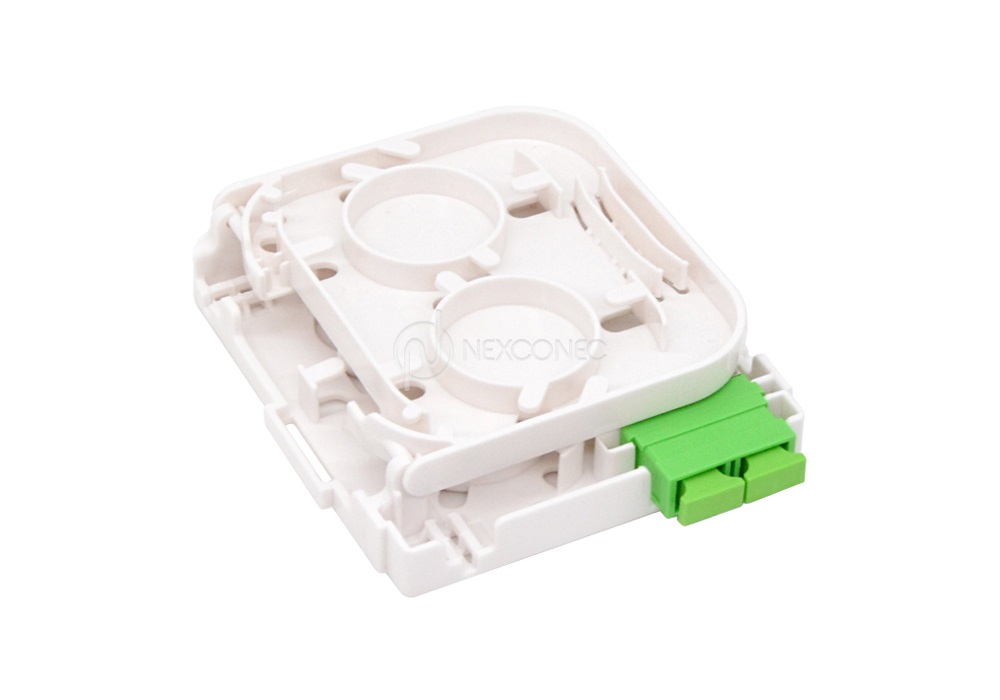

  • Flip tray to allow access to pigtails and Cable entry
  • Removable cover for easy access
  • Unit manufactured with fire resistant UL94-V0 Rated Material

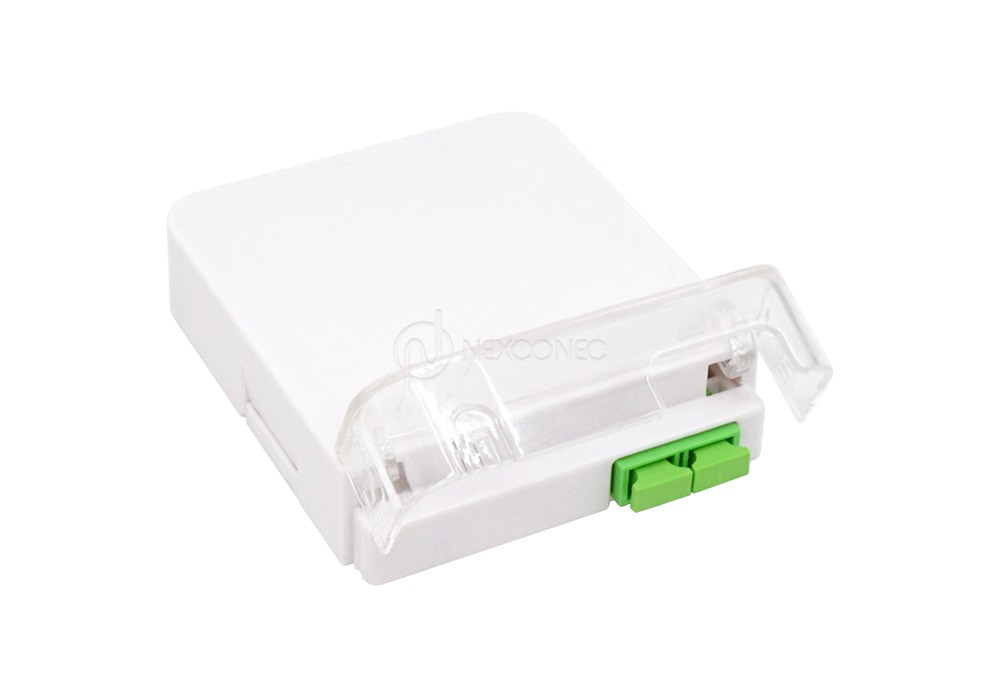

  • Transparent lid cover for shutter
  • FTTH / FTTx Networks
  • Data communication Networks
  • Indoor Application

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
Width 85 mm
Height 23 mm
Depth 116 mm
Number of Ports 1
Max. Splicing Capacity 2 Splices
Suitable Adapter Type SC Simplex – SC Duplex
Material PC + ABS
Operating Temperature -40 °C ~ +50°C
Color White
Compliant to RoHS, REACH, SVHC
Part Number Product Description

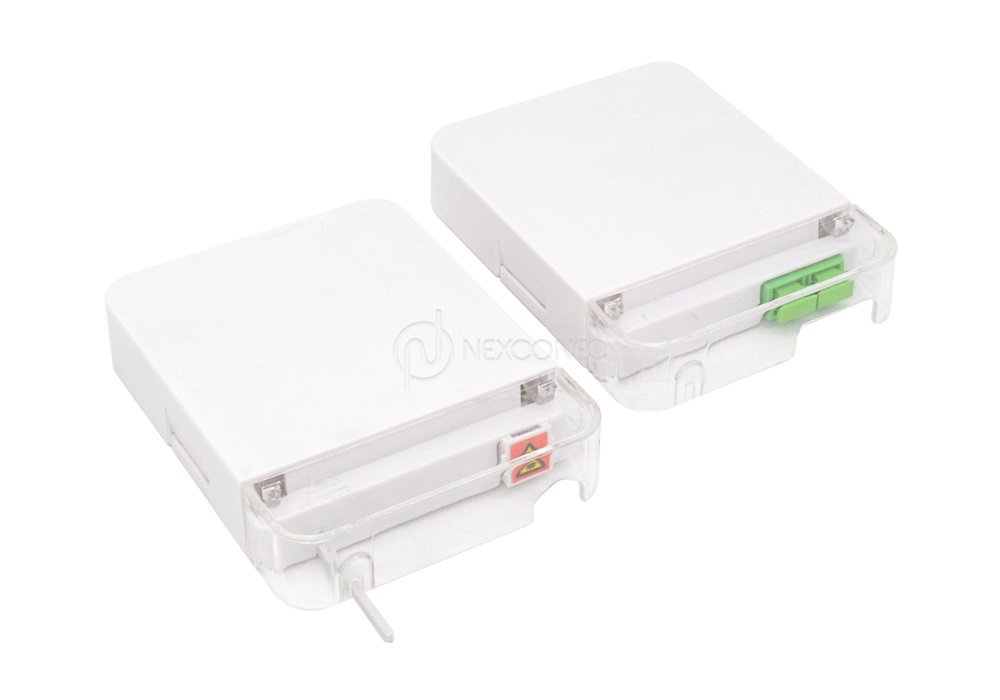

WO01 Subscriber Wall Outlet 1 Port SC Simplex Unloaded
WO02 Subscriber Wall Outlet 1 Port SC Duplex Unloaded
