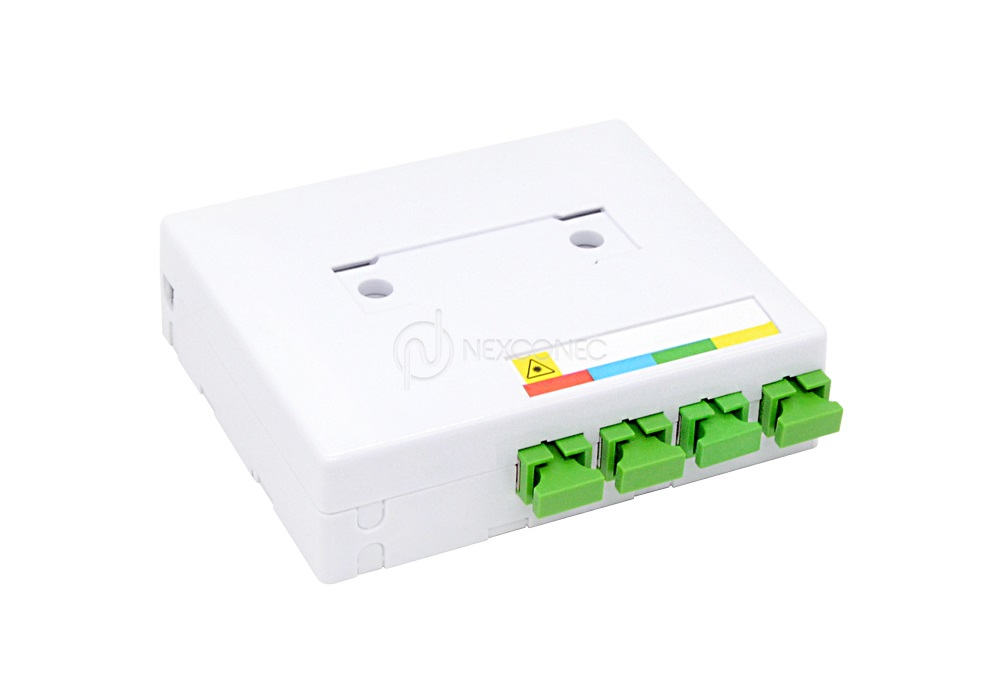

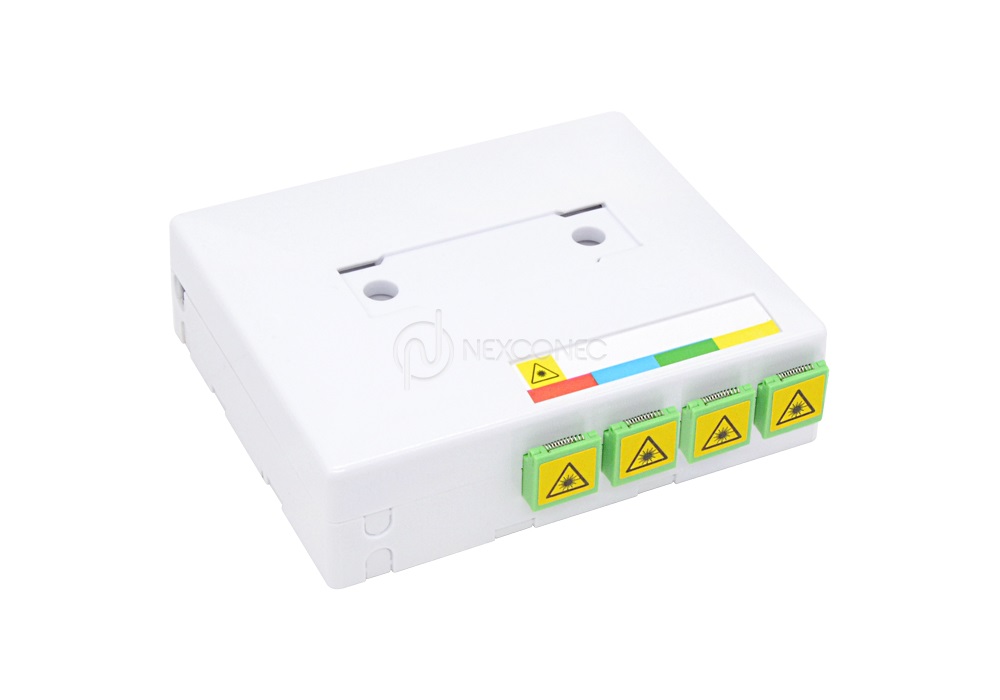

FTTH Wall Outlet 4 Ports SC - WO04
The compact termination box supplied by Nexconec® is designed for use in residential and business applications. This wall box enables the installation of 4 fiber ruggedized cables to be spliced to 4 SC pigtails which connect to adapters at the base of the unit.
The unit can be quickly installed within an office, house or communication room environment.
FEATURES AND APPLICATIONS
- SC Simplex Adapter type
- Ergonomic Design

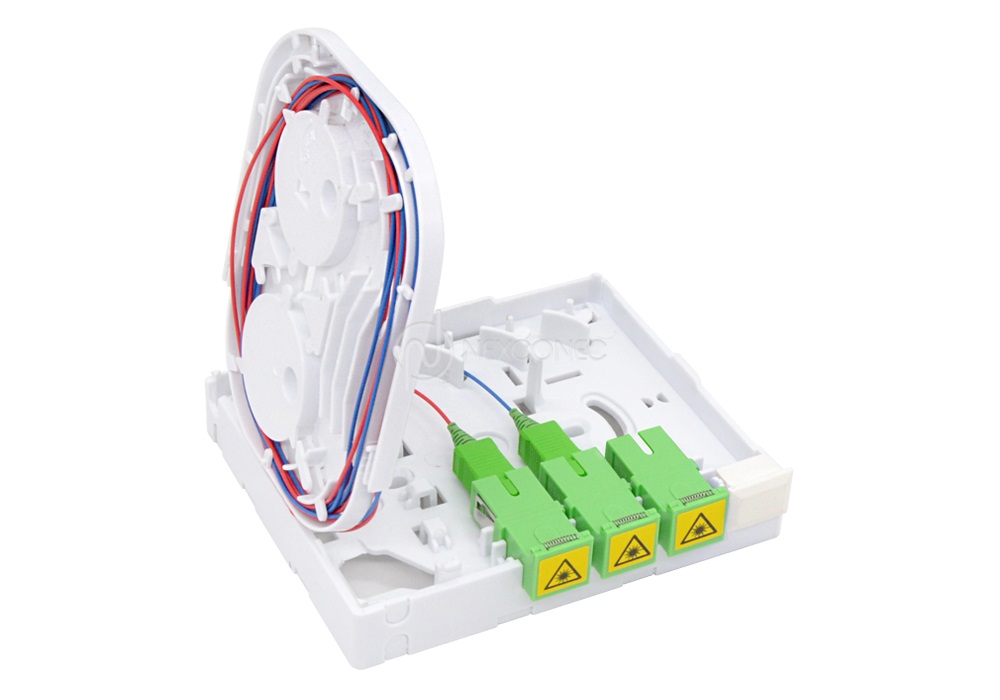

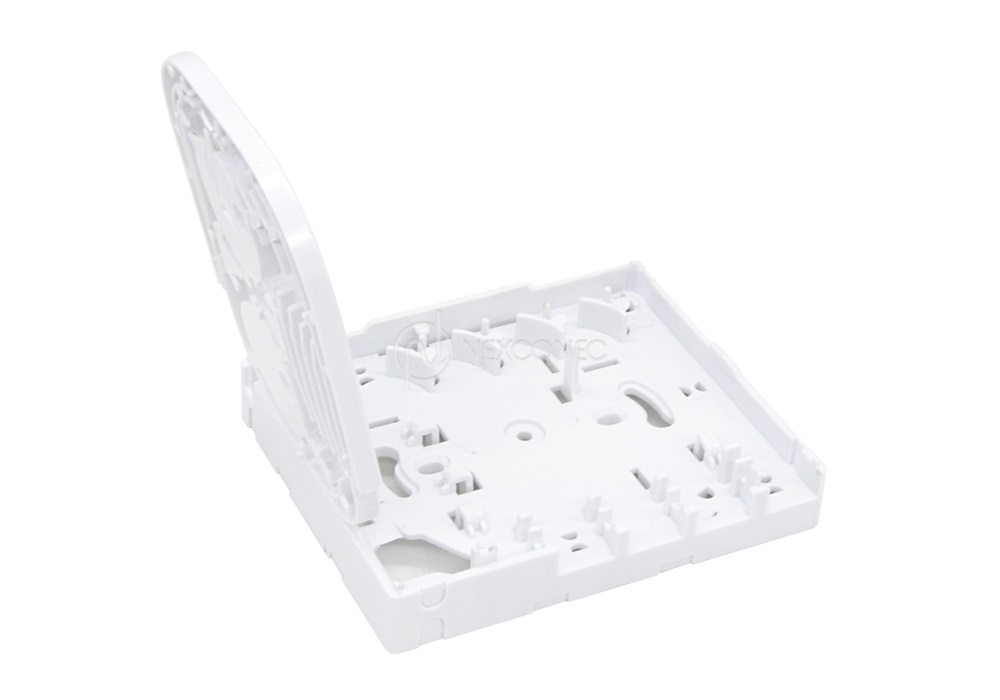

- Flip tray to allow access to pigtails and Cable entry
- Removable cover for easy access
- DIN Rail Mounting
- Wall Mounting
- FTTH / FTTx Networks
- Data communication Networks
- Indoor Application
| Parameters | Value |
|---|---|
| Width | 100mm |
| Height | 85mm |
| Depth | 22mm |
| Number of Ports | 4 |
| Max. Splicing Capacity | 4 Splices |
| Suitable Adapter Type | SC Simplex |
| Material | ABS |
| Operating Temperature | 25 °C ~ +60°C |
| Color | White |
| Compliant to | RoHS |
| Mounting | Wall mount or Din Rail |
| Part Number | Product Description |
|---|---|
| WO04 | FTTH Wall Outlet, 4 Port SC SX - Unloaded |
