FTTH Wall Outlet 4 Ports SC SX - WO03

WO03 WO03 WO03 WO03 WO03 WO03 WO03 WO03

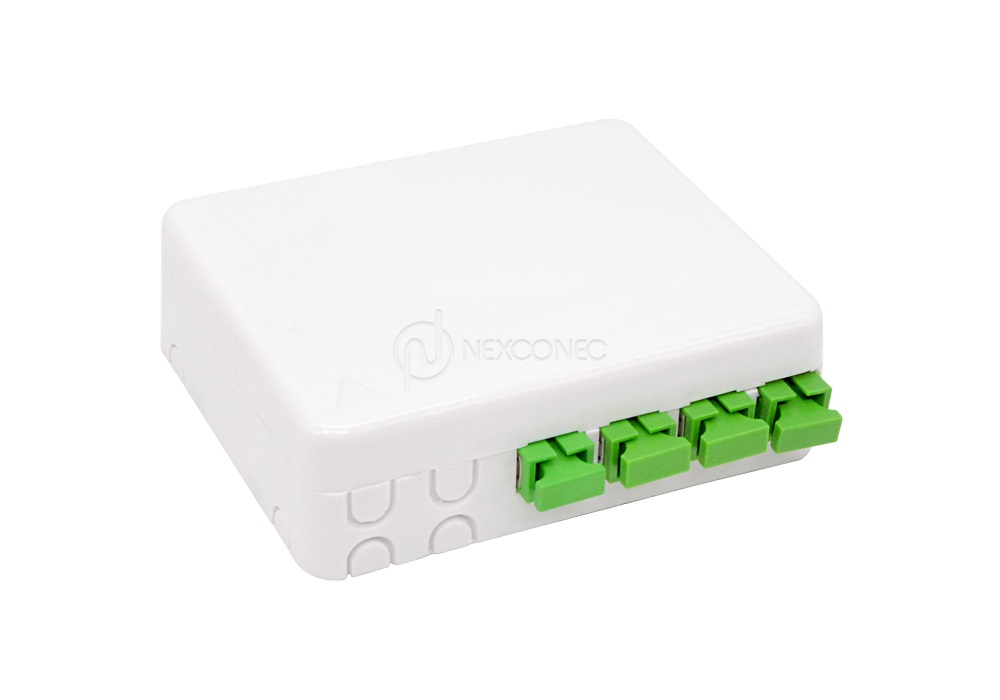

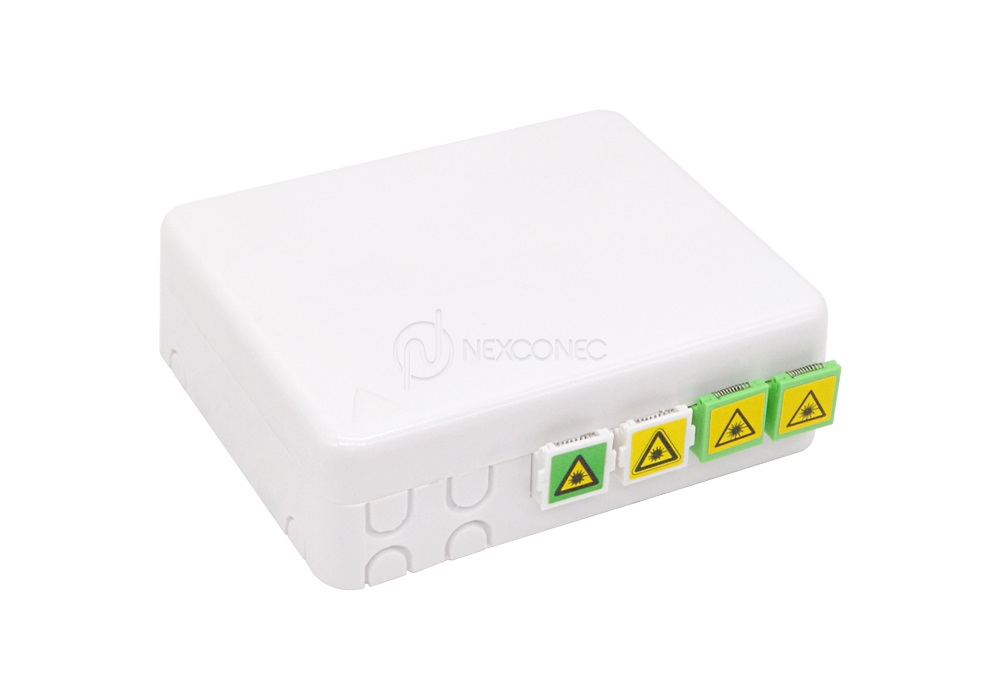

The compact termination box supplied by Nexconec® is designed for use in residential and business applications. This wall box enables the installation of 4 fiber ruggedized cables to be spliced to 4 SC pigtails which connect to adapters at the base of the unit.

The unit can be quickly installed within an office, house or communication room environment.

FEATURES AND APPLICATIONS
  • SC Simplex Adapter type
  • Ergonomic Design

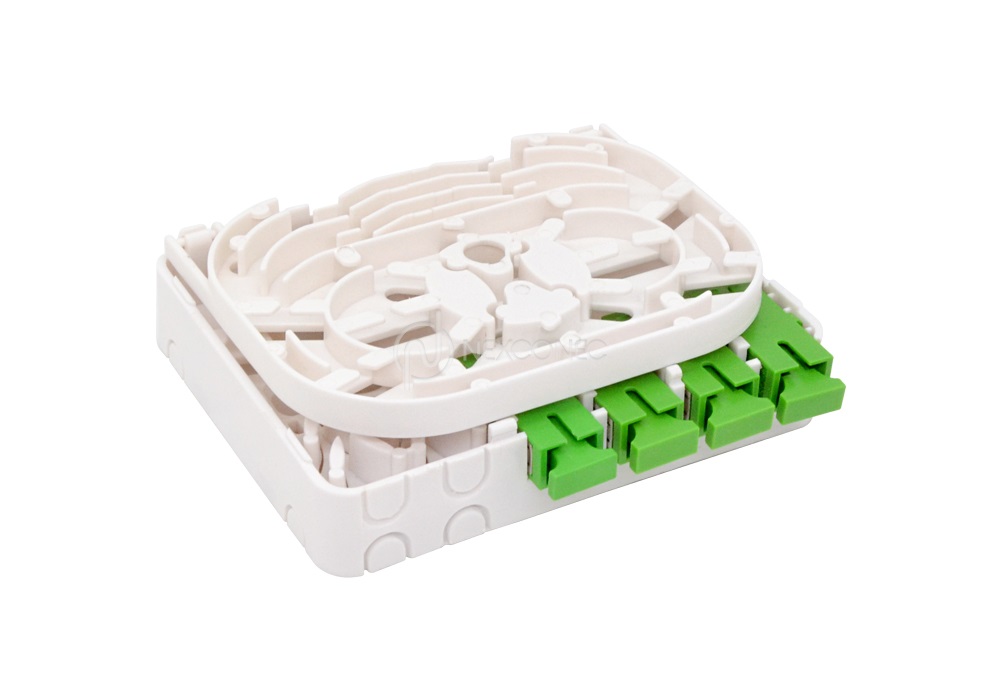

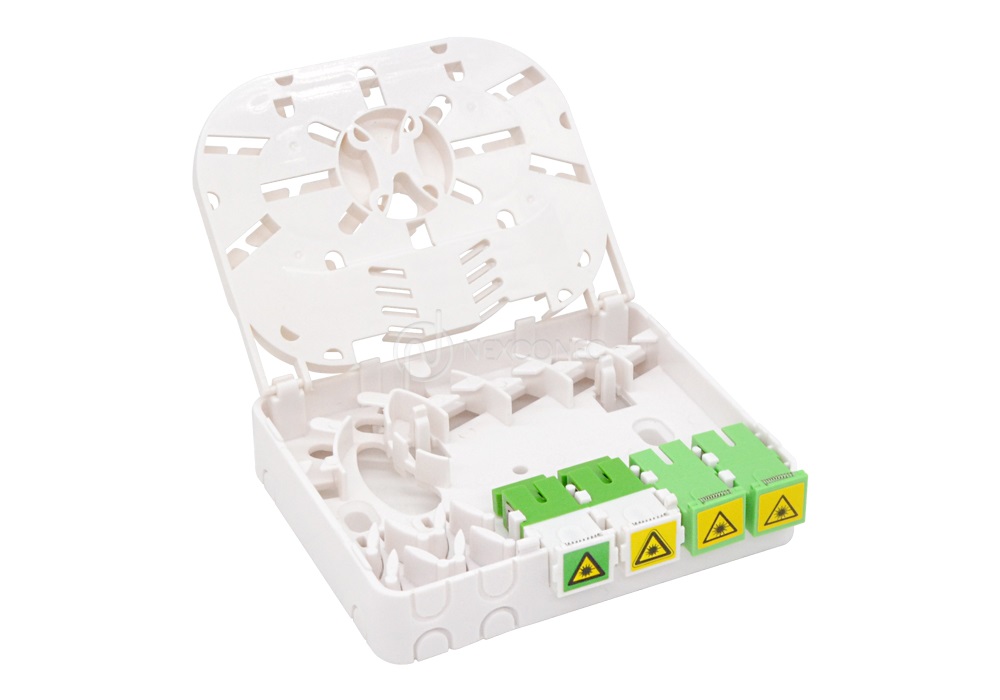

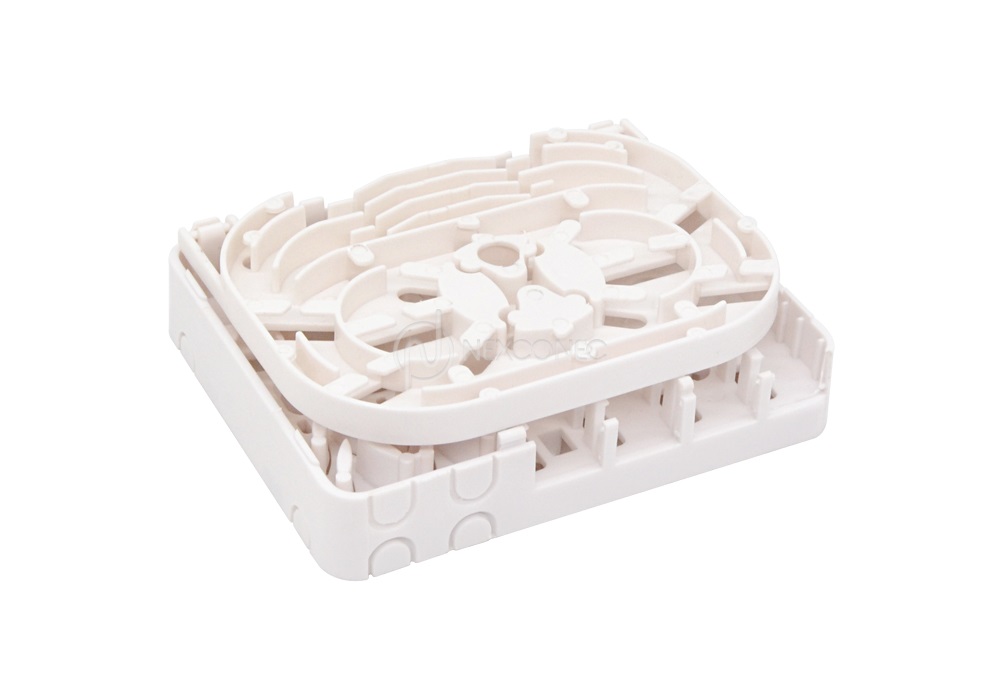

  • Flip tray to allow access to pigtails and Cable entry

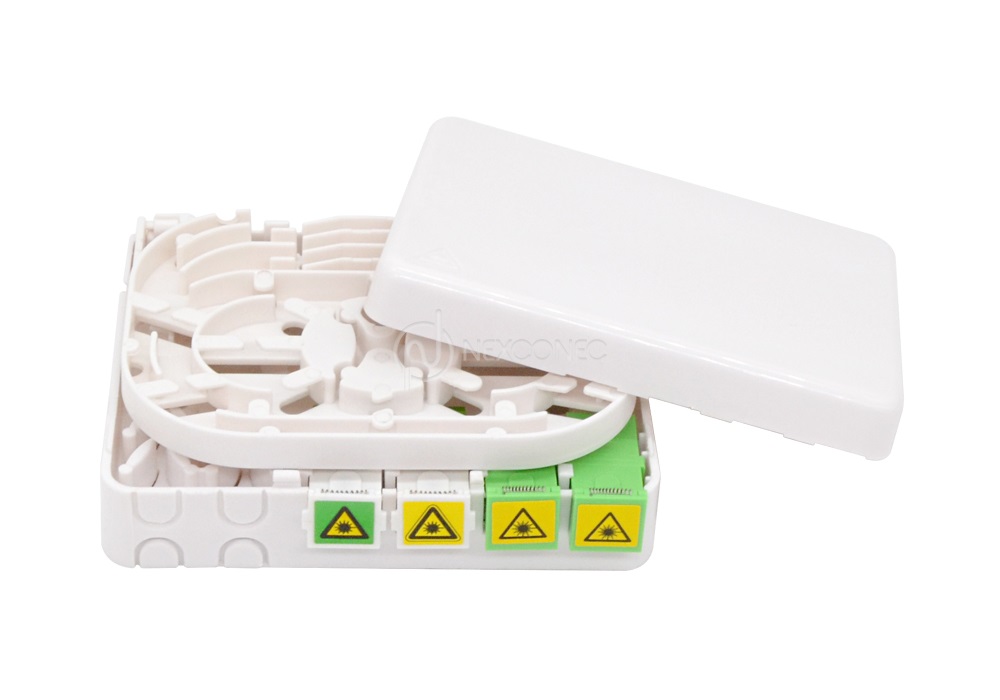

  • Removable cover for easy access
  • Unit manufactured with fire resistant UL94-VD Rated Material

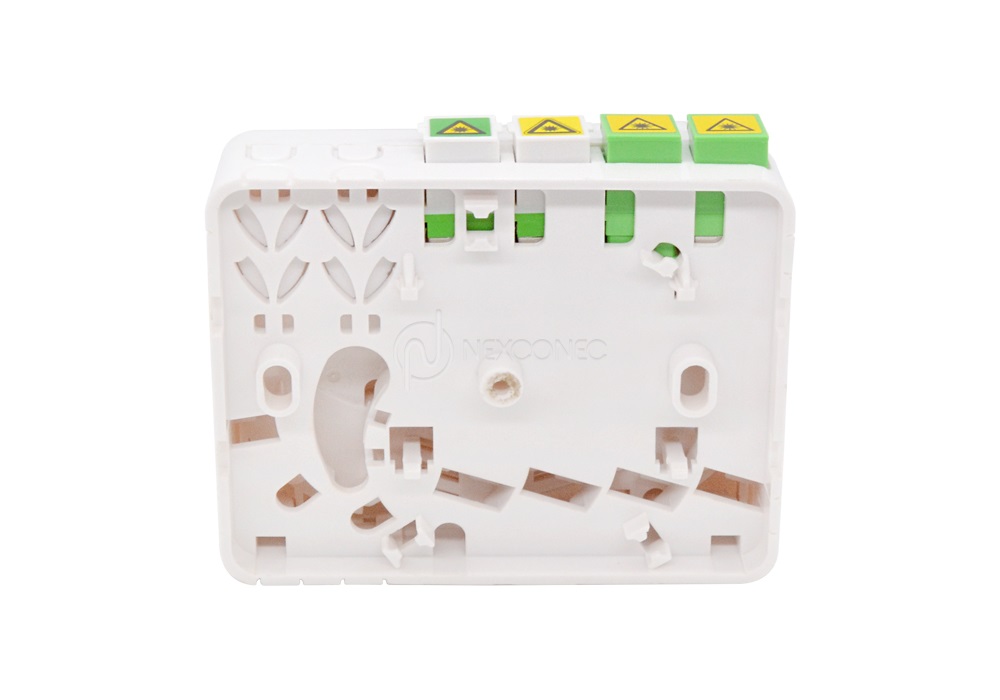

  • DIN Rail Mounting
  • Wall Mounting
  • FTTH / FTTx Networks
  • Data communication Networks
  • Indoor Application

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
Width 100 mm
Height 80 mm
Depth 30 mm
Number of Ports 4
Max. Splicing Capacity 4 Splices
Suitable Adapter Type SC Simplex - Shutter
Material PC + ABS
Operating Temperature -25 °C ~ +60°C
Color White
Compliant to RoHS, REACH, SVHC
Mounting Wall mount or Din Rail
Part Number Product Description

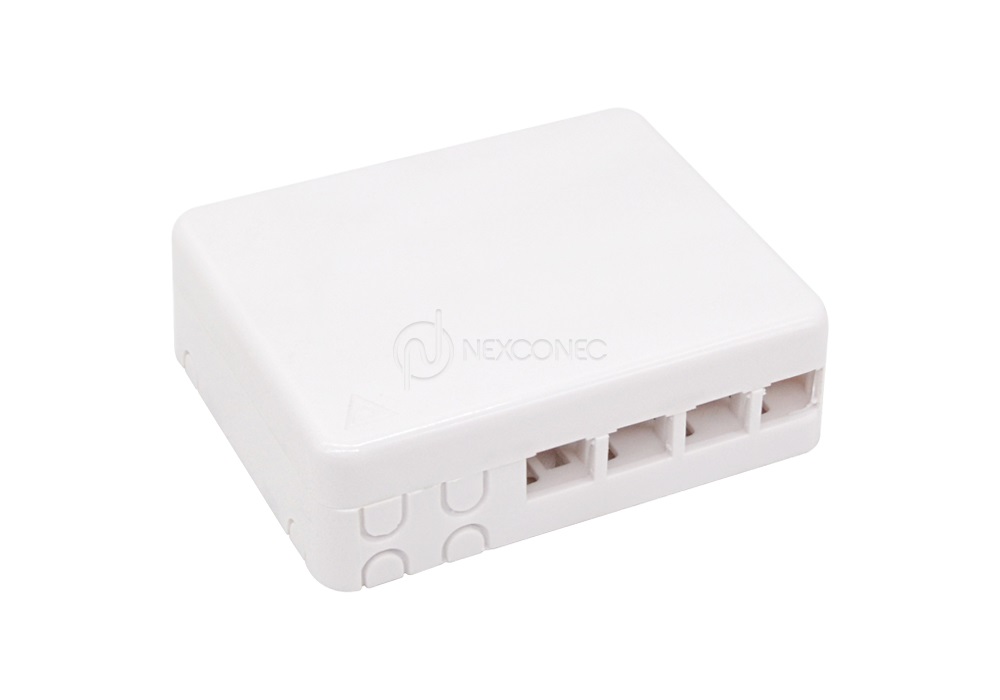

WO03 FTTH Wall Outlet 4 Port SC SX - Unloaded
