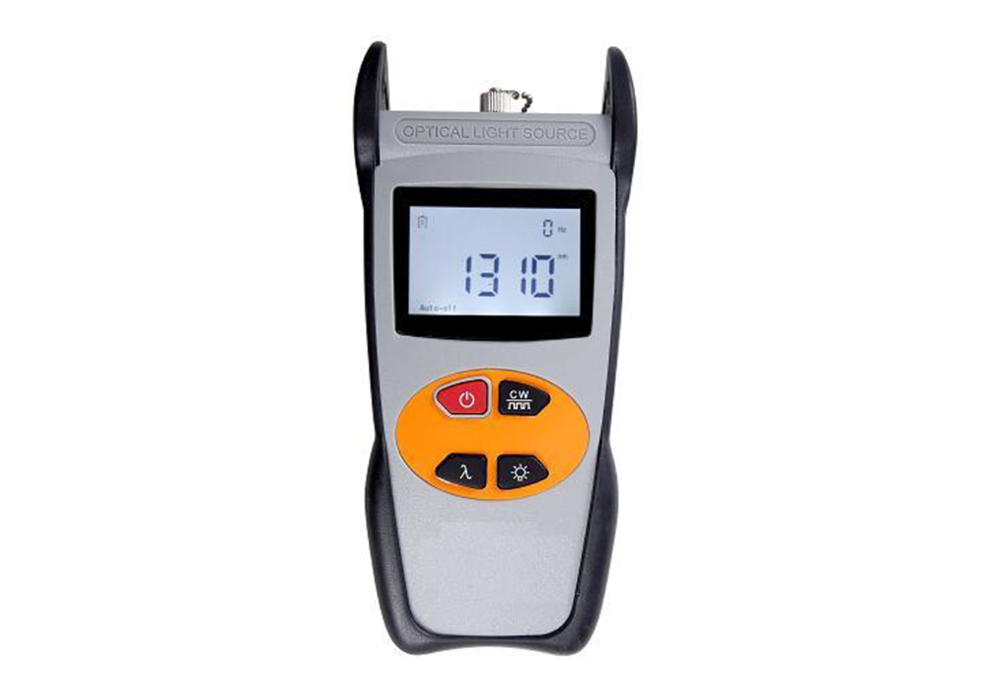

Handheld Light Source - NXOLS201A

01 02

NEXCONEC handheld light source is designed to match NXOPM101A, it not only can provide stable out power, but also it combined usage with NXOPM101A, they can realize automatic wavelength identification and automatic frequency identification. Also the NXOLS201A has features of good appearance, good touch feeling and considerate humanization design.

FEATURES AND APPLICATIONS
  • Wave ID and frequency ID information can be transmitted when used with NXOPM101A Optical Power Meter
  • Max. 5 wavelengths can built-in
  • Tone generation, 270Hz, 330Hz, 1 KHz, and 2 KHz
  • AA alkaline and AC adapter for power supply
  • Low battery indication

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
Operating Wavelength 850, 1300, 1310, 1490, 1550
Applicable Fiber Mode MM & SM
Laser Type FP-LD (others specify on requests)
Max. Output Power (dBm) -5, (can be adjustable, and customized upon request)
Adjustable Step Size (dBm) < 0.5 (adjustable between -5~-12dBm)
Stability (dB, 15min. 20℃) ±0.1
Stability (dB, 30min. 20℃) ±0.05
Modulation (Hz) CW, 270, 330, 1K, 2K
Optical Connector type FC/PC, or FC, SC, ST interchangeable
Power Supply 3XAA alkaline batteries, 1.5V
Battery Lifespan ≥ 40 hours
Storage Temperature -25 ~ +70℃
Operating Temperature -10 ~ +60℃
Dimension (L x W x H) 200 x 90 x 50 mm
Product Weight (without battery) 285g
Part Number Product Description
NXOLS201A Handheld Laser Source
