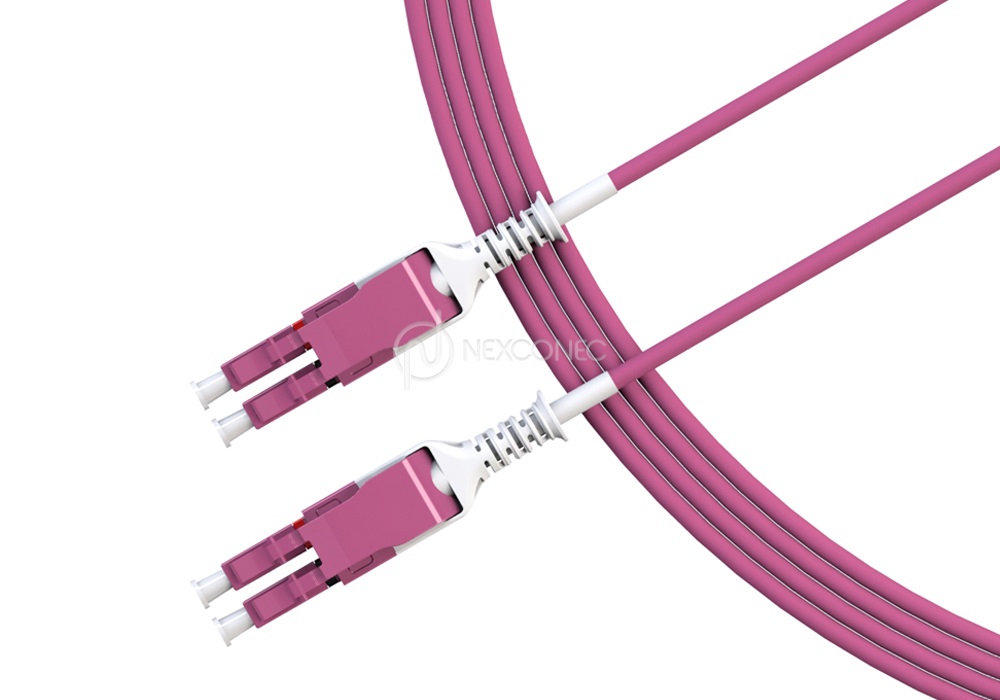

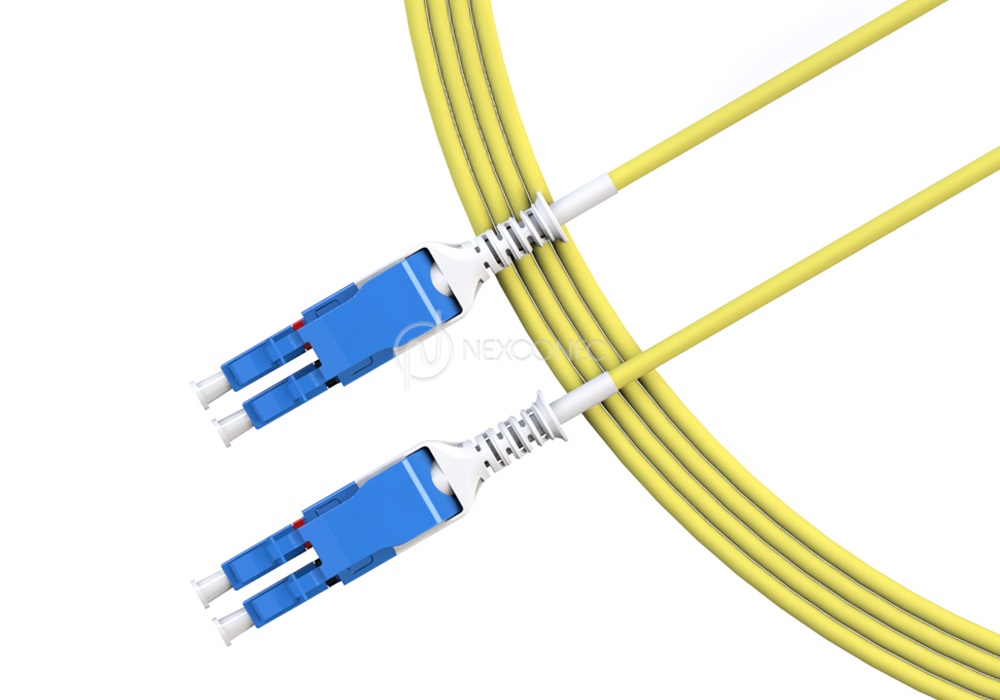

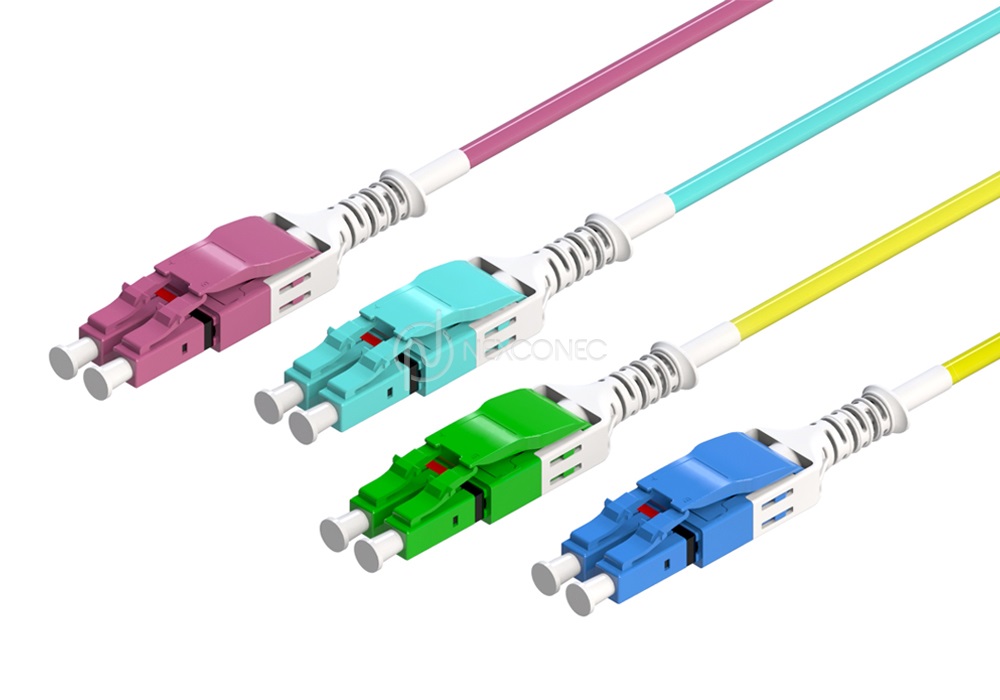

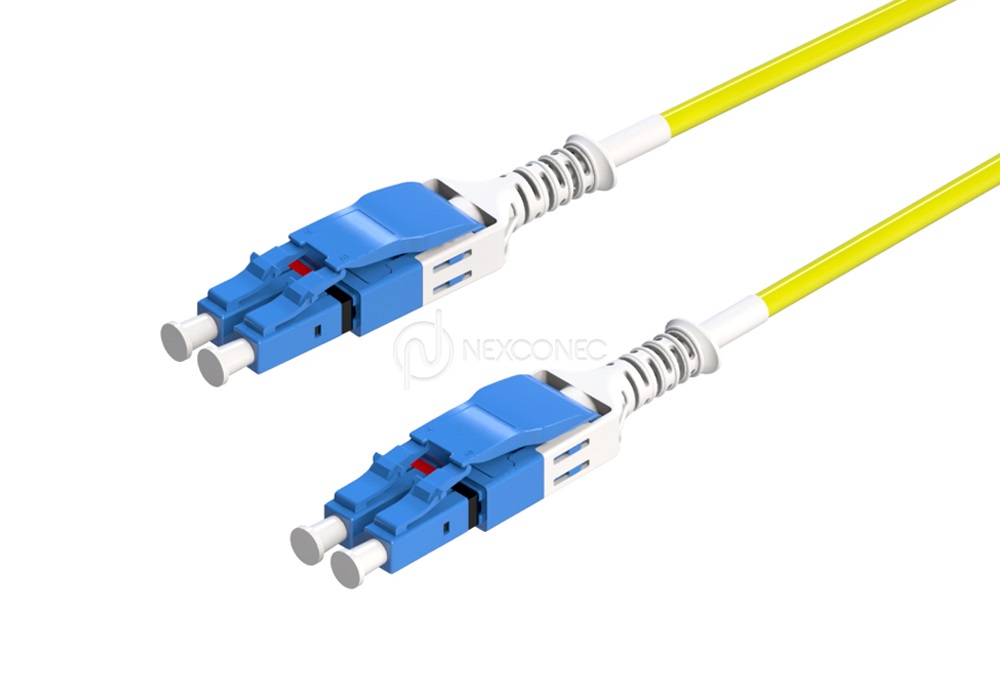

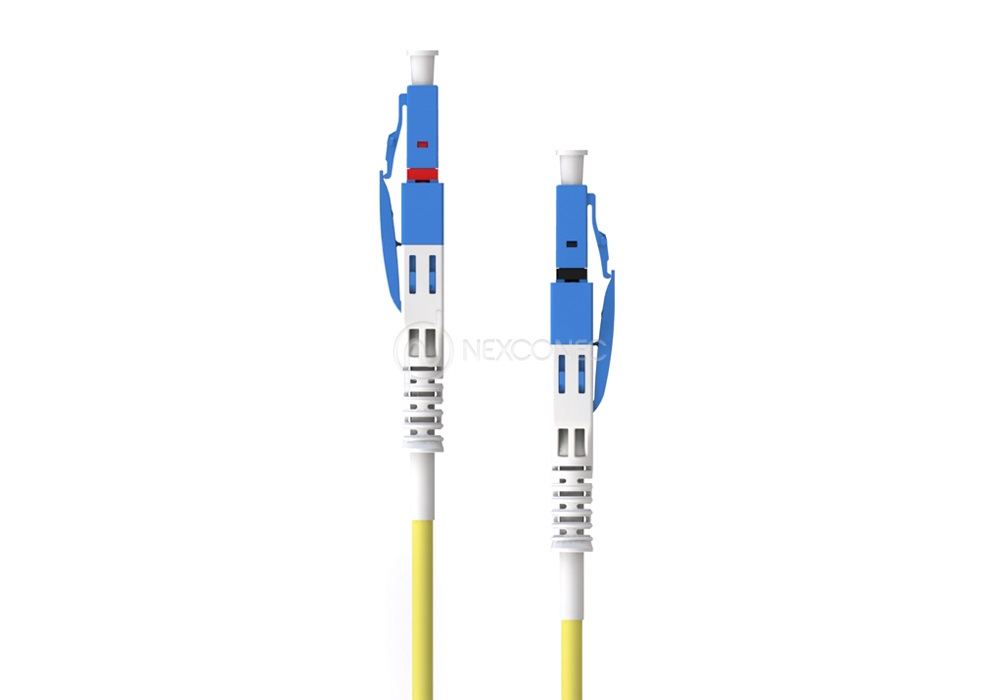

HD Quick-Release Reversible Uniboot LC

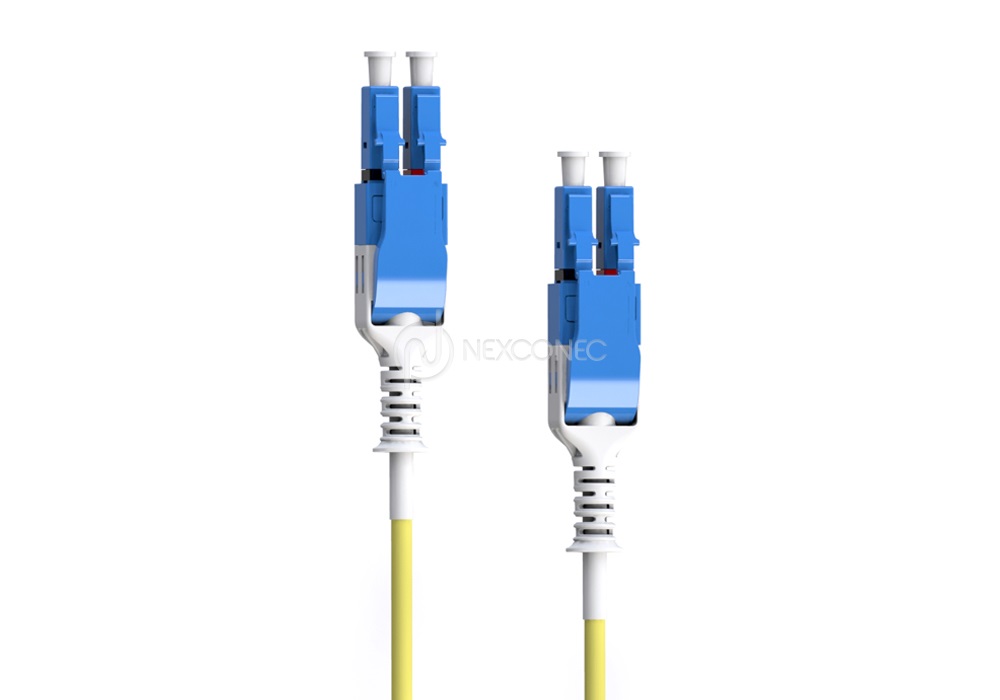

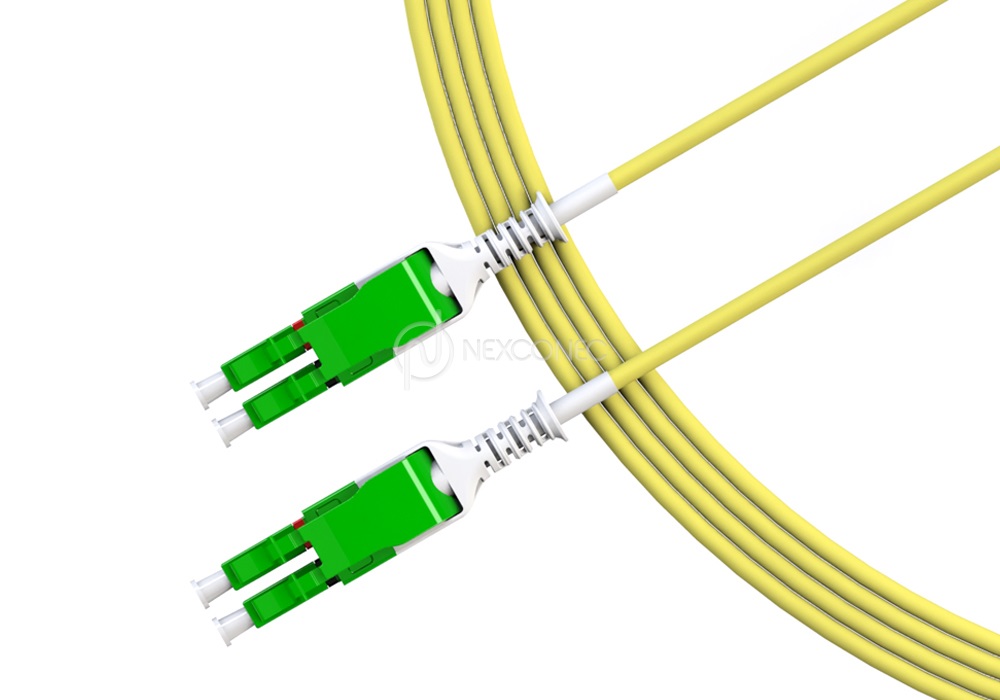

The NEXCONEC® Quick-Release Push Pull Reversible Uniboot LC are designed to incorporate a reinforced boot for a quick push-pull insertion and removal of the connector without tools or tabs requirement. This innovative design helps conserve precious space in high-density panels and the connector has an easy mechanism to switch polarity within boot during installation.
The distinctive design employs a uniboot to house 2.0mm jacketed cables. This feature not only decreases cable density but also simplifies cable management in the context of contemporary high-density applications.
FEATURES AND APPLICATIONS
- “Simply Grab it by the Boot” – a reinforced boot for fast insertion & removal
- Quick polarity change within boot, no tools or tabs required
- Conform to IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC
- All Assemblies are machine polished providing highest quality
- All Assemblies are factory tested and come with test certificate
- Available in custom length
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers
- FTTx
- Broadband network
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (UPC) | RL (APC) |
|---|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55 dB | > 65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55 dB | > 65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 25 dB | > 25 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 25 dB | > 25 dB |
CABLE CHARACTERISTICS
| Parameters | Unit | Value |
|---|---|---|
| Outer Diameter | mm | 2.0 |
| Tensile Strength (Long Term) | N | 40 |
| Tensile Strength (Short Term) | N | 80 |
| Crush Resistance (Long Term) | N/100mm | 100 |
| Crush Resistance (Short Term) | N/100mm | 400 |
| Min. Bending Radius (Static) | mm | 30 |
| Min. Bending Radius (Dynamic) | mm | 60 |
| Storage Temperature | °C | -20 ~ +60 |
| Operating Temperature | °C | -20 ~ +60 |
| Cable Weight | Kg/Km | 7.6 |
Video
Quick Polarity Change Process
Step 01

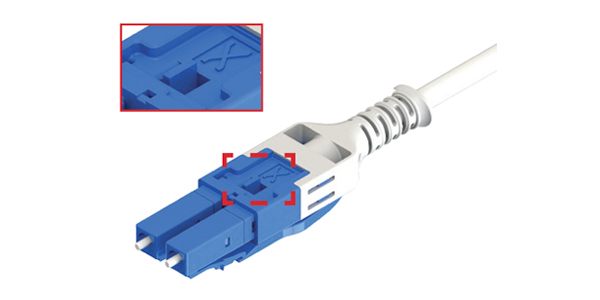

- CLICK to unlock bottom latch with finger.
Step 02

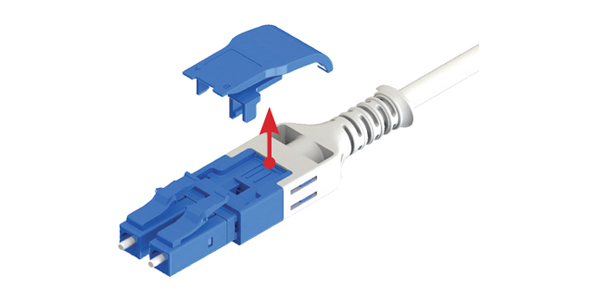

- EXTRACT the latch from Uniboot.
Step 03
- ROTATE the plugs outward 180°.
Step 04

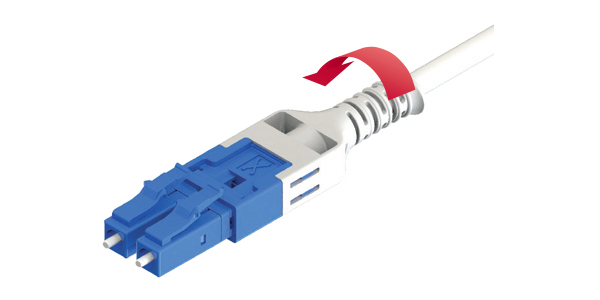

- FLIP the connector body to 180°.
Step 05

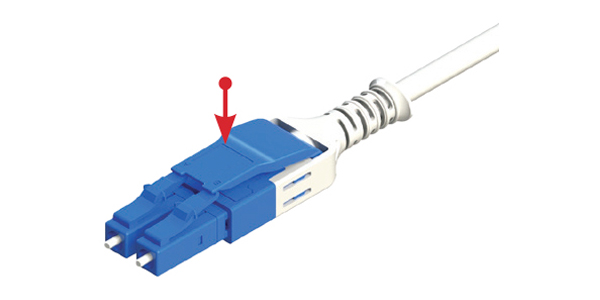

- Push the latch back in until LOCK in place.
