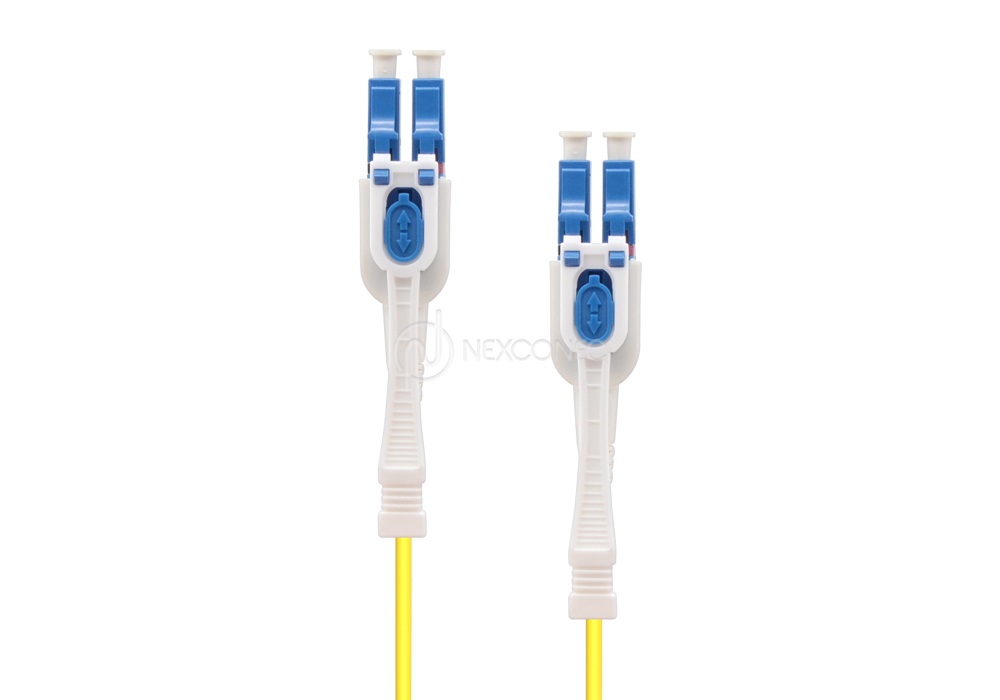

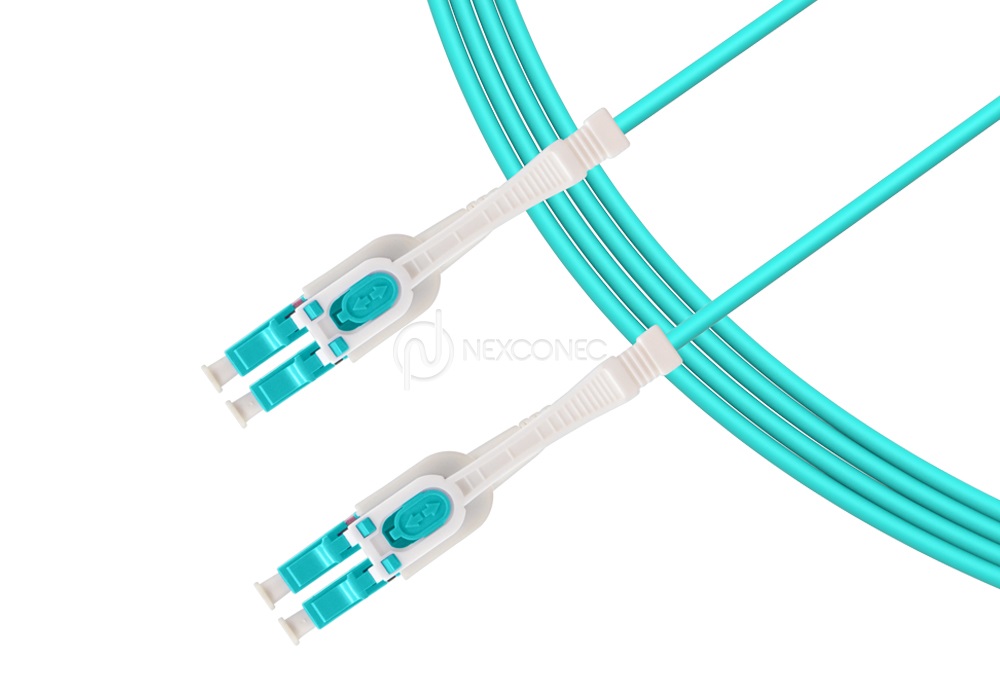

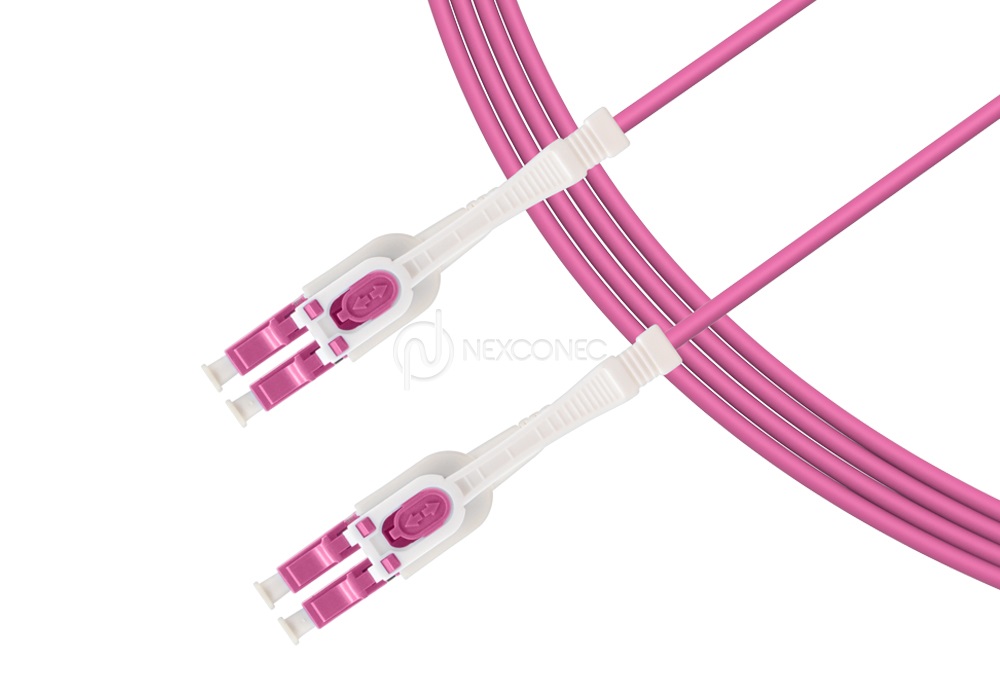

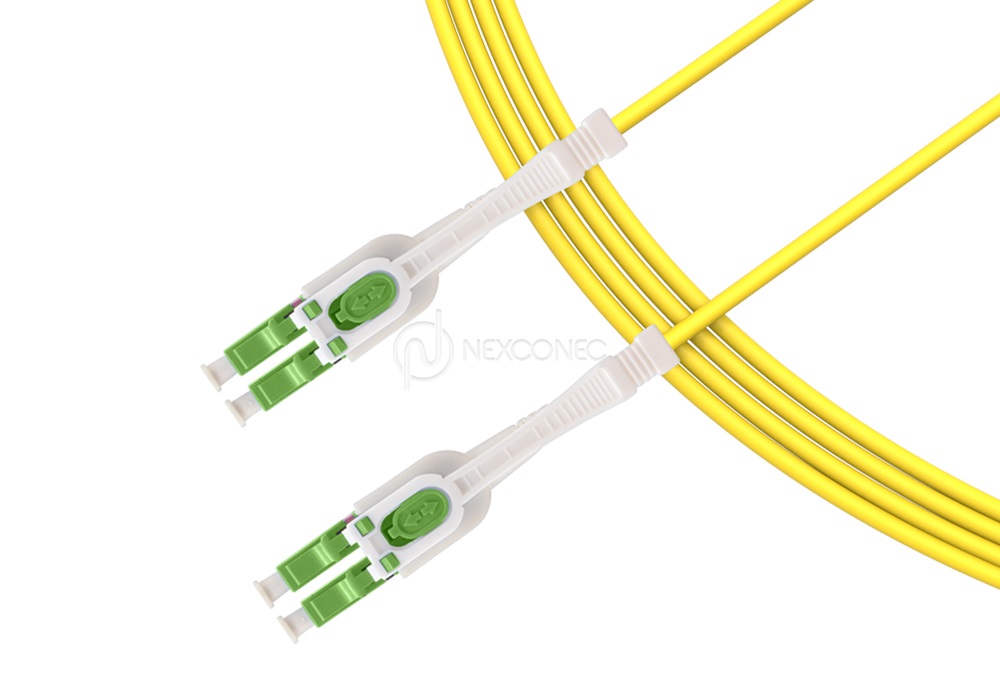

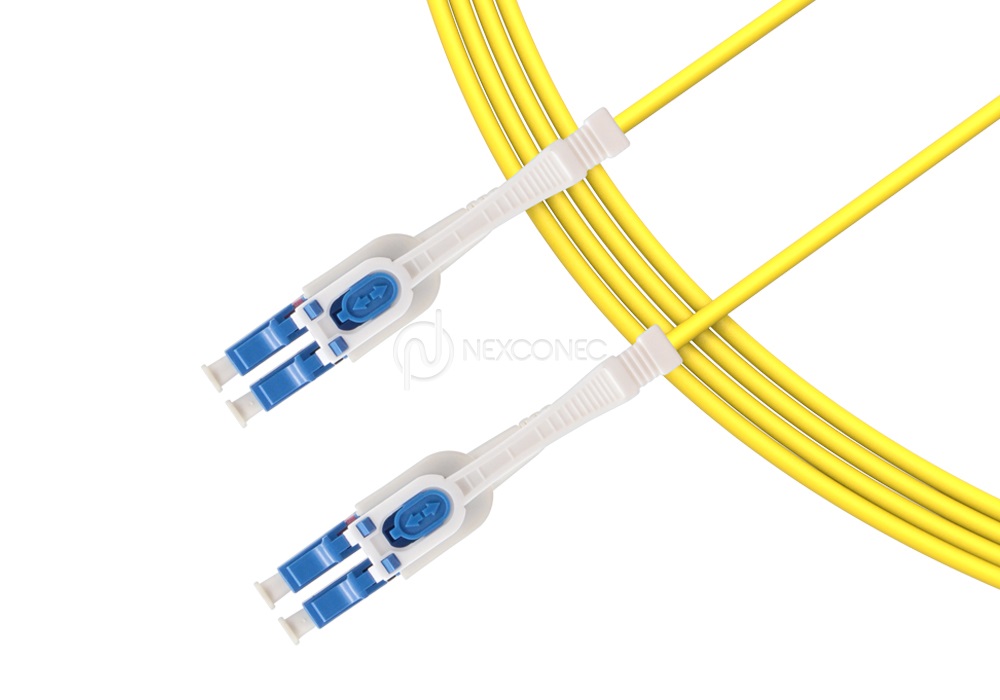

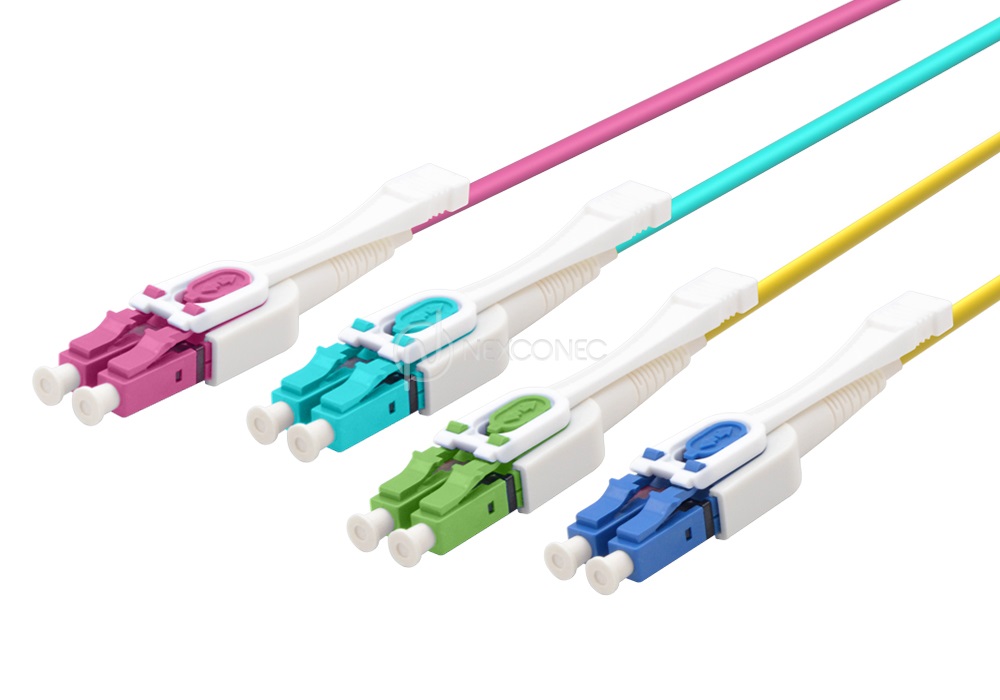

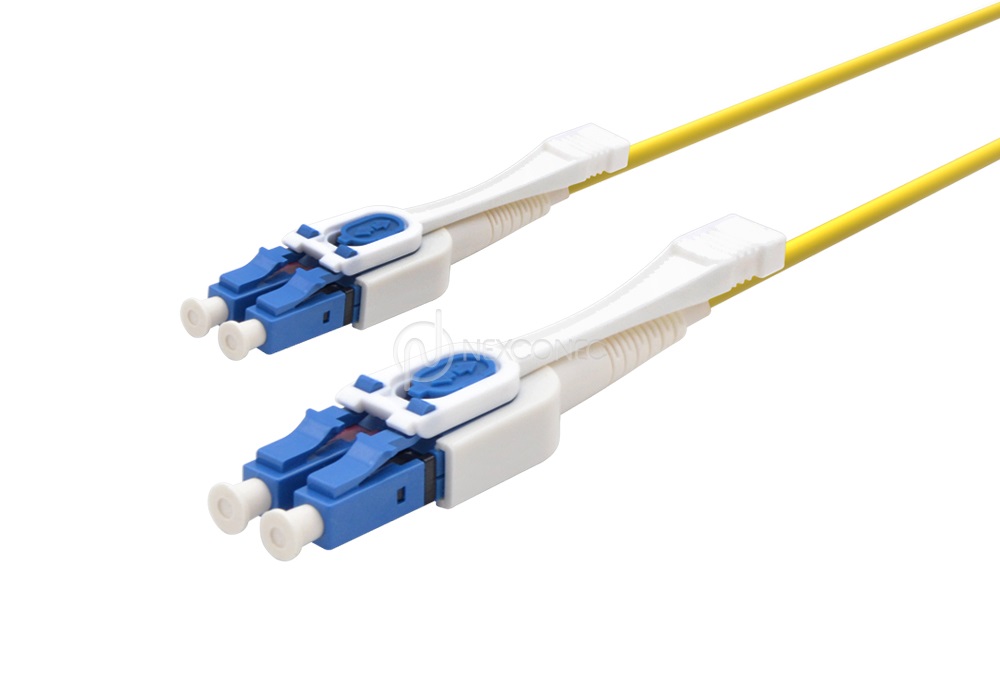

HD Uniboot LC
NEXCONEC® LC High Density switchable polarity connector is a totally unique design which can increase panel density to its highest while keeping great accessibility. The flexible push and pull tab allows the connector to engage and disengage easily. The connector has an easy mechanism to switch polarity during installation thereby being cost effective at critical times.
The unique design uses uniboot to accommodate 2mm or 3mm jacketed cables to reduce cable density and making cable management easier in today’s highly dense applications.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality
- All Assemblies are factory tested and come with test certificate
- Available in custom length
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers
- FTTx
- Broadband network
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 25 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 25 dB |
| Connector Durability | < 0.2dB typical change, 500 matings | ||
CABLE CHARACTERISTICS
| Parameters | Unit | Value | |
|---|---|---|---|
| Outer Diameter | mm | 2.0 | 3.0 |
| Tensile Strength (Long Term) | N | 40 | 60 |
| Tensile Strength (Short Term) | N | 80 | 120 |
| Crush Resistance (Long Term) | N/100mm | 100 | |
| Crush Resistance (Short Term) | N/100mm | 400 | |
| Min. Bending Radius (Static) | mm | 30 | 50 |
| Min. Bending Radius (Dynamic) | mm | 60 | 100 |
| Storage Temperature | °C | -20 ~ +60 | |
| Operating Temperature | °C | -20 ~ +60 | |
| Cable Weight | Kg/Km | 7.6 | 19.0 |
