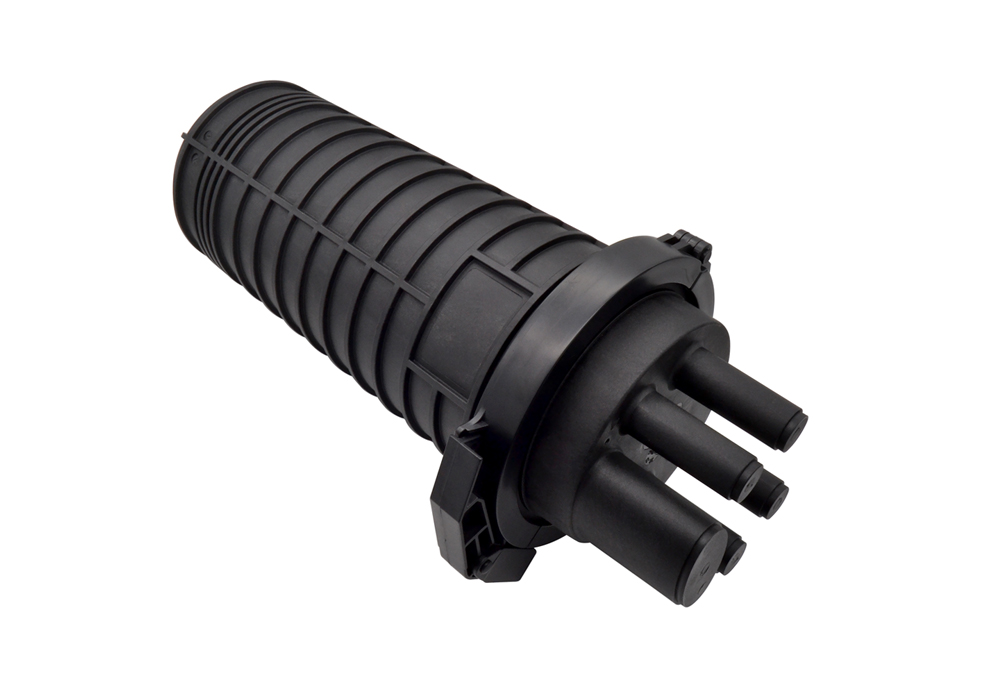

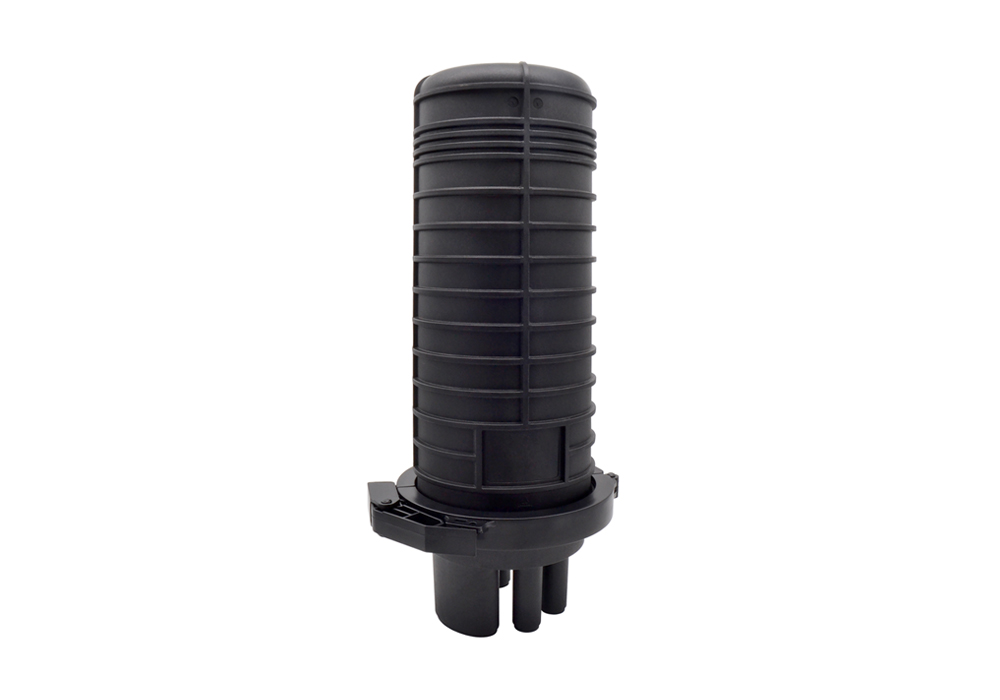

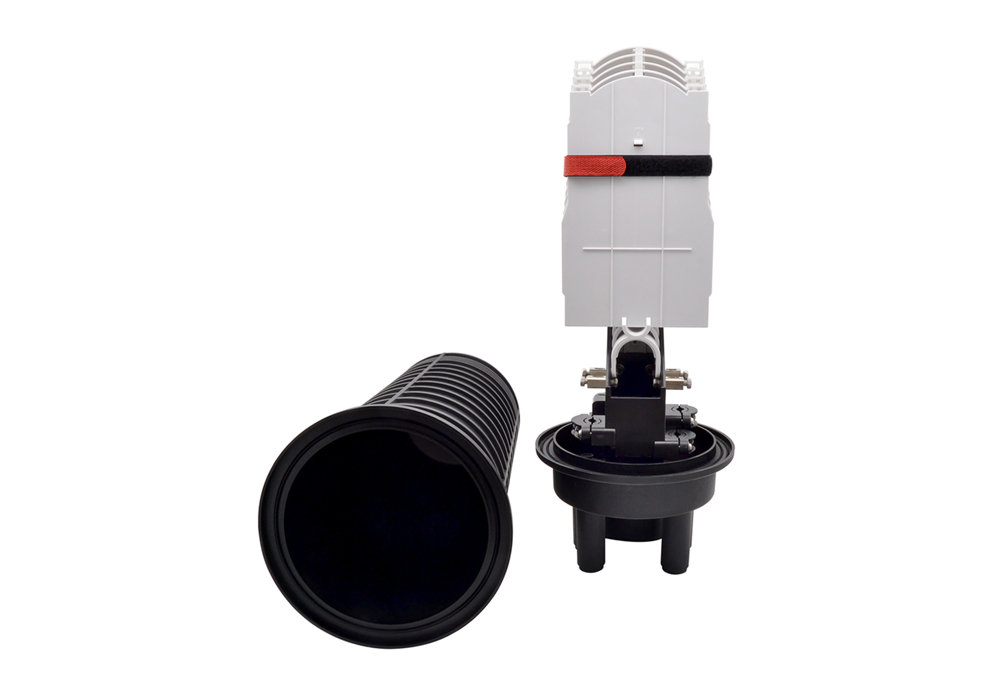

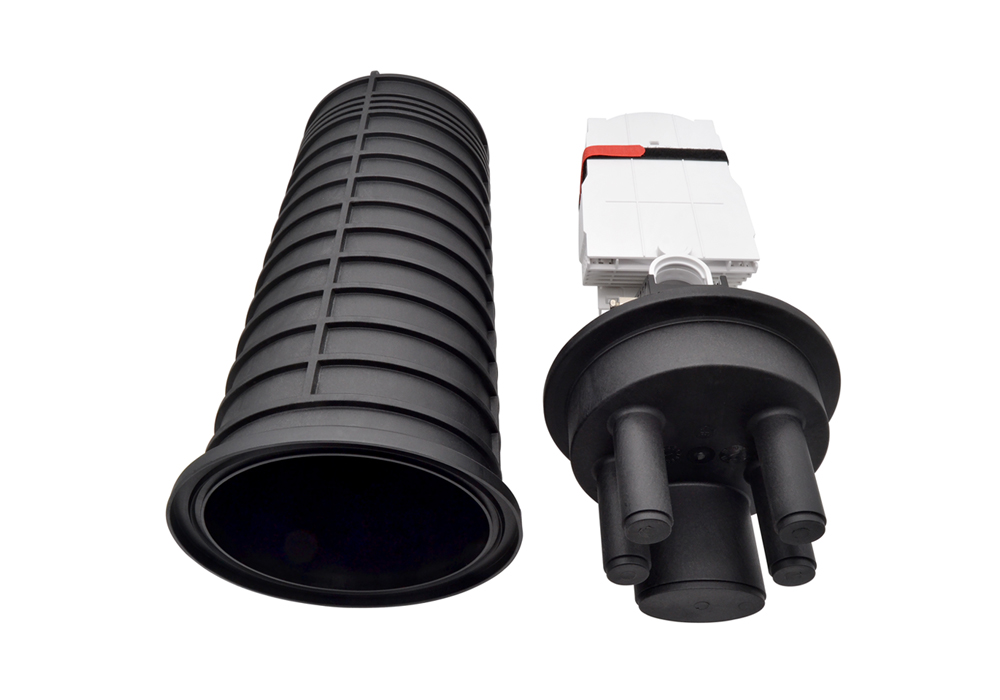

Heat Shrink Dome Enclosure - OC-DO01
NEXCONEC Dome closure is the best designed and innovative solution for fiber cabling installation. It only requires its silicone rubber sealing gasket to ensure the good sealing performance of fiber cable, up to 144 fibers of fiber count. The different sizes of cable entrances provide the great flexibility for cables installation.
FEATURES AND APPLICATIONS
- Up to 144 cores capacity
- Airproofing performance IP68
- Insulation Resistance
- Voltage Resistance up to 15kvDC
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 450 x 230 mm |
| Weight (Kg) | 3.80-4.20 Kg |
| Material | PP+GF |
| Max. Capacity (Fibers) | 144 fibers |

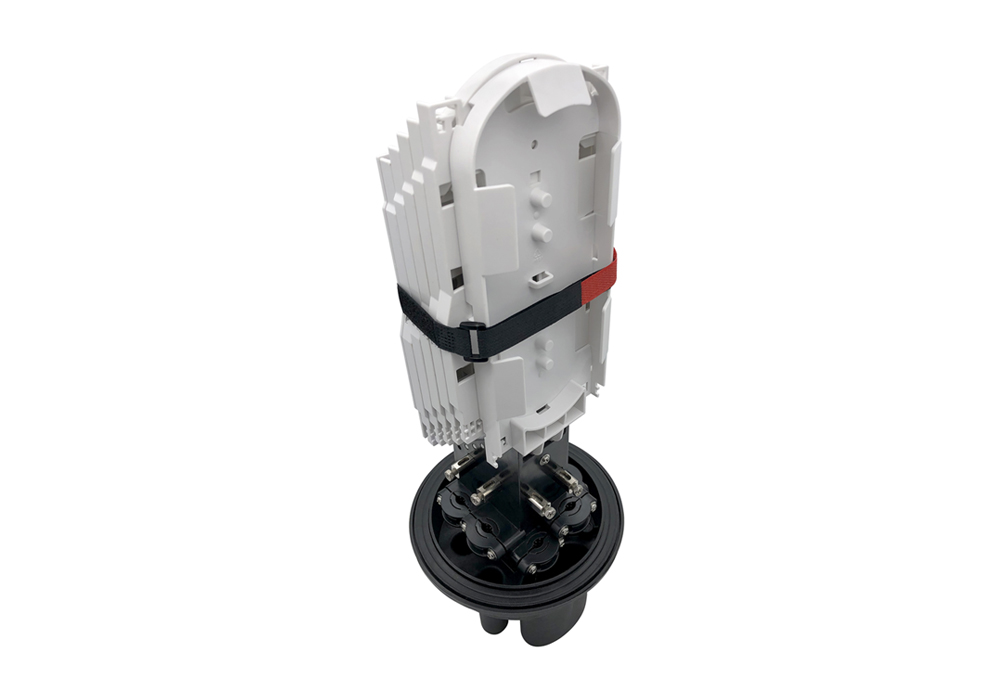

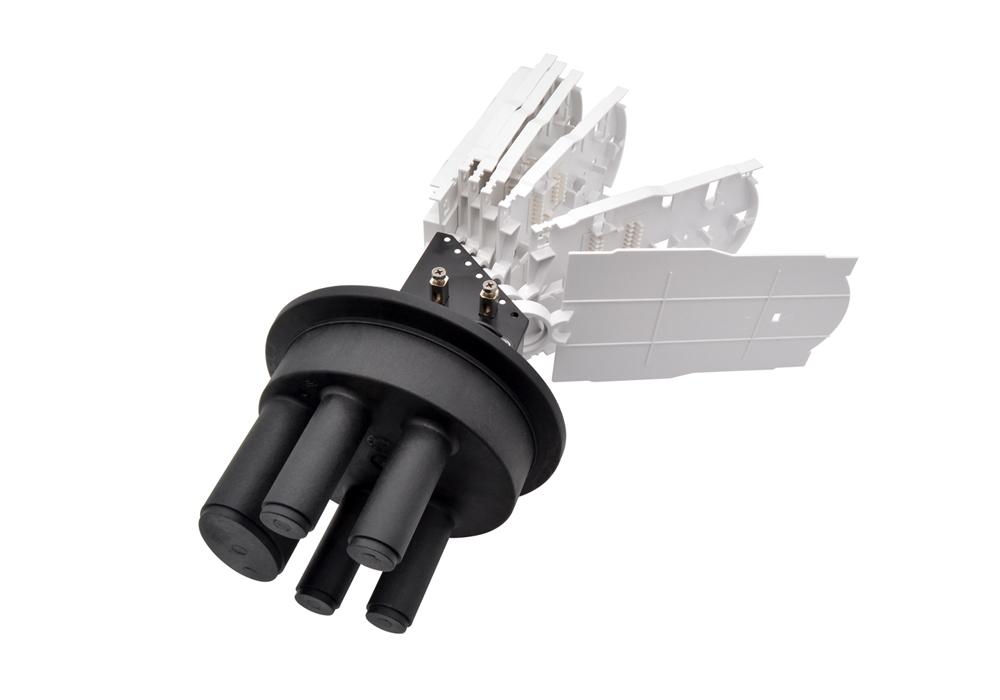

| Maximum Number of Splice Trays | 6 |
| Capacity of Splice Tray | Max 24 single Fusion splices |
| Cable Entrances | 5 |
| Suitable Fiber Cable OD | Φ8mm～Φ17.5（Φ24） |
| Sealing Structure | Heat Shrink Sealing |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃～+55℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO01-24 | FO Dome Enclosure 24FO H/S |
| OC-DO01-48 | FO Dome Enclosure 48FO H/S |
| OC-DO01-72 | FO Dome Enclosure 72FO H/S |
| OC-DO01-96 | FO Dome Enclosure 96FO H/S |
| OC-DO01-144 | FO Dome Enclosure 144FO H/S |
