Indoor/Outdoor FTTA CPRI Fiber Cable Assemblies
NEXCONEC® FTTA CPRI (Common Public Radio Interface) fiber cable assemblies available in 2 cores which can carry control or message signals with minimum loss. This Indoor/Outdoor FTTA (fiber to the Antenna) fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment.
Its applications include quick deployment in TV broadcasting and communication emergency repair. Ideal for both indoor & outdoor fiber cable applications, easy operation, reliable and cost-effective.
PRODUCT HIGHLIGHTS
- Standard SM and MM options available
- Available in custom length
- Low insertion loss
- Flexibility fanout tail with small bending radius and excellent cable routing properties
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Standard SM and MM options available
- Available in custom length
- Low insertion loss
- All Assemblies are machine polished & factory tested providing highest quality
- Flexibility fanout tail with small bending radius and excellent cable routing properties
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Multi-purpose indoor/outdoor applications
- Widely used in FTTA
- Harsh outdoor environments applications
SINGLE FERRULE CONNECTOR SPECIFICATIONS
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |

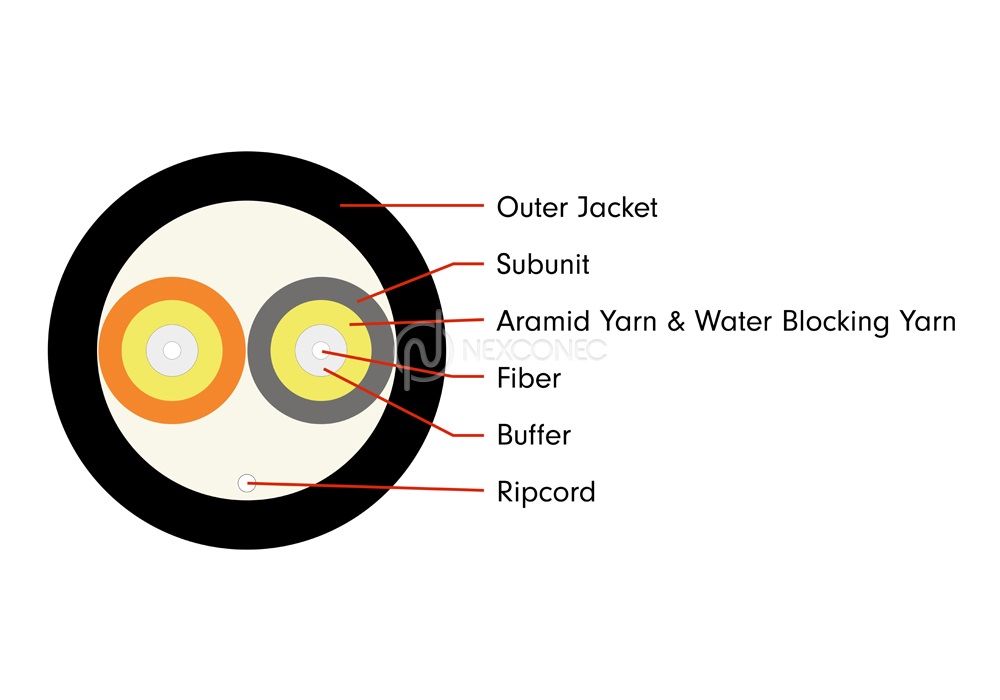

CABLE CHARACTERISTICS
| Parameters | Unit | Value |
|---|---|---|
| Fiber Count | 2F (Duplex) | |
| Number Of Subunits | 2 | |
| Cable Outer Diameter | mm | 5.5±0.3 |
| Cable Outer Jacket Thickness | mm | 0.60±0.05 |
| Outer Jacket Material / Color | UV-LSZH (Black) | |
| Subunit Diameter | mm | 1.9±0.1 |
| Buffer Diameter | mm | 0.85±0.05 |
| Subunit & Buffer Material | LSZH | |
| Strength Members | Aramid Yarn + Water Blocking Yarn | |
| Long Term Tensile Strength | N | 300 |
| Short Term Tensile Strength | N | 450 |
| Long Term Crush Resistance | N/100mm | 300 |
| Short Term Crush Resistance | N/100mm | 1000 |
| Min. Bending Radius | mm | 10D (Static) 20D (Dynamic) |
| Installation Temperature | ˚C | -10 to +50 |
| Operating Temperature | ˚C | -20 to +60 |
| Storage Temperature | ˚C | -20 to +70 |
| Compliance | RoHS, REACH & SvHC | |
| Nominal Cable Weight | Kg/Km | 25 Kg |
