Indoor, Indoor/Outdoor Preterms Tight Buffer (Up to 24FO)

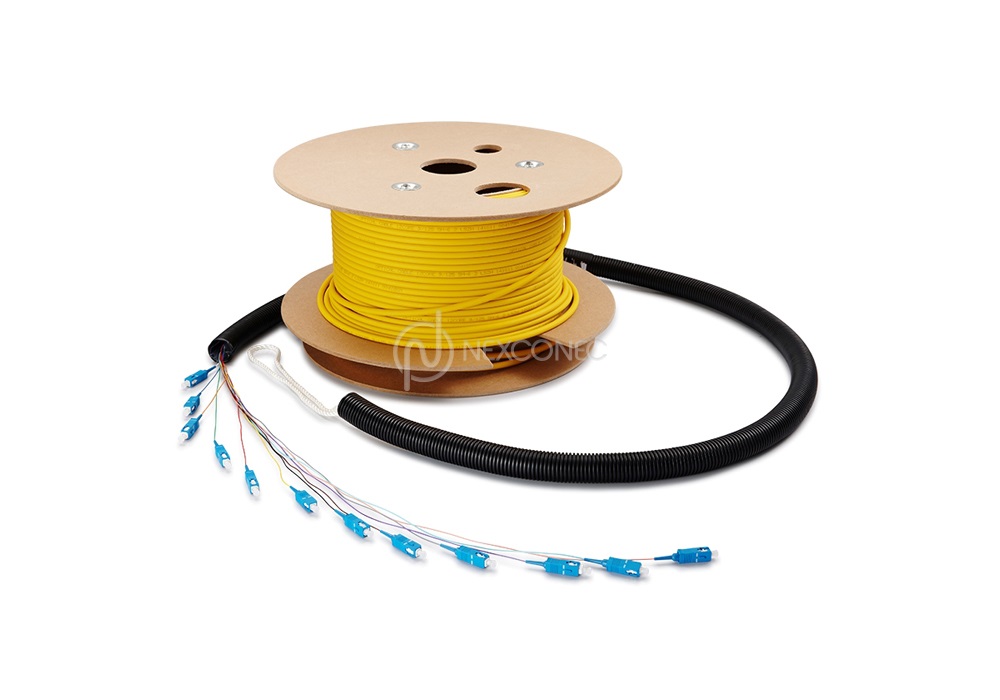

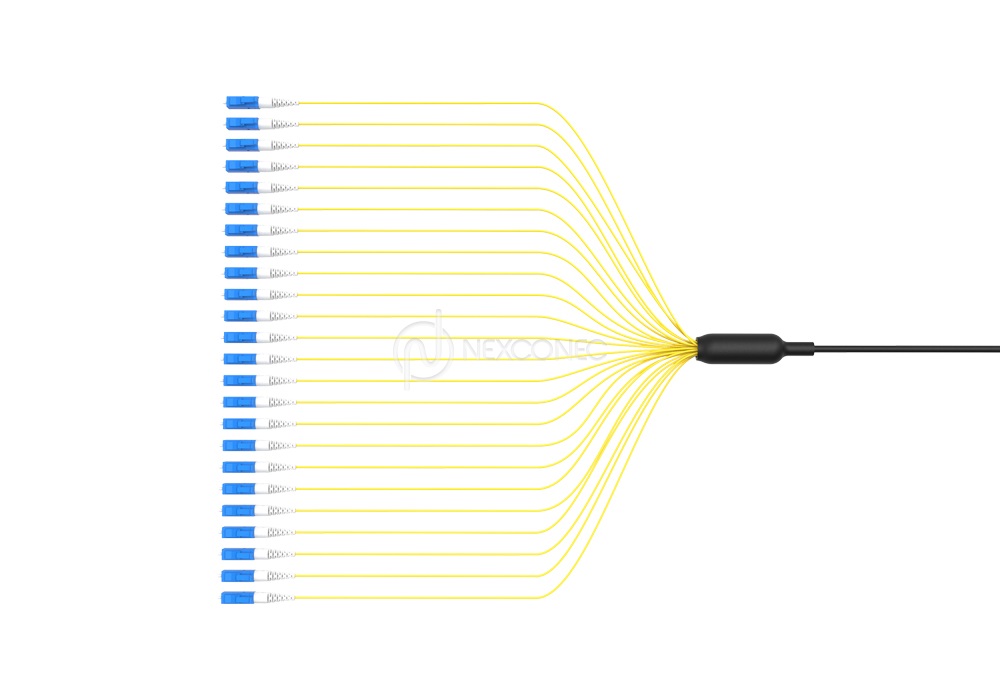

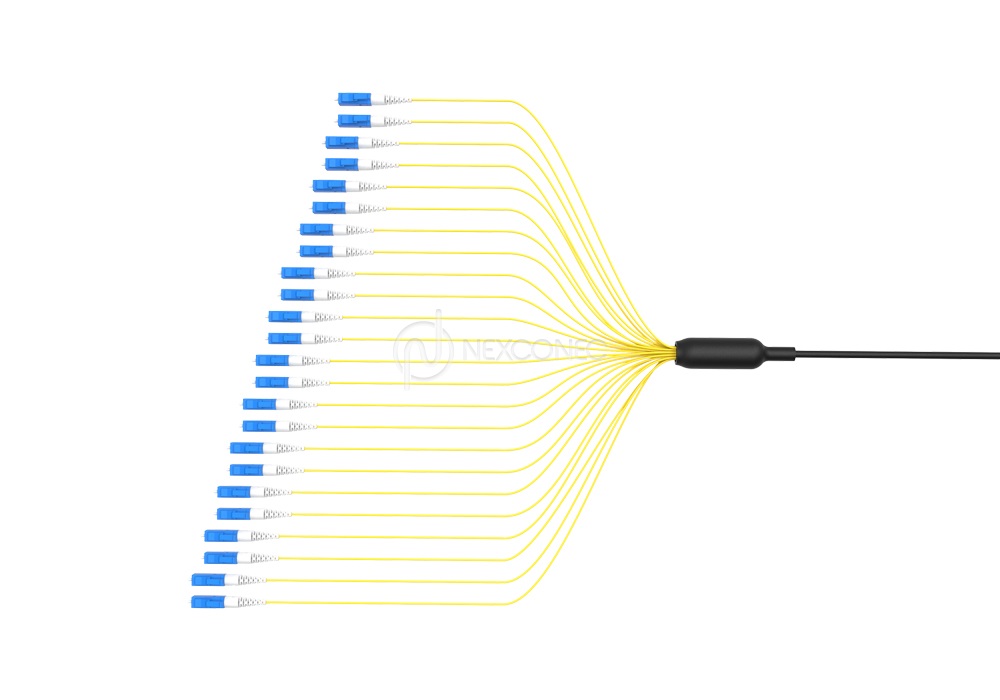

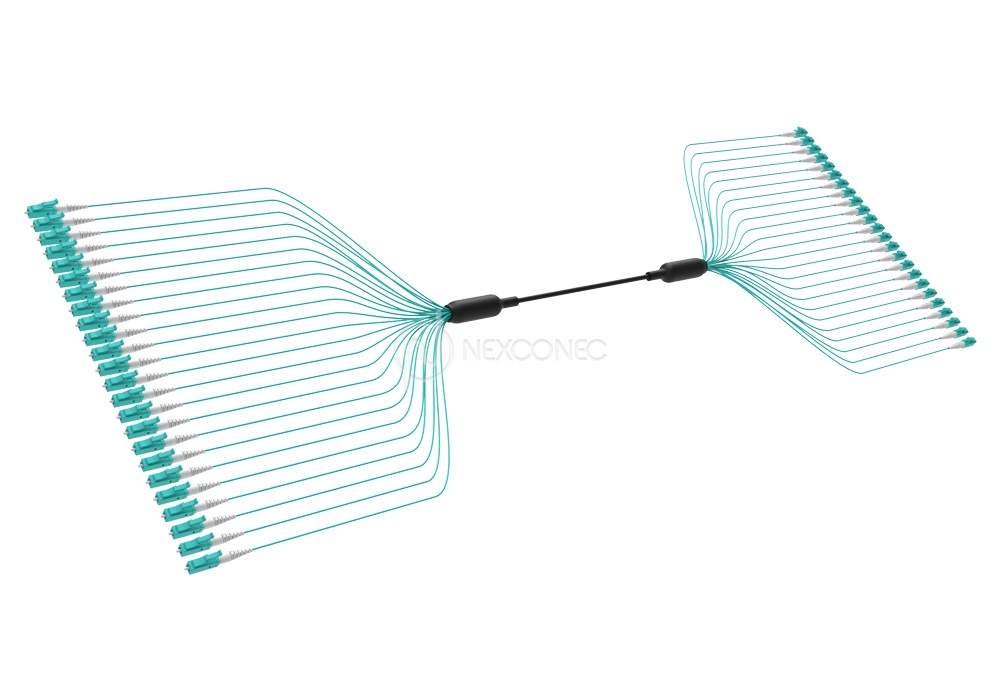

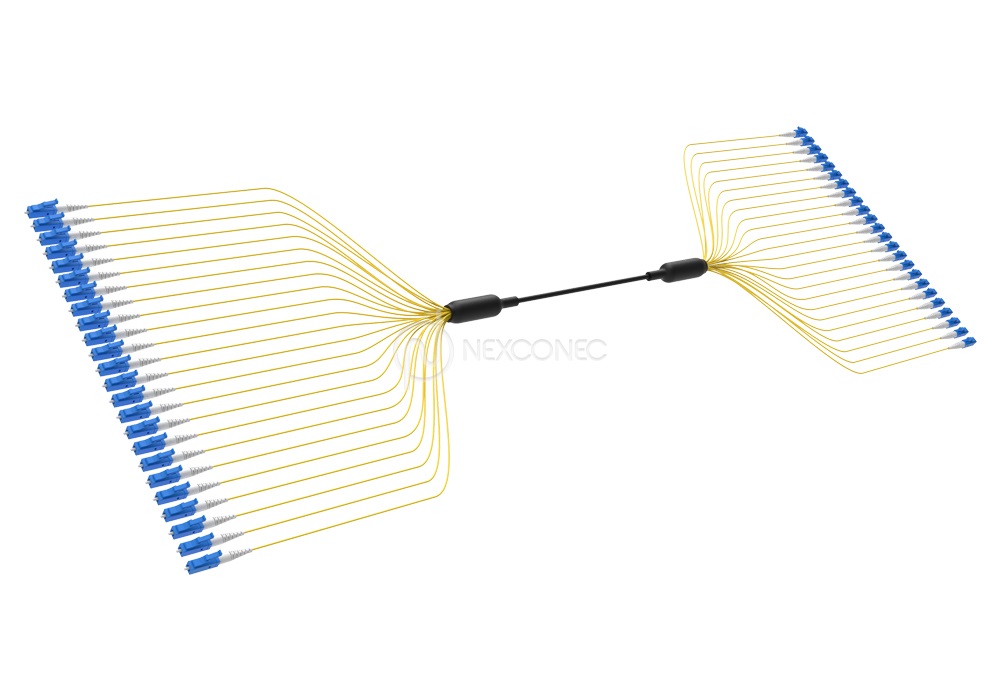

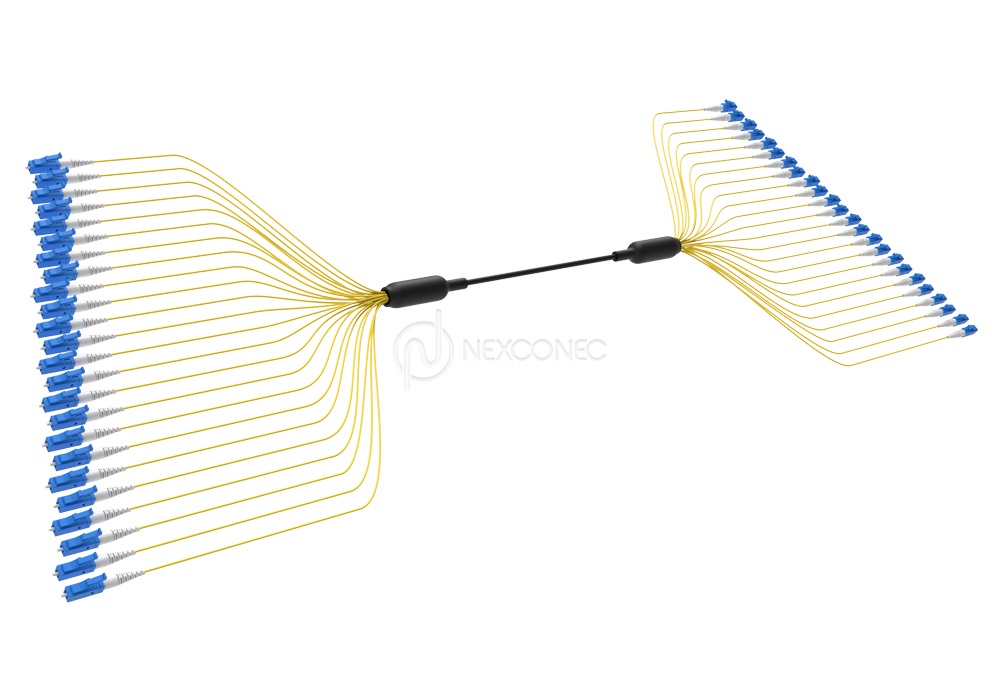

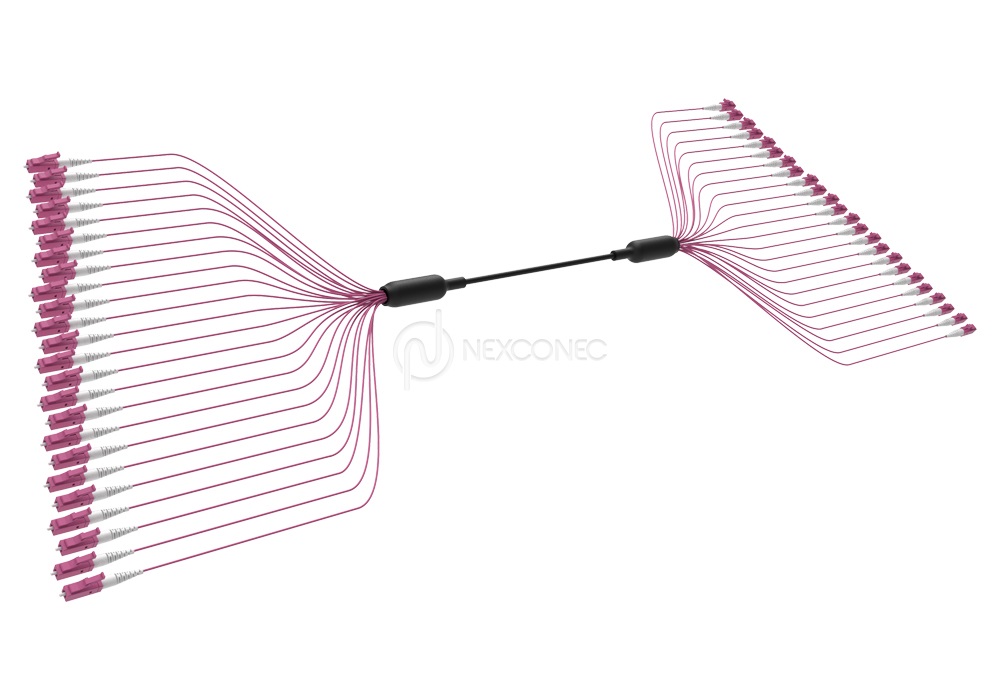

NEXCONEC® Indoor, Indoor/Outdoor Preterm offers quick and cost-effective installation within an indoor environment or intrabuilding premises. The preterm is made of Tight Buffer are best suited for application to load enclosures with 900μm tails. We manufacture preterm with superior fiber/cable performance, high quality connectors which offer improved link loss budgets.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telecordia performance requirements
- Available in standard Single-mode and Multimode fiber options
- Available in LC, SC, FC, ST in both UPC/APC and other connector types
- Available with our standard pulling system
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Option available of Outdoor rated construction
FEATURES
- Conform to IEC, EIA-TIA, and Telecordia performance requirements
- Available in standard Single-mode and Multimode fiber options
- Available in LC, SC, FC, ST in both UPC/APC and other connector types
- Available with our standard pulling system
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Option available of Outdoor rated construction
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Internal horizontal and backbone cabling
- 900μm tails ideal for installation inside panels or wall boxes
SINGLE FERRULE CONNECTOR SPECIFICATIONS
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |

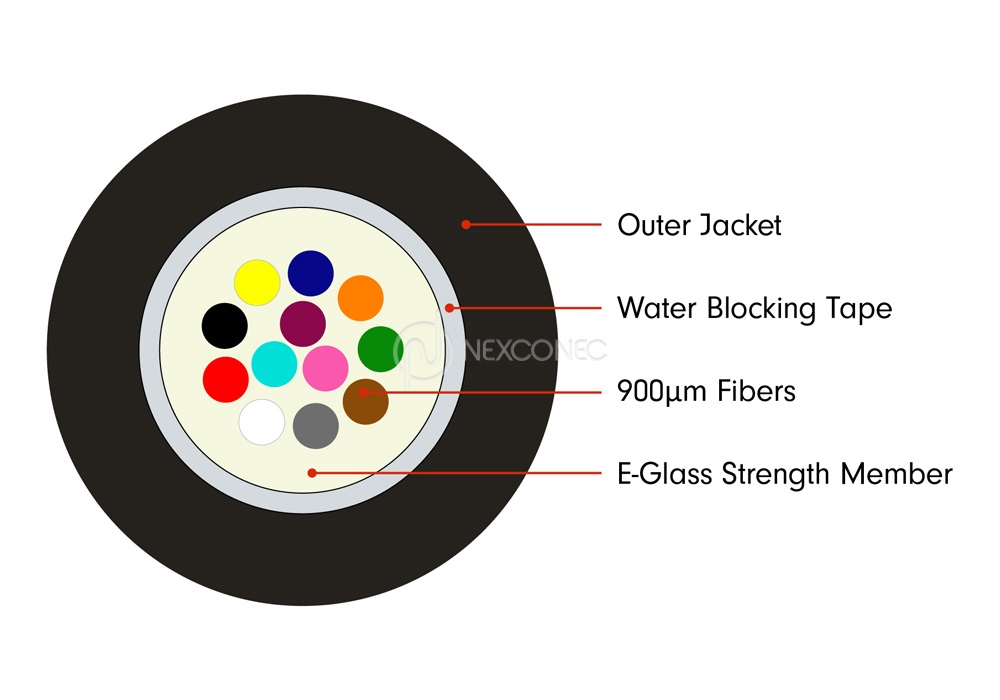

CABLE CHARACTERISTICS
| Parameters | Unit | Value | ||||
|---|---|---|---|---|---|---|
| Fiber Count | 4F | 6F | 8F | 12F | 24F | |
| Number of Fibers per Tube | 12 | 12 | 12 | 12 | 24 | |
| Number of Loose Tubes | 1 | |||||
| Outer Diameter (±0.2) | mm | 4.8 | 5.2 | 6.2 | 6.8 | 8.4 |
| Tail Diameter | mm | 900μm or 2.0mm | ||||
| Tensile Strength (Long Term) | N | 90 | 110 | 160 | 200 | 240 |
| Tensile Strength (Short Term) | N | 270 | 330 | 480 | 600 | 720 |
| Crush Resistance (Long Term) | N/100mm | 300 | ||||
| Crush Resistance (Short Term) | N/100mm | 1000 | ||||
| Min. Bending Radius | mm | 10D (Static) / 20D (Dynamic) | ||||
| Cable Jacket Material | LSZH or PVC | |||||
| Strength Member | Aramid Yarn (for Indoor) E-glass (for Indoor/Outdoor) |
|||||
| Storage Temperature | ˚C | -20 ~ +70 | ||||
| Operating Temperature | ˚C | -20 ~ +70 | ||||
| Installation Temperature | ˚C | -10 ~ +50 | ||||
| Compliance | RoHS, REACH & SvHC | |||||
