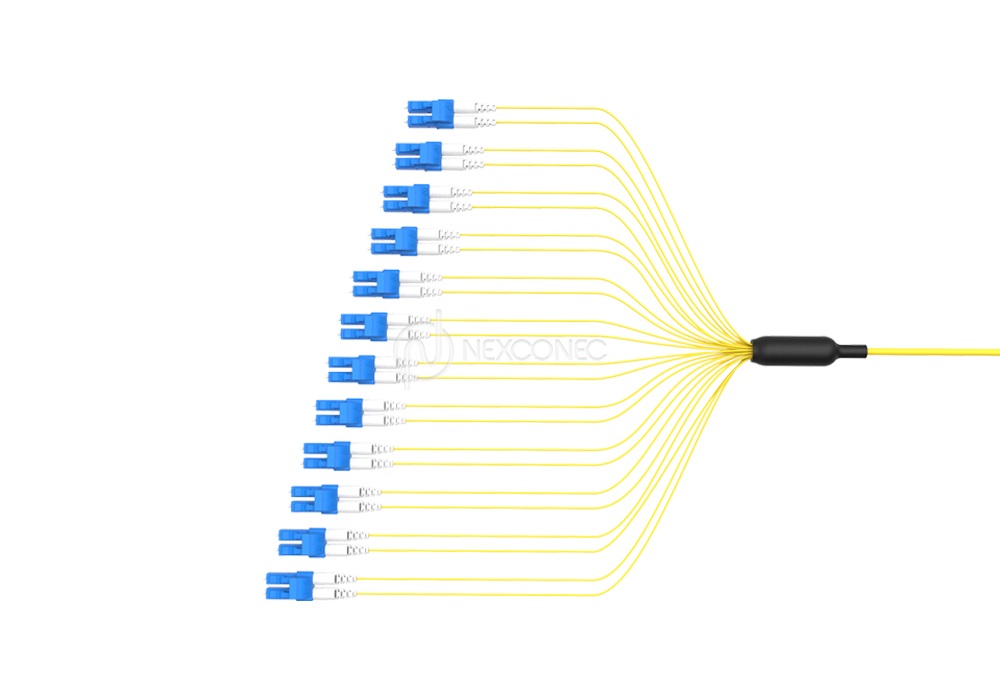

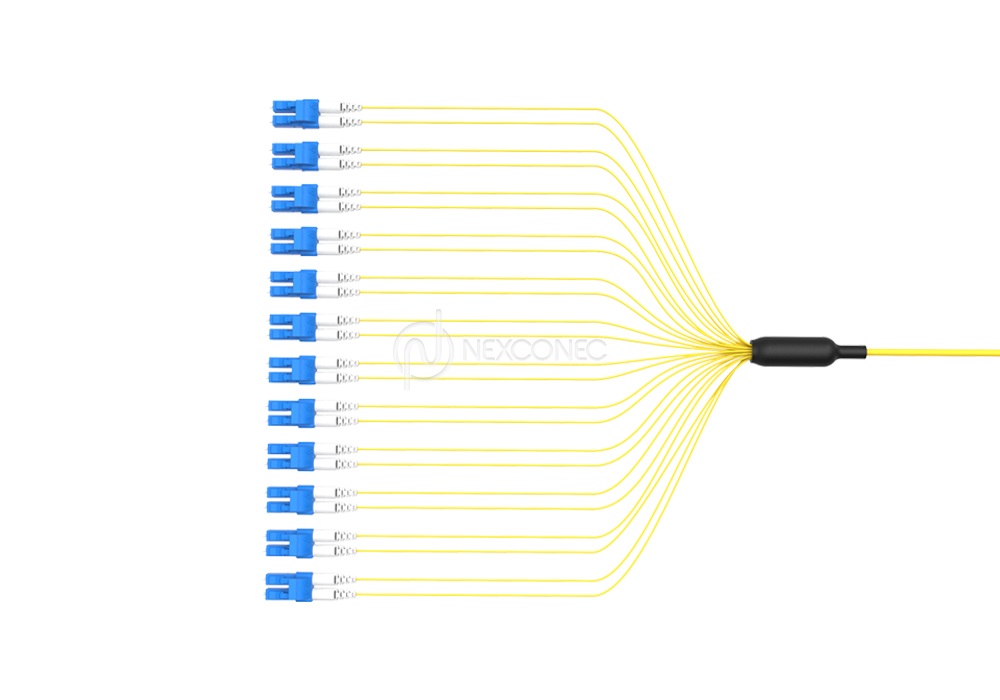

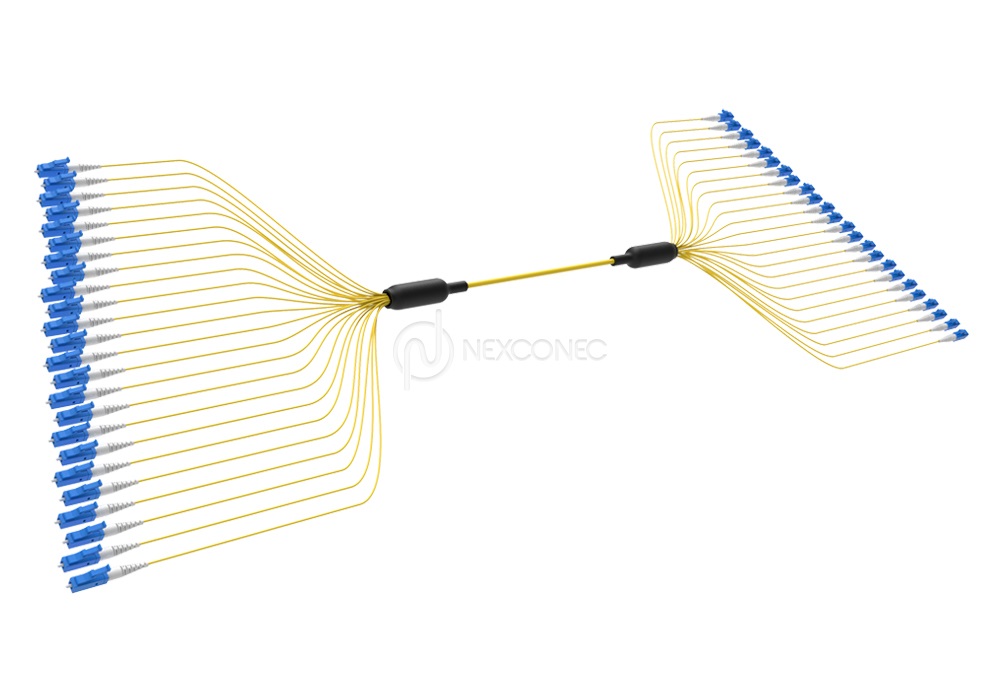

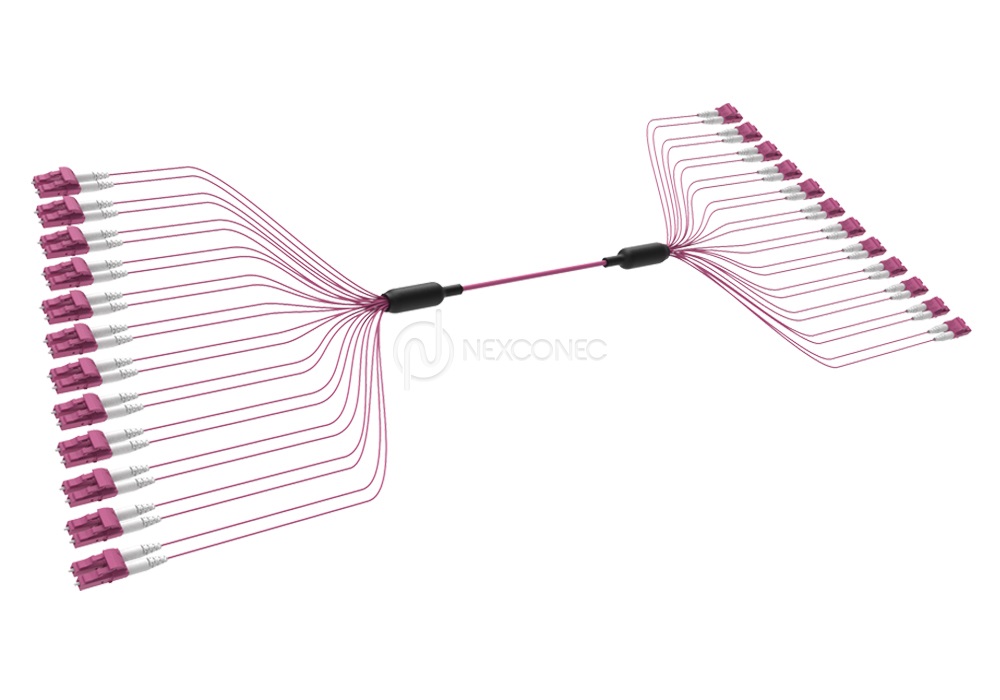

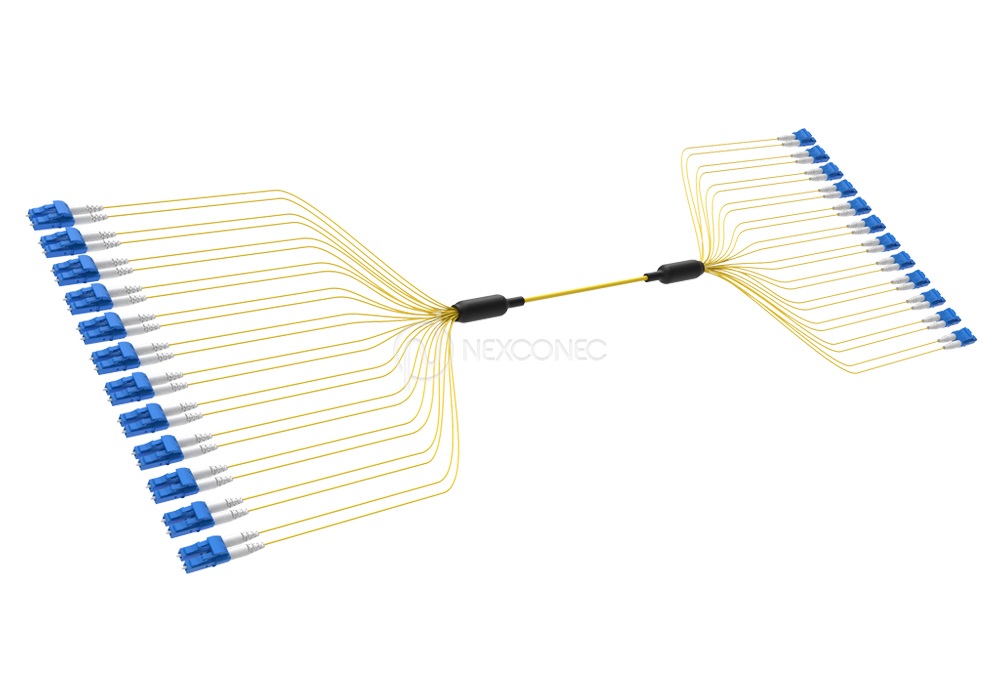

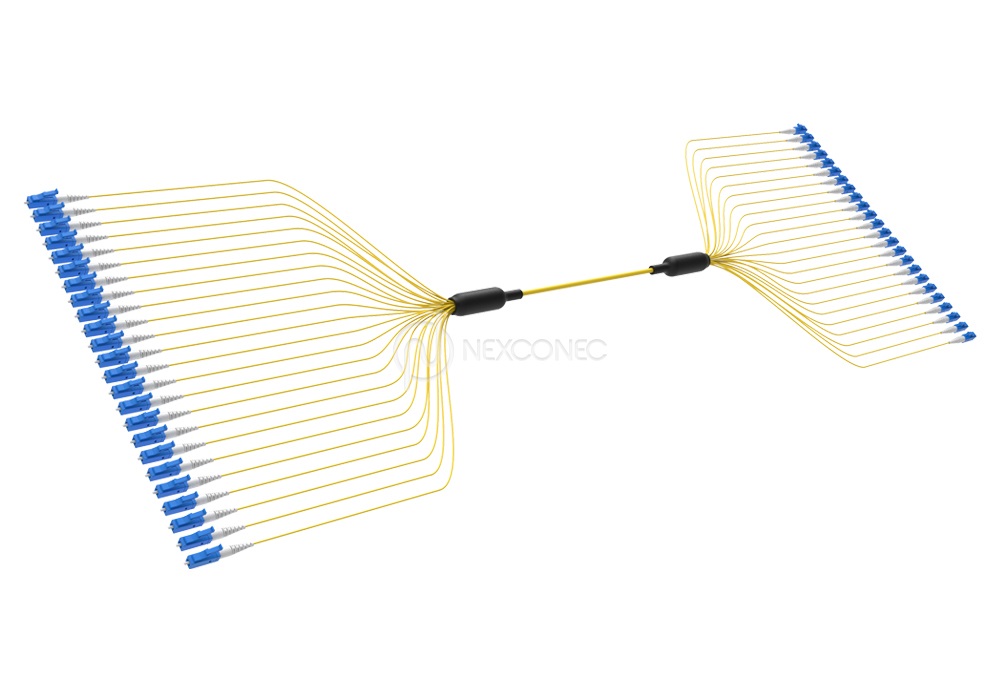

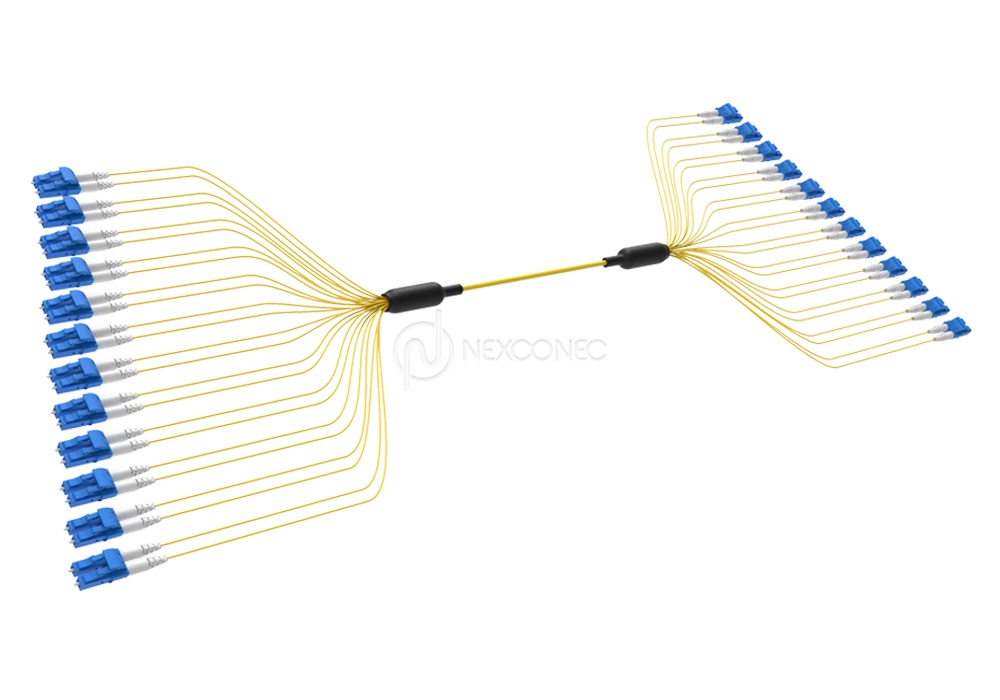

Indoor Preterms Micro Cable (up to 144FO)
NEXCONEC® Indoor Preterms offers quick and cost-effective installation within an indoor environment or intrabuilding premises. We manufacture preterm with superior fiber/cable performance, high quality connectors which offers improved link loss budgets. Micro core cables constructed of up to 144 fibers, 900μm or 2mm simplex cables coated with single or double jackets and aramid strength members. Available in different grade of CPR certified cables.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in standard Single-mode and Multimode fiber options
- Available in LC, SC, FC, ST and other connector types
- Available with our standard pulling system
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Cable jacket available in PVC, LSZH and UL rated material options
- CPR Euro classes certified on demand
FEATURES
- Up to 144 fibers available
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in standard Single-mode and Multimode fiber options
- Available in LC, SC, FC, ST and other connector types
- Available with our standard pulling system
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Cable jacket available in PVC, LSZH and UL rated material options
- 900μm or 2mm ruggedized tails
- CPR Euro classes certified on demand
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports up to 100G applications
SINGLE FERRULE CONNECTOR SPECIFICATIONS
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
CABLE CHARACTERISTICS
| Parameters | Unit | Value | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable Jacket | Single | Double | ||||||
| Fiber Count | 12F | 12F | 24F | 48F | 72F | 96F | 144F | |
| Number of Fibers per Tube | 12 | 12 | 24 | 12 | 12 | 12 | 12 | |
| Number of Micro Tubes | 1 | 1 | 1 | 4 | 6 | 8 | 12 | |
| Outer Diameter | mm | 3.0 | 4.5 | 4.5 | 9.6 | 11.2 | 13.3 | 17.5 |
| Tail Diameter | mm | 900μm or 2.0mm | ||||||
| Tensile Strength (Long Term) | N | 80 | 150 | 150 | 200 | 300 | 300 | 300 |
| Tensile Strength (Short Term) | N | 200 | 400 | 400 | 600 | 1000 | 1000 | 1000 |
| Crush Resistance (Long Term) | N/100mm | 150 | 300 | 300 | 300 | 300 | 300 | 300 |
| Crush Resistance (Short Term) | N/100mm | 500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Min. Bending Radius | mm | 10D (Static) / 20D (Dynamic) | ||||||
| Cable Jacket Material | LSZH or PVC | |||||||
| Strength Member | Kevlar, Aramid Yarn | |||||||
| Storage Temperature | ˚C | -20 ~ +70 | ||||||
| Operating Temperature | ˚C | -20 ~ +70 | ||||||
| Installation Temperature | ˚C | -10 ~ +50 | ||||||
| Compliance | RoHS, REACH & SvHC | |||||||
| CPR Reaction to Fire Classification | Certified | Cca-s1a,d0,a1 | B2ca-s1a,d0,a1 | Cca-s1a,d0,a1 | B2ca-s1a,d0,a1 | |||
