Inline Enclosure - OC-DO03B/C

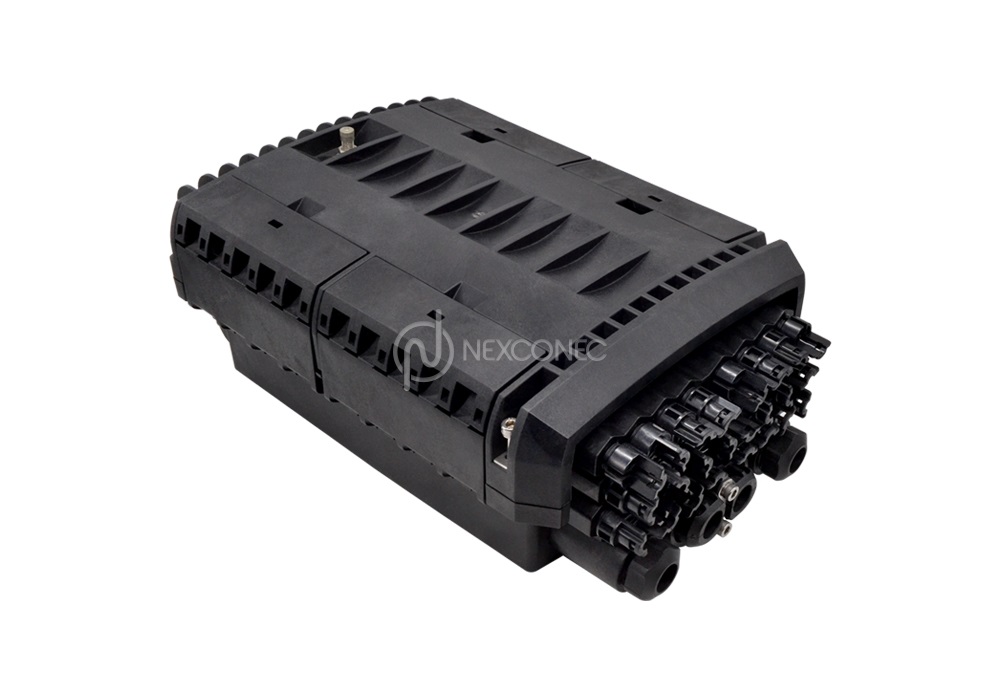

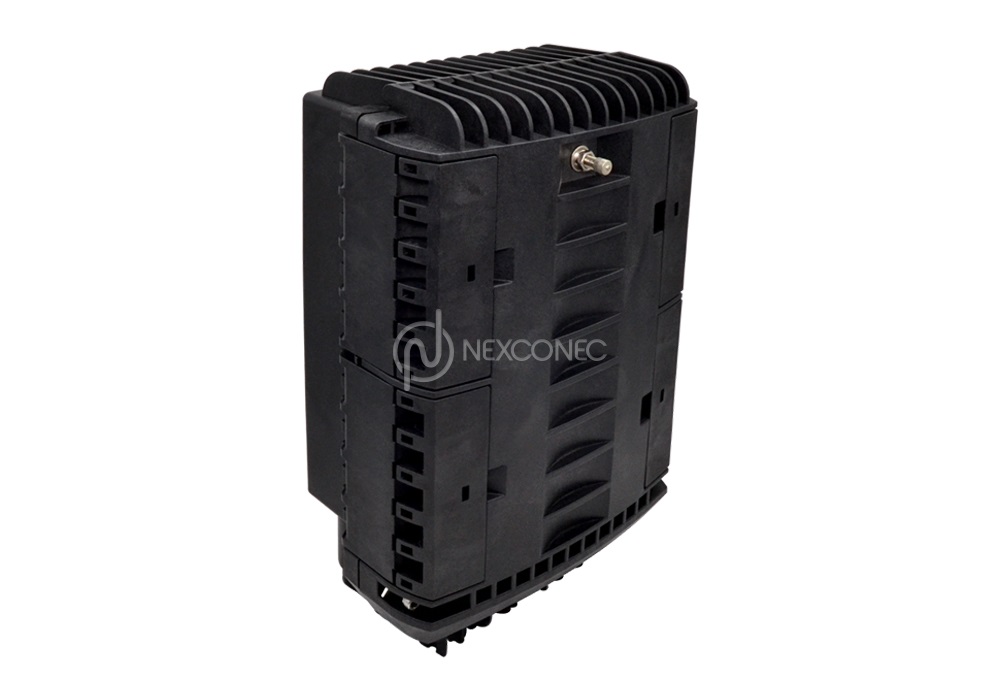

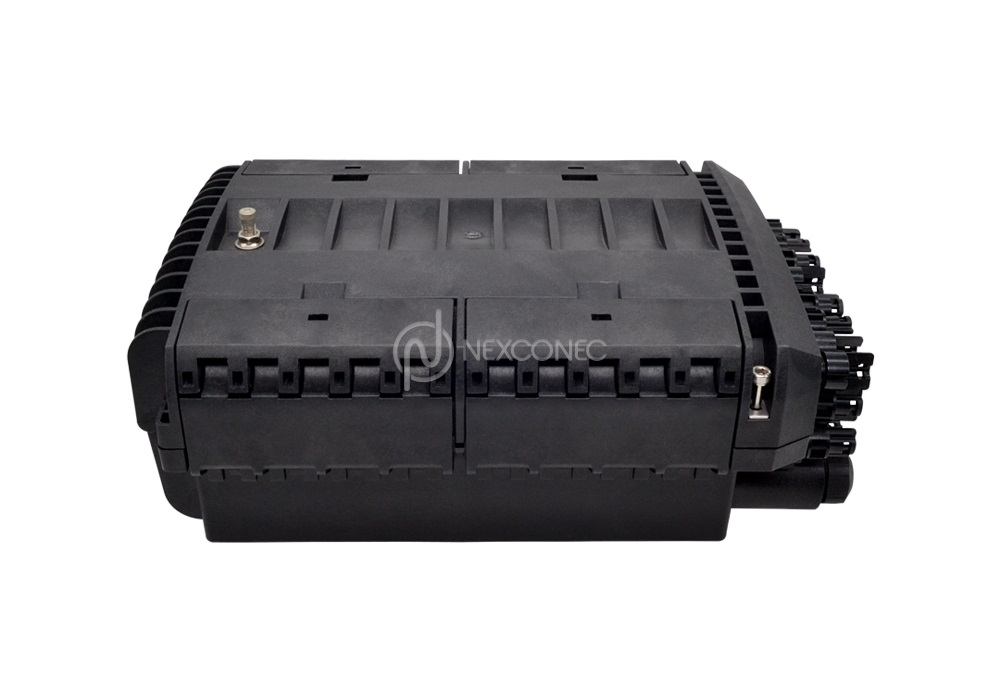

OC-DO03B/C is used as a termination point for the feeder cable to connect with drop cable in FTTH network system. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as multi-purposes applications. It could be installed in aerial, wall, pole and pipe line mounted mode.
FEATURES AND APPLICATIONS

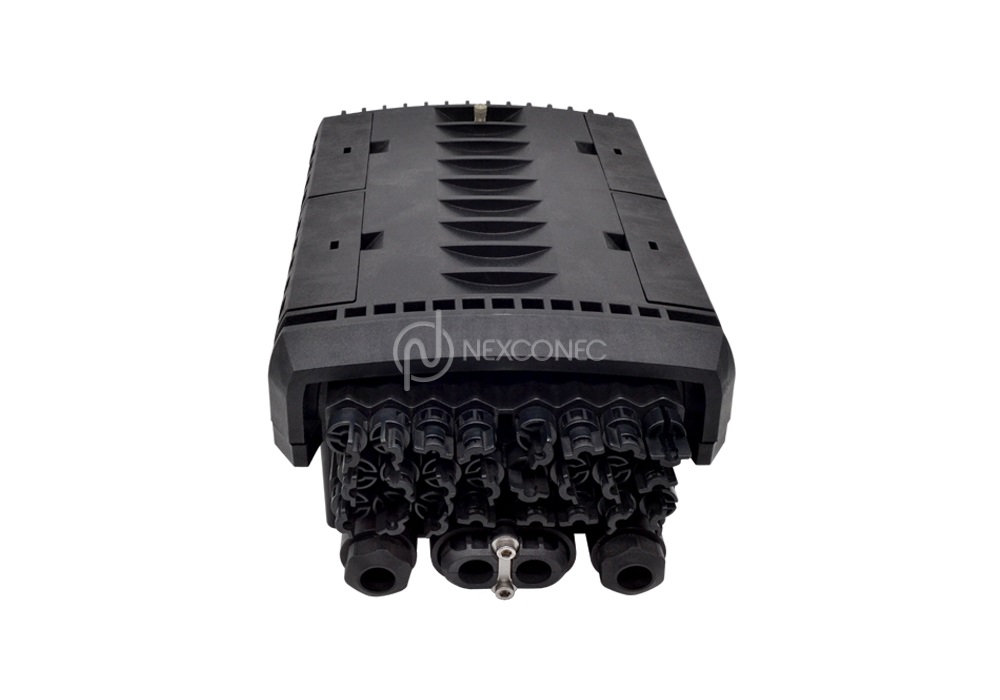

- Cable ports: 1 port for uncut cable Φ 10-17.5 mm, 2 pcs branch ports for Φ 10-17.5 mm cable, 24 pcs drop cable ports (applicable for 2*3mm soft cable or Φ3-8mm round cable)

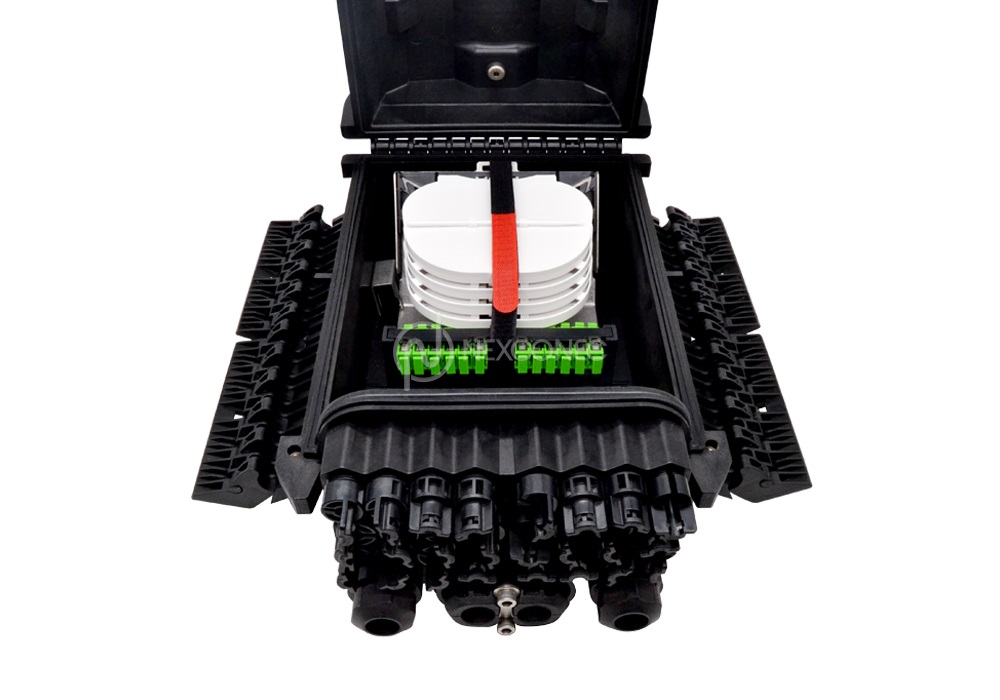

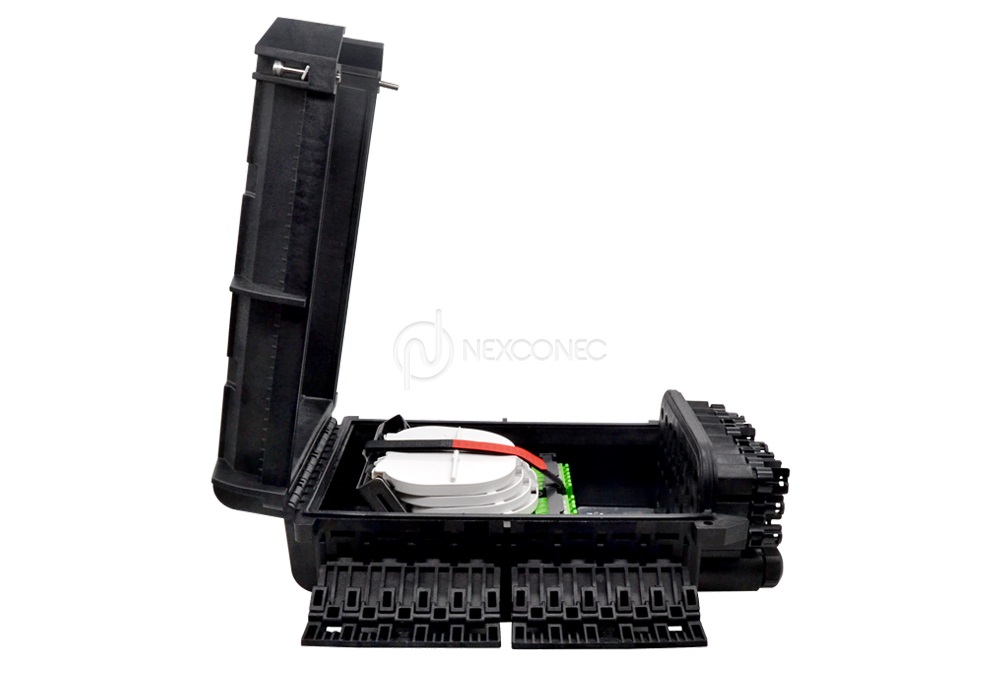

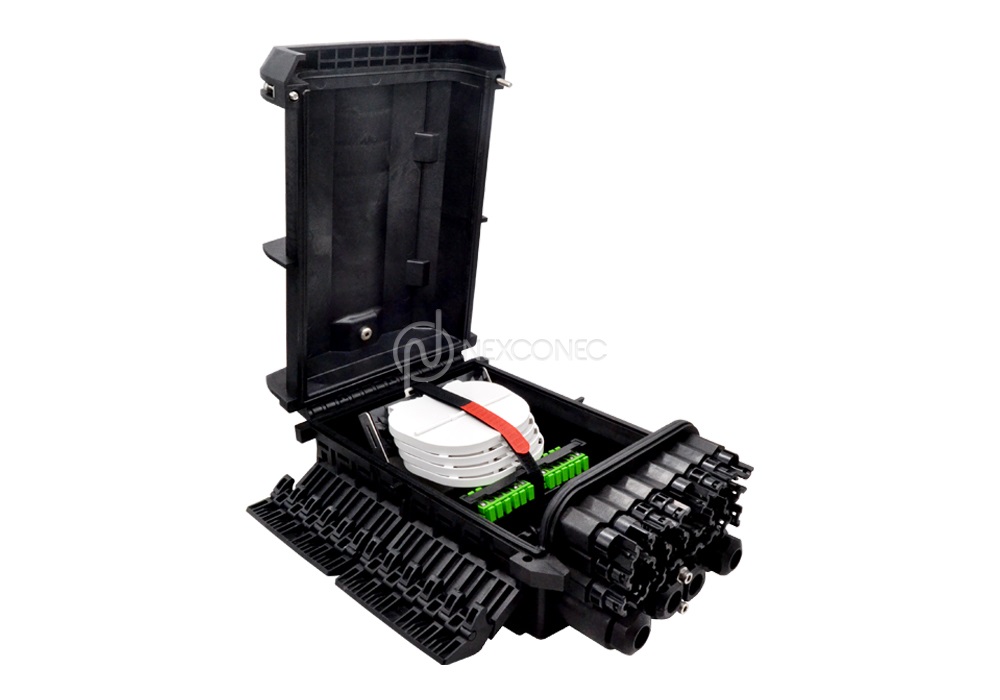

- All trays are hinged at one side, which is convenient for the operation of each fiber trays.

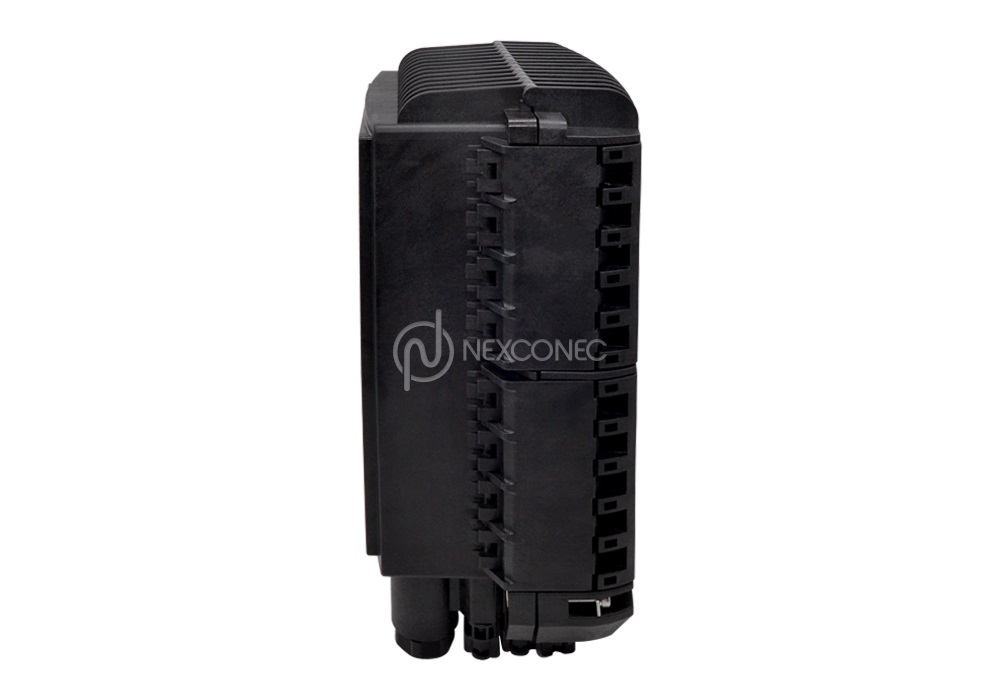

- No screw flip over structure, support plug and play and fast open service for new subscribers.

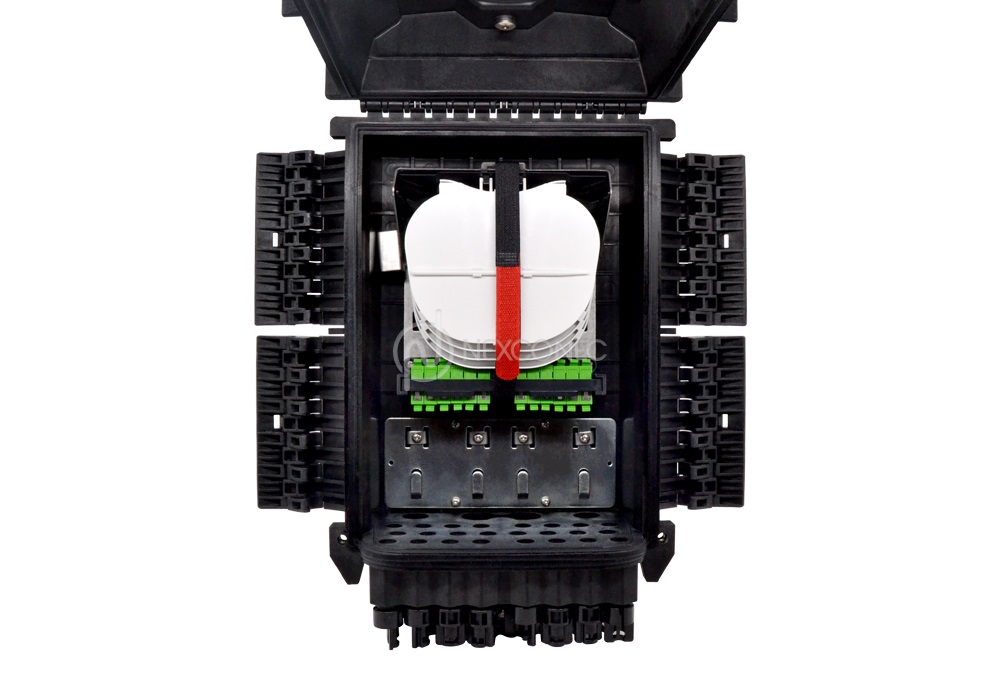

- Capacity: max splicing capacity is 144f, support 6 pcs 24f trays and 4 pcs 1:8 compact PLC splitter can be installed.
- Production grade: Mechanical sealing mode, IP68.

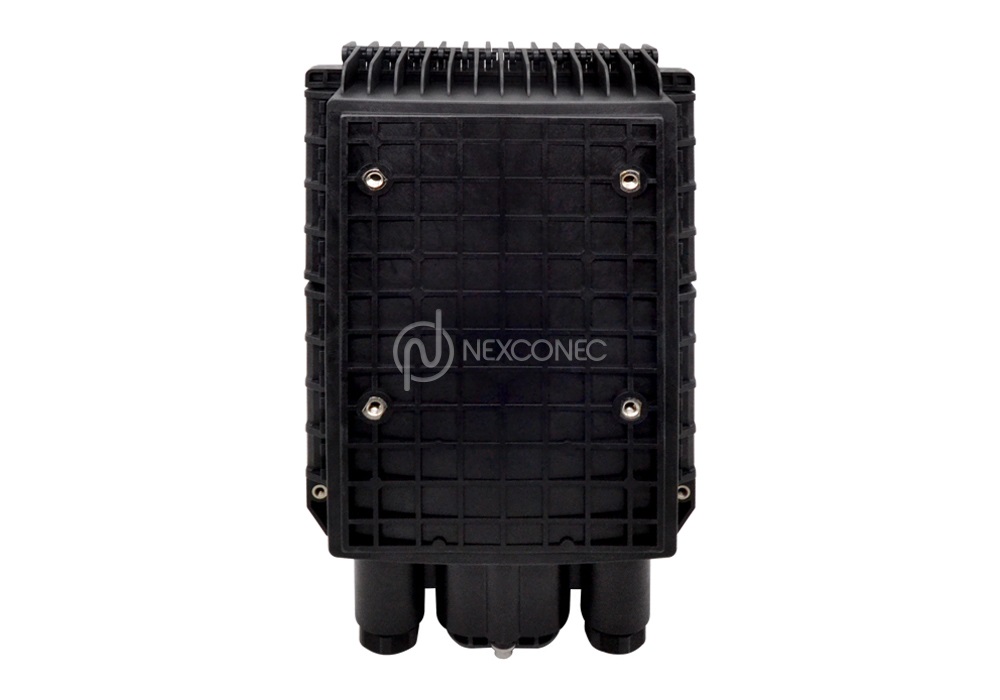

- Installation mode: Suitable for Aerial, Pipe line, Manhole, Underground mounting.
| Parameters | Value |
|---|---|
| Style | In-line/ Horizontal |
| Dimensions (LxWxH) | 380 x 245 x 155 mm |
| Weight (Kg) | 4.5 - 5.0 Kg |
| Material | PP+GF |
| Cable Ports | 1 uncut port(Φ 8-17.5 mm); 2 branch ports(Φ 8-17.5 mm) 24 drop cable ports(2*3mm soft cable or Φ3-8mm round cable) |
| Fiber Splice Capacity | 144 |
| Tray Capacity | 24 |
| Tray Count | 6 |
| Application | Wall /Pole Mounting |
| Sealing Structure | Mechanical Seal |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~ +65℃ |
| Impact Strength | 16 N.m / IK09 |
SPLICE TRAY SPECIFICATIONS
| Type | 38# |
|---|---|
| Tray Capacity | 24F |
| Dimensions | 112 x 68 x 8 mm |
| Splitter | None |
| Single Core | Yes |
| Ribbon Core | No |
| Part Number | Product Description |
|---|---|
| OC-DO03B | Fiber Optic Inline Enclosure up to 96 Splices Incl. 24 Ports SC SX Adapter Ports |
| OC-DO03C | Fiber Optic Inline Enclosure up to 144 Splices |
