Inline Enclosure - OC-IN01

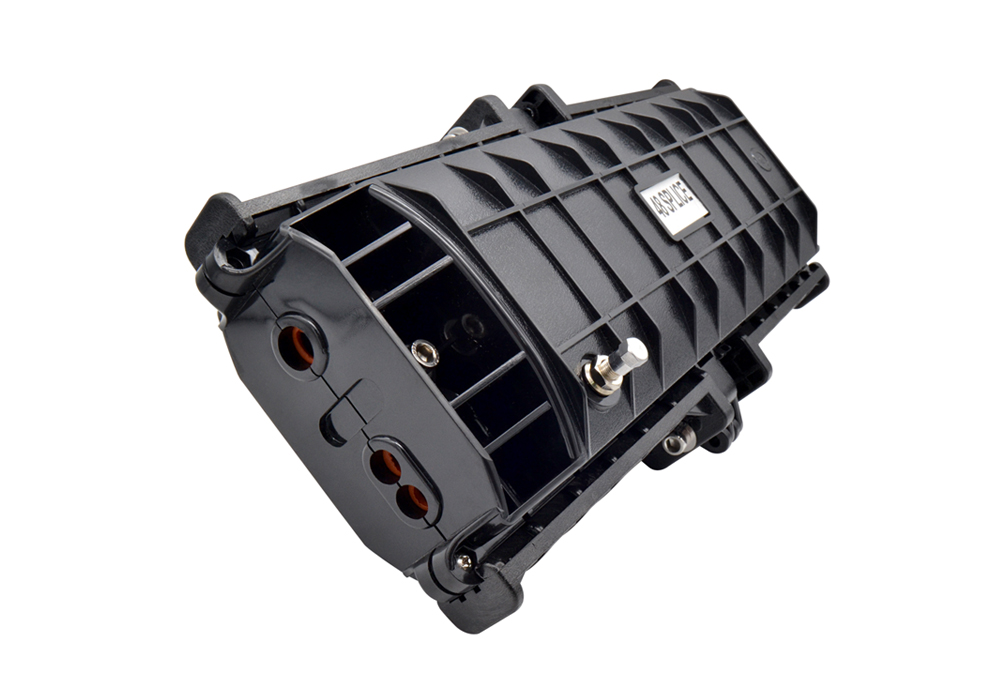

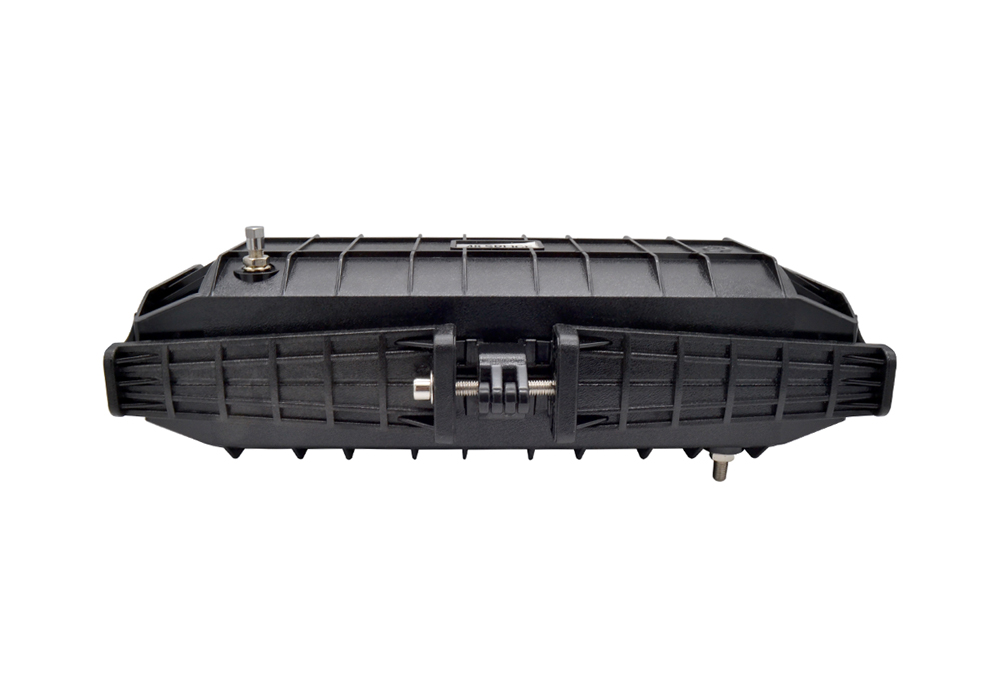

NEXCONEC inline enclosure is suitable for protecting fiber cable splices in straight through applications. The product is built of strong injection molded outer body makes it impenetrable to the elements with IP68 (waterproof and dustproof).
It can protect splices and ensure reliability with usage in ambient temperatures from -40°C to +65 °C. It can be placed in aerial, underground, or duct mounted locations.
FEATURES AND APPLICATIONS
- Smaller size
- Higher density
- Adequate space for fibers storage
- Easy operation
- Light weight
| Parameters | Value |
|---|---|
| Dimensions (LxWxH) | 410 x 200 x 120 mm |
| Weight (Kg) | 1.9 - 2.1 Kg |
| Fiber Counts | 24F ~ 96F |
| Number of Inlet/Outlet Ports | 6 ports (3 each side) |
| Max. Capacity (Fibers) | Bunchy: 6~96 (fibers) Ribbon: max. 144 (fibers) |
| Suitable Fiber Cable OD | Φ8 - Φ16 mm |
| Sealing Structure | Mechanical |
| Sealing Rating | IP68 |
| Operating Temperature | -40°C ~ +65 °C |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-IN01-24 | FO Inline Enclosure 24FO |
| OC-IN01-48 | FO Inline Enclosure 48FO |
| OC-IN01-72 | FO Inline Enclosure 72FO |
| OC-IN01-96 | FO Inline Enclosure 96FO |
