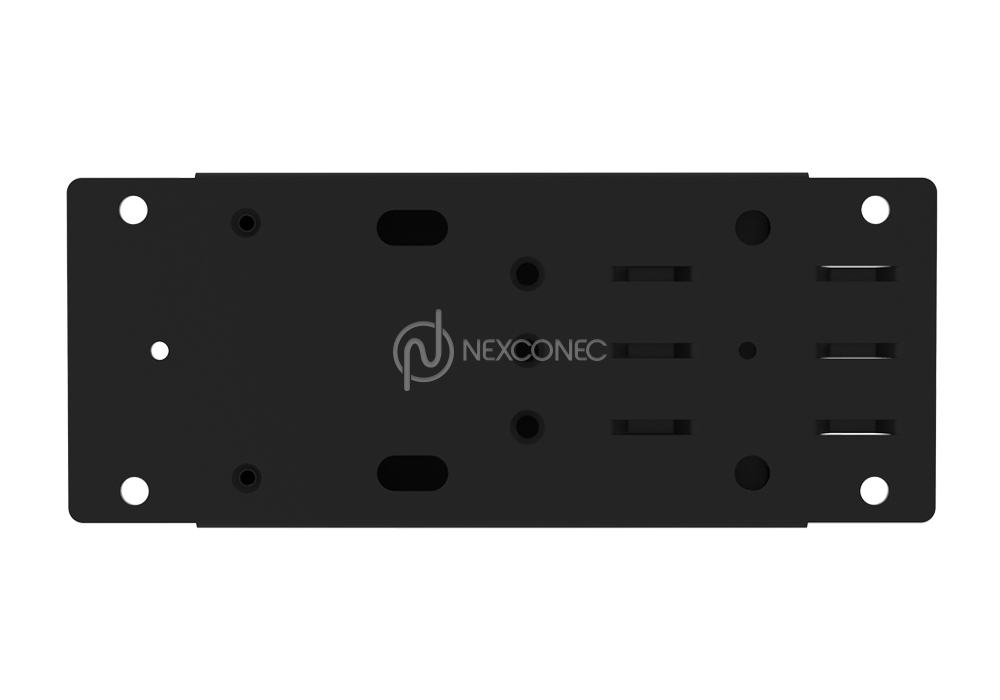

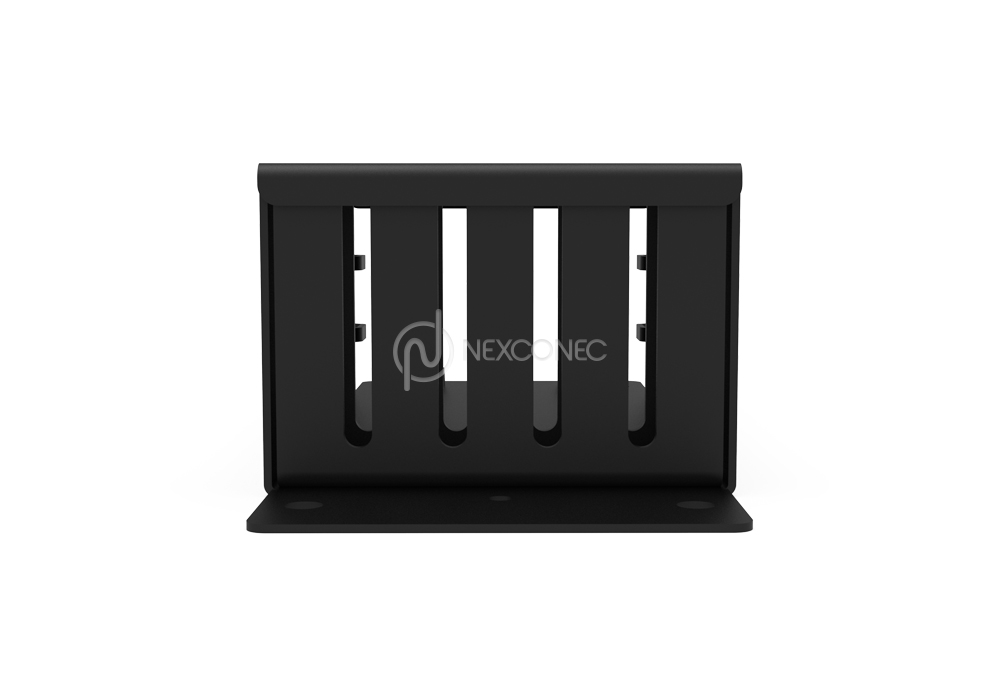

Large Fiber Transition Breakout Unit - TRBR03

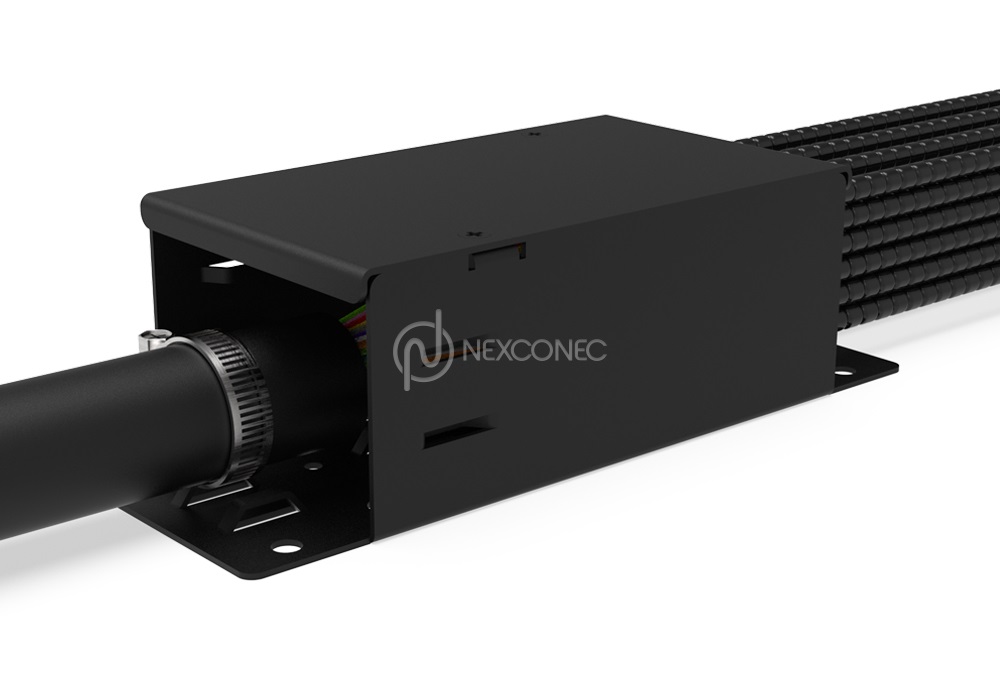

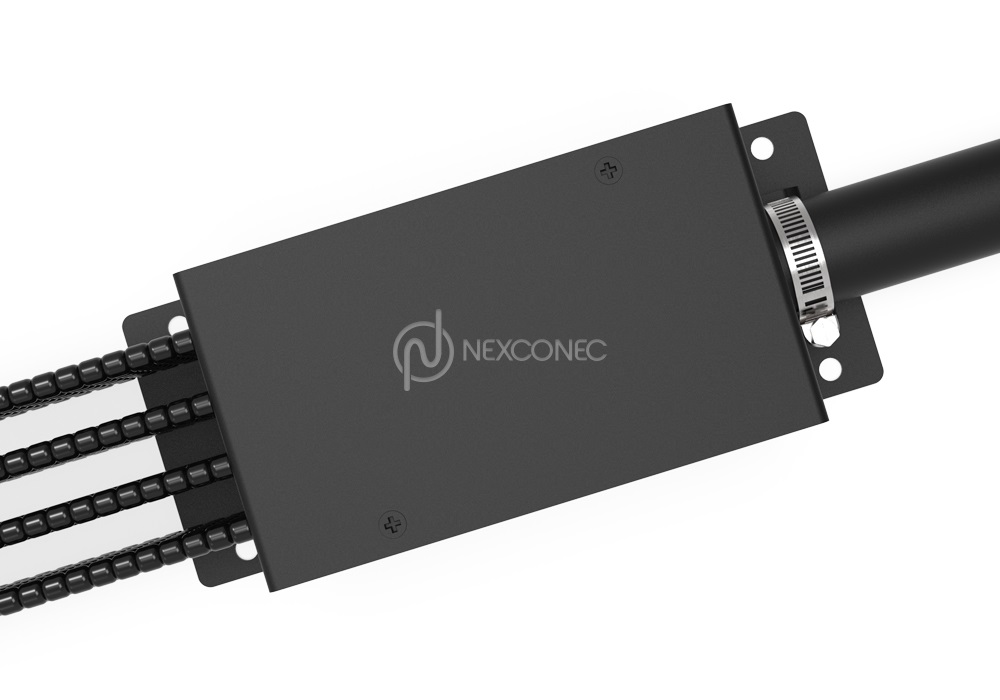

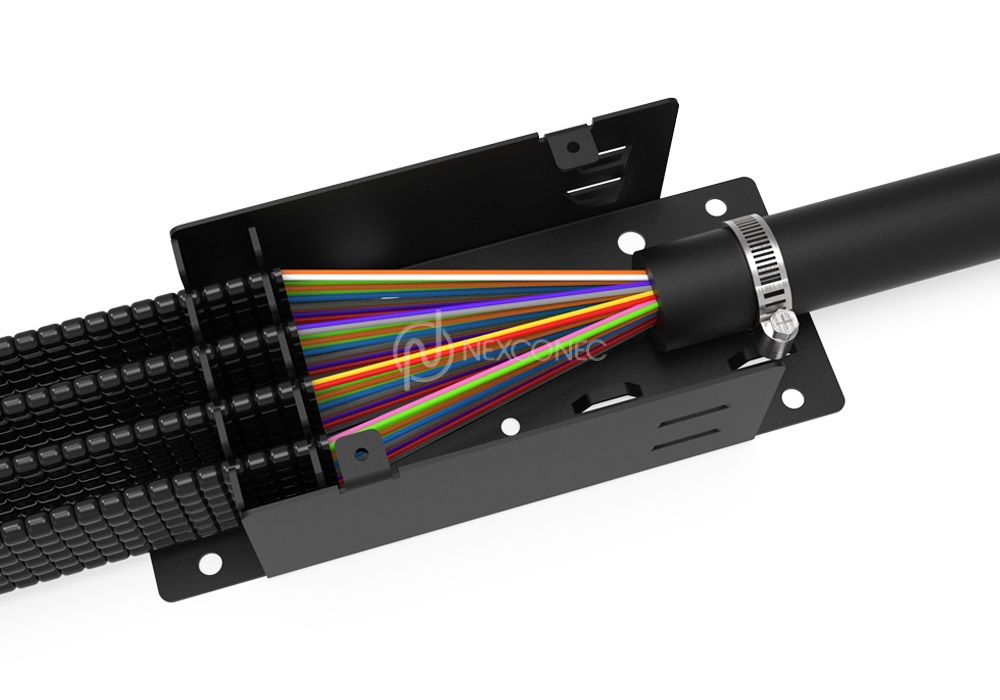

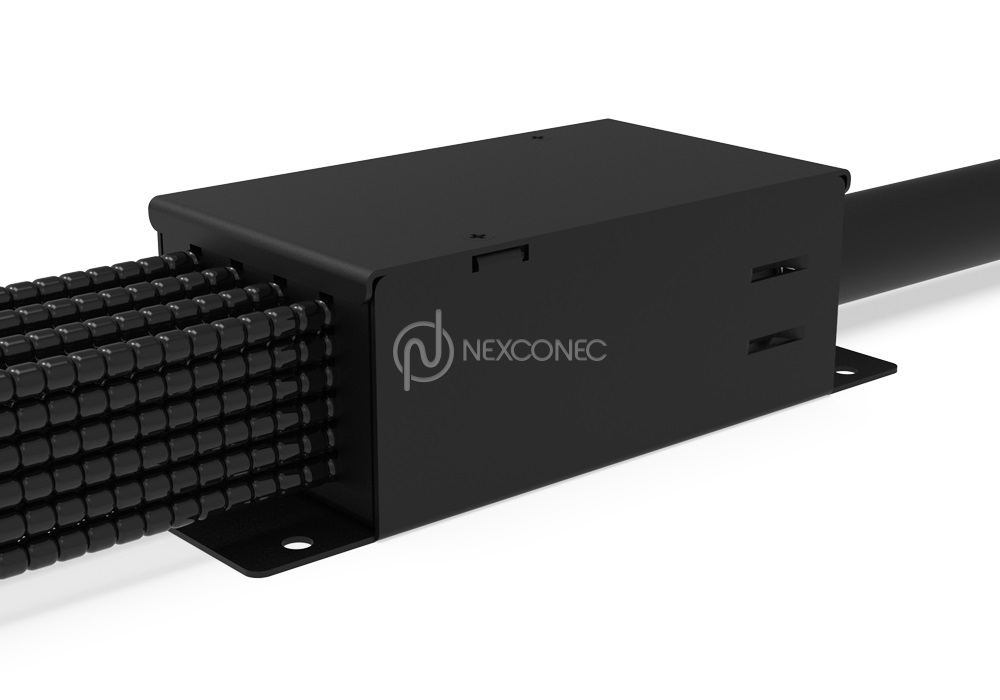

NEXCONEC® Large Fiber Transition Breakout Box solution is designed for enhanced cable management that helps to organize the incoming cable into separate conduits which will connect to the NGX or LGX splice modules or any other splicing unit. The breakout box is designed to support up to 576FO (Up to 24 mini flex tubes of 5mm).
PRODUCT HIGHLIGHTS

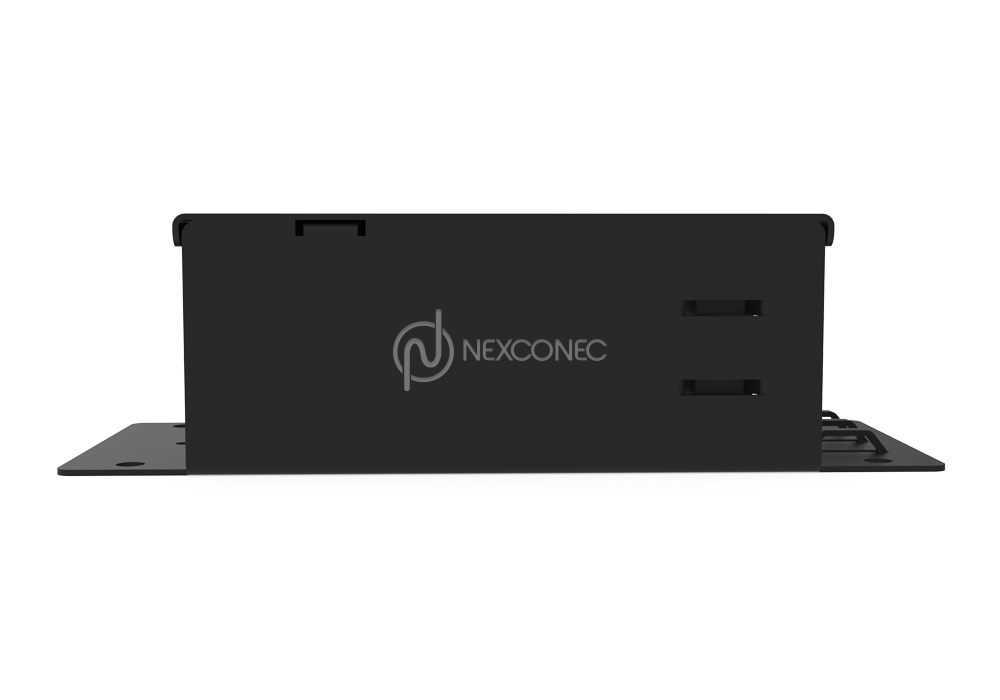

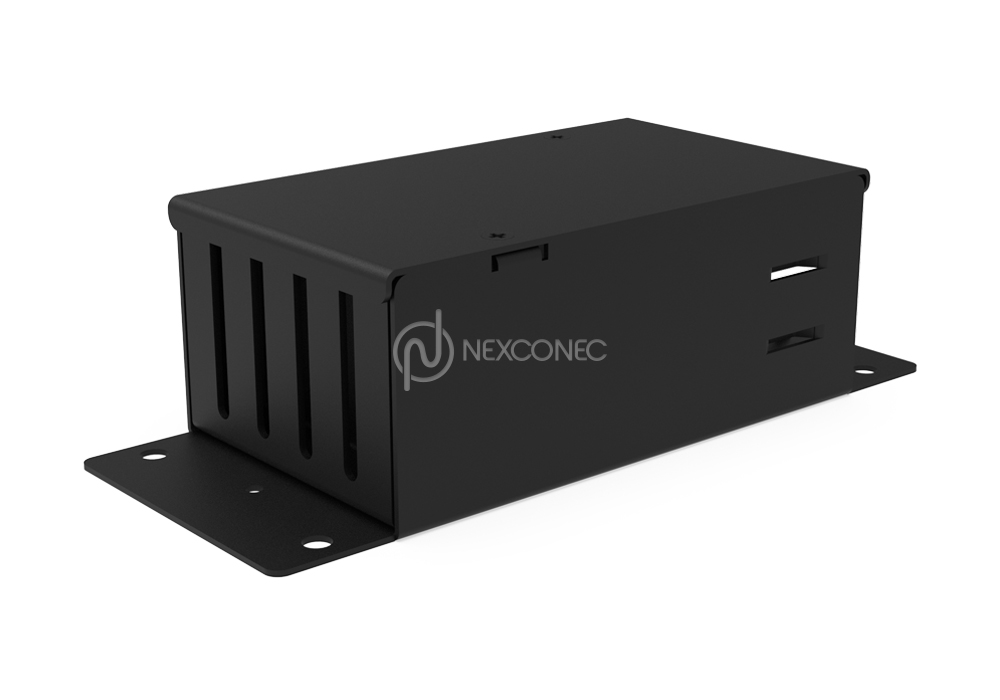

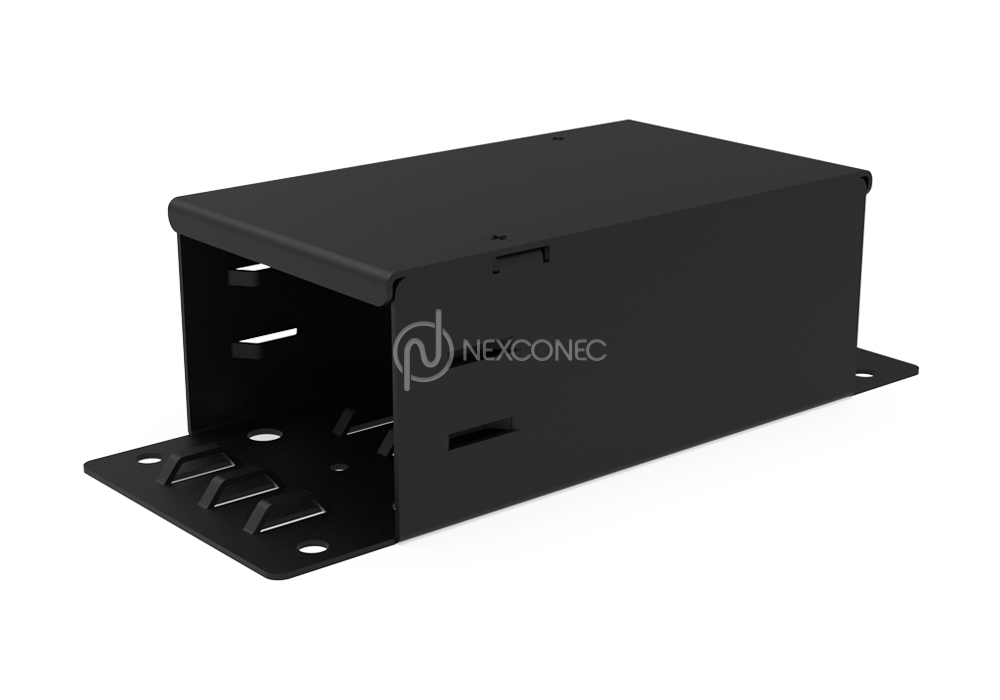

- Robust and reliable metal breakout box enclosure with removable cover
- Accepts up to 4 loose tube cables of 144FO
- Up to 24 Mini Flex Tubes of 5mm
- 2x Strength member retainer included
- Quick and easy installation
FEATURES
- Robust and reliable metal breakout box enclosure with removable cover
- Accepts up to 4 loose tube cables of 144FO
- Up to 24 Mini Flex Tubes of 5mm
- 2x Strength member retainer included
- Quick and easy installation
APPLICATIONS

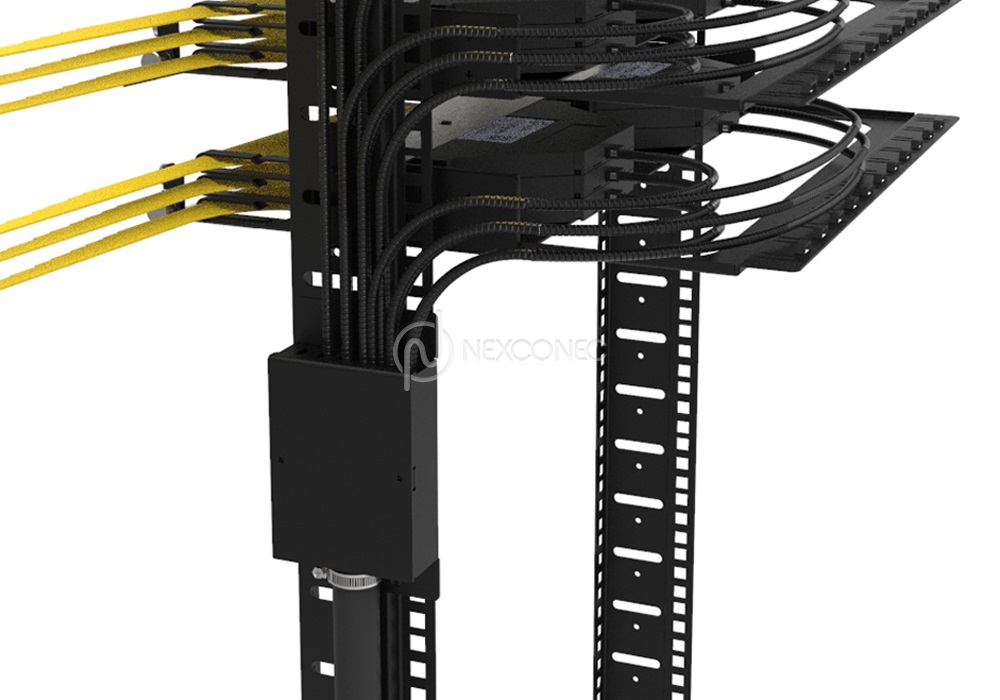

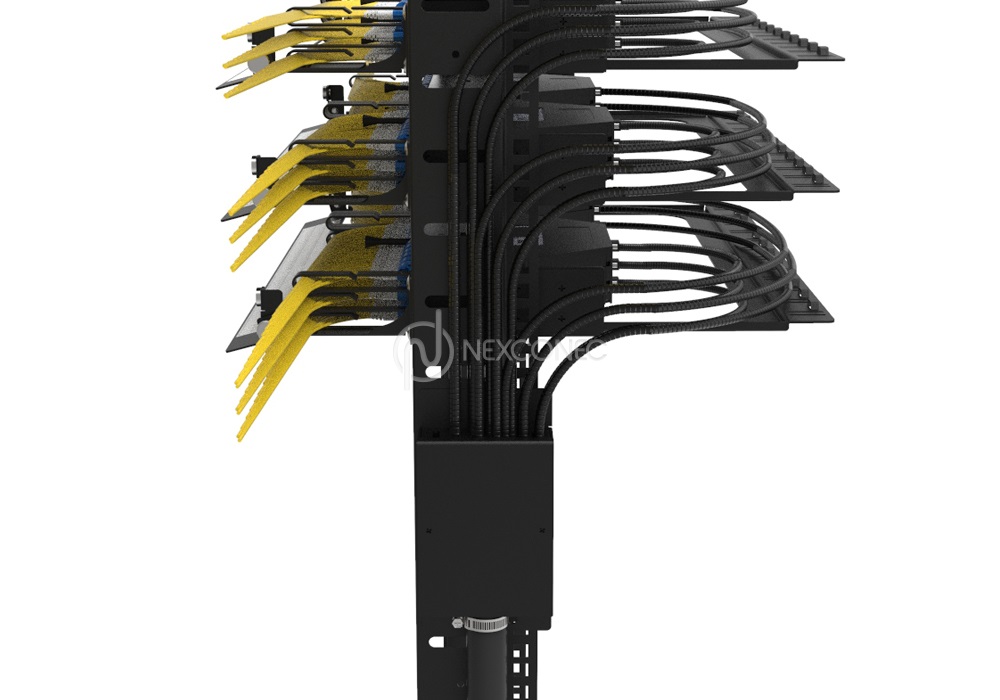

- Enterprise Network & Datacenter
- Indoor applications
| Parameters | Value |
|---|---|
| Material | Cold Rolled Steel |
| Housing Color | Black 9004 |
| Application | Indoor IP20 |
| Dimensions (W x D x H) | 70 x 170 x 49.20 mm |
| Net Weight | 0.4 Kg |
| Number of Tubes | Up to 24 with 5mm Mini Flex Tubes |
| Fiber Capacity | Up to 576FO with 24FO per tube |
| Fixation | Zero U, with Screws |
| Accessories | 2x Cable Strength Member Retainer, 2x Metal Cable Ties |
| Part Number | Product Description |
|---|---|
| TRBR03 | Large Fiber Transition Breakout Unit (Up to 24x tubes of 5mm) |
