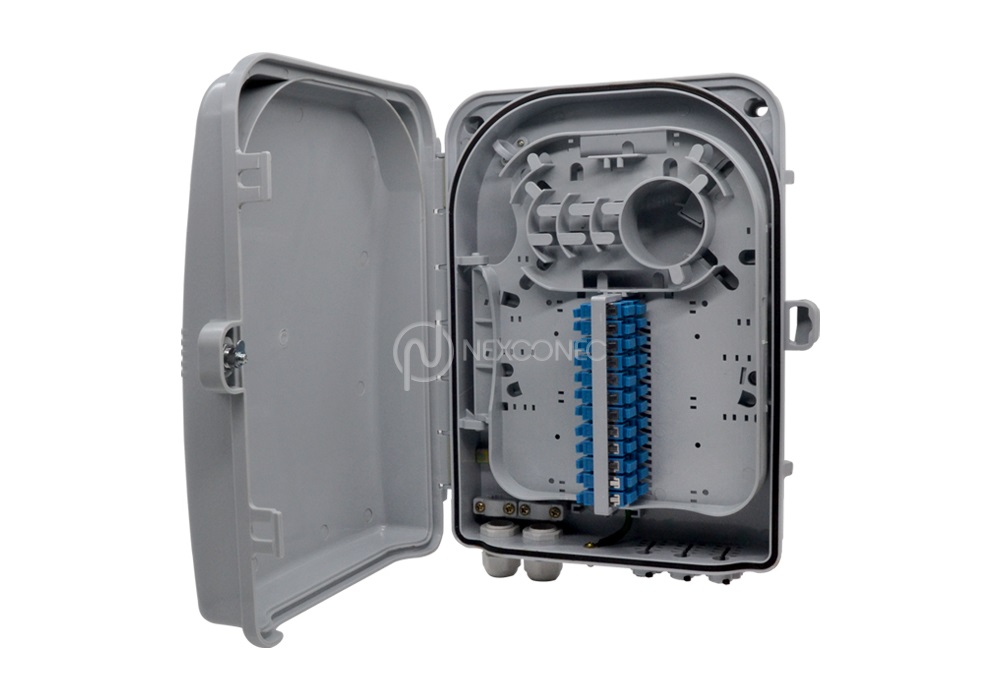

Lockable Indoor/Outdoor Wall Box 24 Ports SC - WP24U1

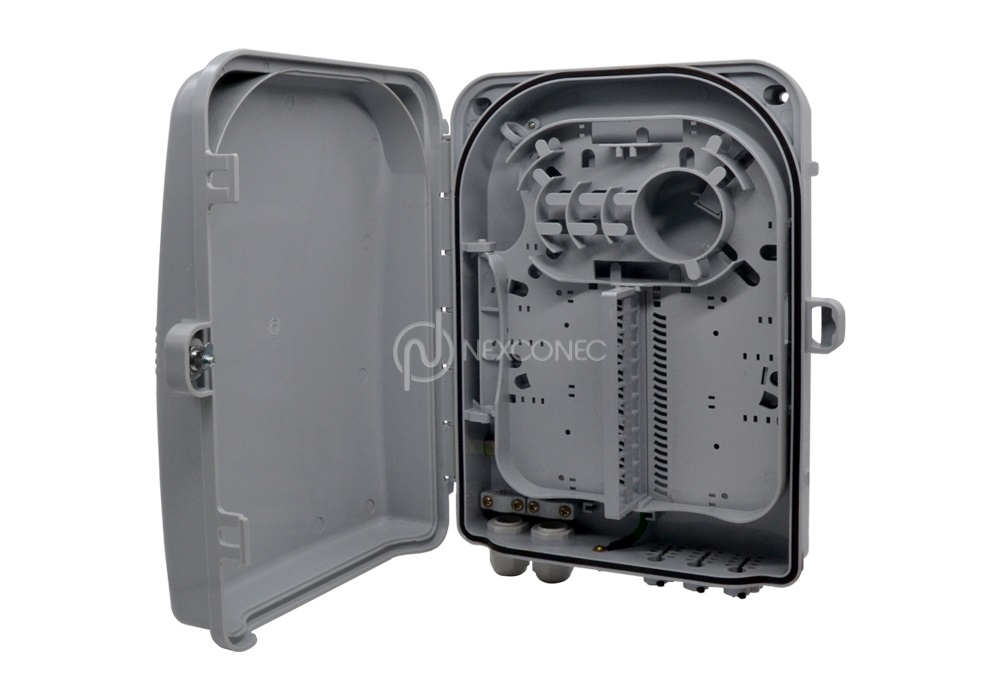

NEXCONEC® Lockable IP65 & UV Resistant distribution box is supplied unloaded as standard and offers the ability to terminate 24 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications.

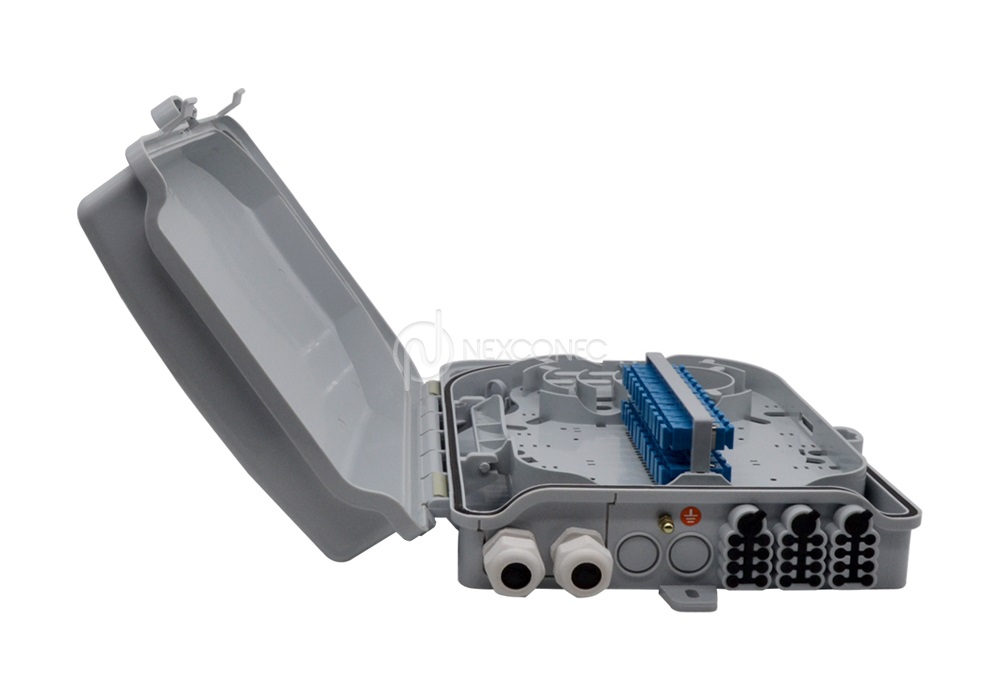

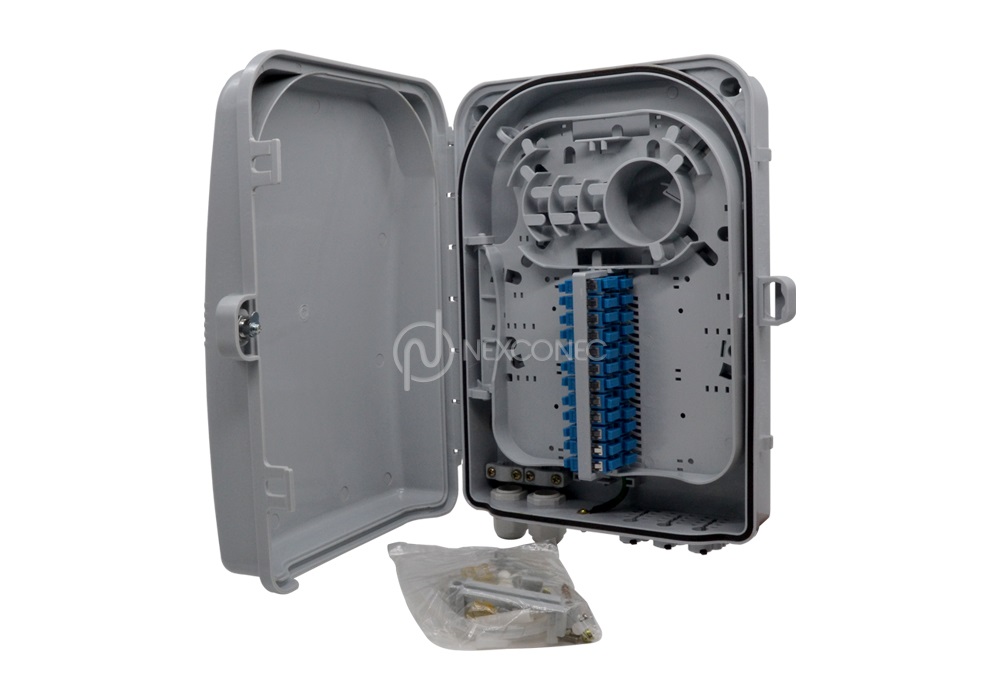

An internal detachable tray provides a neat and tidy solution for housing 24 SC simplex connections and splices. The box has 24 patch cord exit points and up to 2 cable entry points which maintain the IP65 rating.
FEATURES AND APPLICATIONS
- Up to 24 splice with SC Simplex Adapter

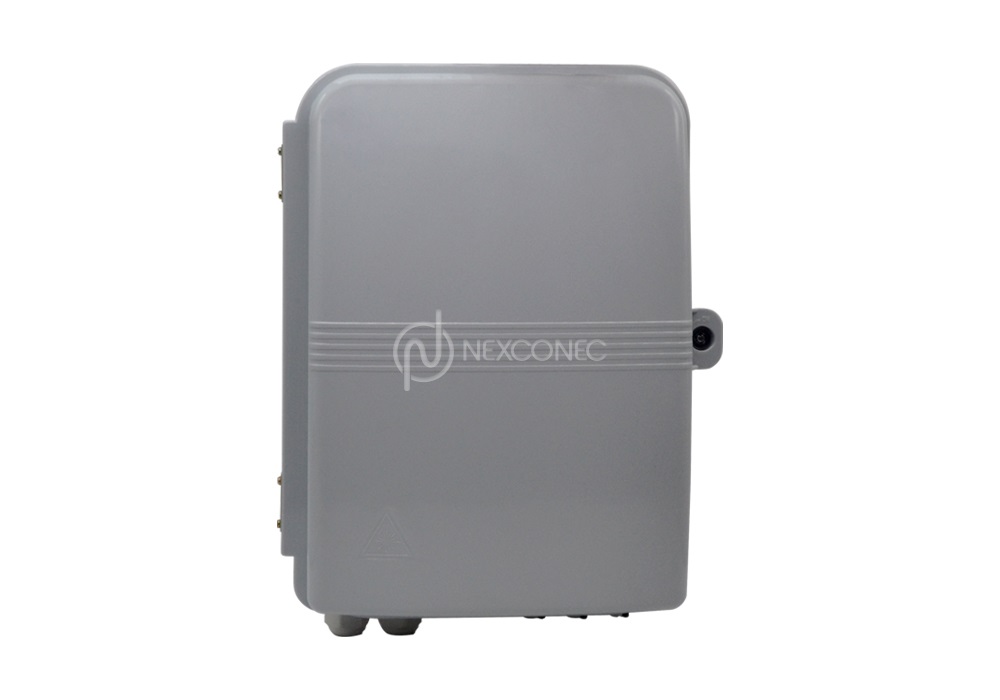

- Lockable Door for security
- IP65 & UV Resistant
- Accepts loose tube, distribution and pre-terminated cables

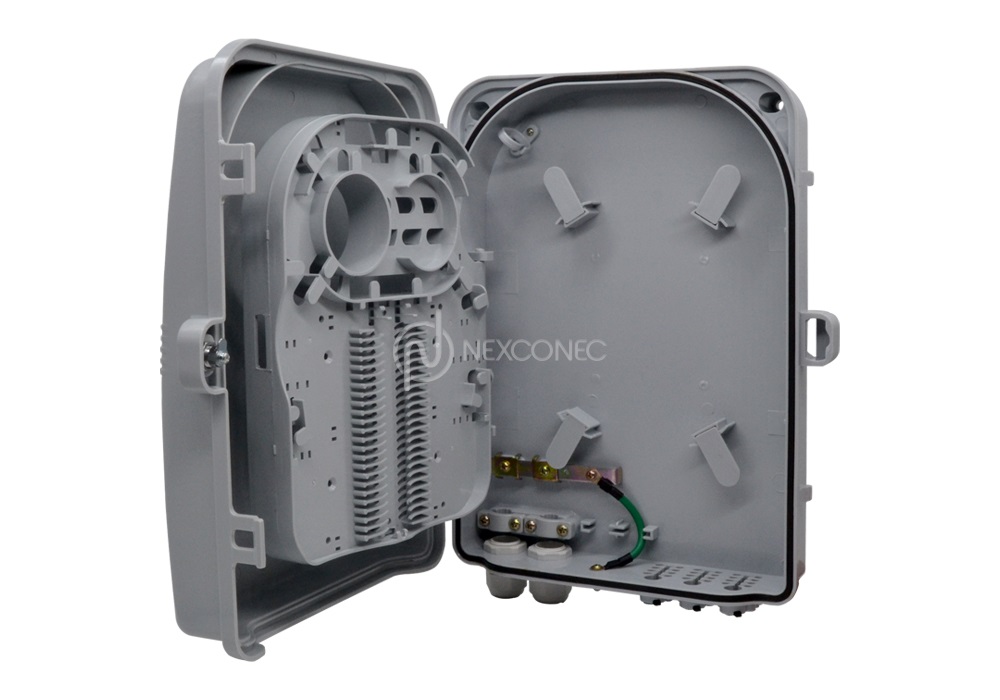

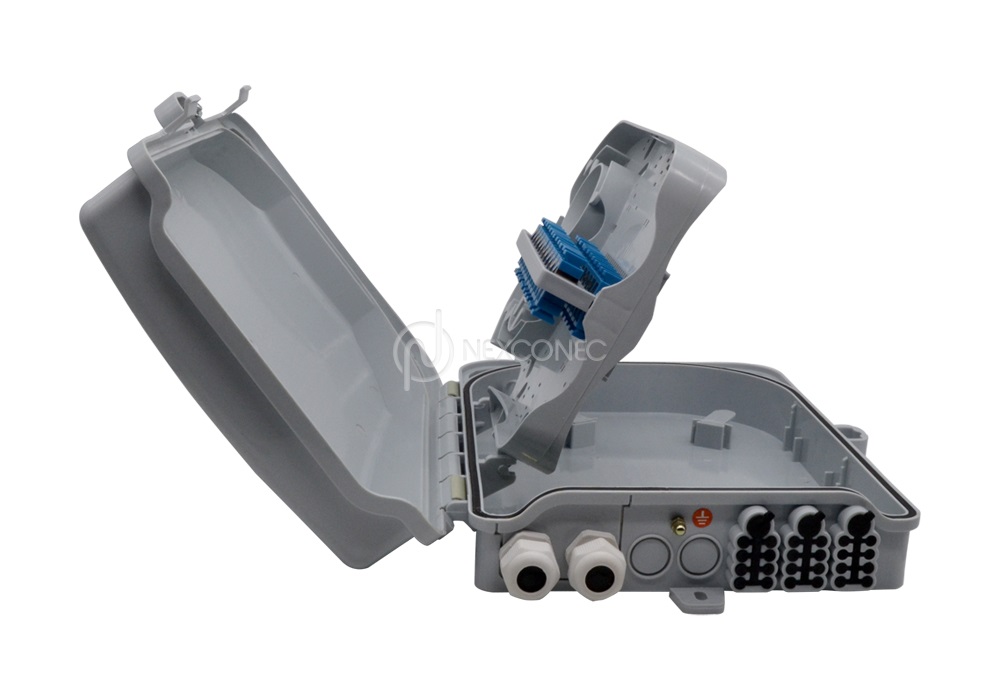

- Removable splice tray for easy installation
- Integrated bend radius protection
- RoHS, REACH & SvHC compliant
- FTTH / FTTx Networks
- Data communication Networks
- Indoor/Outdoor Application
| Parameters | Value |
|---|---|
| Width | 270 mm |
| Height | 340 mm |
| Depth | 110 mm |
| Number of Ports | 24 SC Simplex |

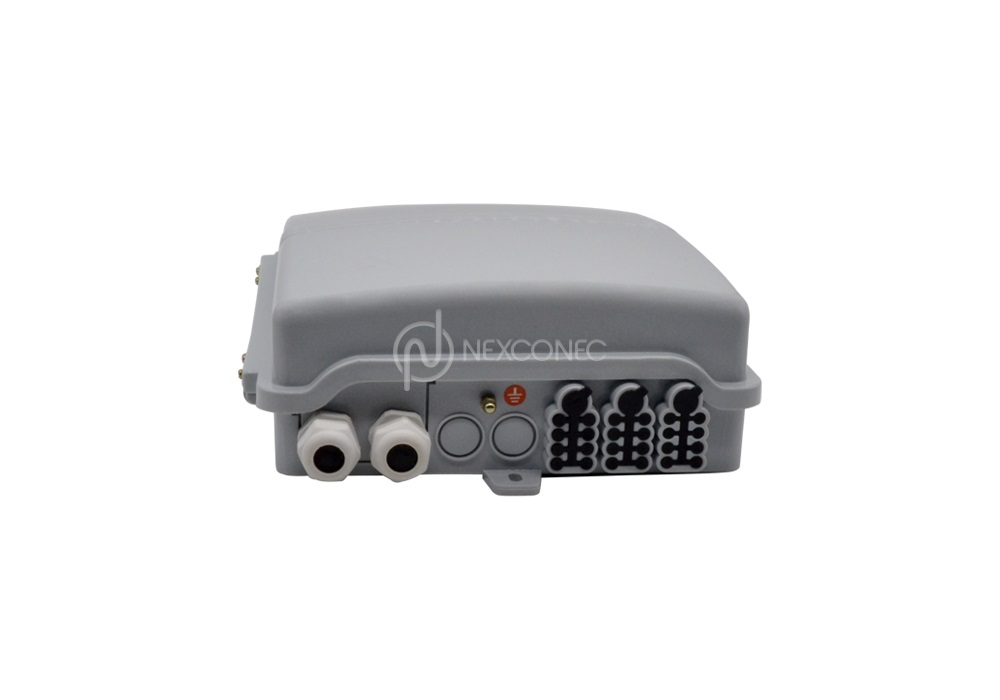

| Number of Cables Entry | Left: 2x Ports (for 8.5 to 13mm OD) Middle: 2x Optional Uncut Round Ports, with 20mm diameter, to load PG13.5 Gland for cables OD 6mm to 10mm |
| Number of Cables Exit | Right: 24x Ports (for 2x3mm FTTH Flat Drop Cables) |
| Max. Splicing Capacity | 24 Splices |
| Material | ABS |
| Color | Grey RAL7035 |
| Net Weight (Kg) | 1.8 Kg |
| Operating Temperature | -40 °C ~ +60°C |
| Compliant to | RoHS, REACH, SVHC |
| Part Number | Product Description |
|---|---|
| WP24U1 | In/Out Lockable Wall Box IP65 UV Resistant 24 Positions SC Simplex Unloaded |
