Lockable Indoor/Outdoor Wall Box 48 Ports SC - WP48U1

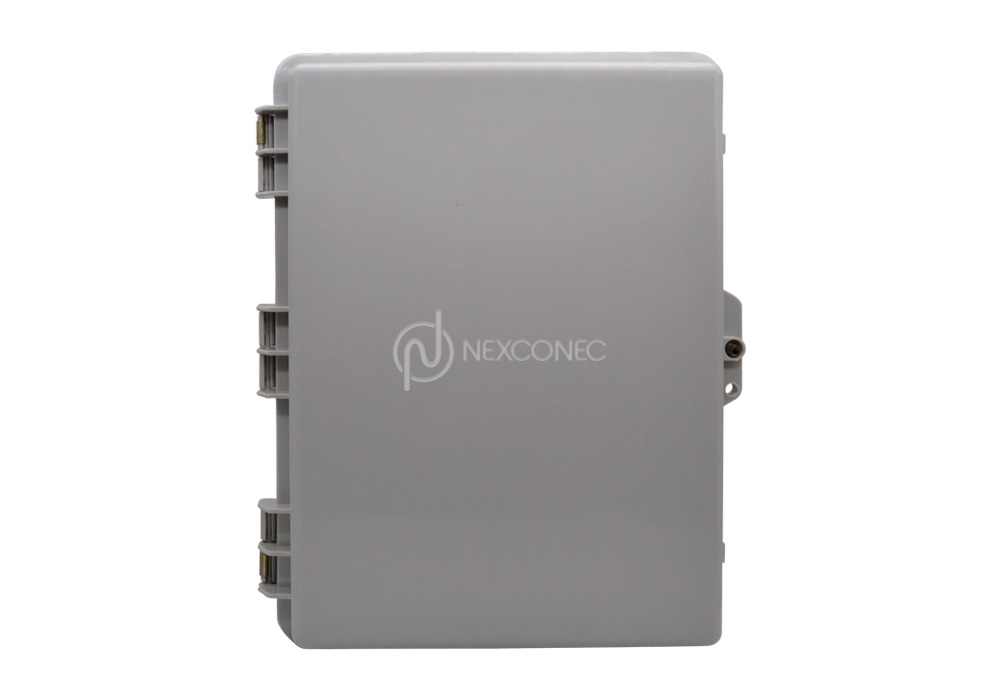

NEXCONEC® Lockable IP65 & UV Resistant distribution box is supplied unloaded as standard and offers the ability to terminate 48 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications.

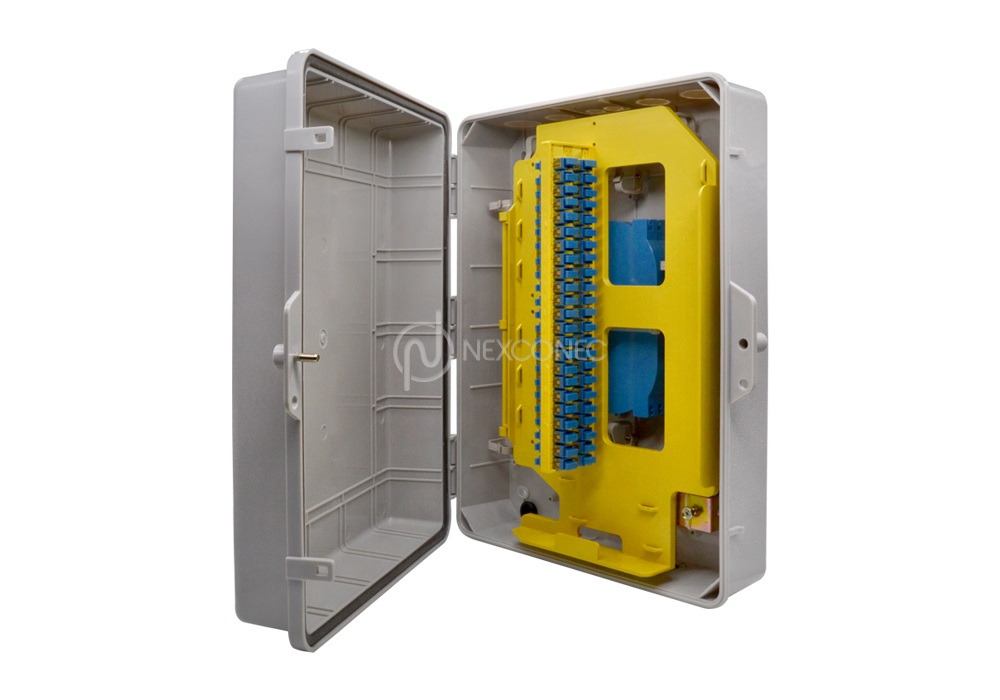

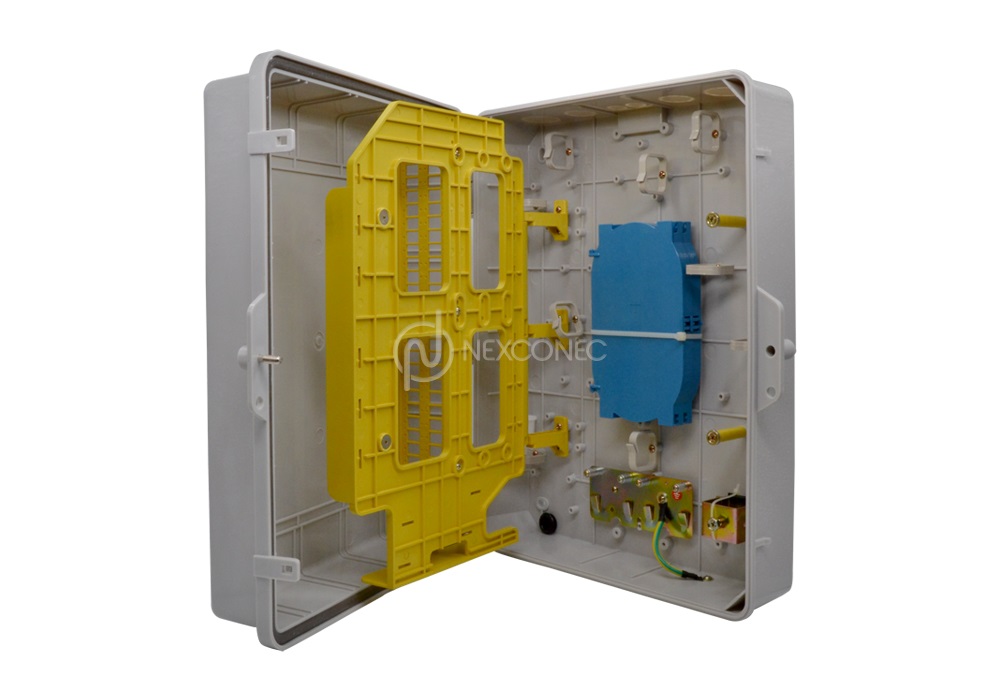

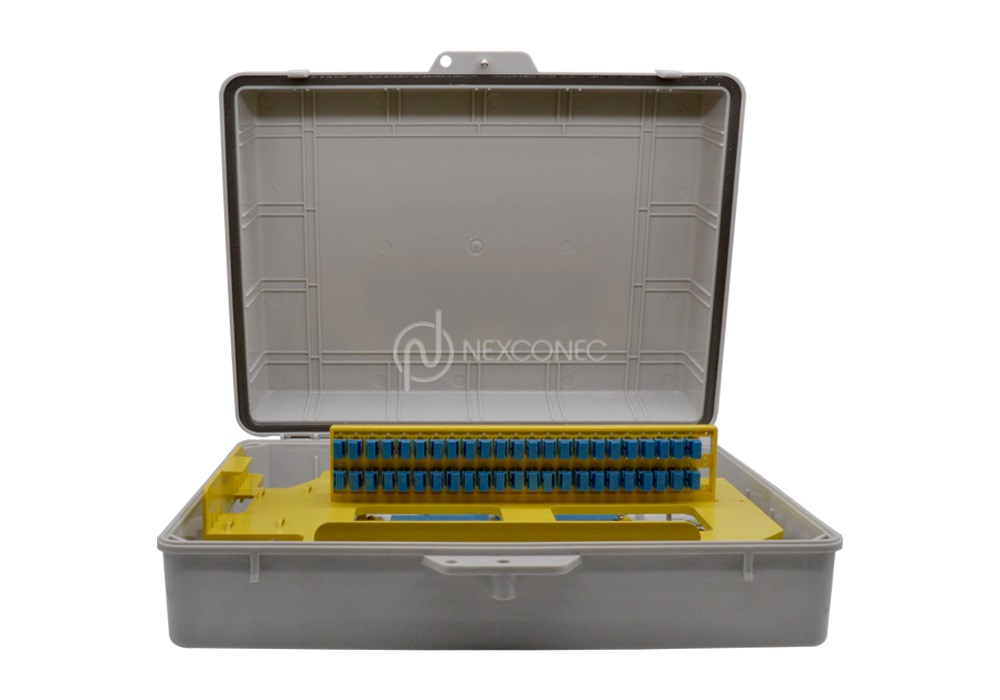

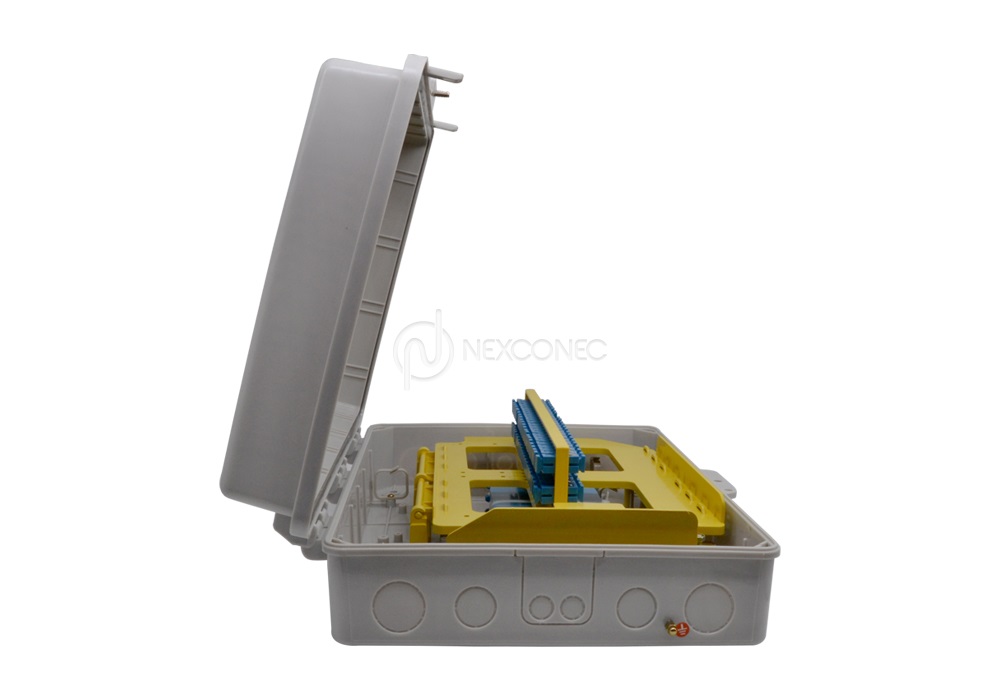

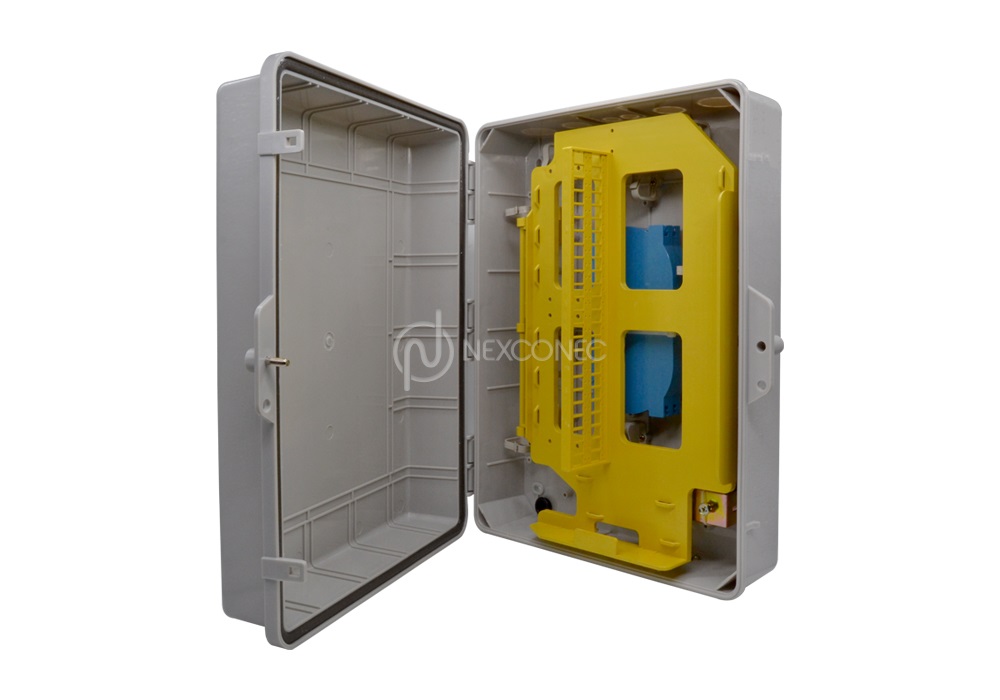

An internal detachable adaptor tray provides a neat and tidy solution for housing 48 SC simplex connections and splices. Integrated cable tie points are included to secure incoming cables. A locking feature for the door adds extra security when positioned in un-secure areas.
FEATURES AND APPLICATIONS
- SC Simplex / LC Duplex Adapter type
- Lockable Door
- IP65 rating & UV Resistant for external use
- Removable splice tray for easy installation
- Accepts loose tube, distribution and pre-terminated cables
- FTTH / FTTx Networks
- Data communication Networks
- Indoor/Outdoor Application
| Parameters | Value |
|---|---|
| Width | 320 mm |
| Height | 420 mm |
| Depth | 125 mm |
| Number of Ports | 48 SC Simplex / LC Duplex |

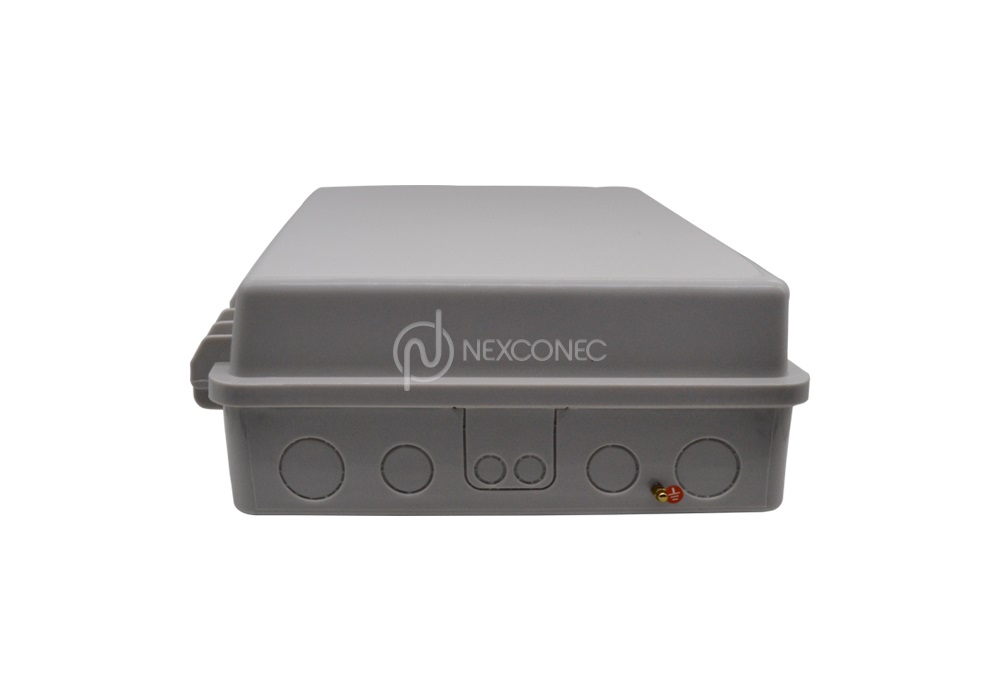

| Number of Cables Entry/Exit | 2x Big size Uncut Round Ports of 28mm diameter 2x Middle size Uncut Round Ports of 23mm diameter, to load M22 Gland for cables OD 8mm to 14mm 2x Small size Uncut Round Ports of 15mm diameter, to load M12 Gland for cables OD 3mm to 7mm |
| Max. Splicing Capacity | 96 Splices |
| Material | PC + ABS |
| Color | Grey RAL7035 |
| Operating Temperature | -40 °C ~ +60°C |
| Compliant to | RoHS, REACH, SVHC |
| Part Number | Product Description |
|---|---|
| WP48U1 | In/Out Lockable Wall Box IP65 UV Resistant 48 Positions SC SX / LC DX Unloaded |
