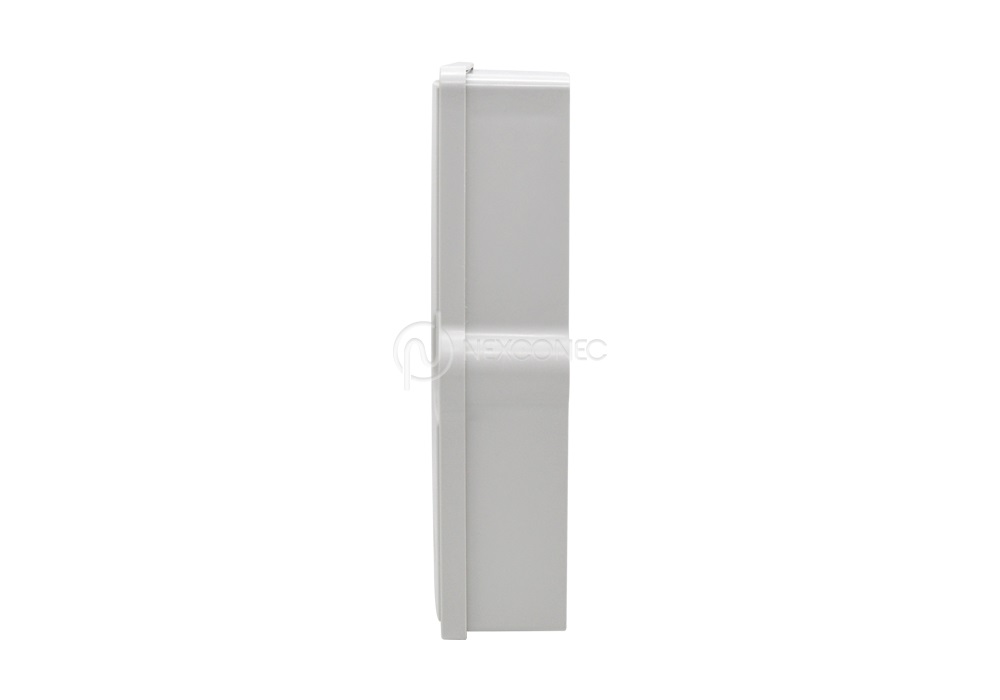

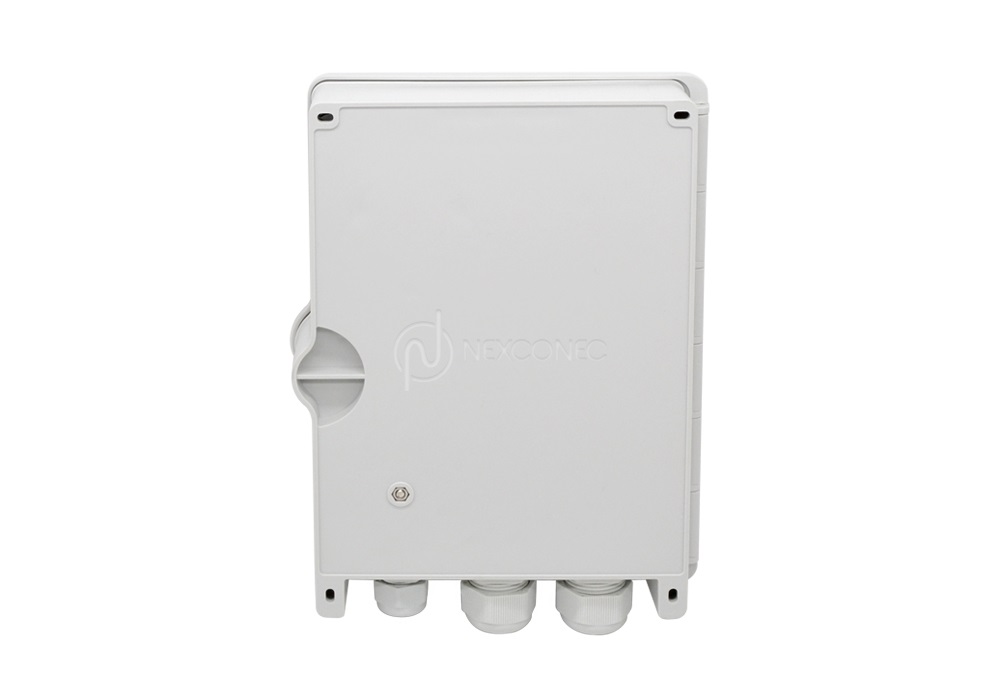

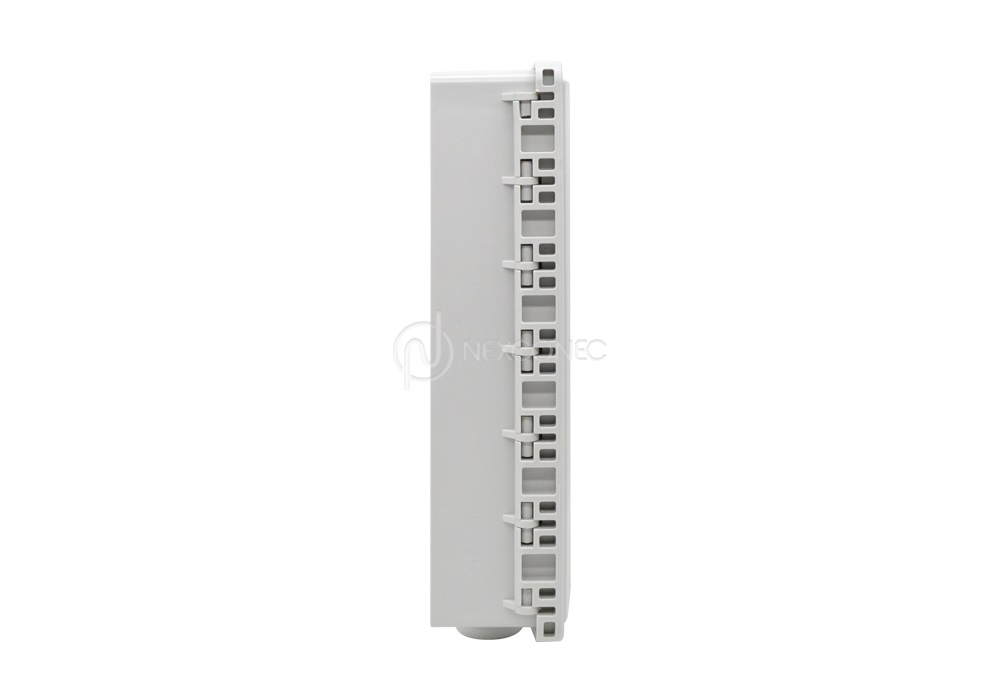

Lockable Indoor/Outdoor Wall Box 6 Ports SC - WP06U1

WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1 WP06U1

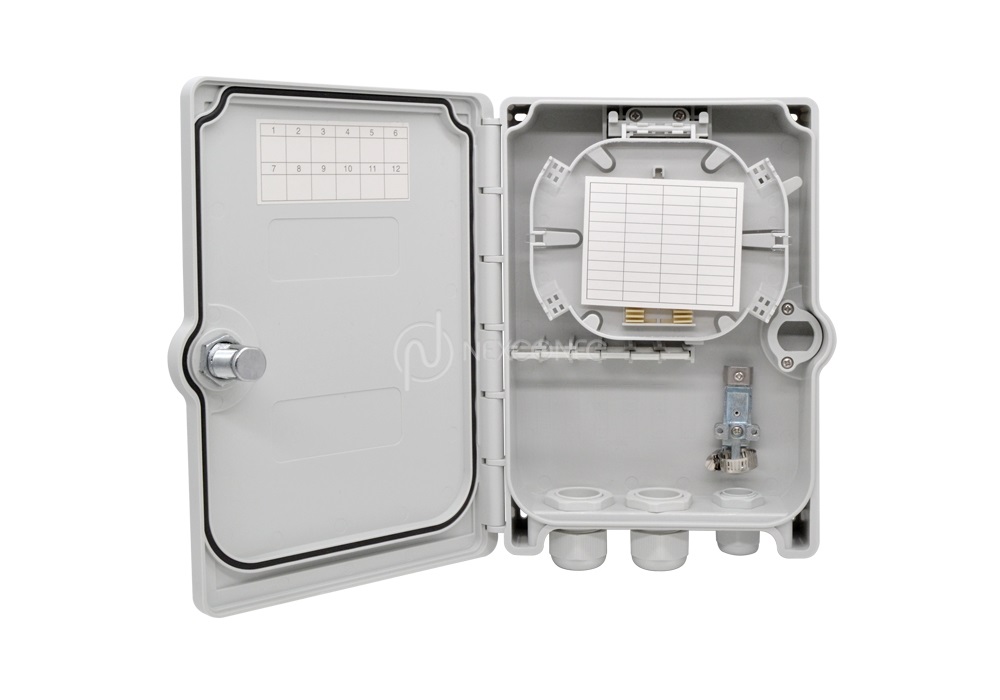

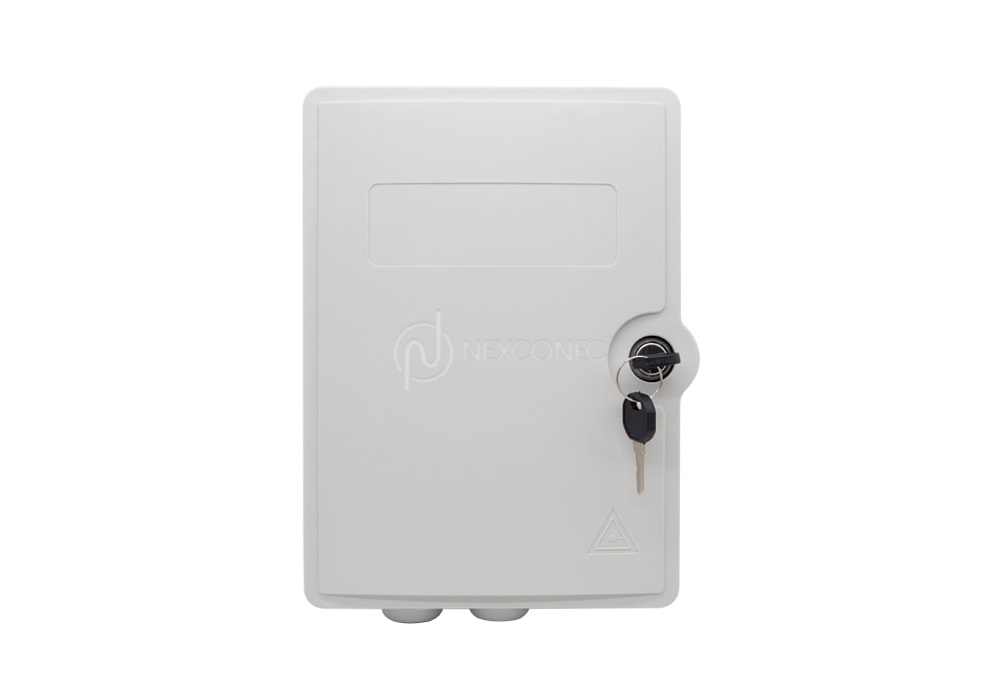

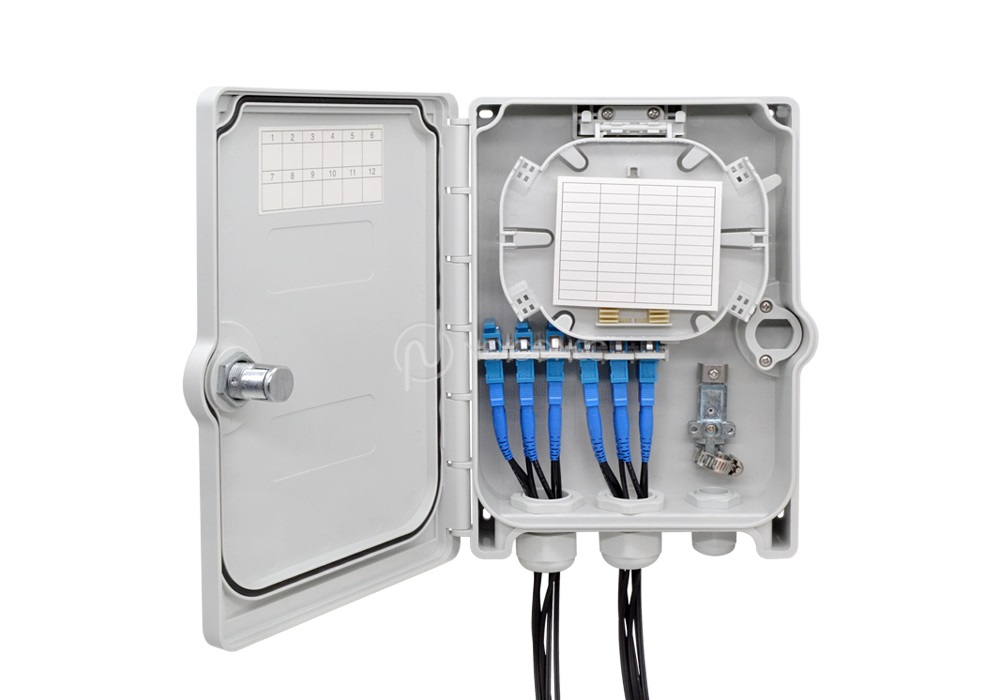

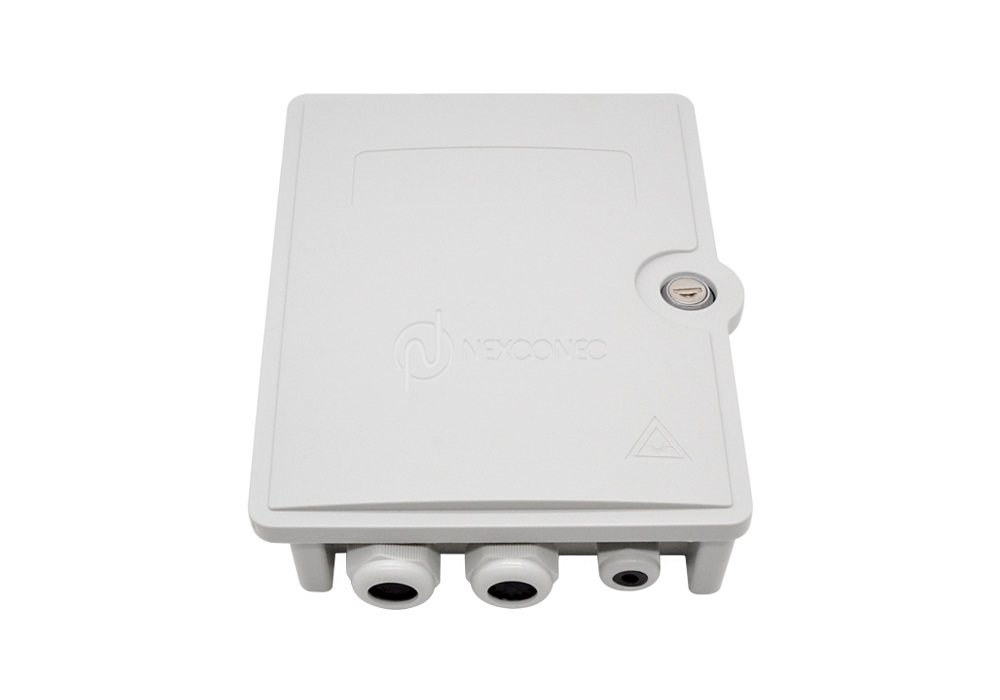

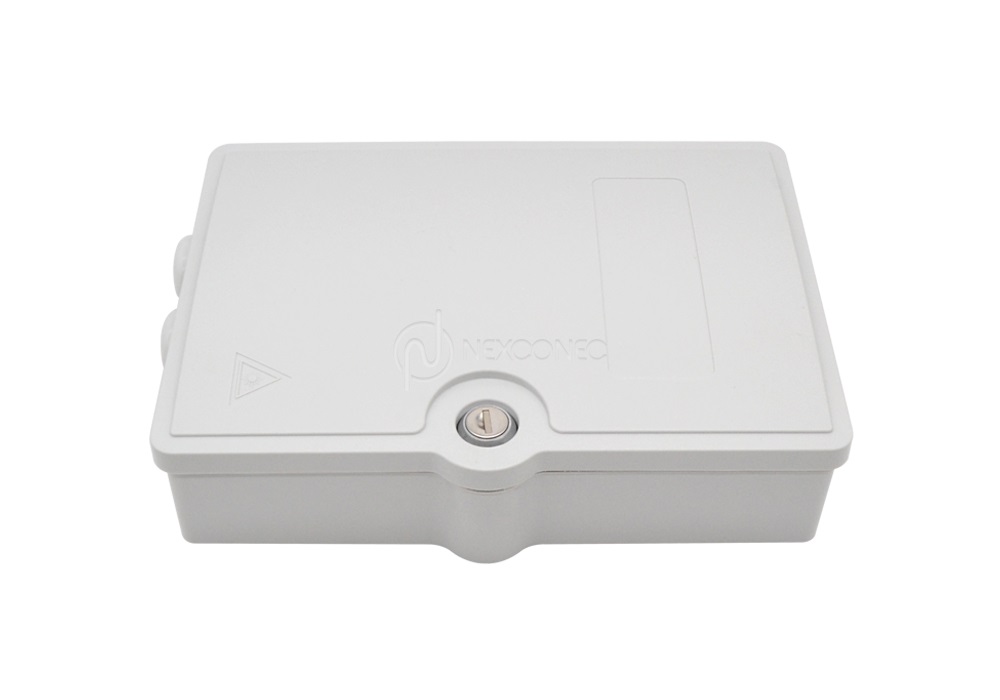

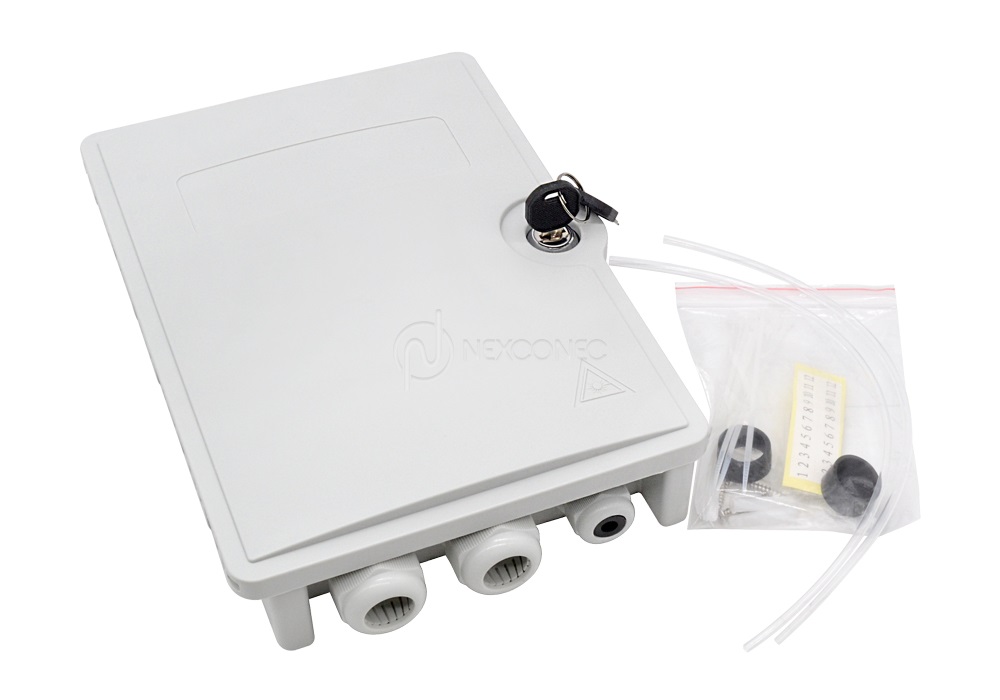

NEXCONEC® WP06U1 Lockable IP65 distribution box offers the ability to terminate up to 24 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications.

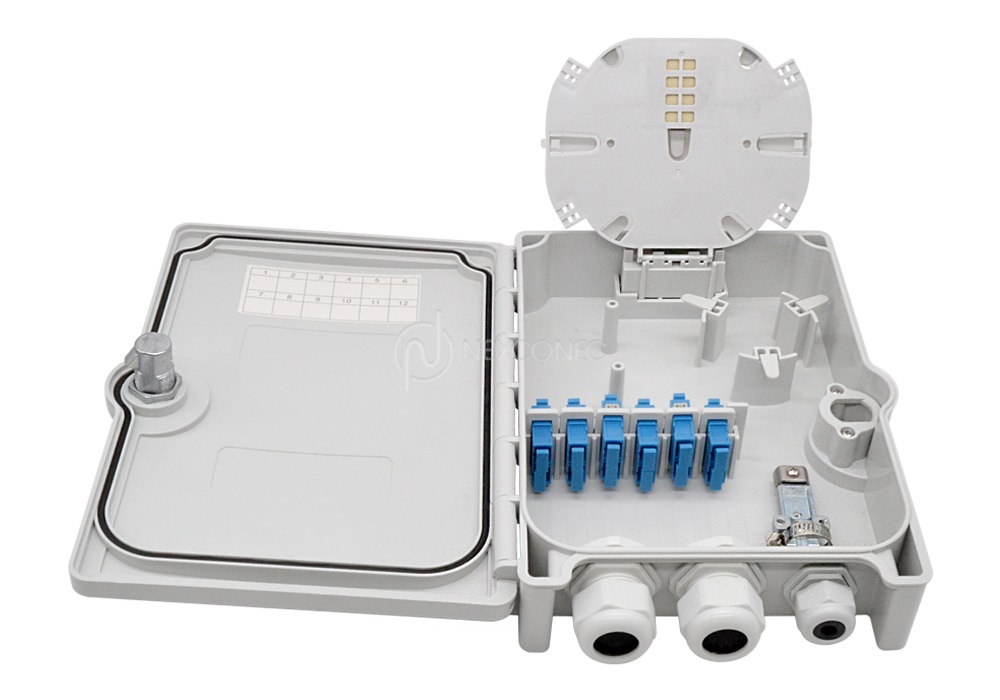

With the ability to use both SC Duplex and LC Quad adapter types offering a flexible solution to the end user, enabling them to incorporate a multi-functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibers.

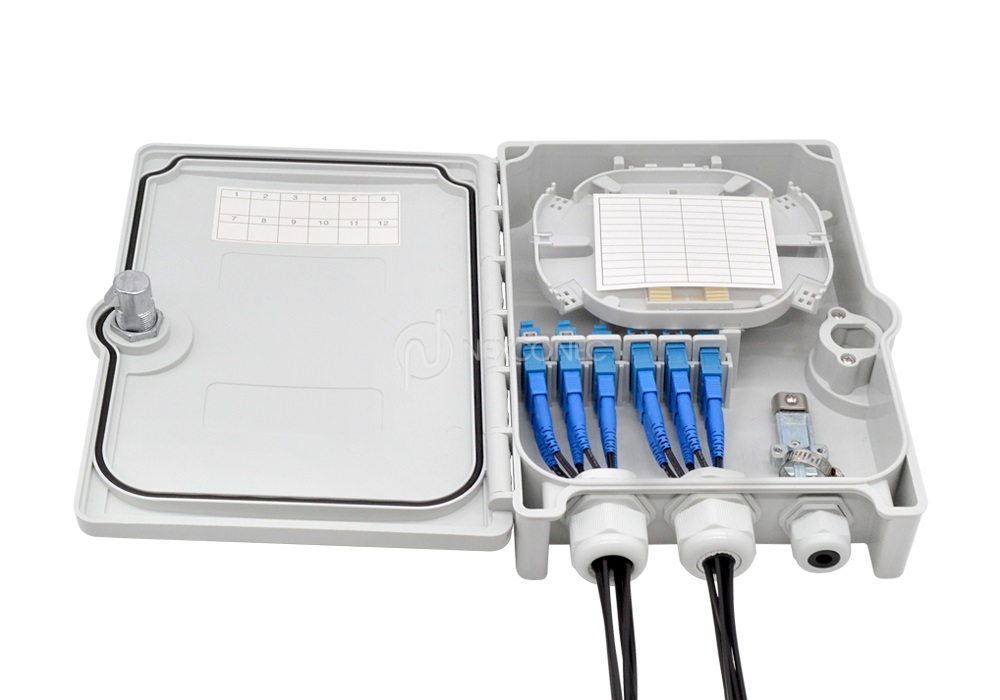

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

FEATURES AND APPLICATIONS
  • Up to 24FO
  • Multiple adapter options
  • 6 adapter positions

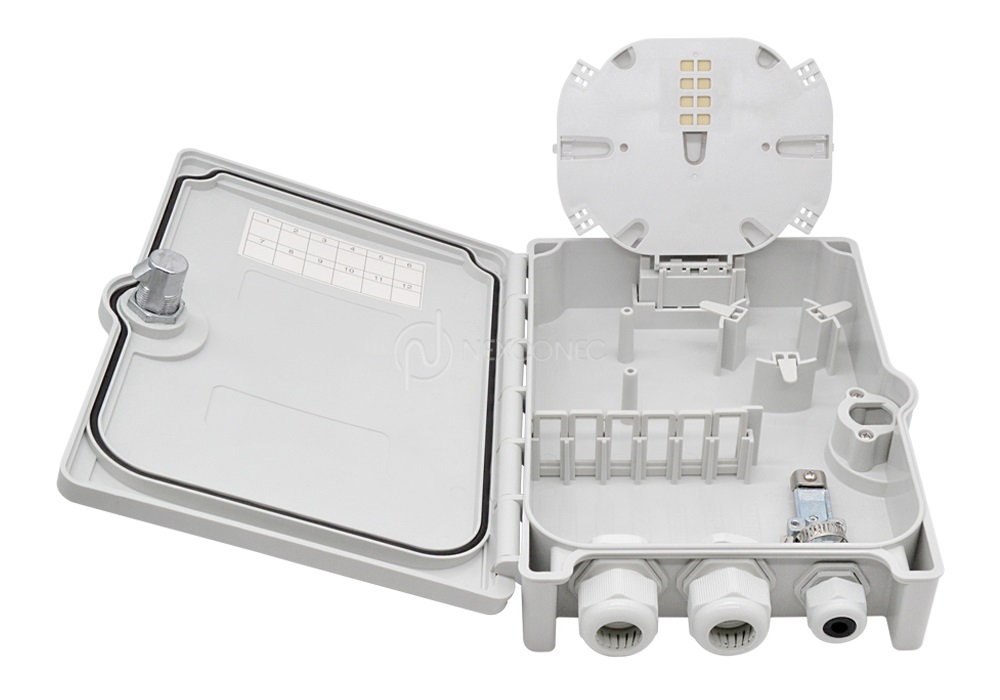

  • Removable splice tray for easy installation
  • Sealing gland for up to 24 existing cables and 1 incoming cable
  • RoHS, REACH & SvHC compliant material
  • Premise installations, telecom networks
  • Data communication networks
  • Indoor/outdoor networks applications

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
Dimensions (H x W x D mm) 258 x 186 x 61mm
Max. Fiber Count 24FO
Suitable Adapter Types SC Duplex, LC Quad
Number of Adapter Positions 6
Cable Entry Port (20mm) 1
Cable Exit Port (20mm) 2
IP Rating IP65
Material ABS
Color Grey (RAL 7035)
Operating Temperature -40 ~ +60 ℃
Weight 0.98 Kg
Part Number Product Description
WP06U1 Wall Termination Box Indoor/Outdoor 6 Ports SC Duplex Lockable, UV Resistant, IP65, Unloaded
