Micro Cable - Double Jacket

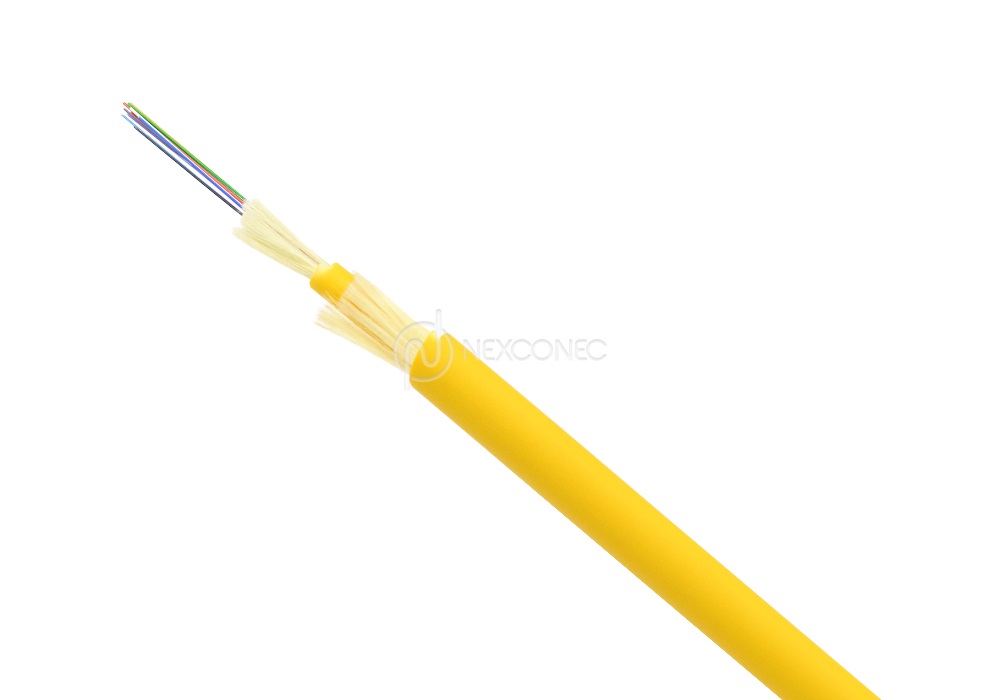

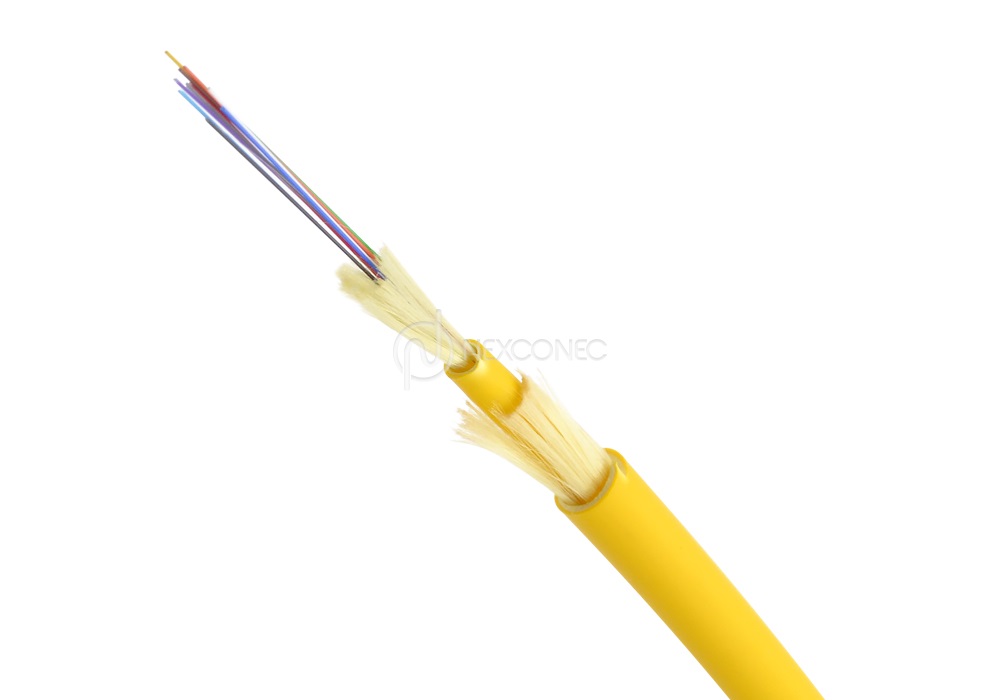

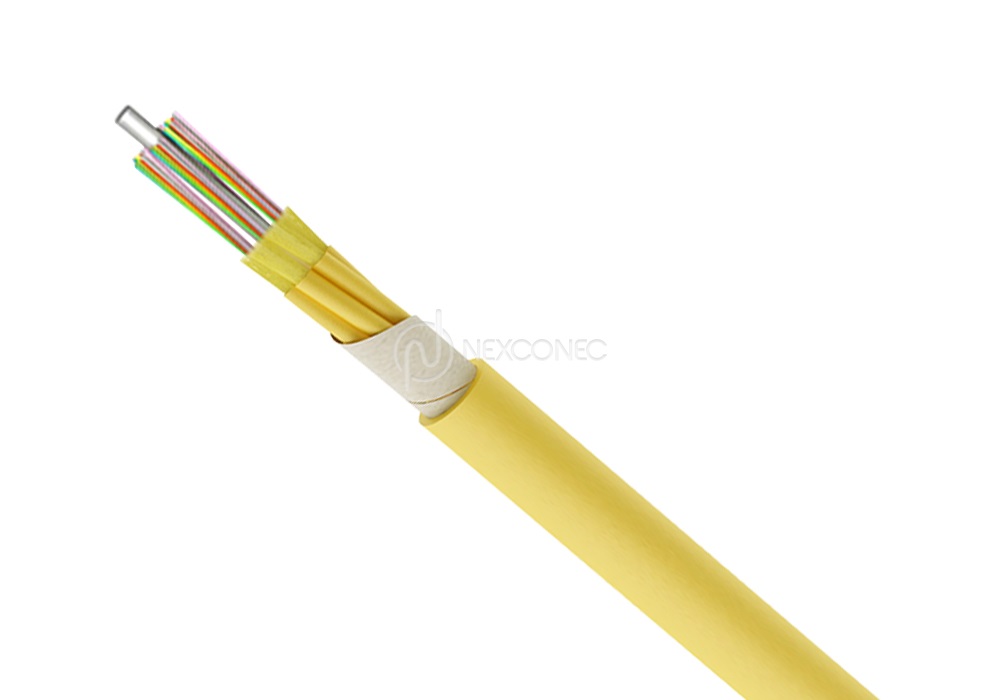

NEXCONEC Micro Cable Double Jacket is made of 12(upto24), 250um fibers covered with aramid strength member and LSZH jacket. This compact 3mm subunit is then covered with additional aramid strength member and outer jacket to add rigidness to the cable.
FEATURES AND APPLICATIONS
- Up to 144 fibers
- Conform to IEC, EIA-TIA and Telcordia performance requirements
- Standard SM and MM options available
- Individually colored fibers
- RoHS, REACH & SvHC compliant
- CPR Euro classes certified on demand
- Ideal for internal inter-connect using MTP or MPO connectivity
- Specifically use for high density connectivity including data centers
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Fiber Core | 12F | 24F | 48F | 72F | 96F | 144F | |
| Outer Diameter | mm | 4.5 | 4.5 | 9.6 | 11.2 | 13.3 | 17.5 |
| Long Term Tensile Strength | N | 150 | 180 | 300 | |||
| Short Term Tensile Strength | N | 400 | 600 | 1000 | |||
| Long Term Crush Resistance | N/100mm | 300 | |||||
| Short Term Crush Resistance | N/100mm | 1000 | |||||
| Storage Temperature | °C | -20 ~ +70 | |||||
| Operating Temperature | °C | -20 ~ +70 | |||||
| Cable Weight | Kg/Km | 22-35 | 78 | 90 | 115 | 135 | |
| CPR Reaction to Fire Classification | Certified | B2ca-s1a,d0,a1 | Cca-s1a,d0,a1 | B2ca-s1a,d0,a1 | |||
