Micro Cable - Single Jacket

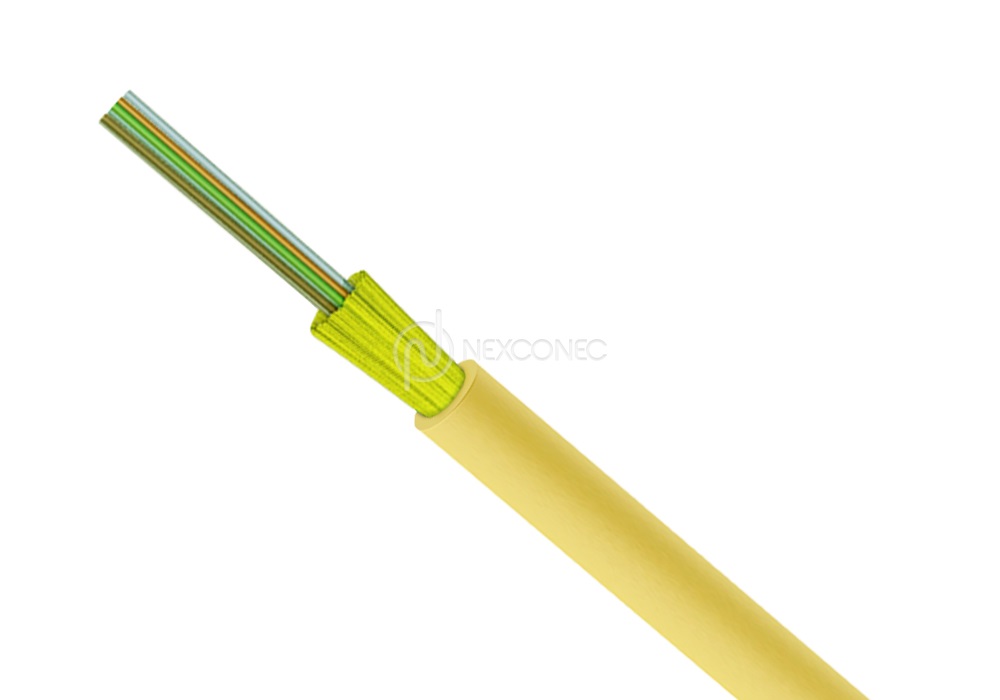

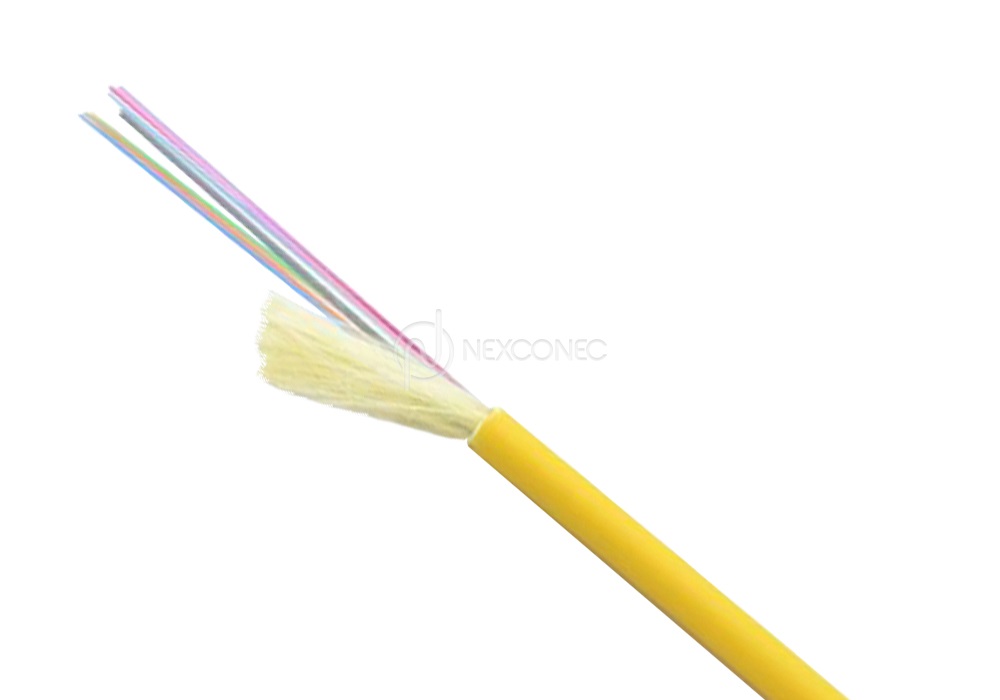

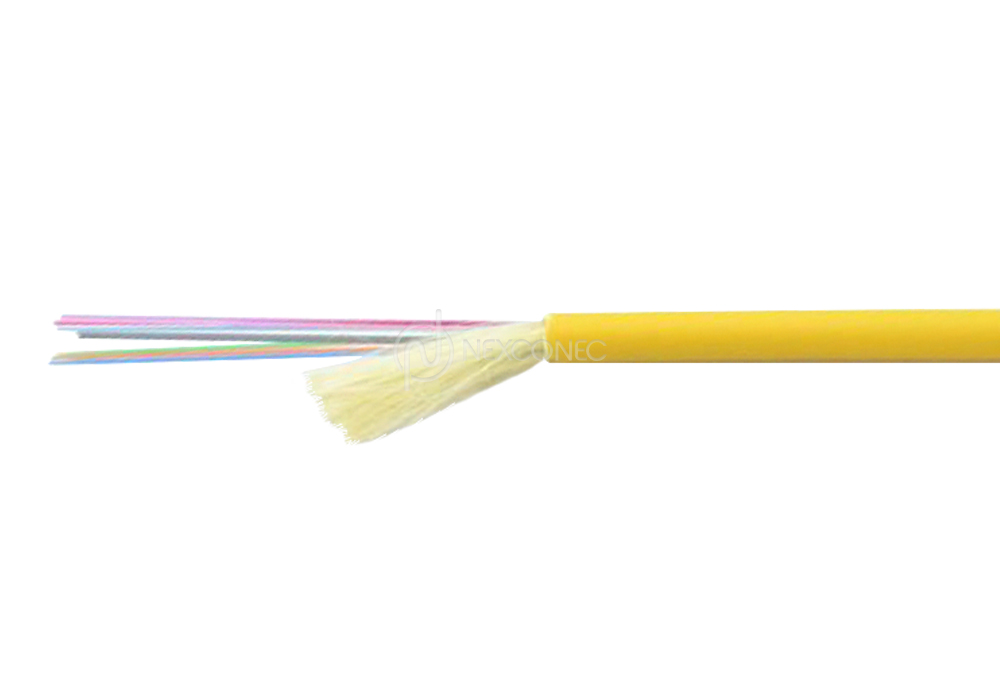

NEXCONEC Micro Cable Single Jacket is made of 2-24, 250um fibers covered with aramid strength member and LSZH jacket. The cable is compact and fits up to 24F in a 3mm outer diameter.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA and Telcordia performance requirements
- Standard SM and MM options available
- Individually colored fibers
- RoHS, REACH & SvHC compliant
- CPR Euro classes certified on demand
- Ideal for internal inter-connect using MTP or MPO connectivity
- Specifically use for high density connectivity including data centers
| Parameter | Unit | Value |
|---|---|---|
| Fiber Core | 2 to 24FO | |
| Outer Diameter | mm | 3.0 |
| Long Term Tensile Strength | N | 80 |
| Short Term Tensile Strength | N | 200 |
| Long Term Crush Resistance | N/100mm | 150 |
| Short Term Crush Resistance | N/100mm | 500 |
| Storage Temperature | °C | -20 ~ +70 |
| Operating Temperature | °C | -20 ~ +70 |
| Cable Weight | Kg/Km | 4.5 to 7.8 |
| CPR Reaction to Fire classification | Certified | Cca-s1a,d0,a1 (8FO & 12FO) |
