MTP®/MPO TRUNKS BASE-1x16

Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks
Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks Base 1x16 Trunks

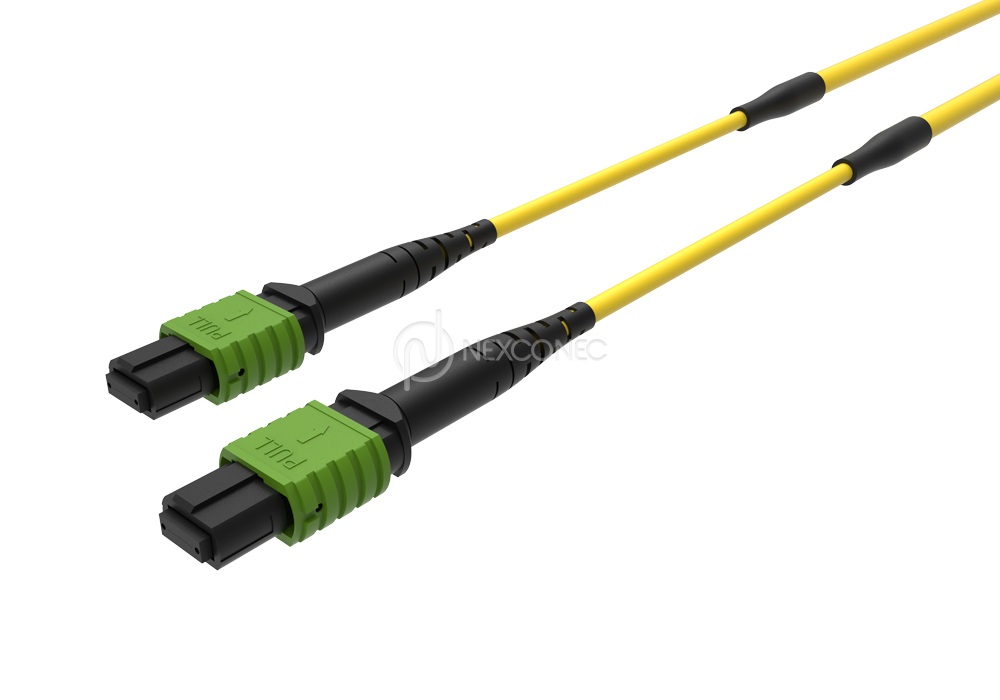

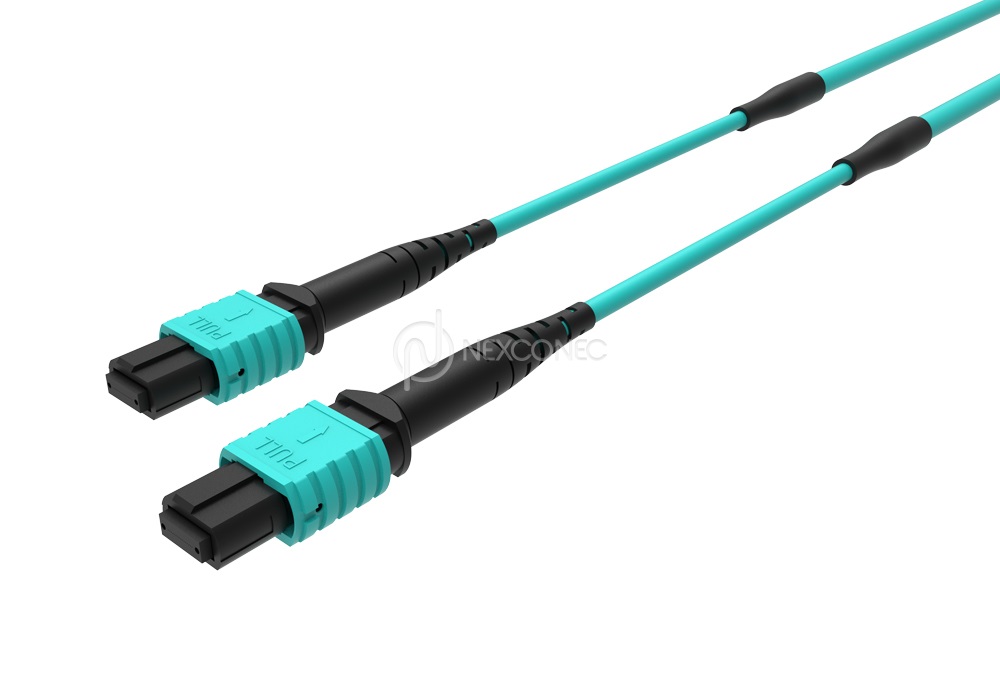

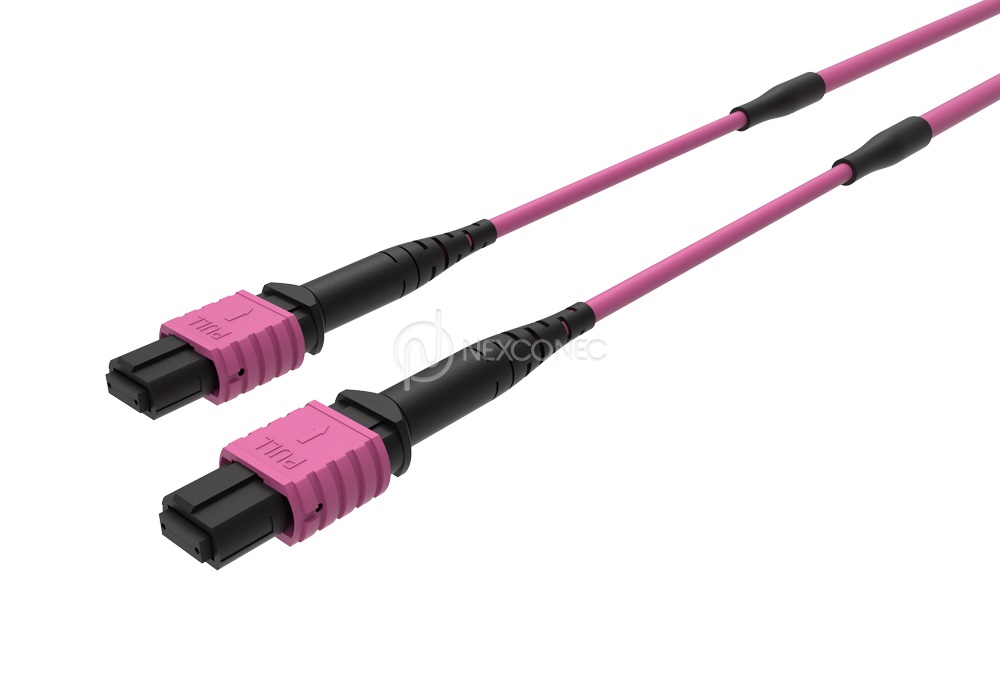

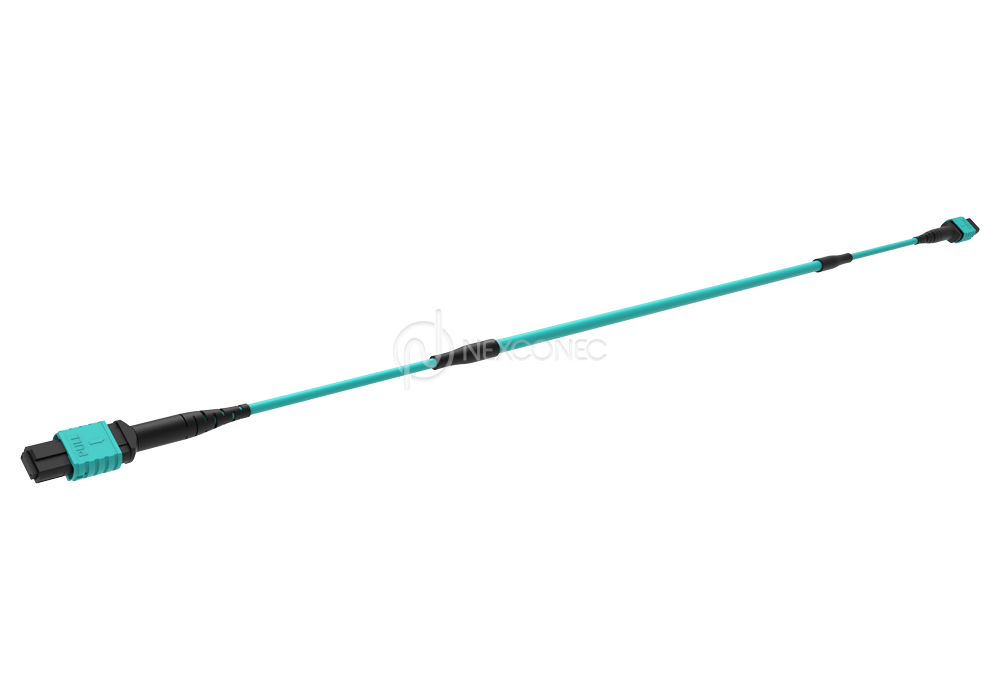

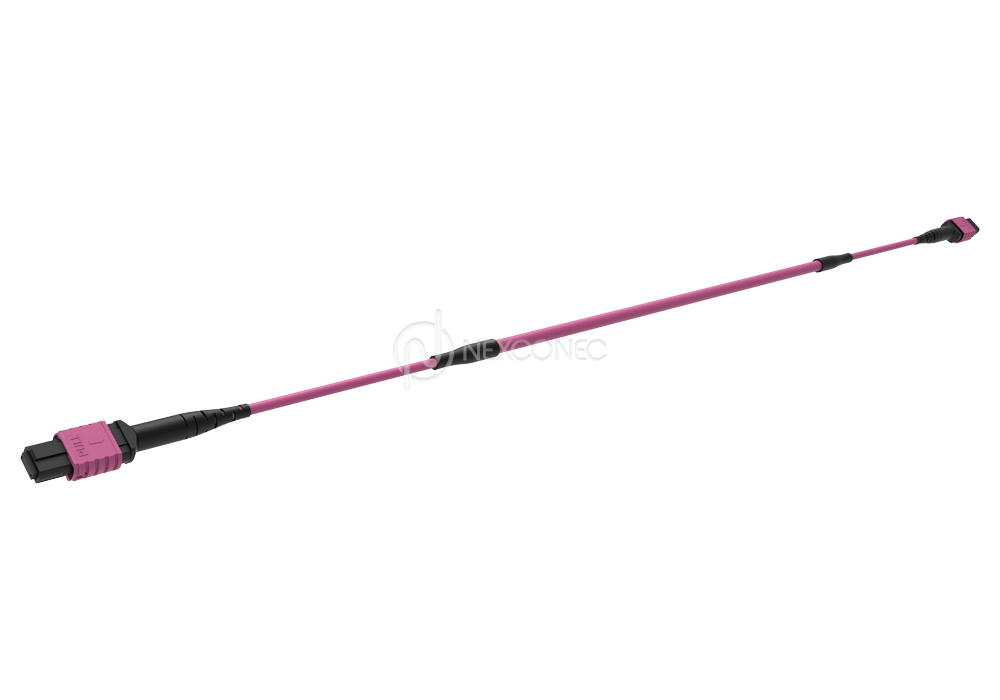

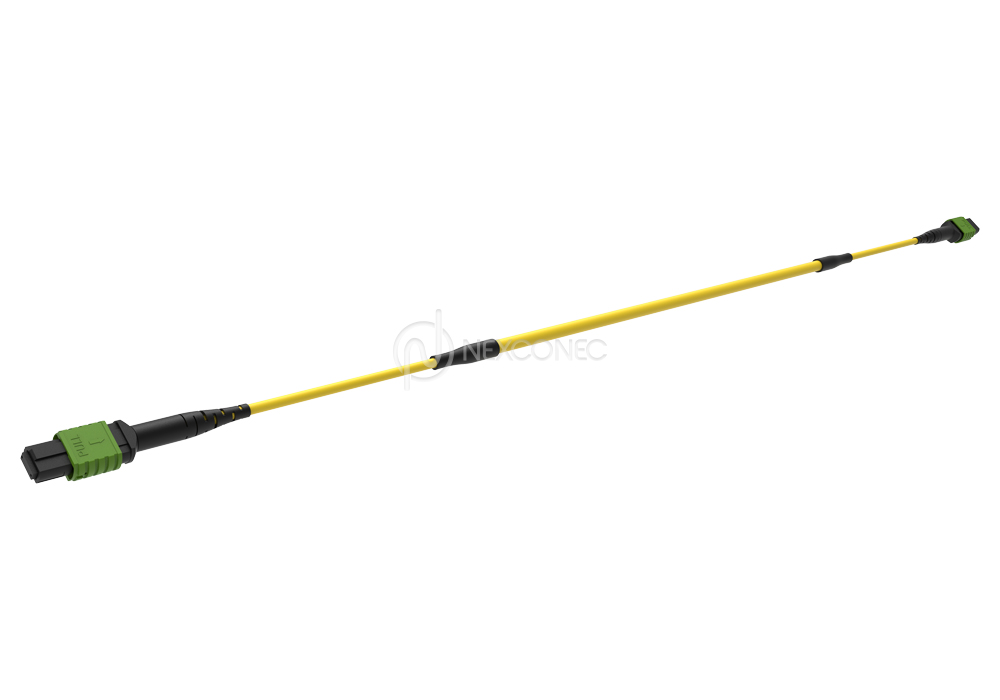

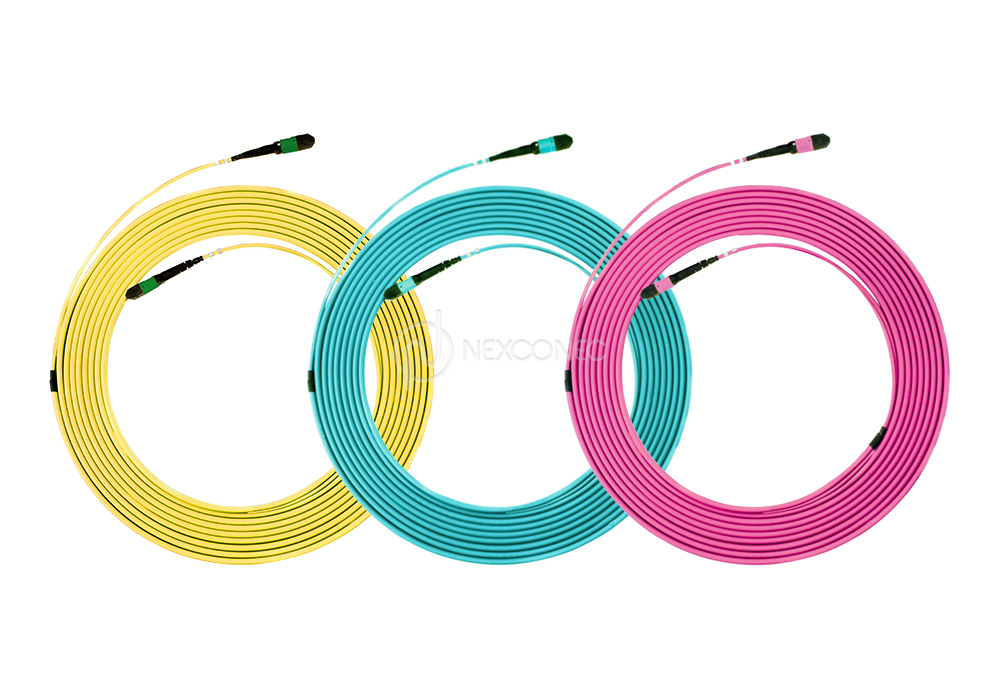

NEXCONEC MTP®/MPO 1x 16 fiber ferrule cable assemblies are designed for cable infrastructures which are currently used for, or which are due to be upgraded to, parallel optics 40/100G protocols such as 100G BASE-SR10 or 40G BASE-SR4. The Assemblies are built using 1x 16 fiber ferrule interface, MTP®/MPO connectors, which can be used directly with 100G transceivers or, when used together with transition modules/cables, can provide 40/100G parallel transceivers or legacy non-parallel optics 4/8/10/16G Ethernet/ fiber channel protocol networks.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

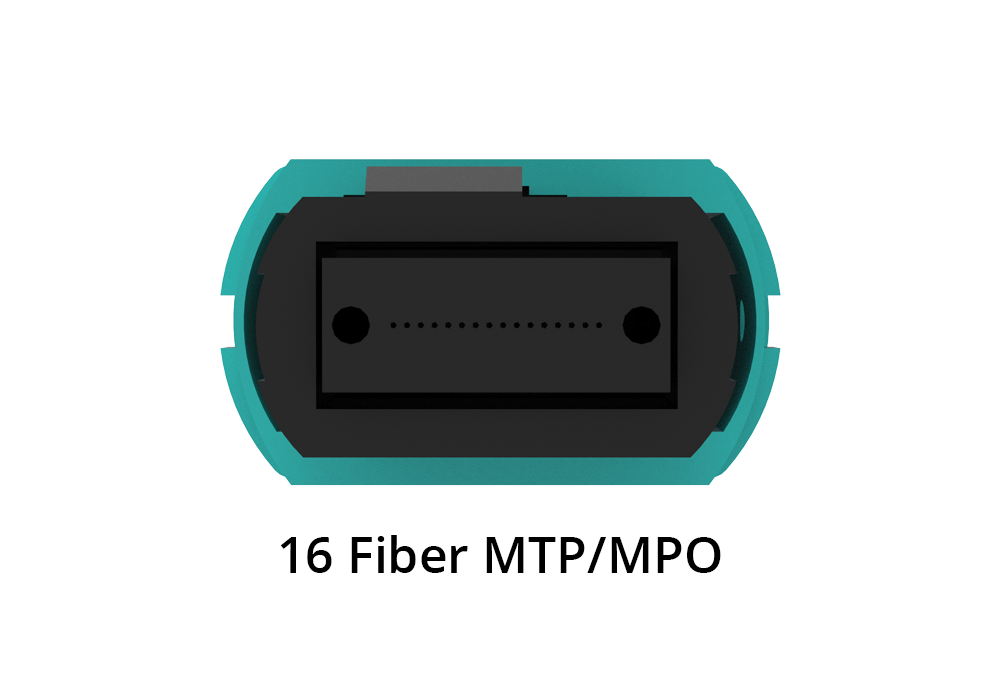

  • Cable terminated with base-1x16 fiber MTP/MPO Connectors
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
  • Telecommunication networks
  • Data center infrastructure
  • Parallel optics: 100Gbps protocol

Product Information

pdfDATASHEET.pdf View Download
Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.40 dB > 60 dB
SM – Premium 0.35 dB 0.20 dB > 60 dB
MM – Standard 0.60 dB 0.40 dB > 20 dB
MM – Premium 0.35 dB 0.20 dB > 20 dB
*** For single mode premium grade is only available with Usconec MTP.
Cable Characteristics Units Value
Fiber Count 16F 48F 64F (72F) 96F 144F
Outer Diameter mm 4.5 9.6 11.2 13.3 17.5
Tensile Strength (Long Term) N 150 200 300 300 300
Tensile Strength (Short Term) N 400 600 1000 1000 1000
Crush Resistance (Short Term) N/100mm 1000 1000 1000 1000 1000
Minimum Bending Radius mm 10D (Static) / 20D (Dynamic)
Cable/Tail Material LSZH or PVC
Strength Member Aramid/FRP
Operating Temperature ˚C -20 ~ +70
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1 B2ca-s1a,d0,a1
*** For higher fiber counts please refer to our cable datasheet.
Part Number Product Description
NX00000 DefaultDefault
