MTP®/MPO to LC QSFP 40G Fanouts Base-8

MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts MTP QSFP Fanouts

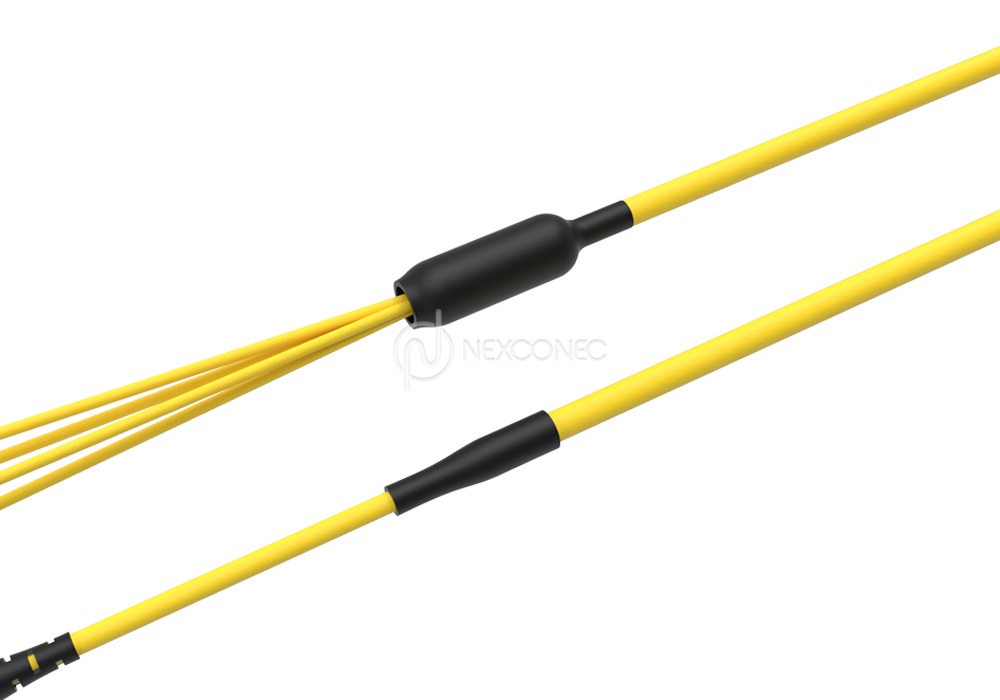

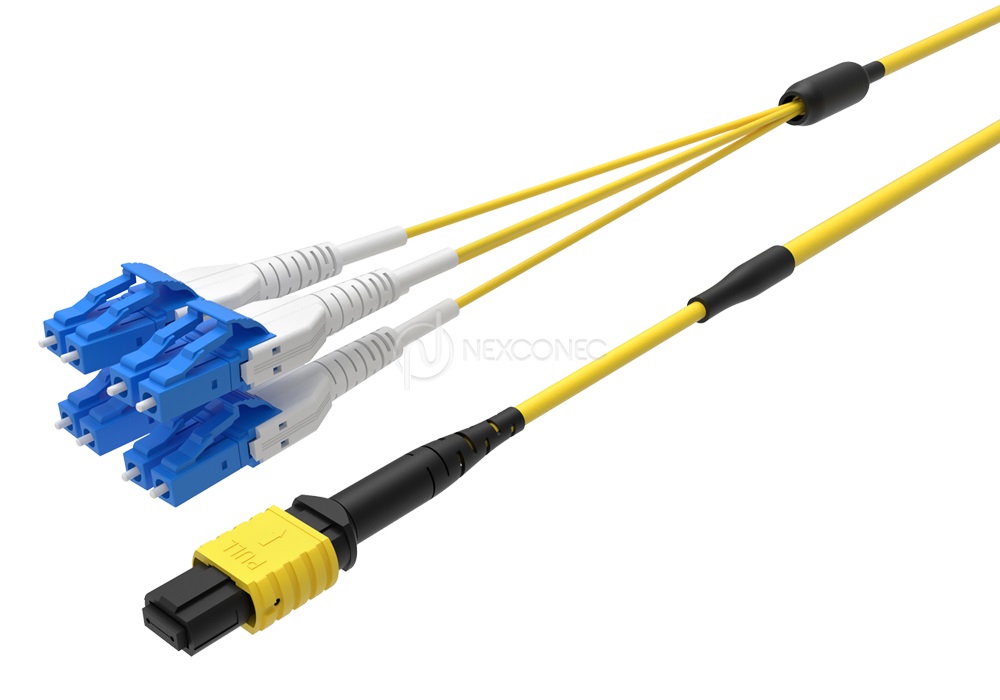

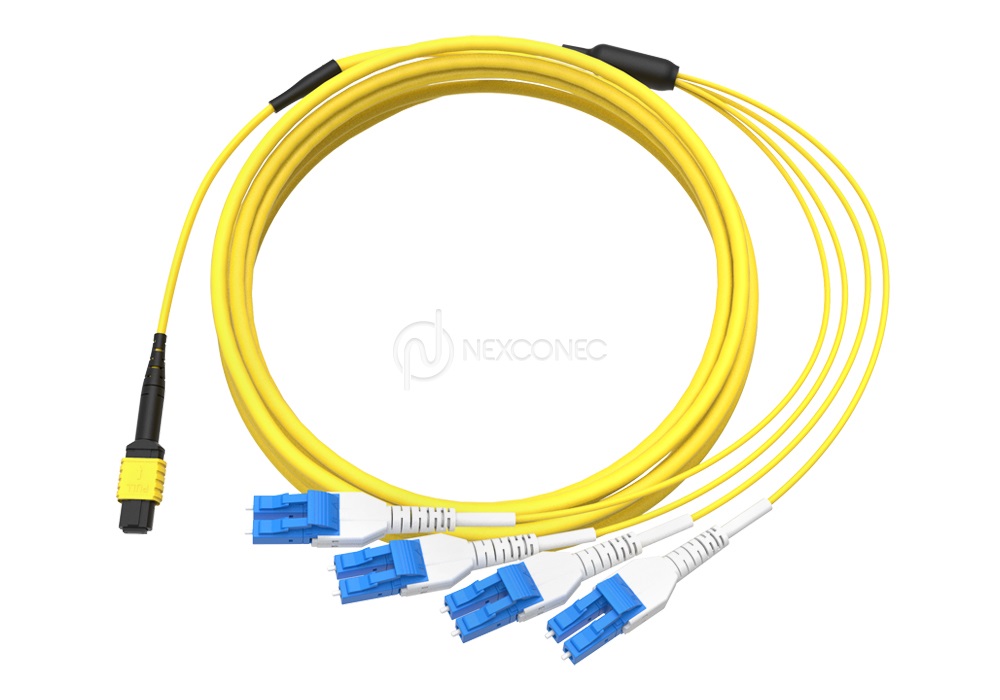

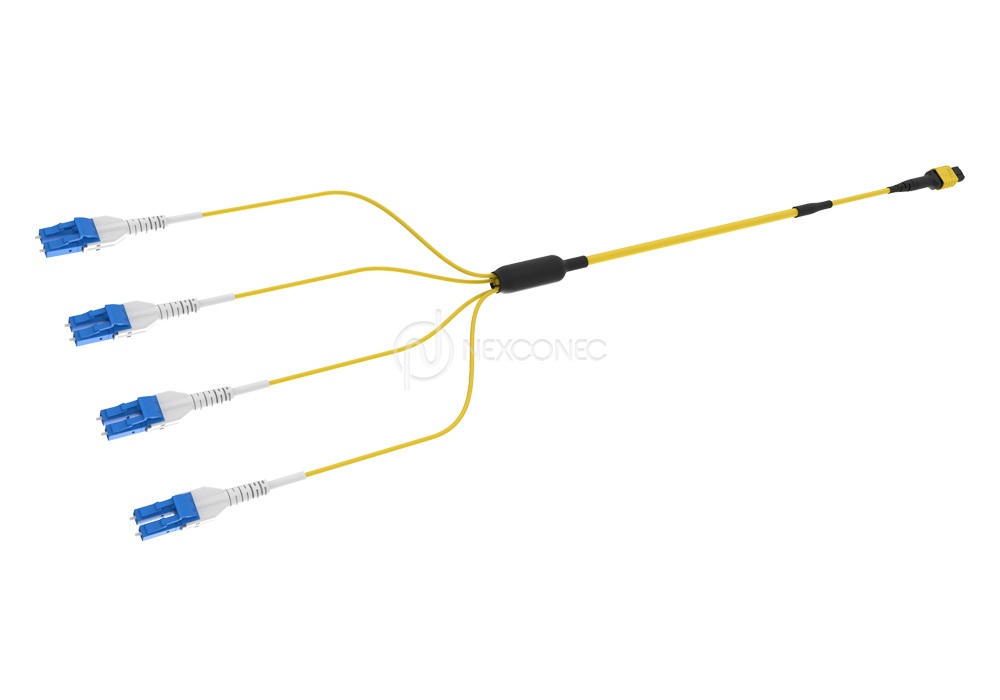

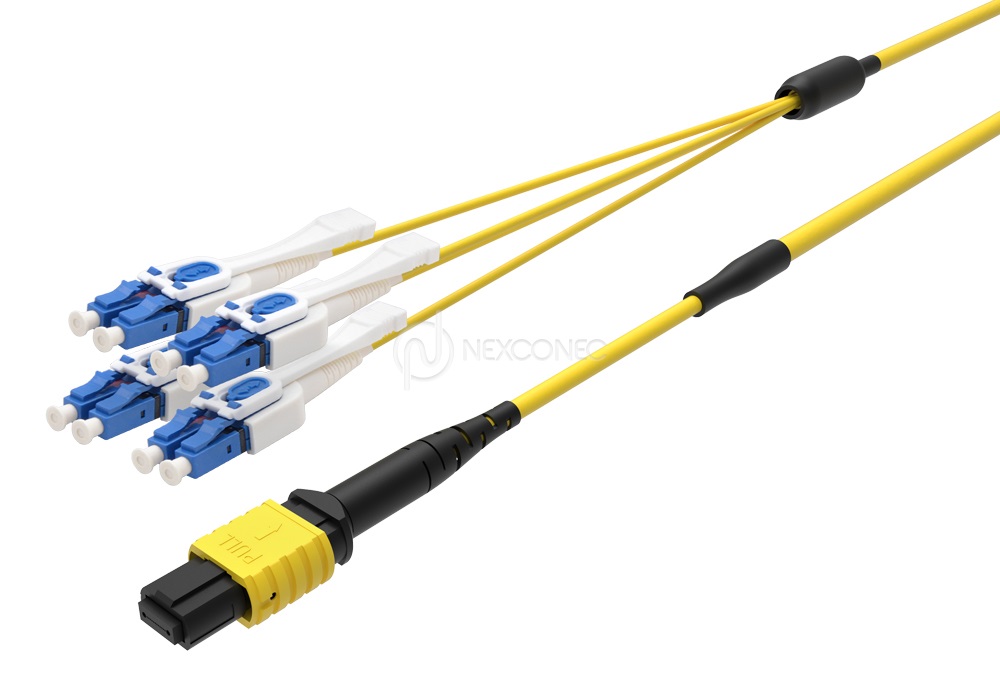

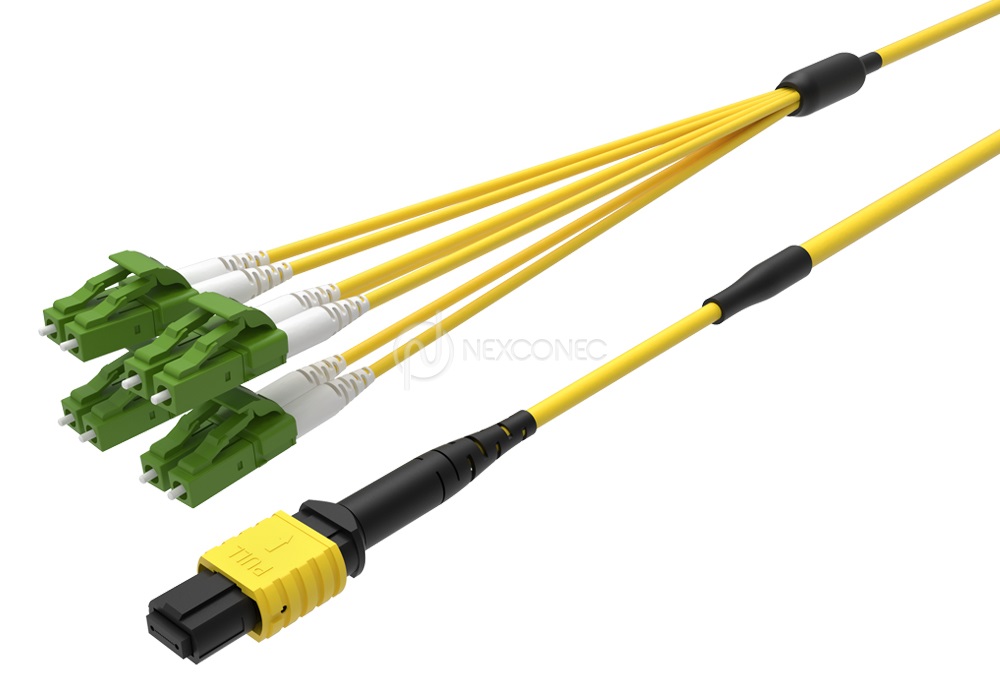

NEXCONEC MTP/MPO QSFP Fanouts are small form factor high density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are specifically designed for QSFP 40G to 10G transition application to connect between equipment or to interconnect modules/panels in a data center.

The fanouts can also be used for transitions between high to low bandwidth equipments. The fanouts are available in Micro cable single or double jacket options and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

FEATURES AND APPLICATIONS
  • MTP/MPO to connect 40G QSFP transceiver, LC to connect 10G SFP

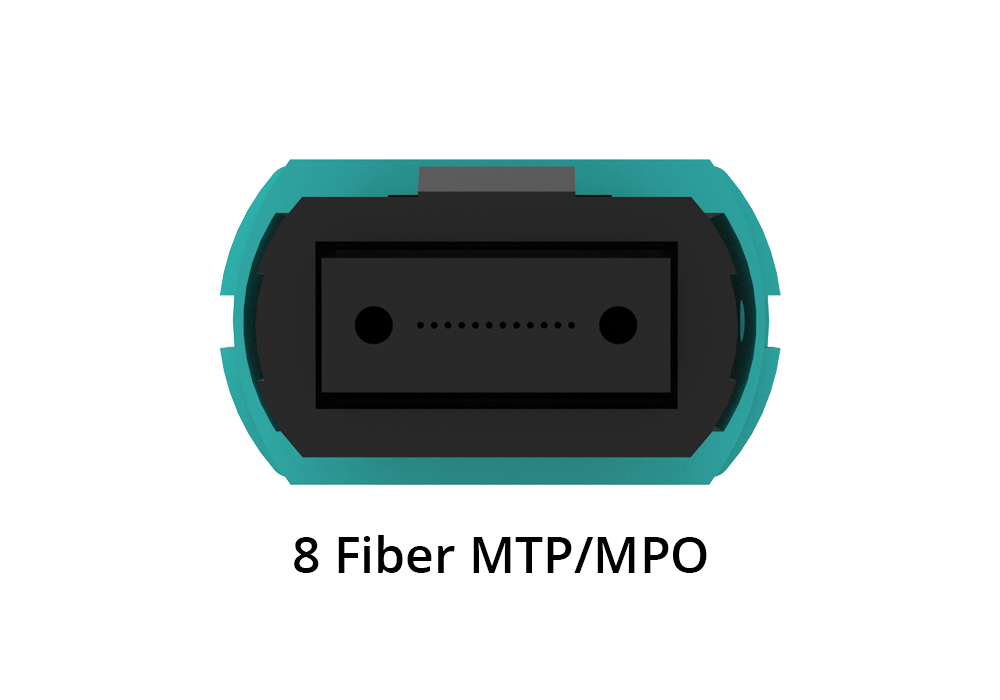

  • Cable terminated with base-8 fiber MTP/MPO Connectors
  • MPO push/pull release boot
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
  • Telecommunication networks
  • Data centers
  • Supports SFP, QSFP, CFP applications
  • 40G to 10G transition

Product Information

pdfDATASHEET.pdf View Download
pdfTECHNICAL DRAWING.pdf View Download

MTP/MPO CONNECTOR

Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.25 dB > 60 dB
SM – Premium 0.35 dB 0.10 dB > 60 dB
MM – Standard 0.60 dB 0.20 dB > 20 dB
MM – Premium 0.35 dB 0.10 dB > 20 dB

SINGLE FERRULE CONNECTOR

Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB

CABLE CHARACTERISTICS

Cable Characteristics Units Value
Cable Material LSZH/PVC
Strength Member Aramid/FRP
Cable Diameter mm Single jacket 8F/12F/24F - 3.0
Double jacket 8F/12F/24F - 4.5
Tensile Strength N Single jacket 8F/12F/24F - 200/100
Double jacket 8F/12F/24F - 400/150
Crush N/100mm Single jacket - 500
Double jacket - 1000
Operating Temperature ˚C -20 ~ +70
Minimum Bending Radius mm 10D (installed) / 20D (loaded)
CPR Reaction to Fire Classification Certified (8F/12F– 3.0) Cca-s1a,d0,a1
(8F/12F– 4.5) B2ca-s1a,d0,a1
(24F– 4.5) Cca-s1a,d0,a1

FANOUT CABLE CHARACTERISTICS

Cable Characteristics Units Simplex Duplex Round Duplex
Cable Material LSZH or PVC LSZH or PVC LSZH or PVC
Strength Member Aramid Aramid Aramid
Crush N 500 500 500
Operating Temperature ˚C -20 ~ +70 -20 ~ +70 -20 ~ +70
