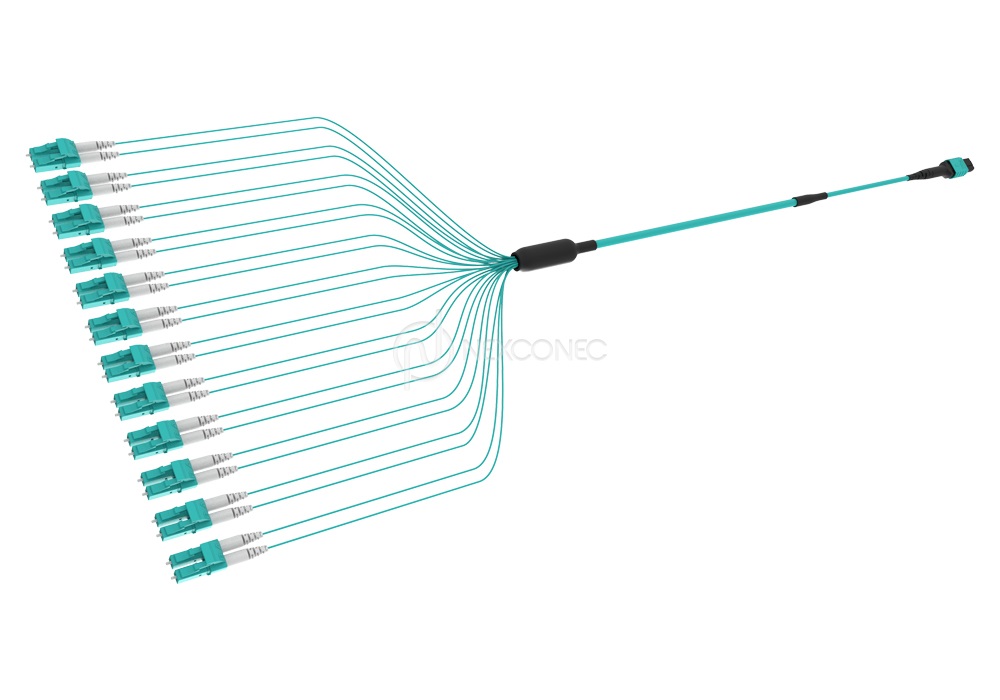

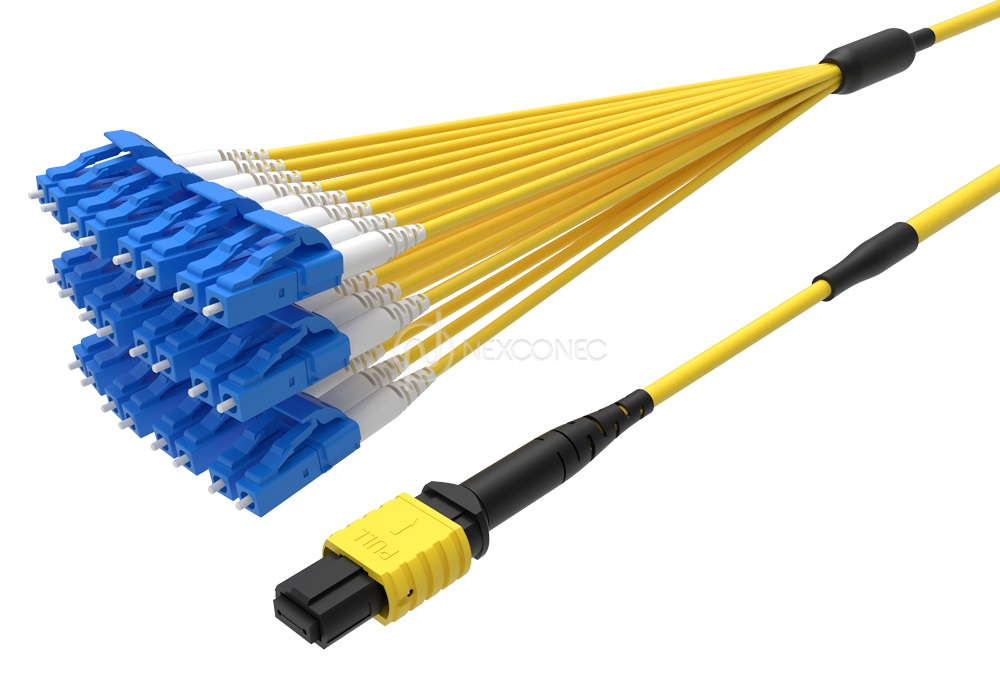

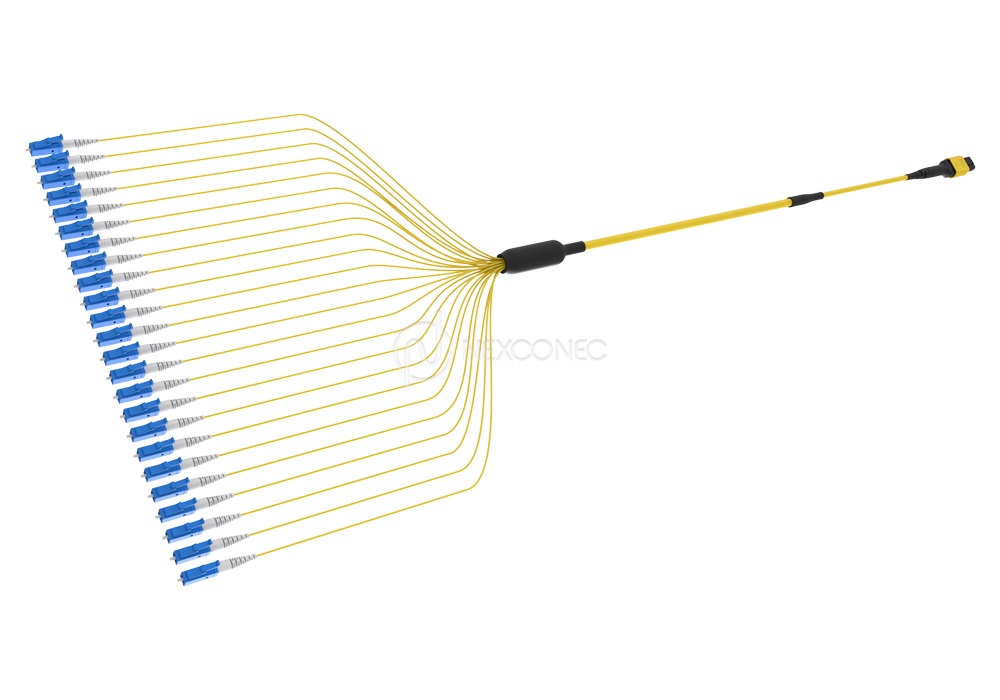

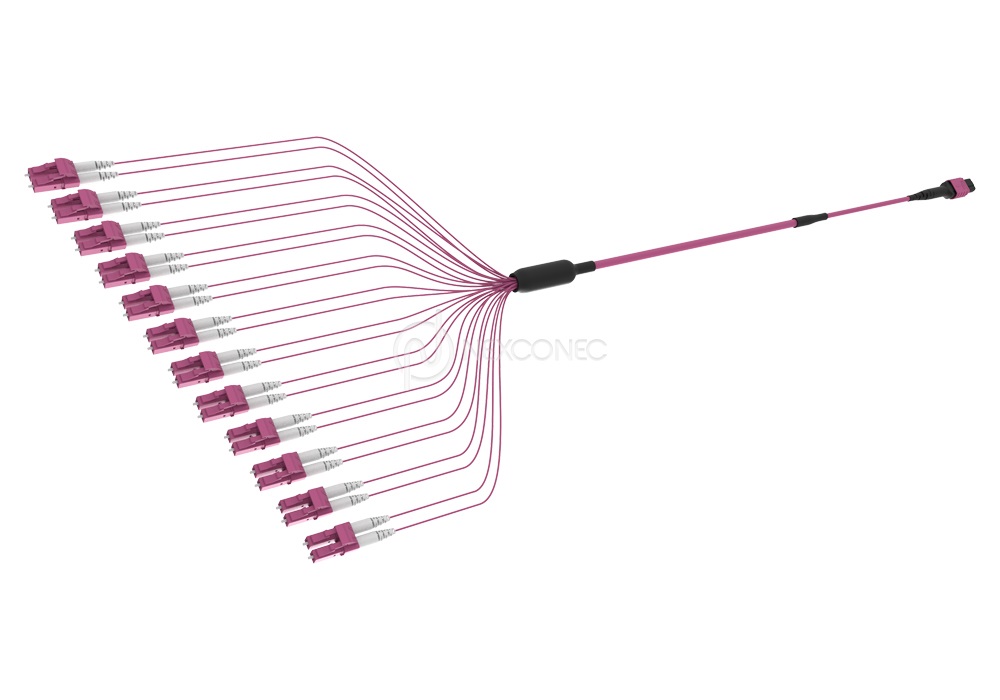

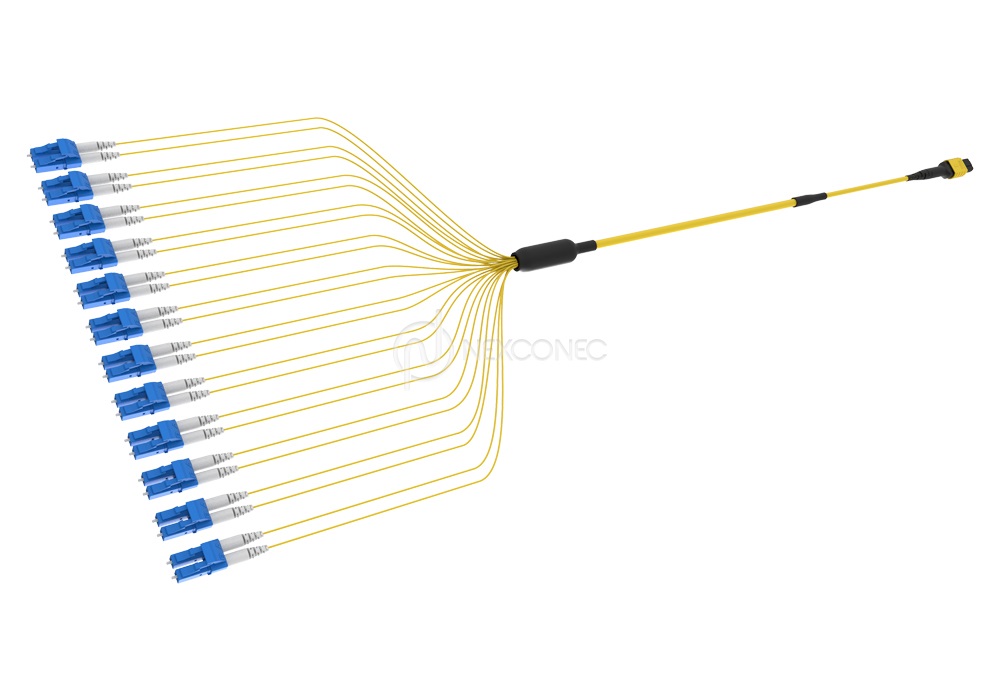

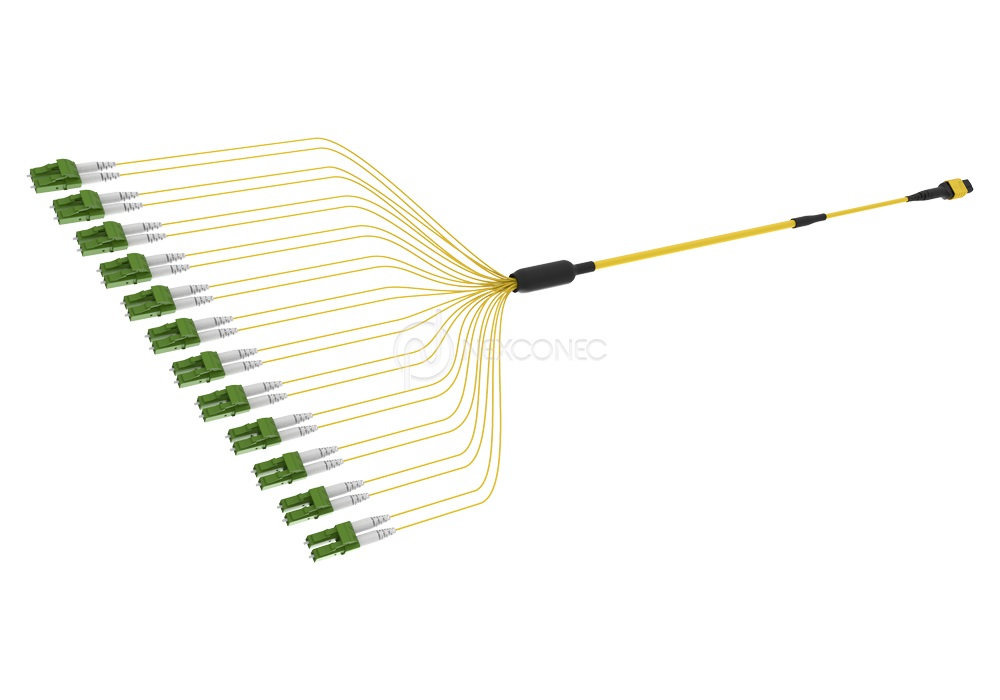

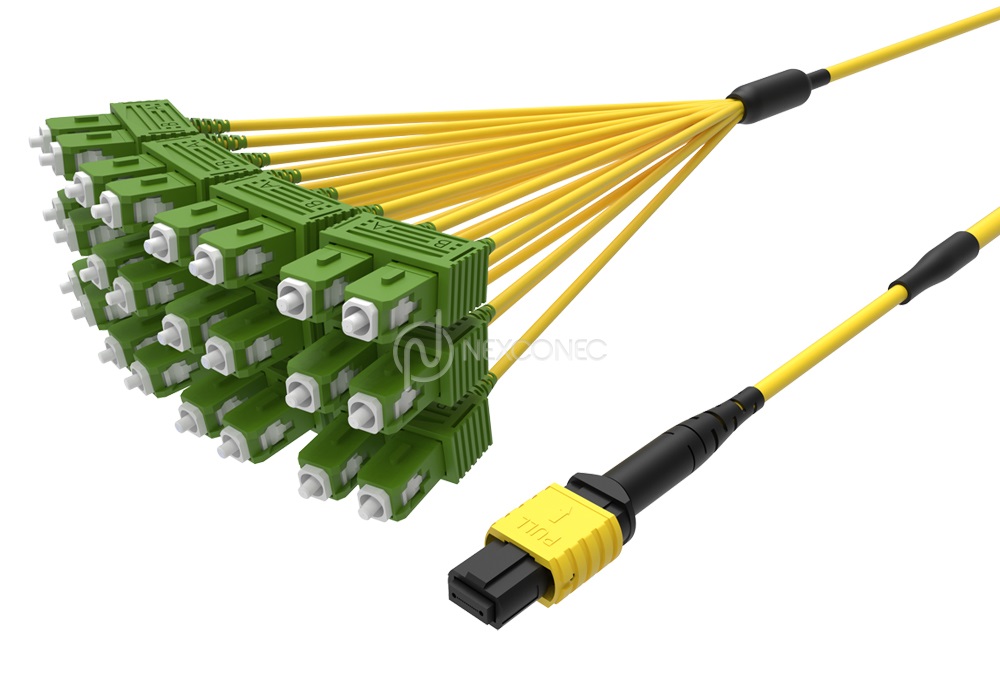

MTP®/MPO to LC/SC Fanouts Base-24

MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24 MTP LC Fan-out 24

NEXCONEC MTP/MPO Fanouts are small form factor high-density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The fanouts also can be used for transitions between high to low bandwidth equipment.

The Fanouts are available in Micro cable single and double jacket options suitable and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

FEATURES AND APPLICATIONS
  • Small factor breakout module from MTP/MPO to LC or SC tails 2.0mm SX, DX or Uniboot
  • Cable terminated with base-24 fiber MTP/MPO Connectors
  • Available in custom length and cable construction from 12 to 144 fibers
  • All Assemblies are factory tested and come with test certificate
  • CPR Euro classes certified on demand
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network

Product Information

pdfDATASHEET.pdf View Download
pdfTECHNICAL DRAWING.pdf View Download

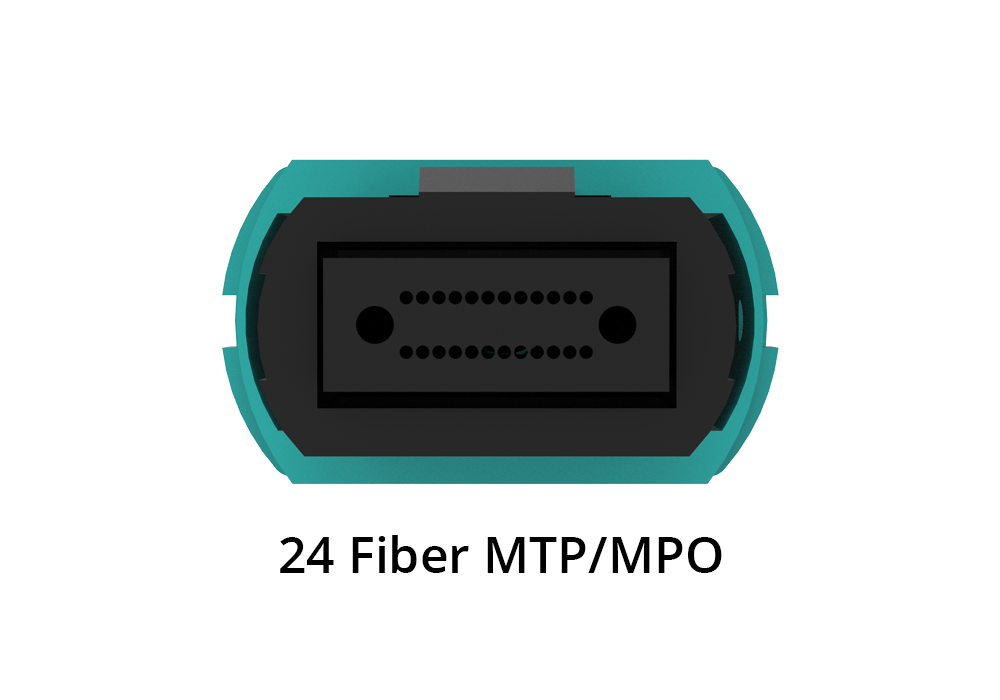

MTP/MPO CONNECTOR

Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.25 dB > 60 dB
SM – Premium 0.35 dB 0.10 dB > 60 dB
MM – Standard 0.60 dB 0.20 dB > 20 dB
MM – Premium 0.35 dB 0.10 dB > 20 dB

SINGLE FERRULE CONNECTOR

Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB

CABLE CHARACTERISTICS

Cable Characteristics Units Value
Cable Material LSZH /PVC
Strength Member Aramid/FRP
Cable Diameter mm Single jacket 12F/24F - 3.0
Double jacket 12F/24F - 4.5
Tensile Strength N Single jacket 12F/24F - 200/100
Double jacket 12F/24F - 400/150
Crush N/100mm Single jacket - 500
Double jacket - 1000
Operating Temperature ˚C -20 ~ +70
Minimum Bending Radius mm 10D (installed) / 20D (loaded)
CPR Reaction to Fire Classification Certified (12F– 3.0) Cca-s1a,d0,a1
(12F– 4.5) B2ca-s1a,d0,a1
(24F– 4.5) Cca-s1a,d0,a1

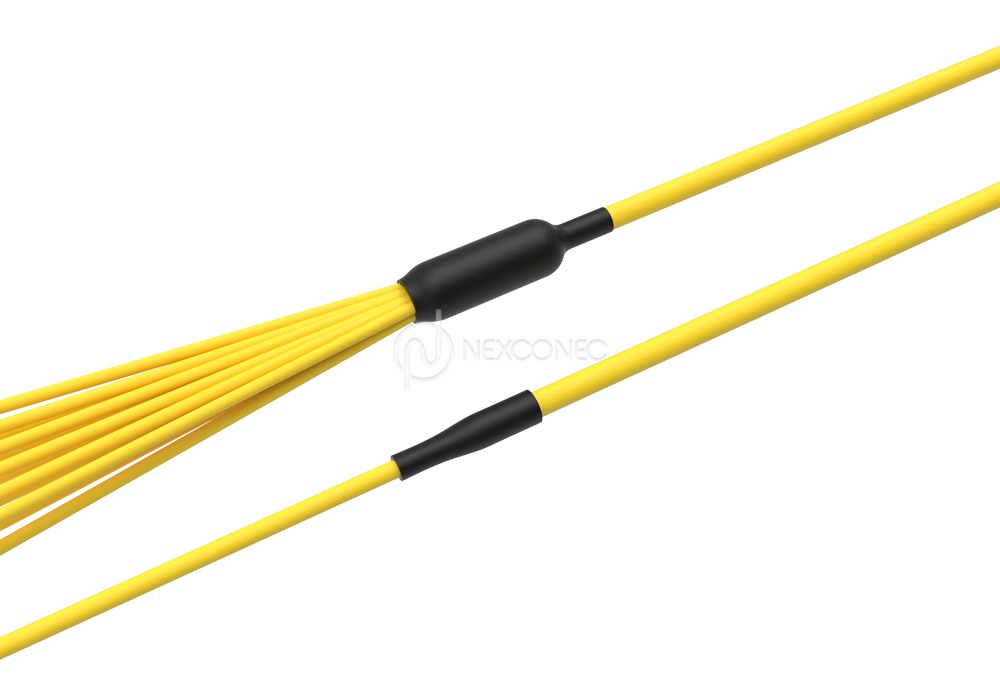

FANOUT CABLE CHARACTERISTICS

Cable Characteristics Units Simplex Duplex Round Duplex
Cable Material LSZH or PVC LSZH or PVC LSZH or PVC
Strength Member Aramid Aramid Aramid
Crush N 500 500 500
Operating Temperature ˚C -20 ~ +70 -20 ~ +70 -20 ~ +70
