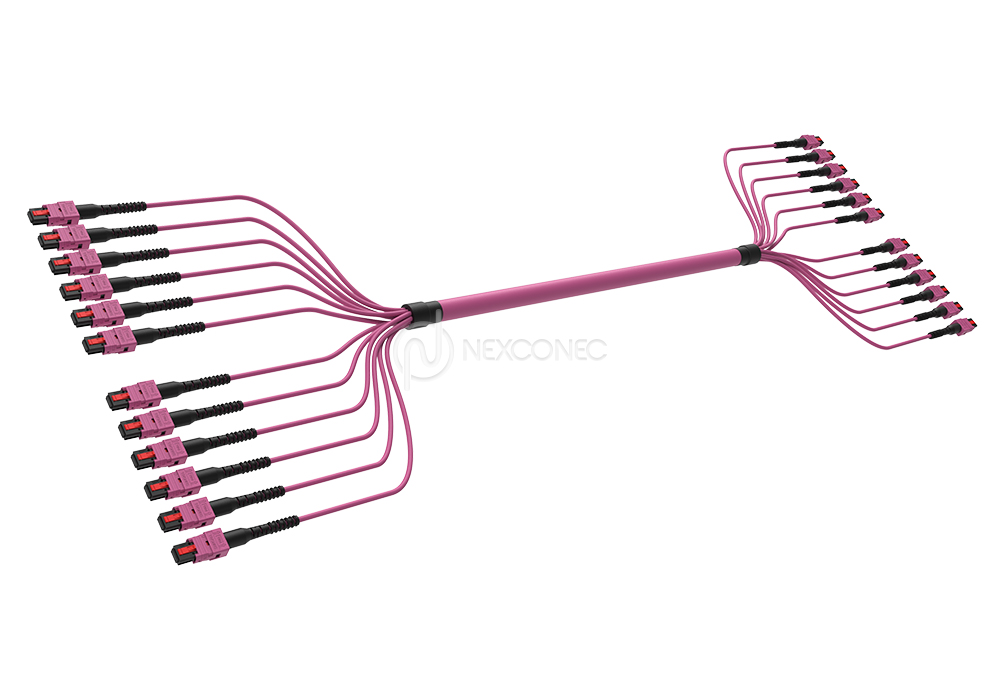

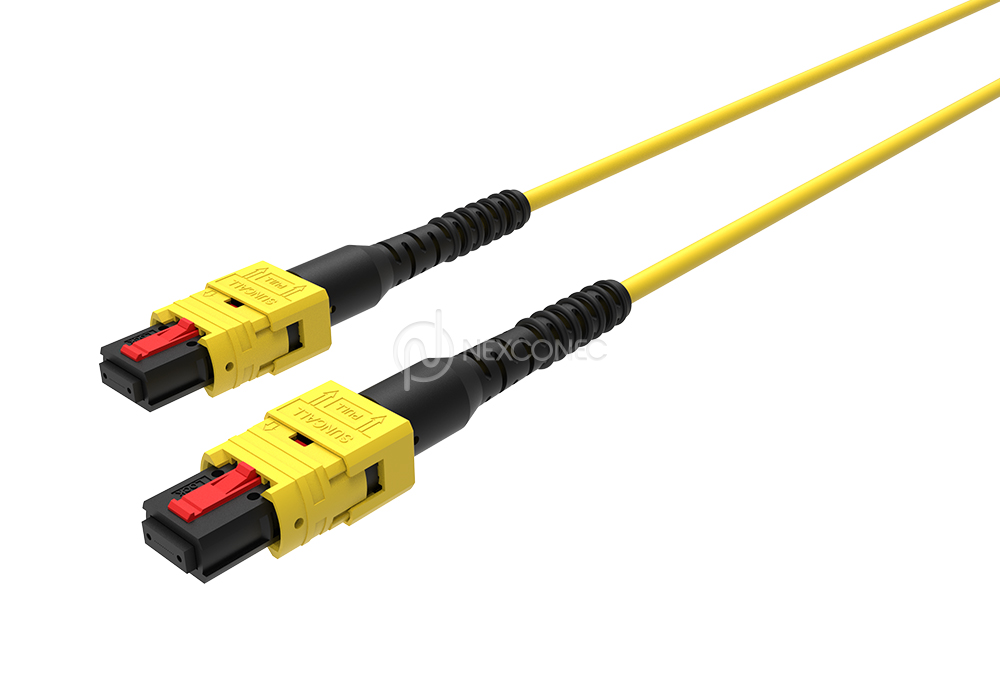

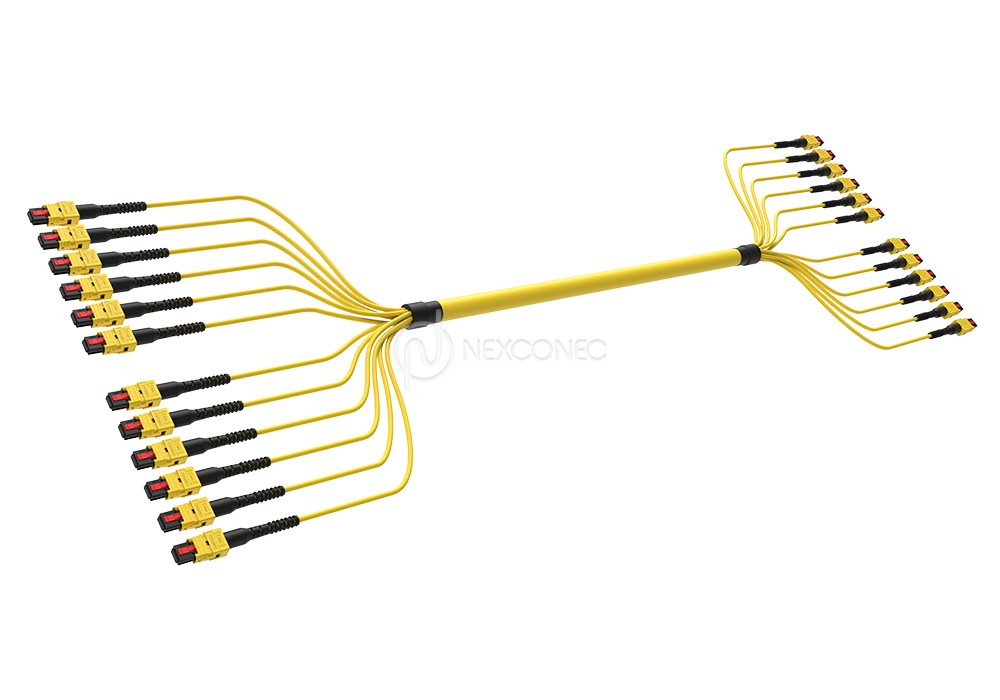

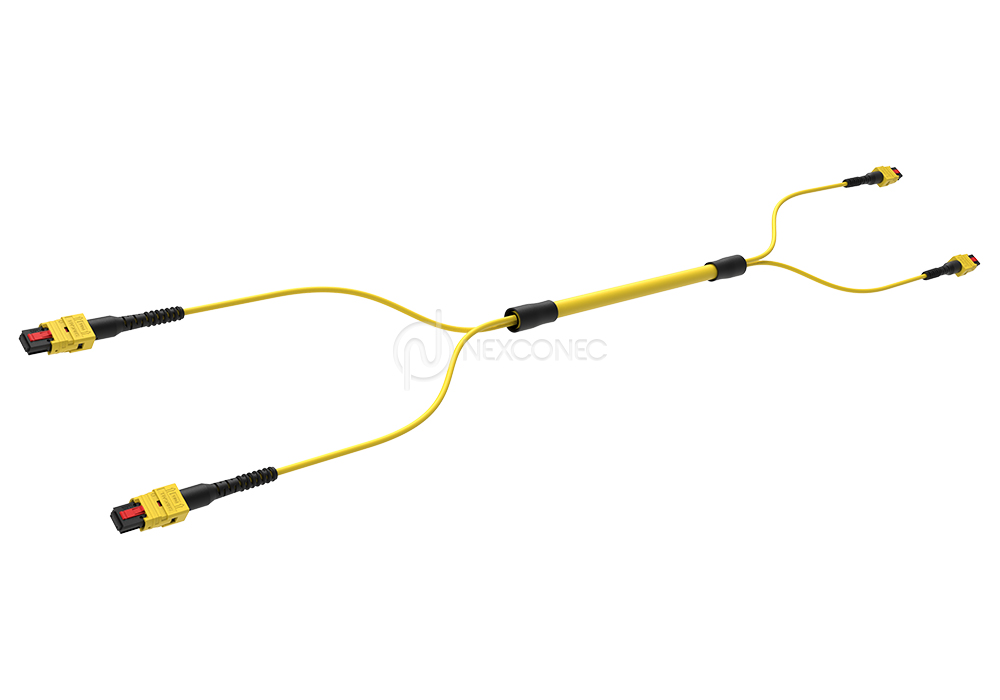

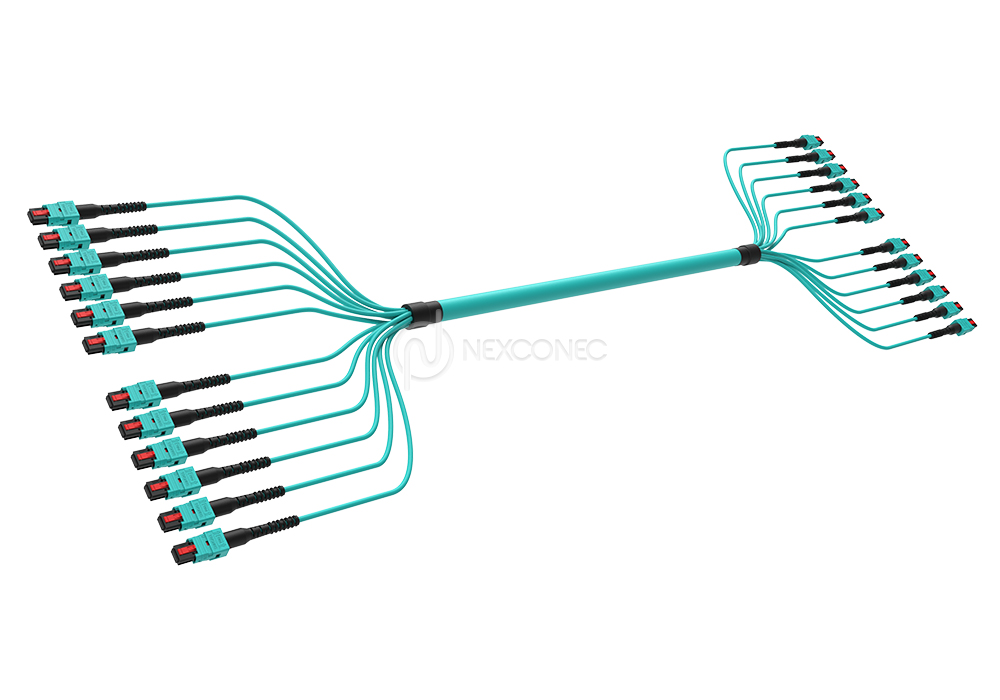

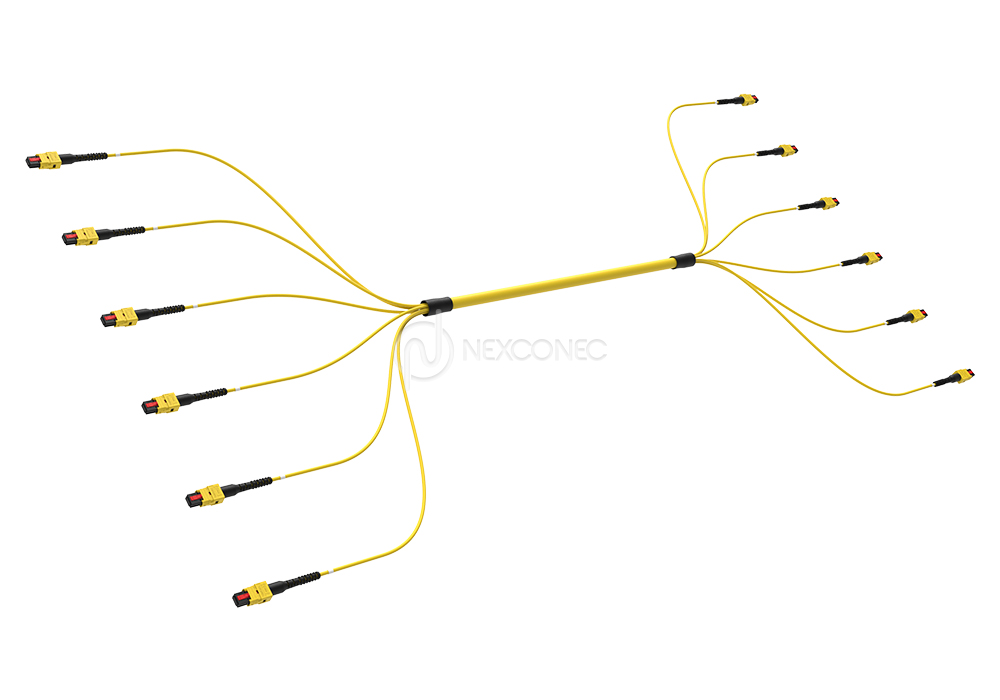

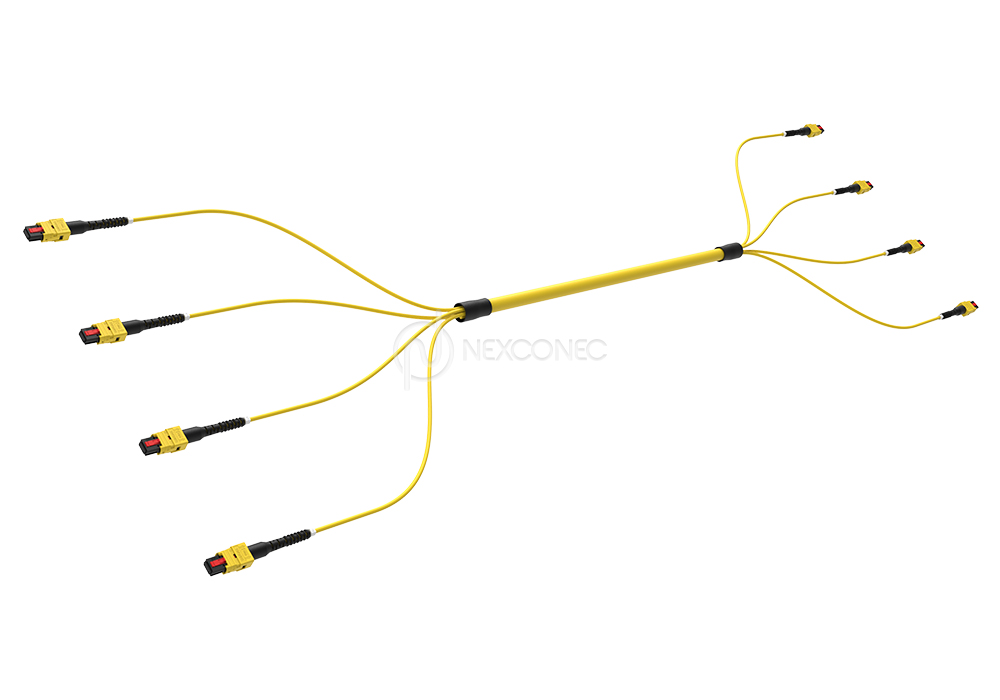

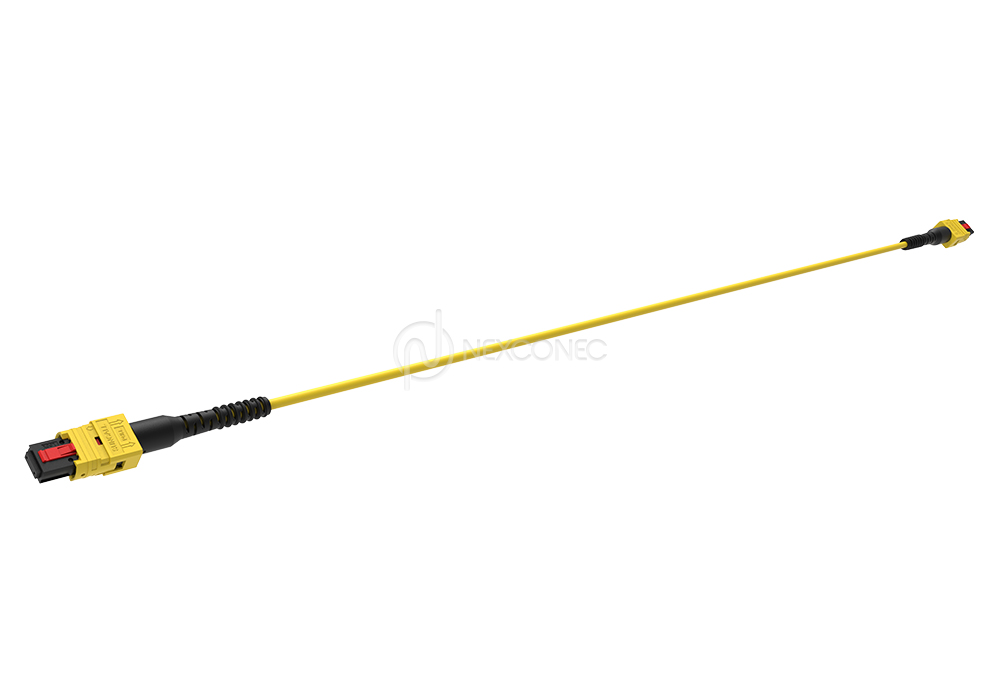

MTP®/MPO Pro Trunks Base-12
The NEXCONEC® MTP®/MPO PRO connector redefines MPO connectivity with its simplified field configurability, enhanced performance, and exceptional reliability. Designed for quick and efficient polarity and pin reconfiguration, it allows seamless adjustments in both field and factory settings without compromising product integrity. This innovative design minimizes installation time, reduces errors, and optimizes cabling inventory, leading to a more cost-effective and scalable fiber infrastructure. With a focus on performance, flexibility, and ease of use, the MTP®/MPO PRO connector ensures a future-ready solution for high-density fiber networks.
PRODUCT HIGHLIGHTS
- Reinforced pull boot connector, makes gender & polarity change faster
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing the highest quality
- Cable terminated with Base-12 fiber MTP®/MPO Pro Connectors
- Available in custom length and cable construction from 12 to 144 fibers
- CPR Euro classes certified on demand
FEATURES
- Reinforced pull boot connector, makes gender & polarity change faster
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing the highest quality

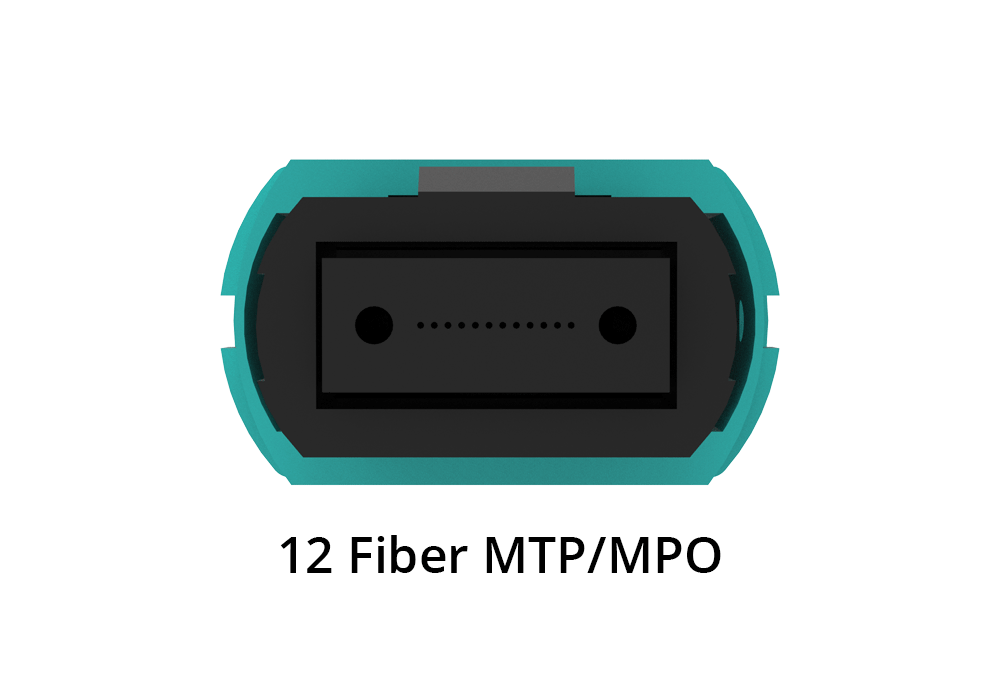

- Cable terminated with Base-12 fiber MTP®/MPO Pro Connectors
- Available in custom length and cable construction from 12 to 144 fibers
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- CPR Euro classes certified on demand
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Supports up to 100G applications
MTP®/MPO CONNECTOR SPECIFICATIONS
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
CABLE CHARACTERISTICS
| Parameters | Units | Value |
|---|---|---|
| Fiber Count | 16F | |
| Number of Fibers per Tube | 16 | |
| Number of Micro Tubes | 1 | |
| Outer Diameter | mm | Double jacket 16F – 4.5 |
| Tail Diameter | mm | 3.0 |
| Tensile Strength (Long Term) | N | 150 |
| Tensile Strength (Short Term) | N | 400 |
| Crush Resistance (Long Term) | N/100mm | 300 |
| Crush Resistance (Short Term) | N/100mm | 1000 |
| Min. Bending Radius | mm | 10D (Static) / 20D (Dynamic) |
| Cable Jacket Material | LSZH or PVC | |
| Strength Member | Kevlar, Aramid Yarn | |
| Storage Temperature | ˚C | -20 ~ +70 |
| Operating Temperature | ˚C | -20 ~ +70 |
| Installation Temperature | ˚C | -10 ~ +50 |
| Compliance | RoHS, REACH & SvHC | |
| CPR Reaction to Fire Classification | Certified | Cca-s1a,d0,a1 |
