MTP®/MPO QSFP 40G Trunks Base-8

QSFP Trunks QSFP Trunks QSFP Trunks QSFP Trunks QSFP Trunks QSFP Trunks QSFP Trunks QSFP Trunks

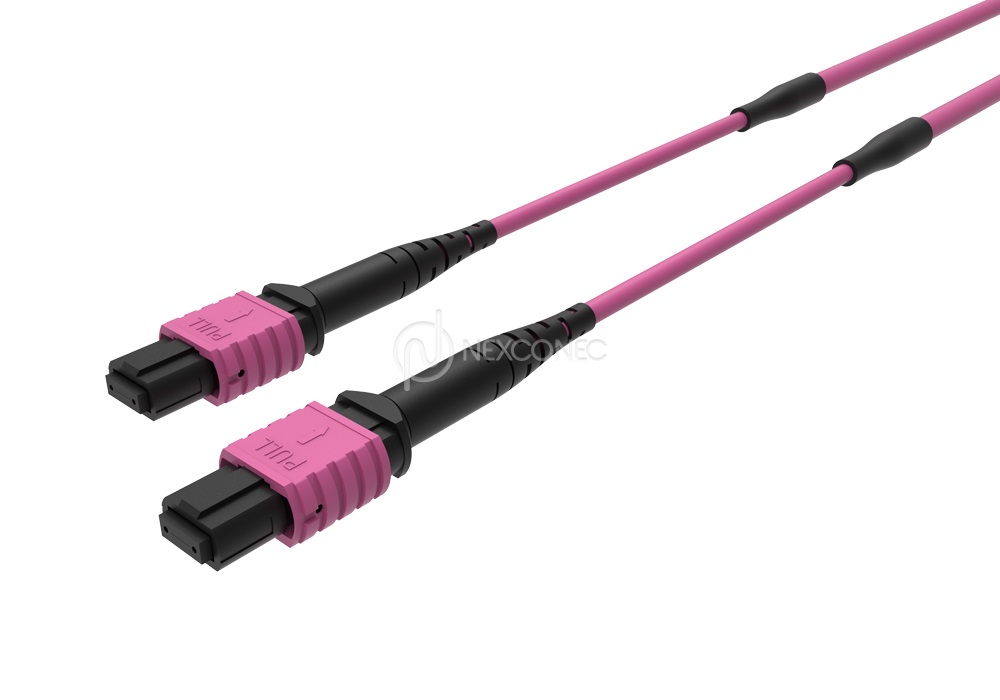

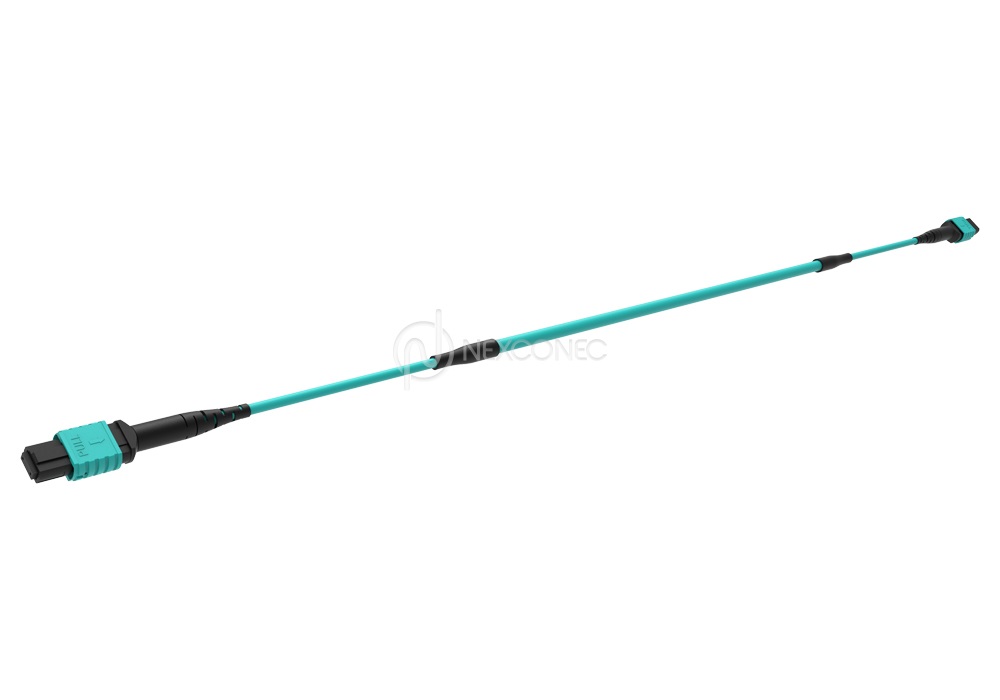

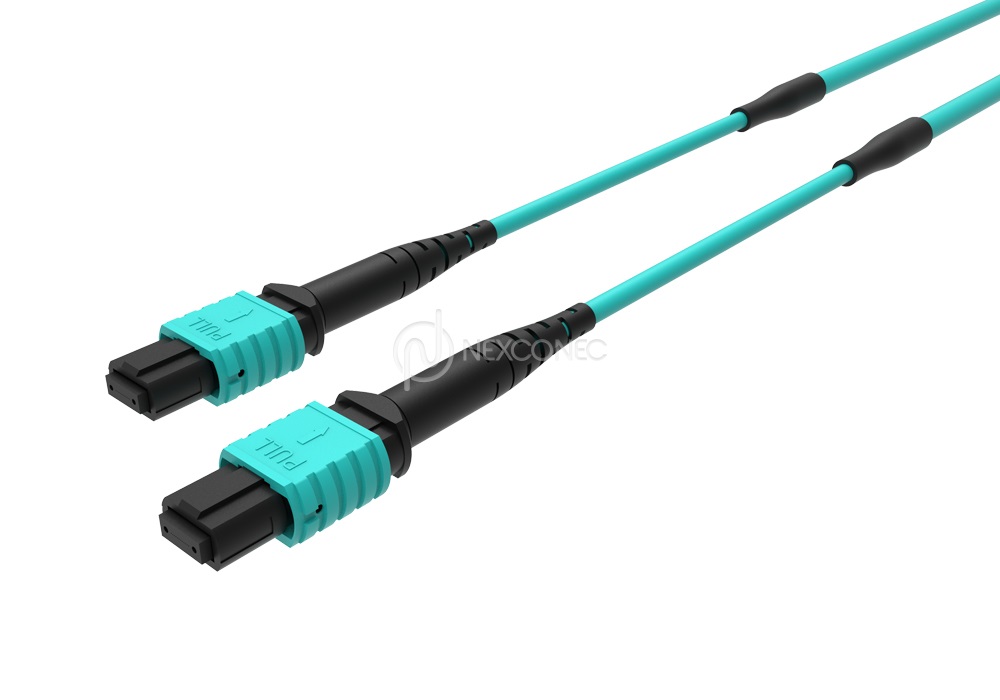

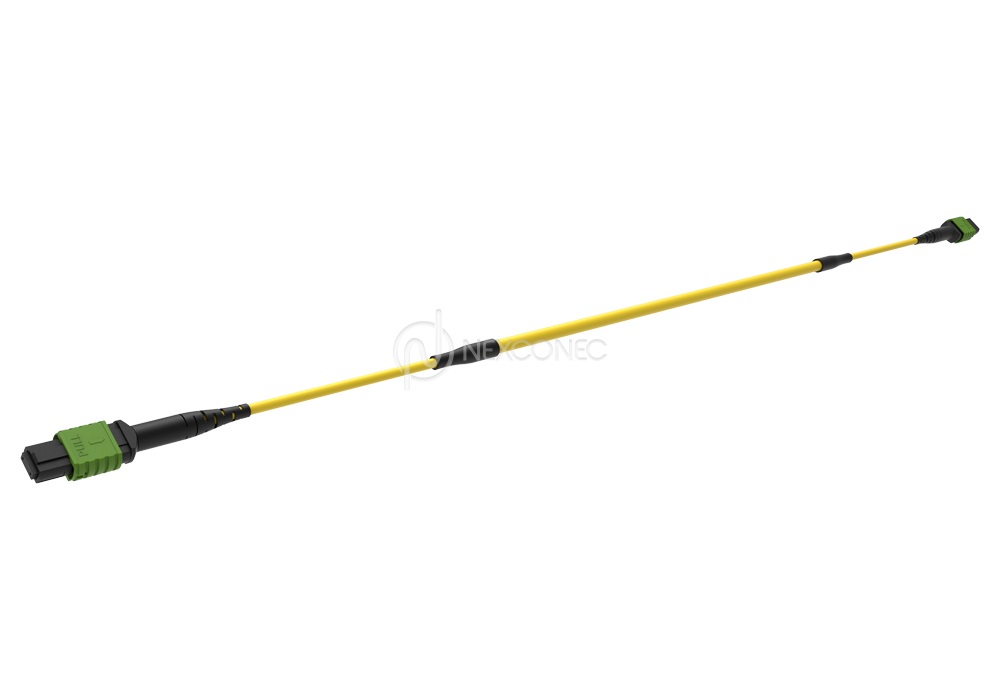

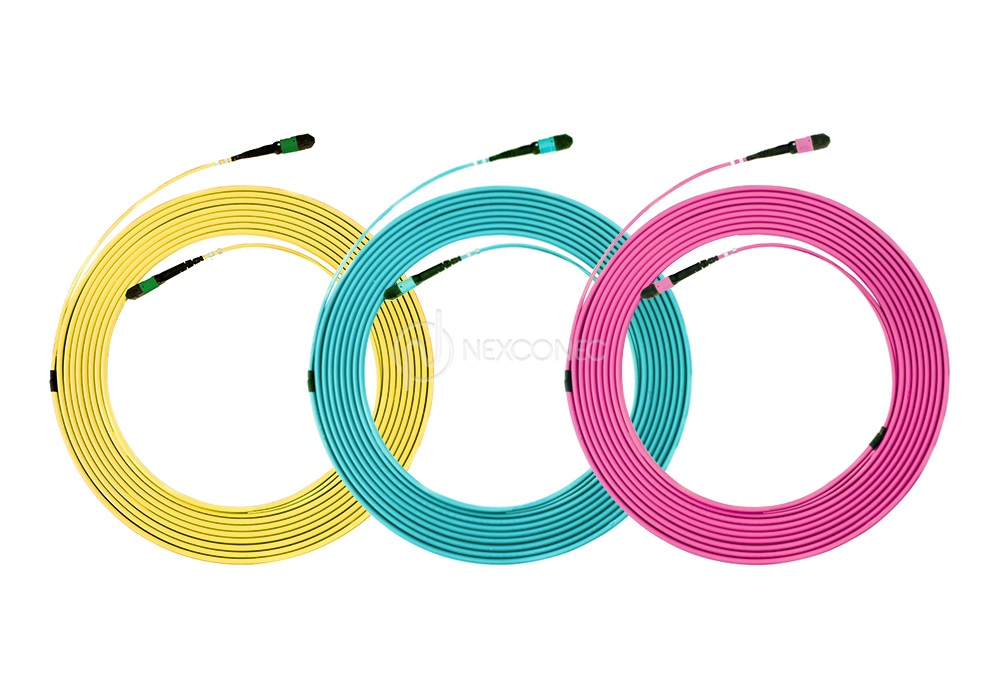

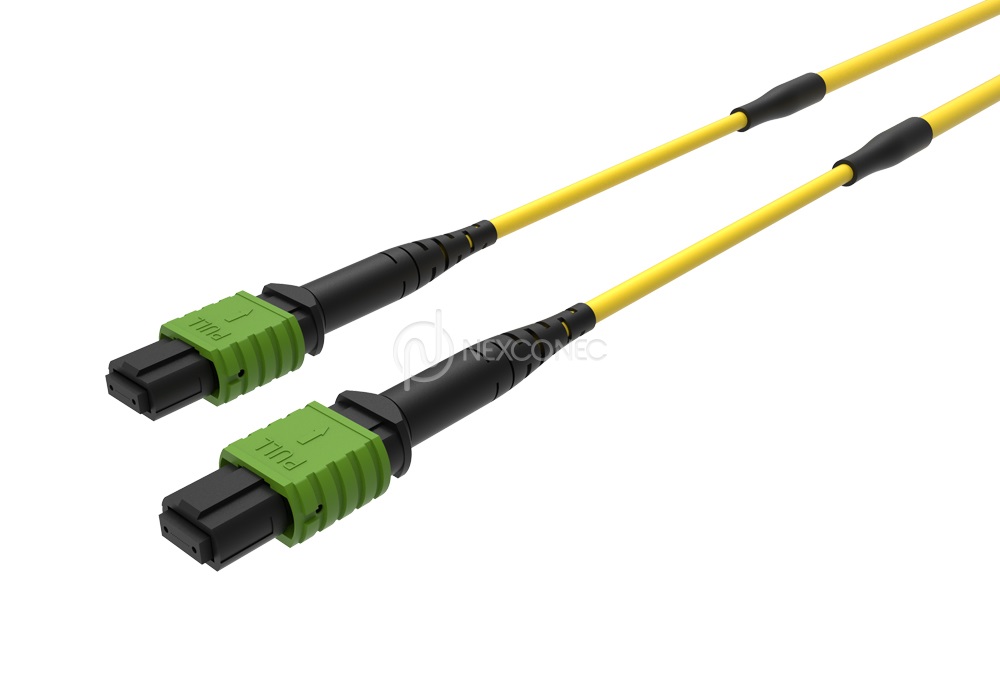

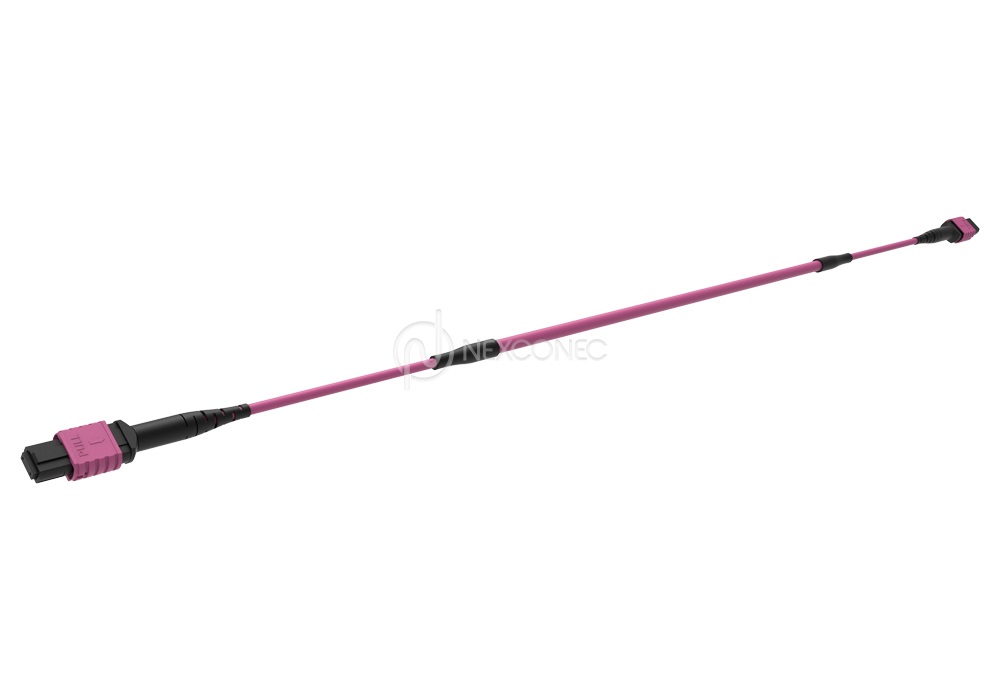

NEXCONEC MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are specifically designed for 40G & 100G applications to connect between equipment or to interconnect modules/panels in a data center. The Trunks are available in Micro cable double jacket and flat cable options suitable for pulling on trays. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

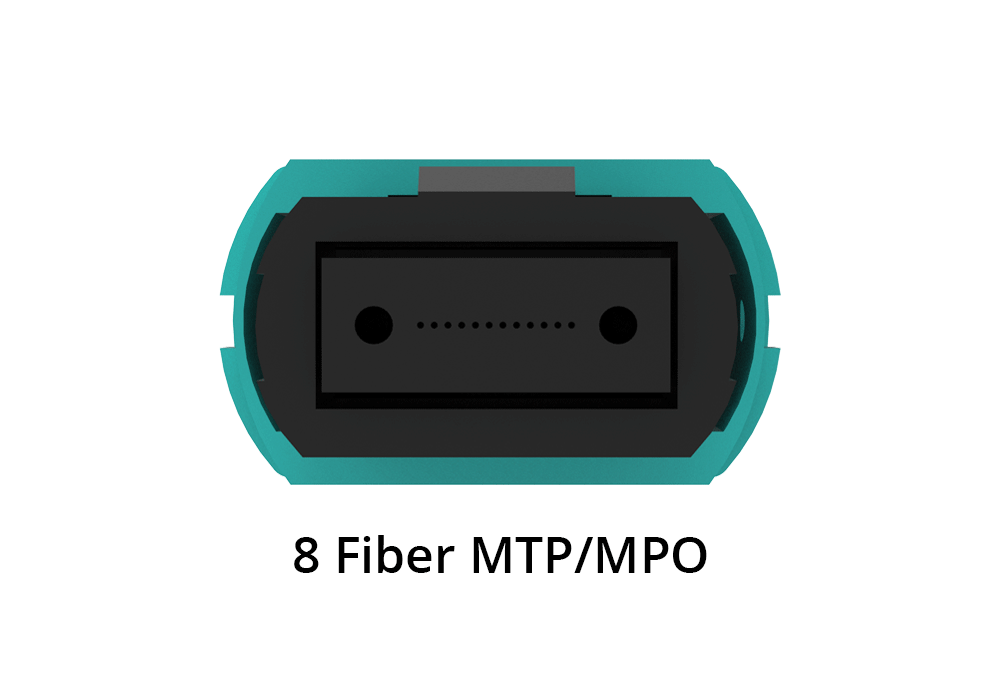

  • Cable terminated with base-8 fiber MTP/MPO Connectors
  • MPO push/pull release boot
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
  • Telecommunication networks
  • Data centers
  • Supports 40G & 100G applications

Product Information

pdfDATASHEET.pdf View Download
pdfTECHNICAL DRAWING.pdf View Download
Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.25 dB > 60 dB
SM – Premium 0.35 dB 0.10 dB > 60 dB
MM – Standard 0.60 dB 0.20 dB > 20 dB
MM – Premium 0.35 dB 0.10 dB > 20 dB
Cable Characteristics Units Microcable
Cable Material LSZH/PVC
Strength Member Aramid/FRP
Cable Diameter mm Single jacket 8F/12F/24F - 3.0
Double jacket 8F/12F/24F - 4.5
Tensile Strength N Single jacket 8F/12F/24F - 200/100
Double jacket 8F/12F/24F - 400/150
Crush N/100mm Single jacket - 500
Double jacket - 1000
Operating Temperature ˚C -20 ~ +70
Minimum Bending Radius mm 10D (installed) / 20D (loaded)
CPR Reaction to Fire Classification Certified (8F/12F– 3.0) Cca-s1a,d0,a1
(8F/12F– 4.5) B2ca-s1a,d0,a1
(24F– 4.5) Cca-s1a,d0,a1
