MTP®/MPO Slim Trunks Base-8 & Base-12

MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MPO Slim Trunks
MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks MTP-MPO Slim Trunks

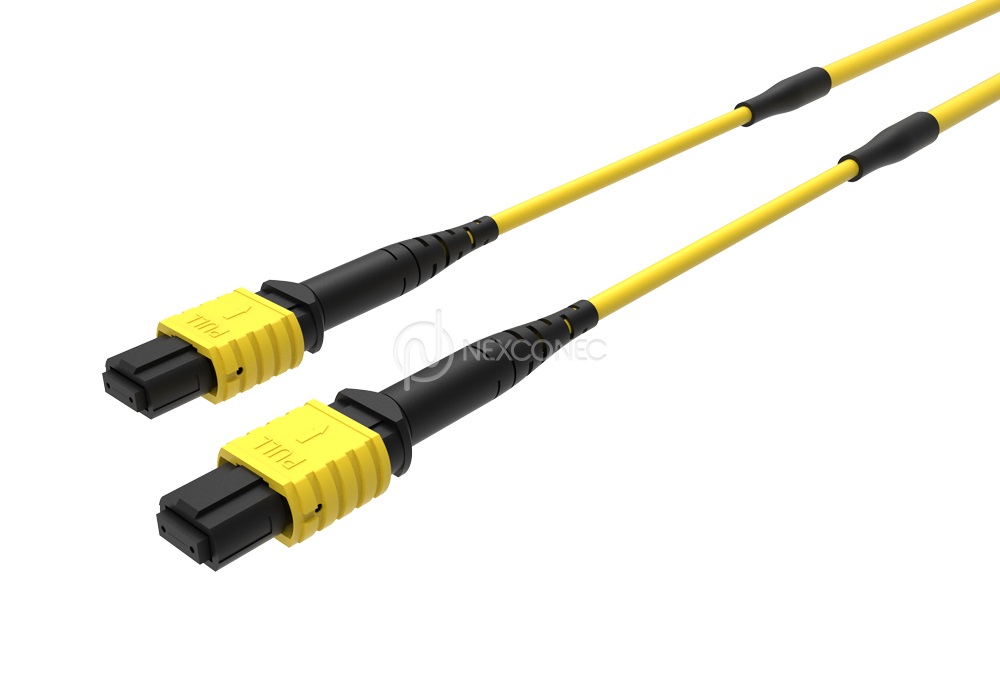

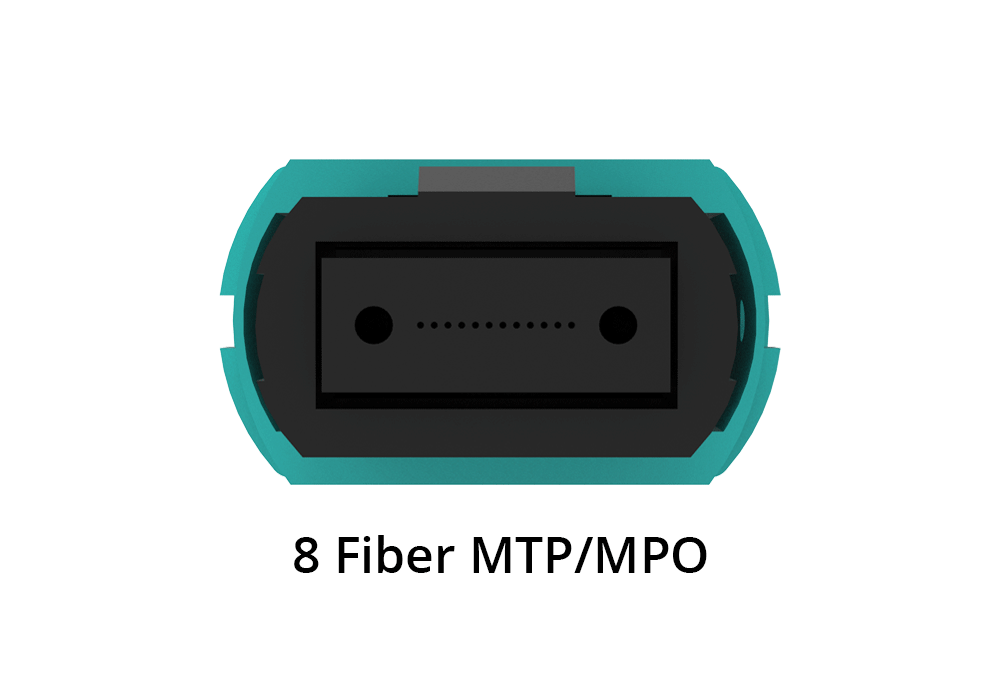

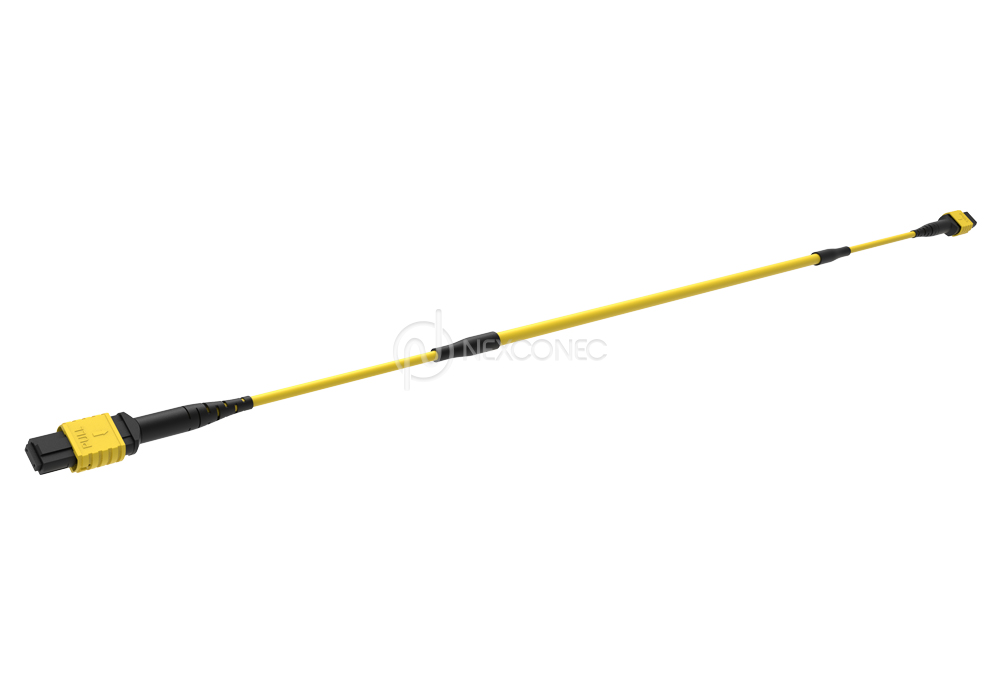

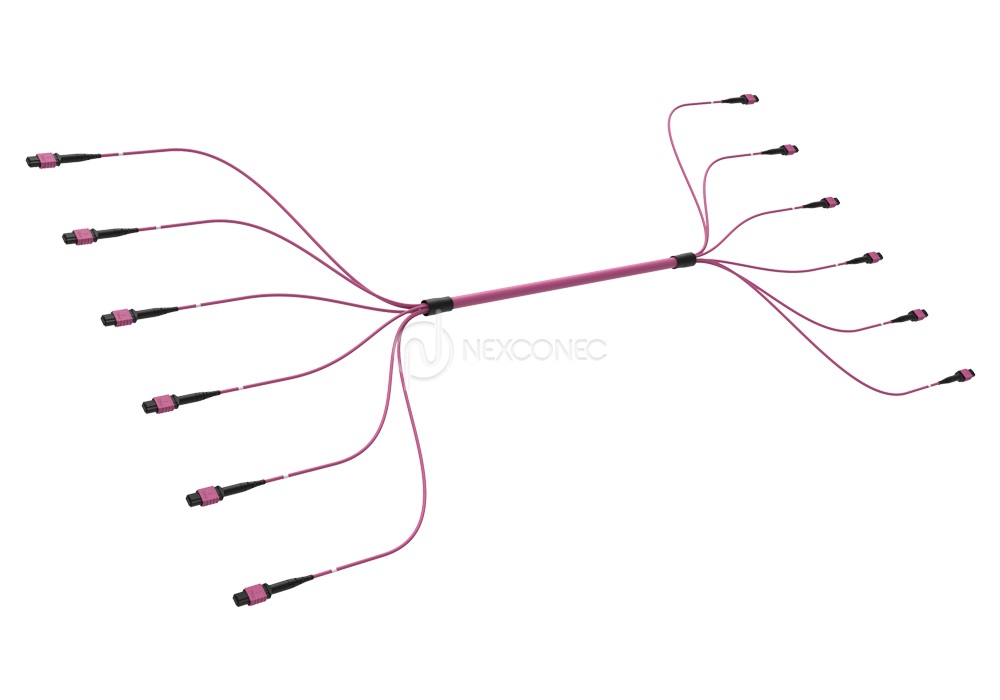

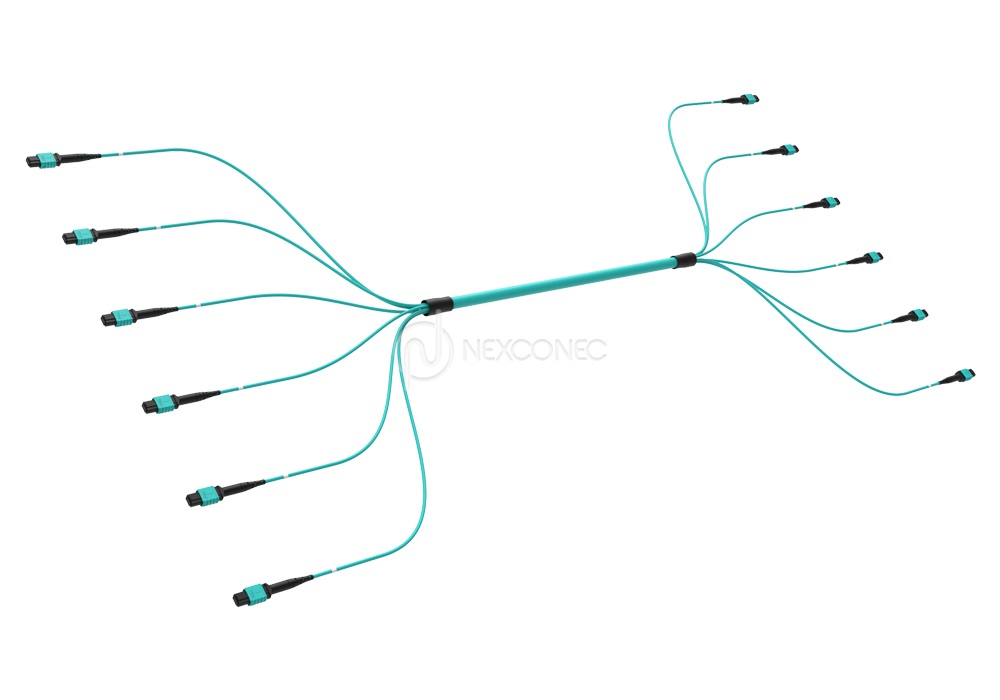

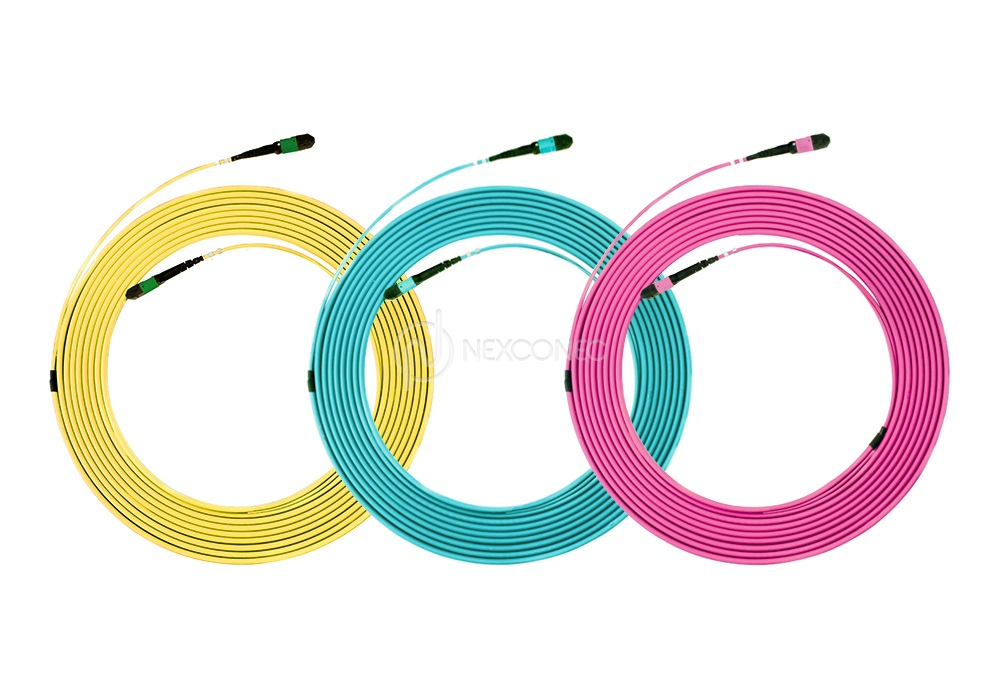

NEXCONEC® MTP®/MPO Slim Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP®/MPO Slim Trunks are suitable for up to 800G applications to connect between equipment or to interconnect modules/panels in a data center. Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.

The MTP®/MPO connectors are available in Standard, Elite and Super Low Loss versions to cater customer’s power budget requirements.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

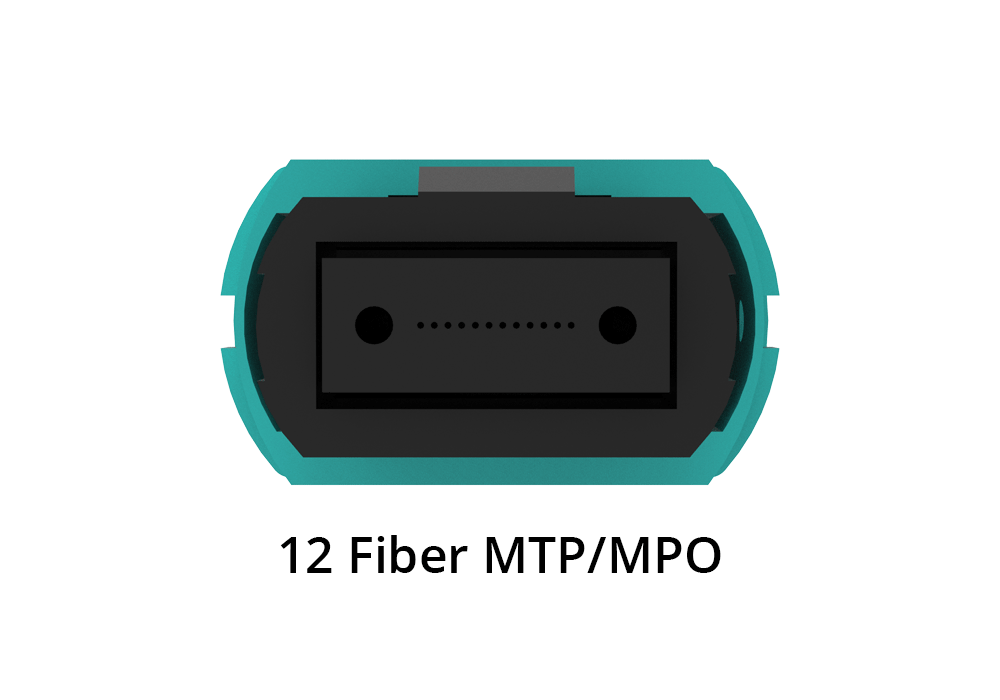

  • Cable terminated with base-12 fiber MTP®/MPO Connectors
  • MPO push/pull release boot (only available in Standard and Elite versions)

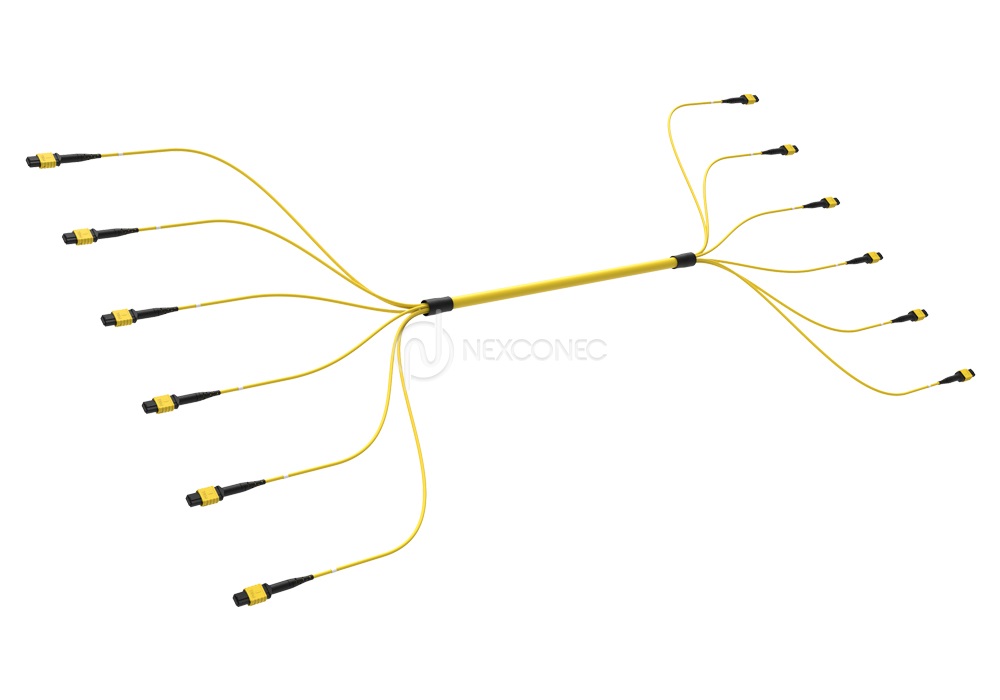

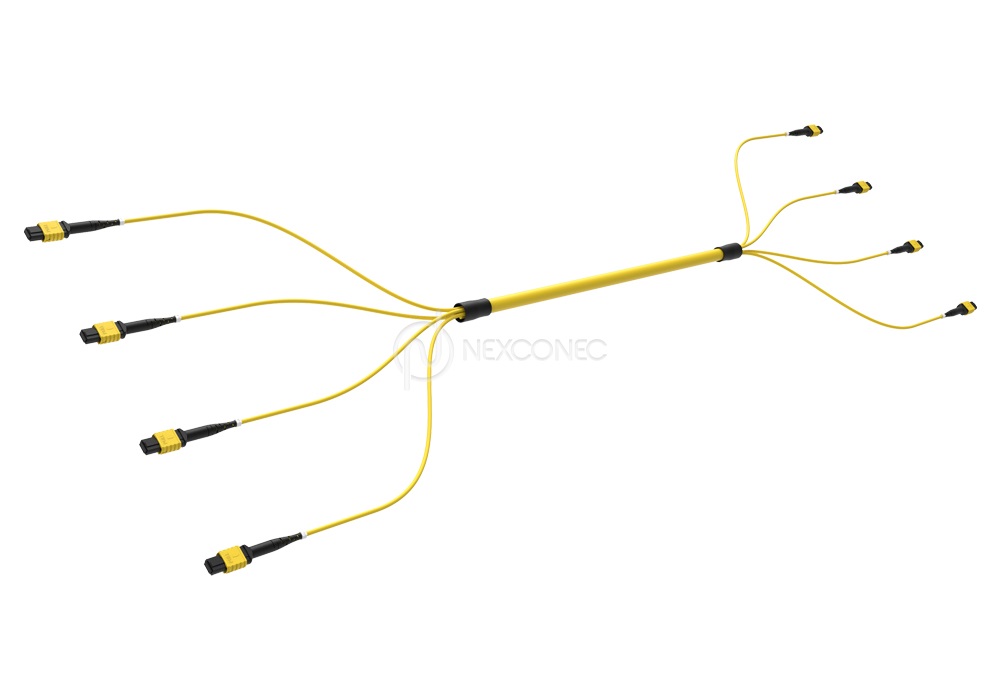

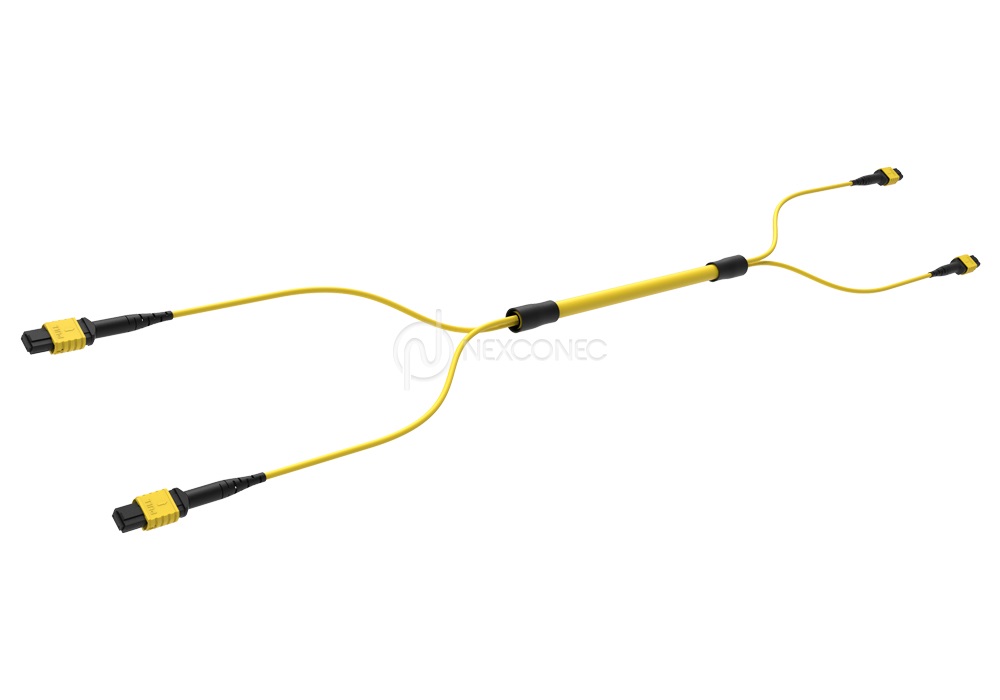

  • Available in custom length and cable construction from 8 to 144 fibers
  • All Assemblies are factory tested and come with test certificate
  • CPR Euro classes certified on demand

Product Information

pdfDATASHEET.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality
  • Cable terminated with base-12 fiber MTP®/MPO Connectors
  • MPO push/pull release boot (only available in Standard and Elite versions)
  • Available in custom length and cable construction from 8 to 144 fibers
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
APPLICATIONS
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network
  • Supports up to 800G applications
Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.40 dB > 60 dB
SM – Premium 0.35 dB 0.20 dB > 60 dB
MM – Standard 0.60 dB 0.40 dB > 20 dB
MM – Premium 0.35 dB 0.20 dB > 20 dB
Cable Characteristics Units Microcable
111111111 22222222 333333333
