MTP®/MPO Trunks 1x(Base-24) to 2x(Base-12)

MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12) MTP/MPO Trunks 1x(Base-24) to 2x(Base-12)

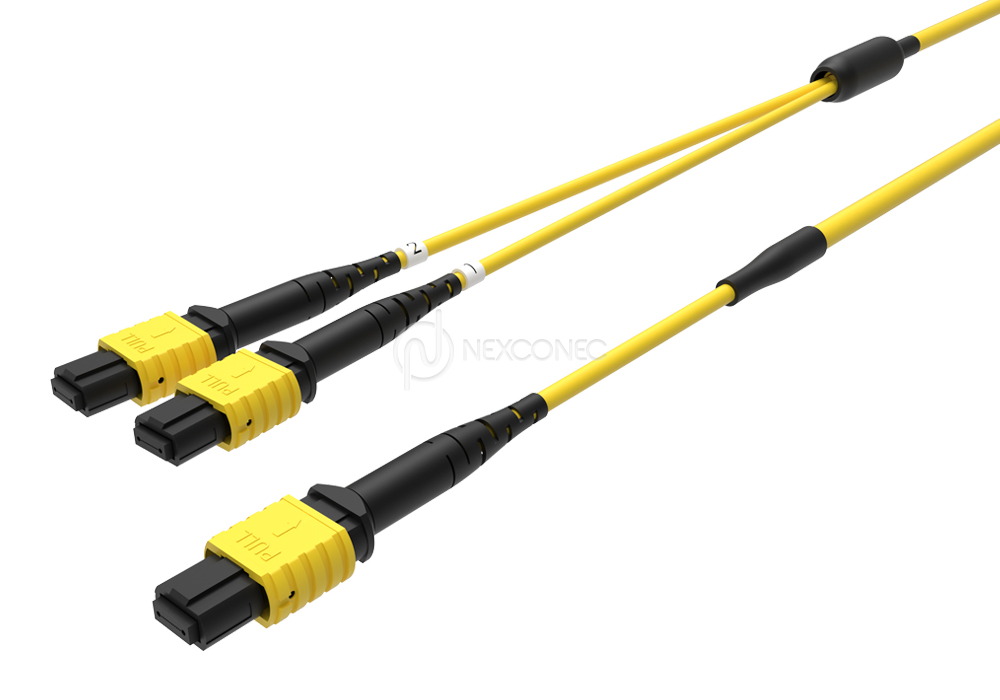

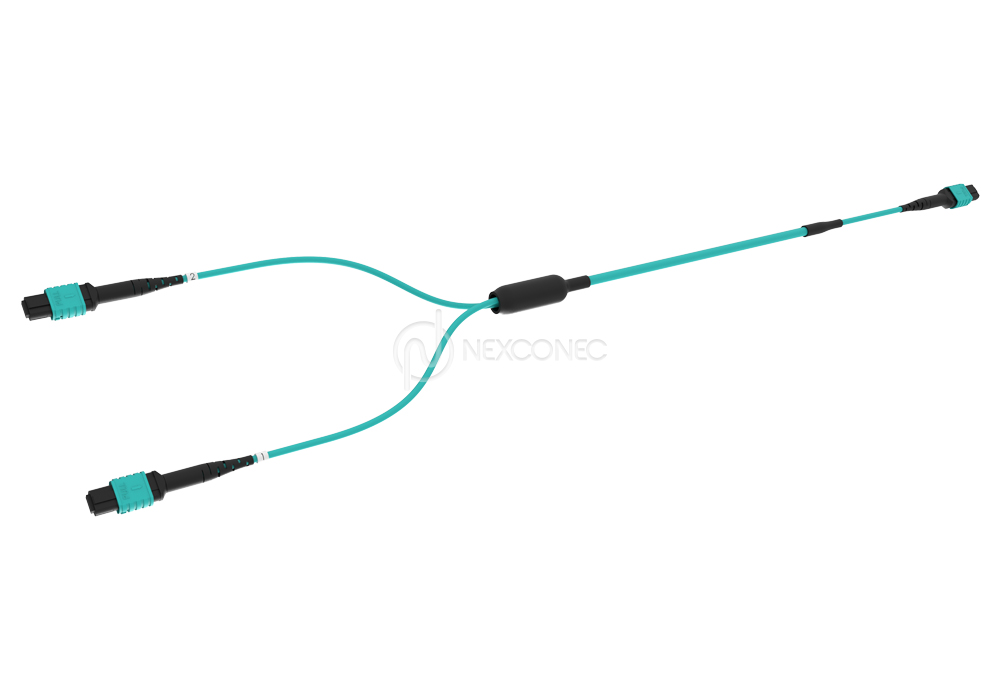

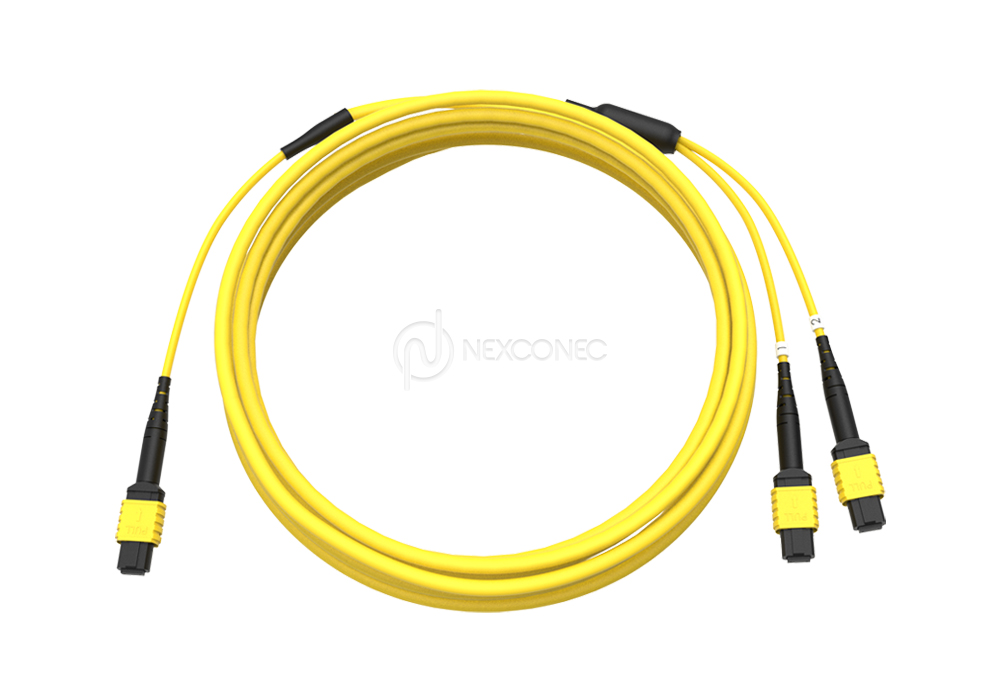

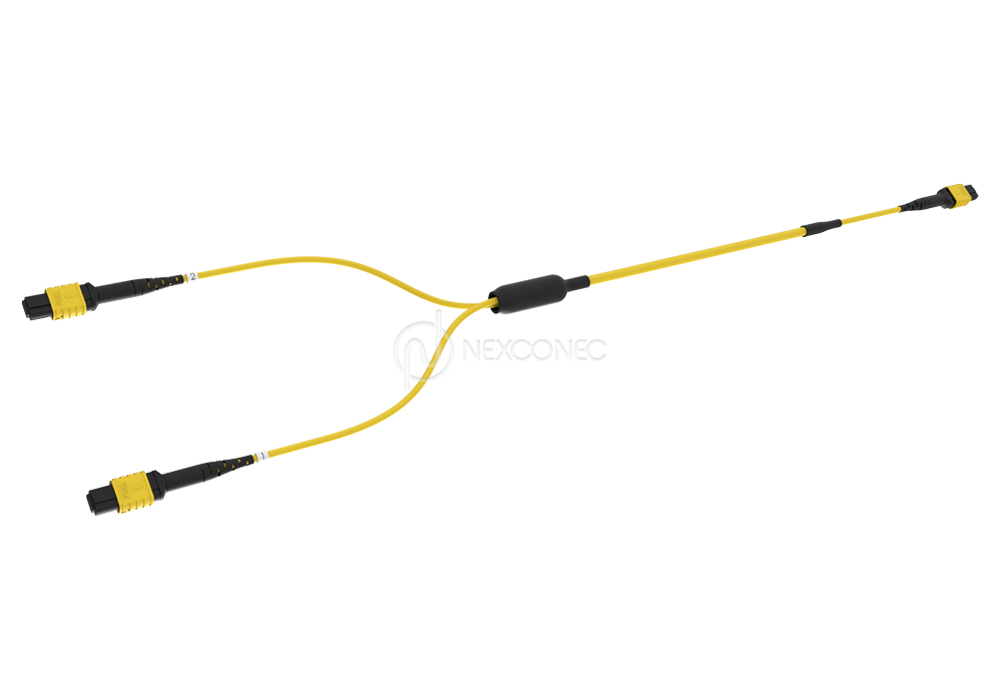

The NEXCONEC® MTP®/MPO Trunks are compact, high-density fiber connector assemblies designed for use in high-density environments. These trunks are ideal for connecting equipment or interconnecting modules/panels in data center applications up to 100G. Our MTP®/MPO connectors come in both Standard and Elite versions to accommodate the varying power budget needs of our customers.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

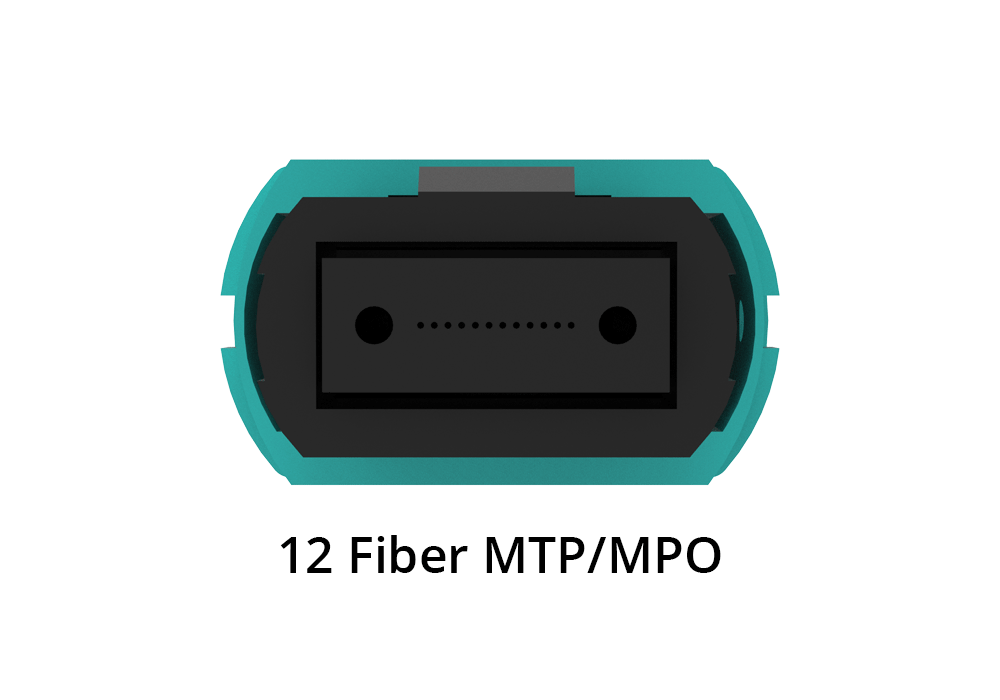

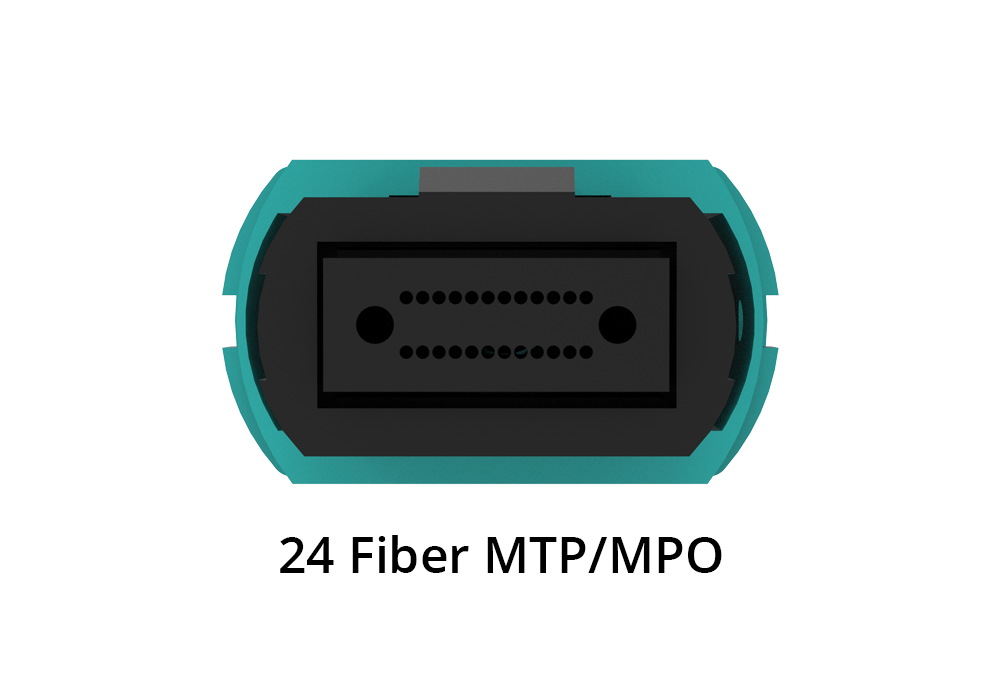

  • Cable terminated with 1x (base-24) & 2x (base-12) fiber MTP®/MPO Connectors
  • MPO push/pull release boot
  • Available in custom length and cable construction is 24 fibers
  • CPR Euro classes certified on demand
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality
  • Cable terminated with 1x (base-24) & 2x (base-12) fiber MTP®/MPO Connectors
  • MPO push/pull release boot
  • Available in custom length and cable construction is 24 fibers
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
APPLICATIONS
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network
  • Supports up to 100G applications

MTP®/MPO CONNECTOR SPECIFICATIONS

Parameters IL – Max IL – Typical RL
SM – Standard 0.75 dB 0.25 dB > 60 dB
SM – Premium 0.35 dB 0.10 dB > 60 dB
MM – Standard 0.60 dB 0.20 dB > 20 dB
MM – Premium 0.35 dB 0.10 dB > 20 dB

CABLE CHARATERISTICS

Parameters Units Value
Fiber Count 24F
Number of Fibers per Tube 24
Number of Micro Tubes 1
Outer Diameter mm 4.5
Tail Diameter mm 3.0
Tensile Strength (Long Term) N 150
Tensile Strength (Short Term) N 400
Crush Resistance (Long Term) N/100mm 300
Crush Resistance (Short Term) N/100mm 1000
Min. Bending Radius mm 10D (Static) / 20D (Dynamic)
Cable Jacket Material LSZH or PVC
Strength Member Kevlar, Aramid Yarn
Storage Temperature ˚C -20 ~ +70
Operating Temperature ˚C -20 ~ +70
Installation Temperature ˚C -10 ~ +50
Compliance RoHS, REACH & SvHC
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Ask Sales for Order Details: sales[at]nexconec.com
